Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

13 part groups · 2 illustrations

Illustrations

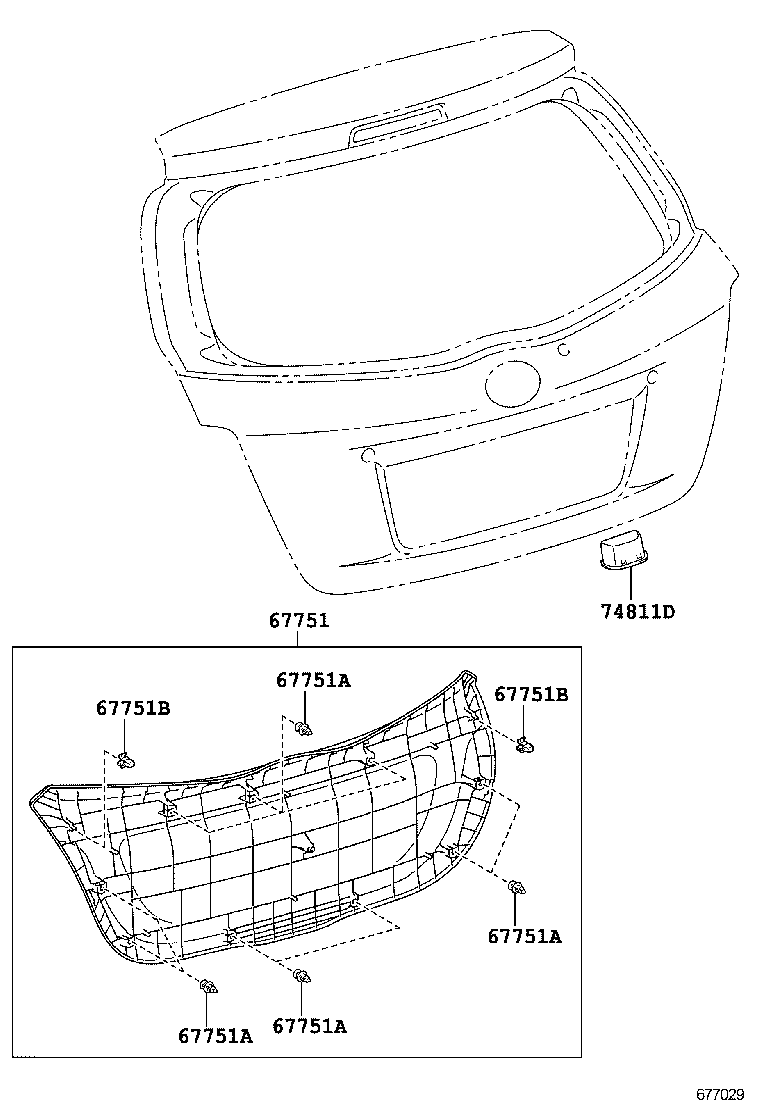

Figure 677028D 677028D 2011-07 → — Figure 677029 677029 2011-07 → —

Part groups

PNCDescription
64813B Dam, Back Window Glass Adhesive
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67372A Weight, Back Door
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67751B Retainer(FOR BACK DOOR TRIM BOARD)
67881A Weatherstrip, Back Door
67893A Protector, Back Door Panel, NO.1
67894B Protector, Back Door Panel, NO.2
68131 Glass, Back Door
74811D Handle, Door Pull
81952D Cover, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
