Toyota Yaris/Hybrid (FRP)
2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe
Supported model
Data version 2015-01

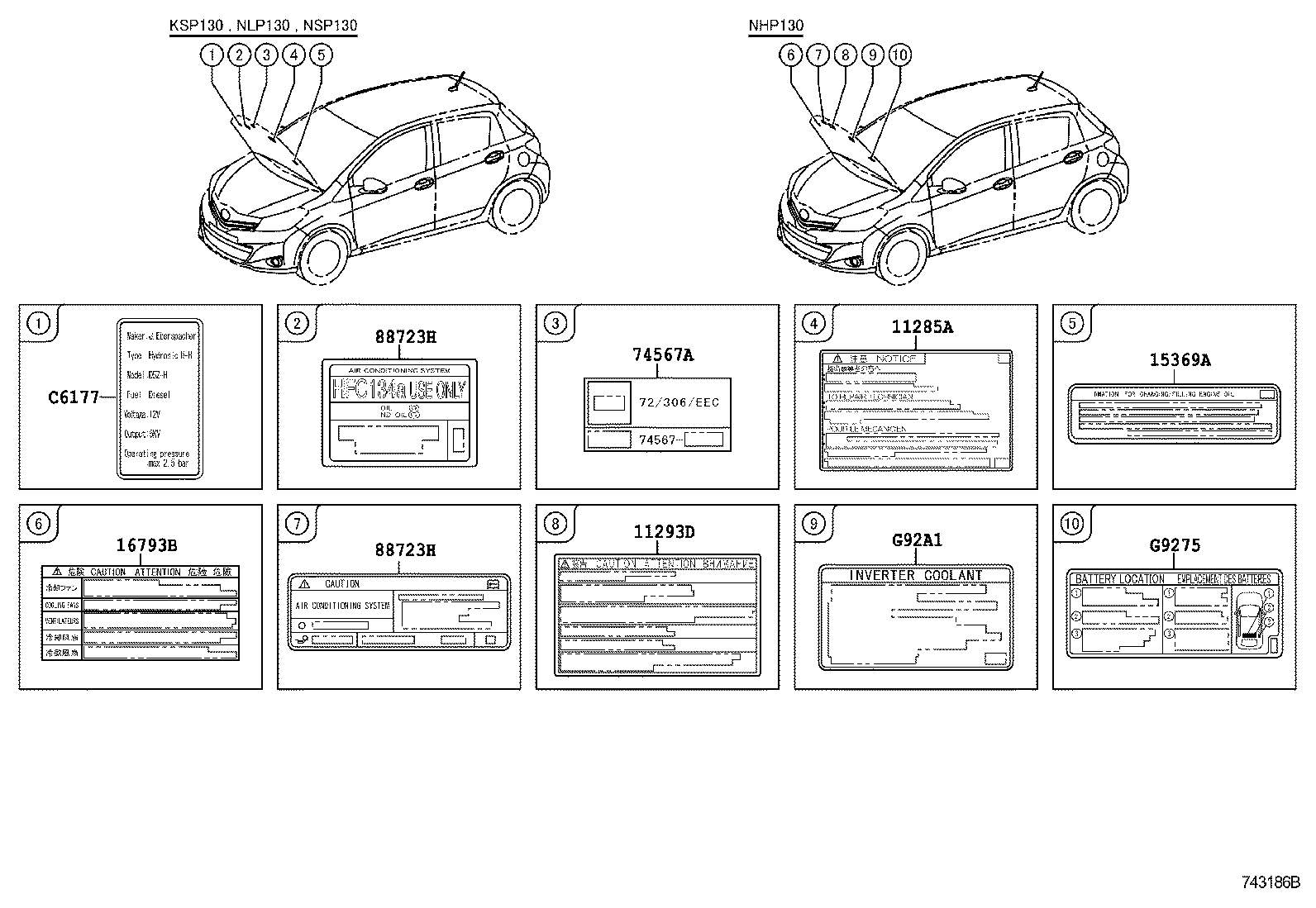

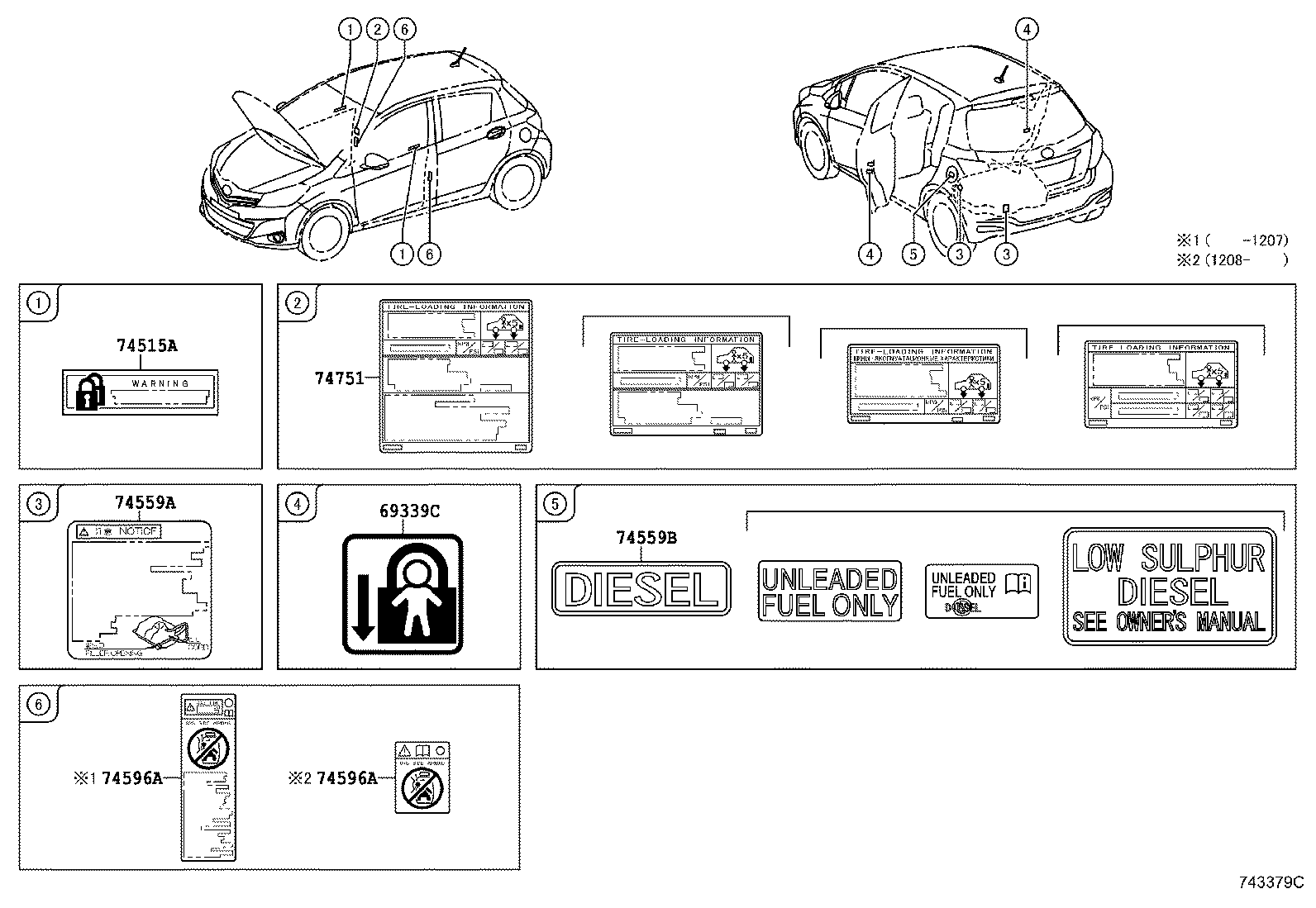

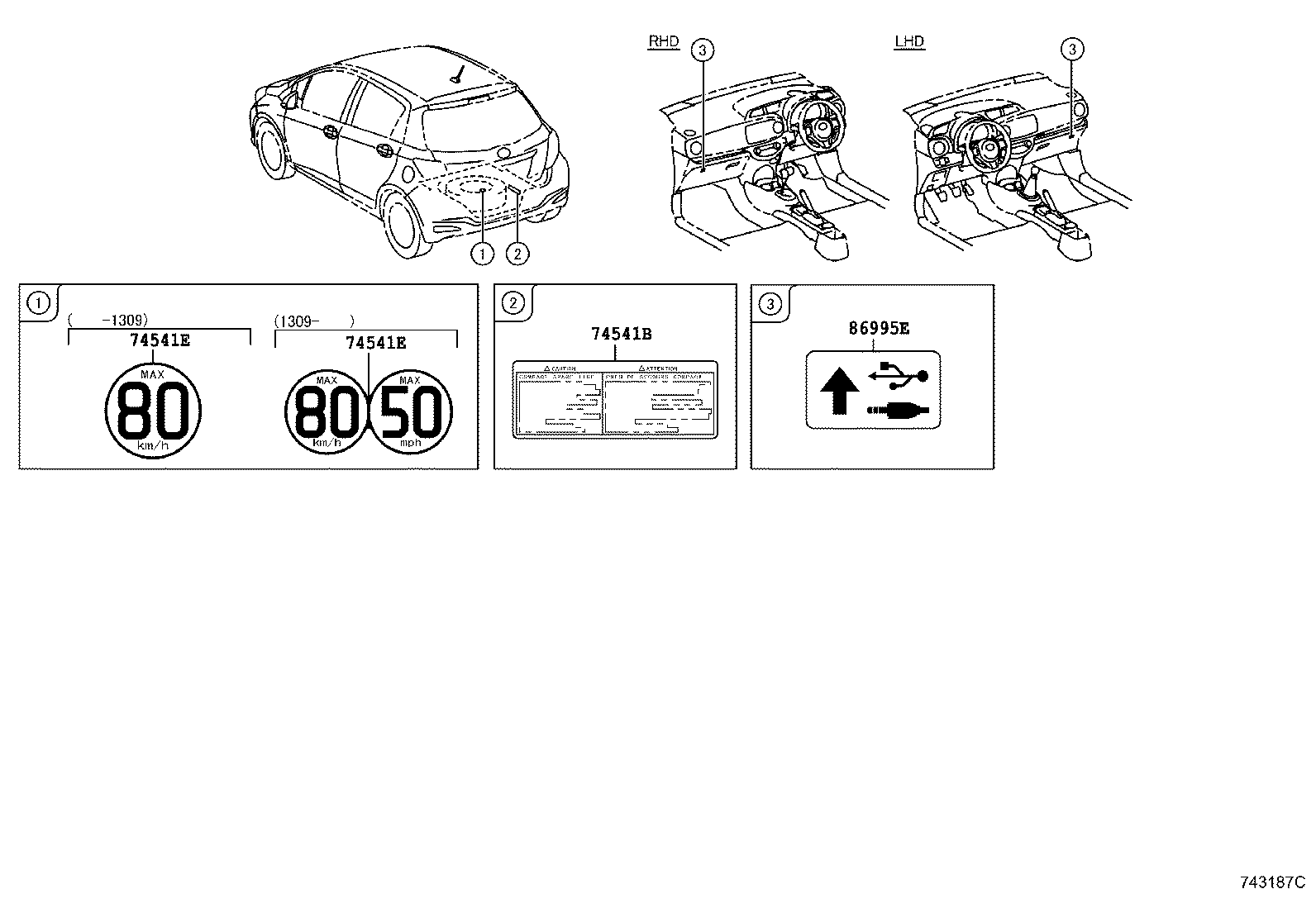

Caution Plate (EXTERIOR & INTERIOR)
22 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11295B | Label, Engine Service Notice, NO.1 |
| 15369A | Label, Engine Oil Information |
| 16793B | Label, Cooling Fan Information |
| 16793E | Label, Cooling Fan Caution |
| 47288 | Label, Brake Fluid Notice |
| 69339C | Label, Child Protector Information |
| 74501B | Label Set, Caution |
| 74515A | Plate, Theft Warning |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74567A | Plate, E.C.E Approved Number |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 86995E | Label, Caution |
| 88723H | Label, Cooler Service Caution |
| C6177 | Label, Heater Notice |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
