Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

19 part groups · 2 illustrations

Illustrations

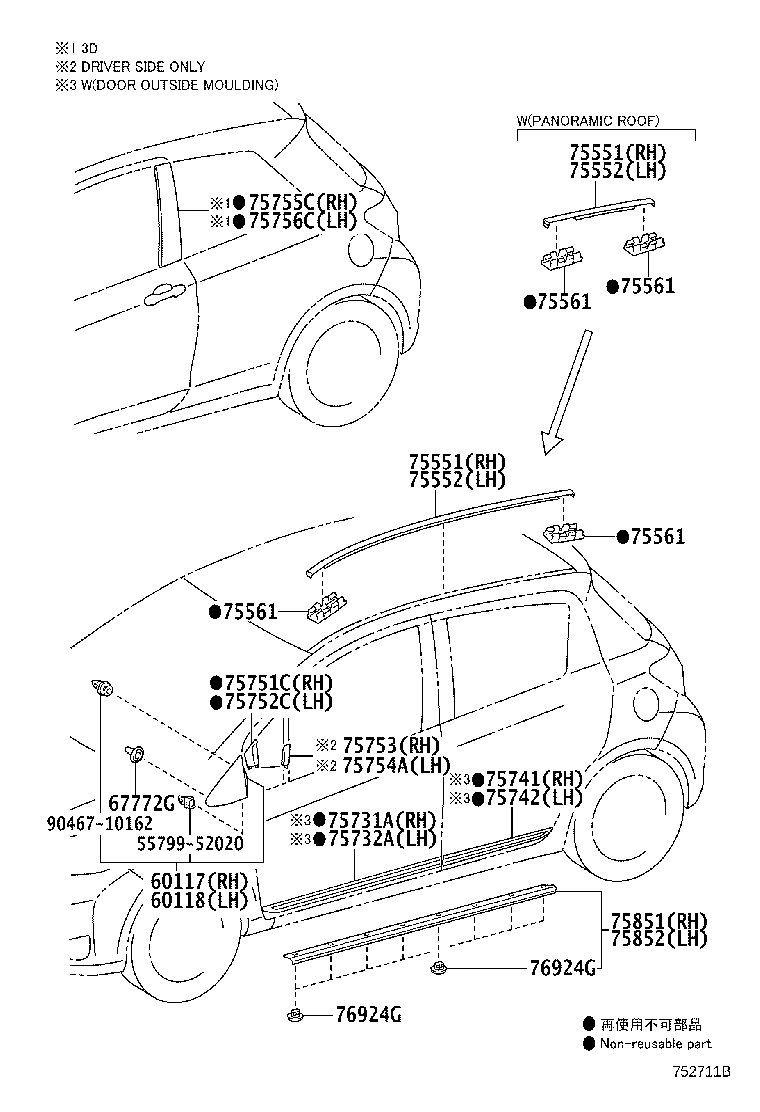

Figure 752536B 752536B 2011-07 → 2012-02 Figure 752711B 752711B 2012-02 → —

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
67772G Cap, Front Pillar Cover
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751C Moulding, Front Door Window Frame, Front RH
75752C Moulding, Front Door Window Frame, Front LH
75753 Moulding, Front Door Window Frame, Upper RH
75754A Moulding, Front Door Window Frame, Upper LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
76924G Retainer, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
