Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

15 part groups · 2 illustrations

Illustrations

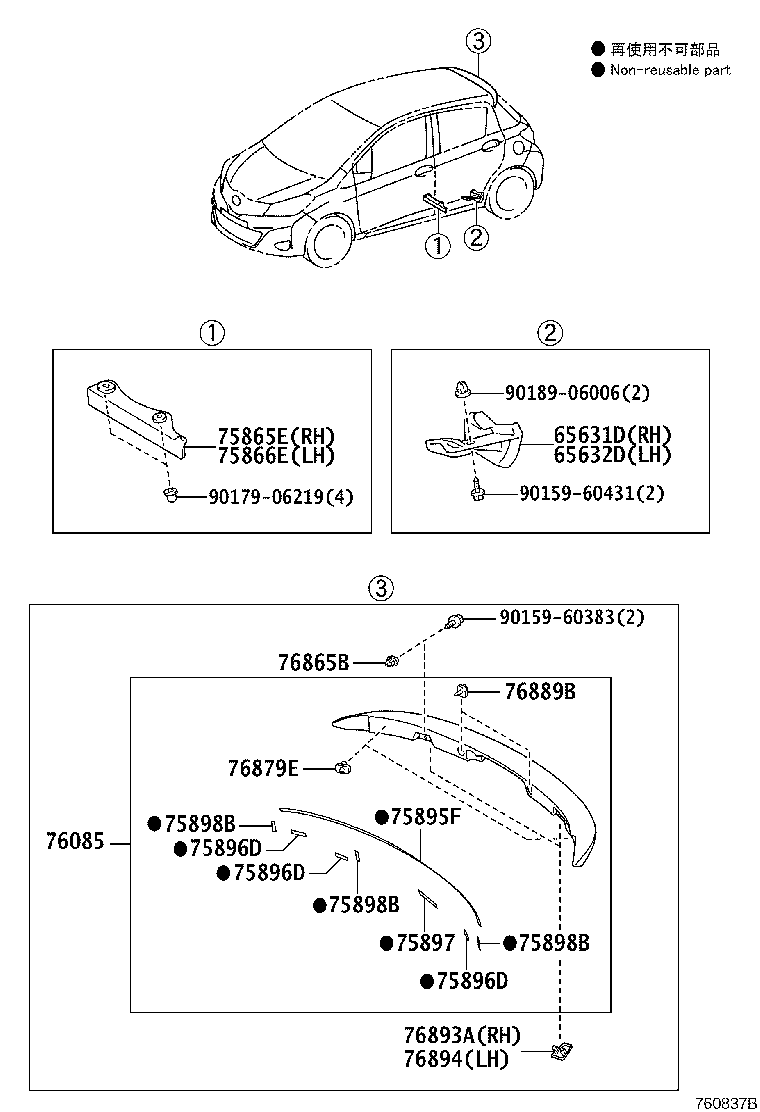

Figure 760804C 760804C 2011-07 → — Figure 760837B 760837B 2011-07 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75865E Protector, Rocker Panel Moulding, RH
75866E Protector, Rocker Panel Moulding, LH
75895F Tape, Moulding, NO.1
75896D Tape, Moulding, NO.2
75897 Tape, Moulding, NO.3
75898B Tape, Moulding, NO.4
76085 Spoiler Sub-assy, Rear
76851 Cover, Front Spoiler
76865B Retainer, Rear Spoiler
76879E Clip, Front Spoiler
76889B Seal, Rear Spoiler, NO.1
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
