Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

10 part groups · 2 illustrations

Illustrations

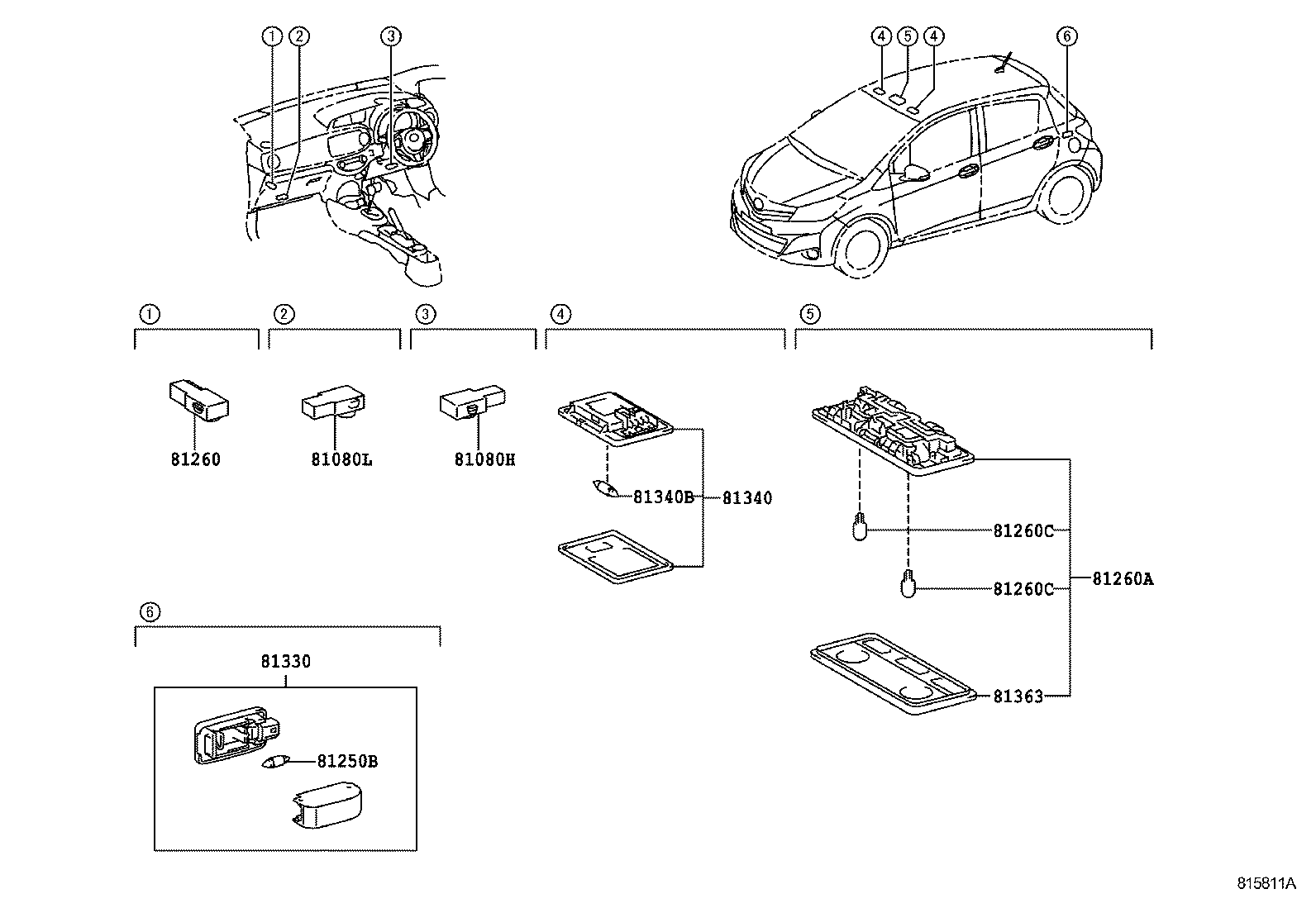

Figure 815810A 815810A 2011-07 → — Figure 815811A 815811A 2011-07 → —

Part groups

PNCDescription
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080L Lamp Assy, Interior Illumination, NO.1 LH
81250B Bulb, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81363 Lens, Room Lamp, Outer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
