Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

117 part groups · 14 illustrations

Illustrations

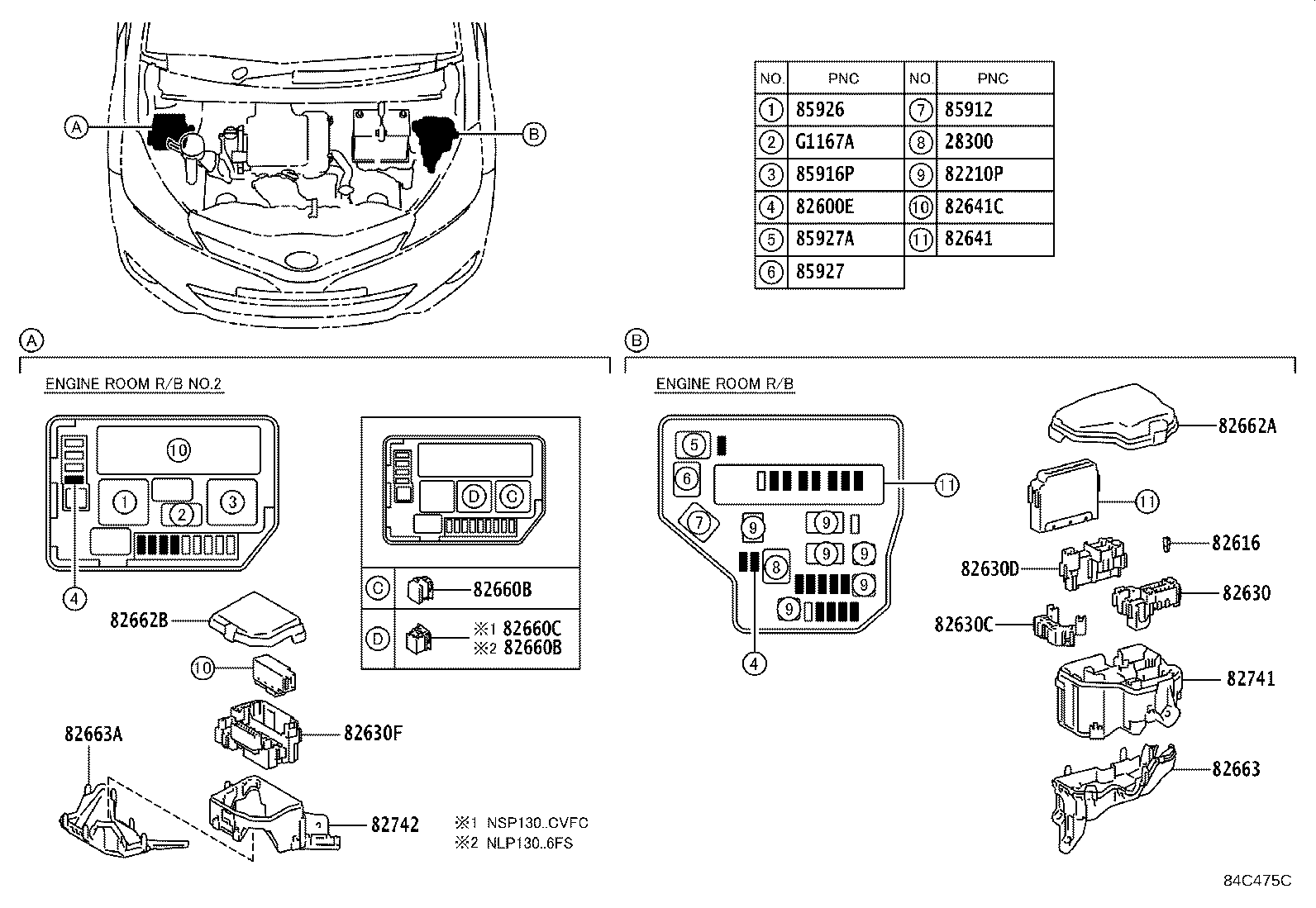

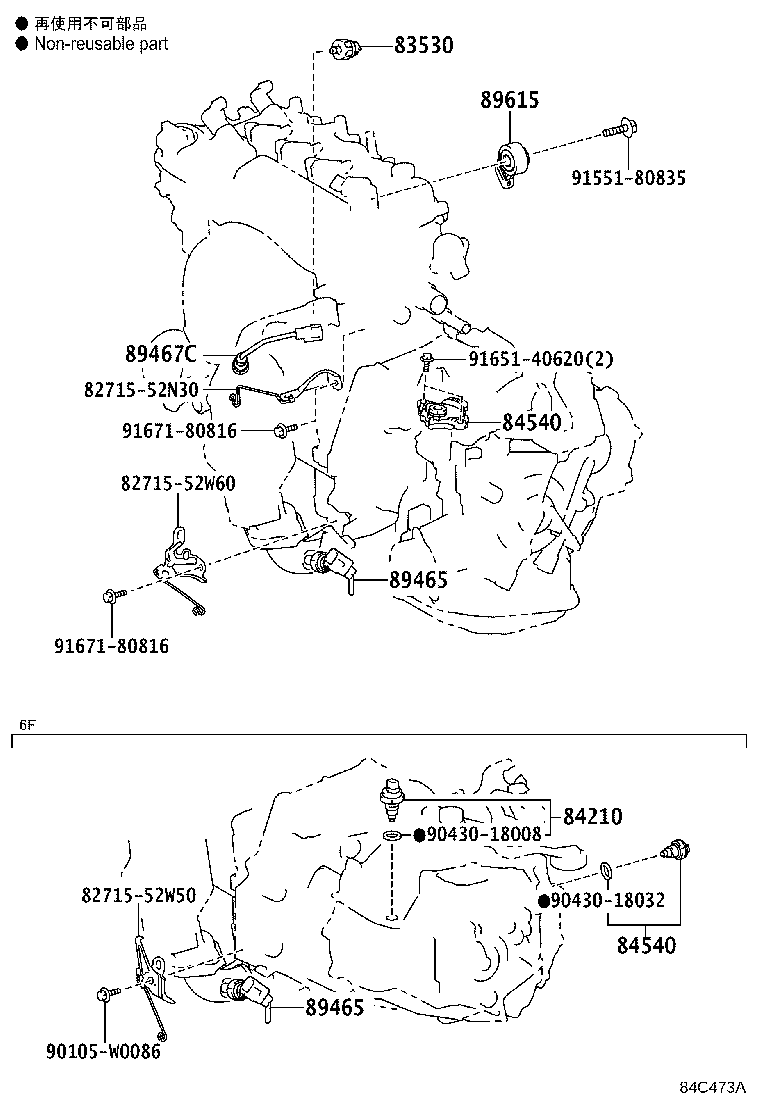

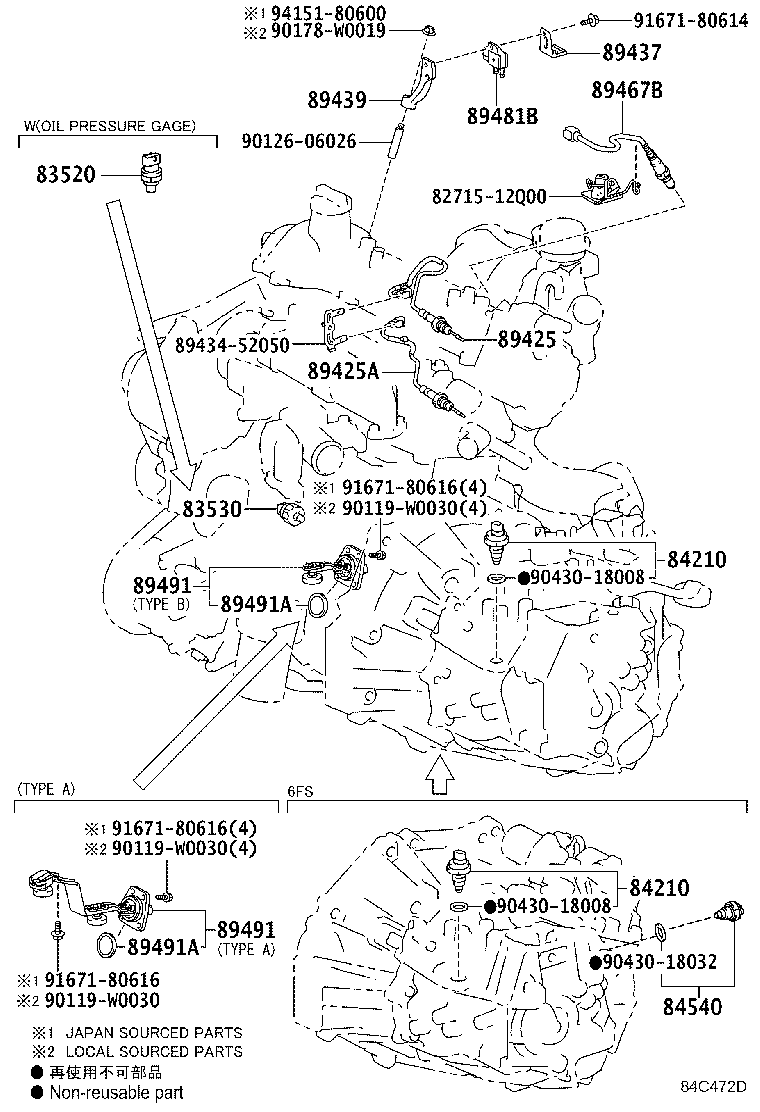

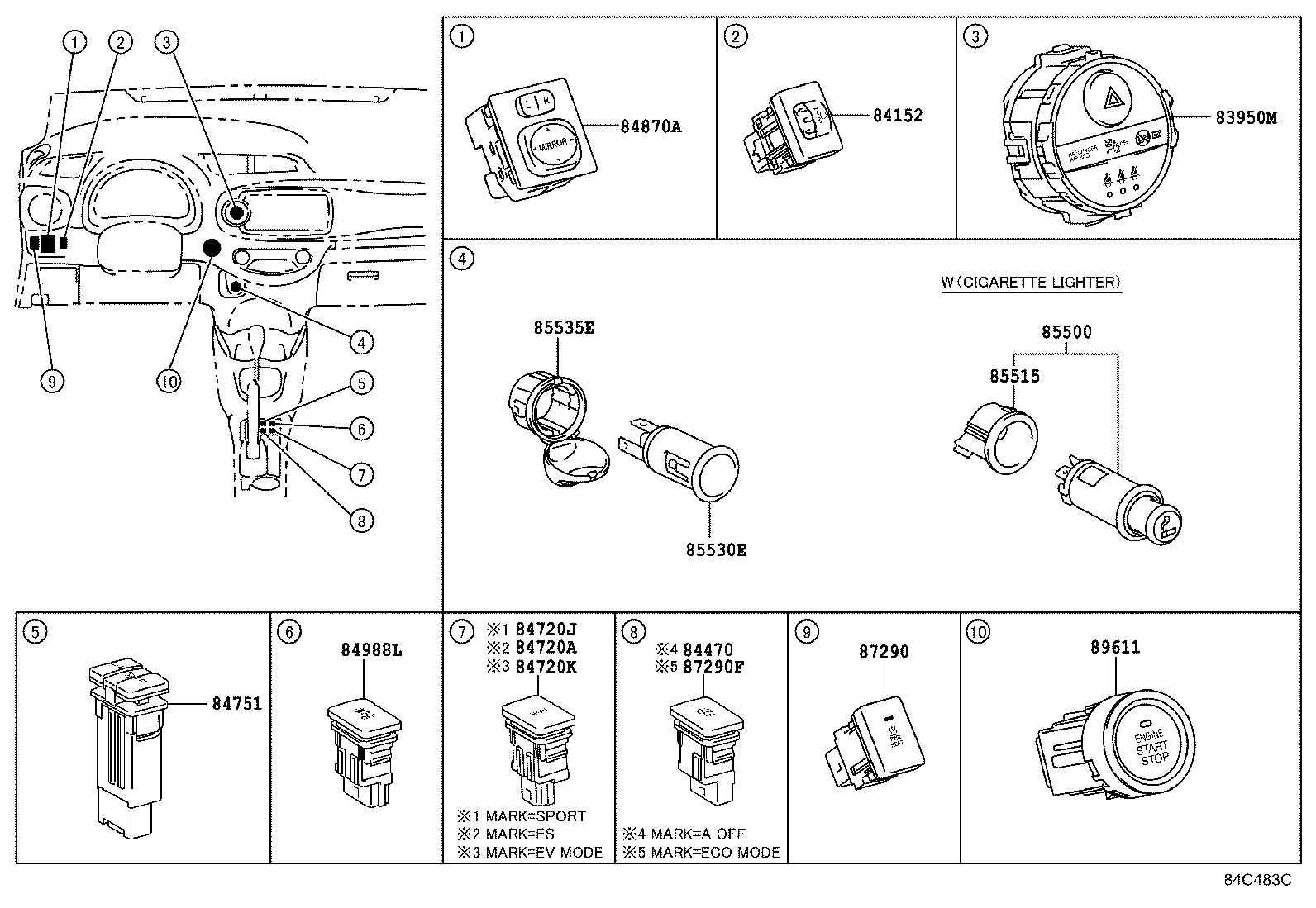

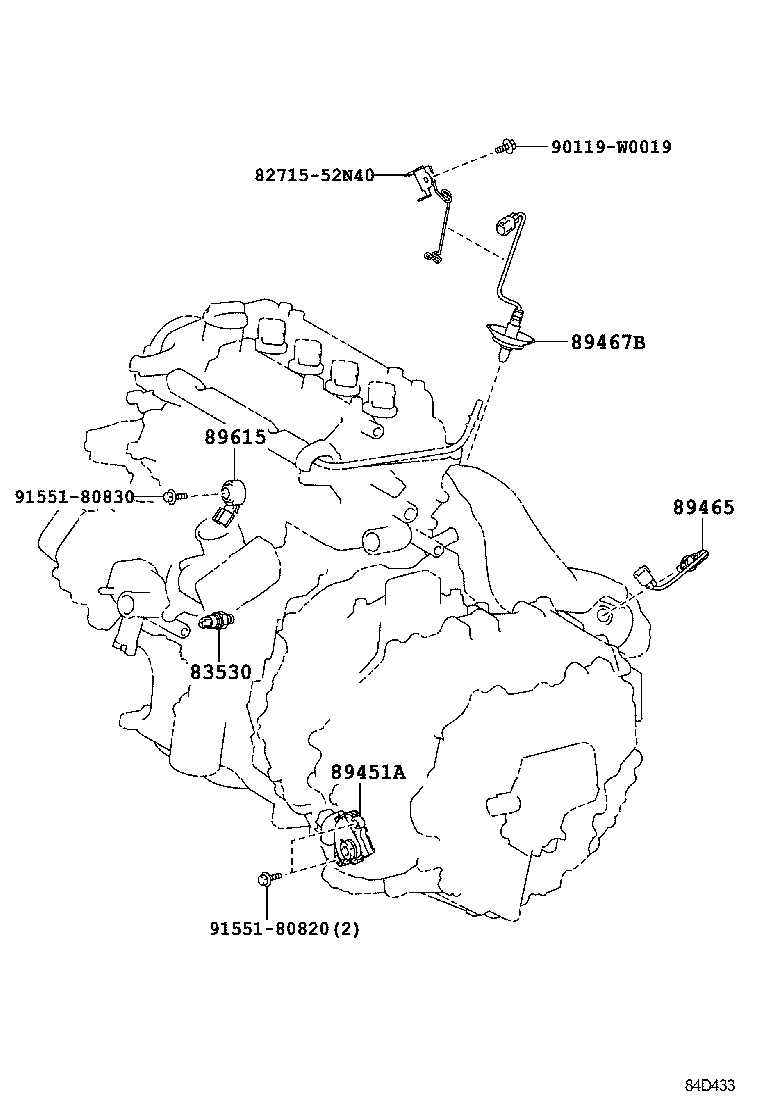

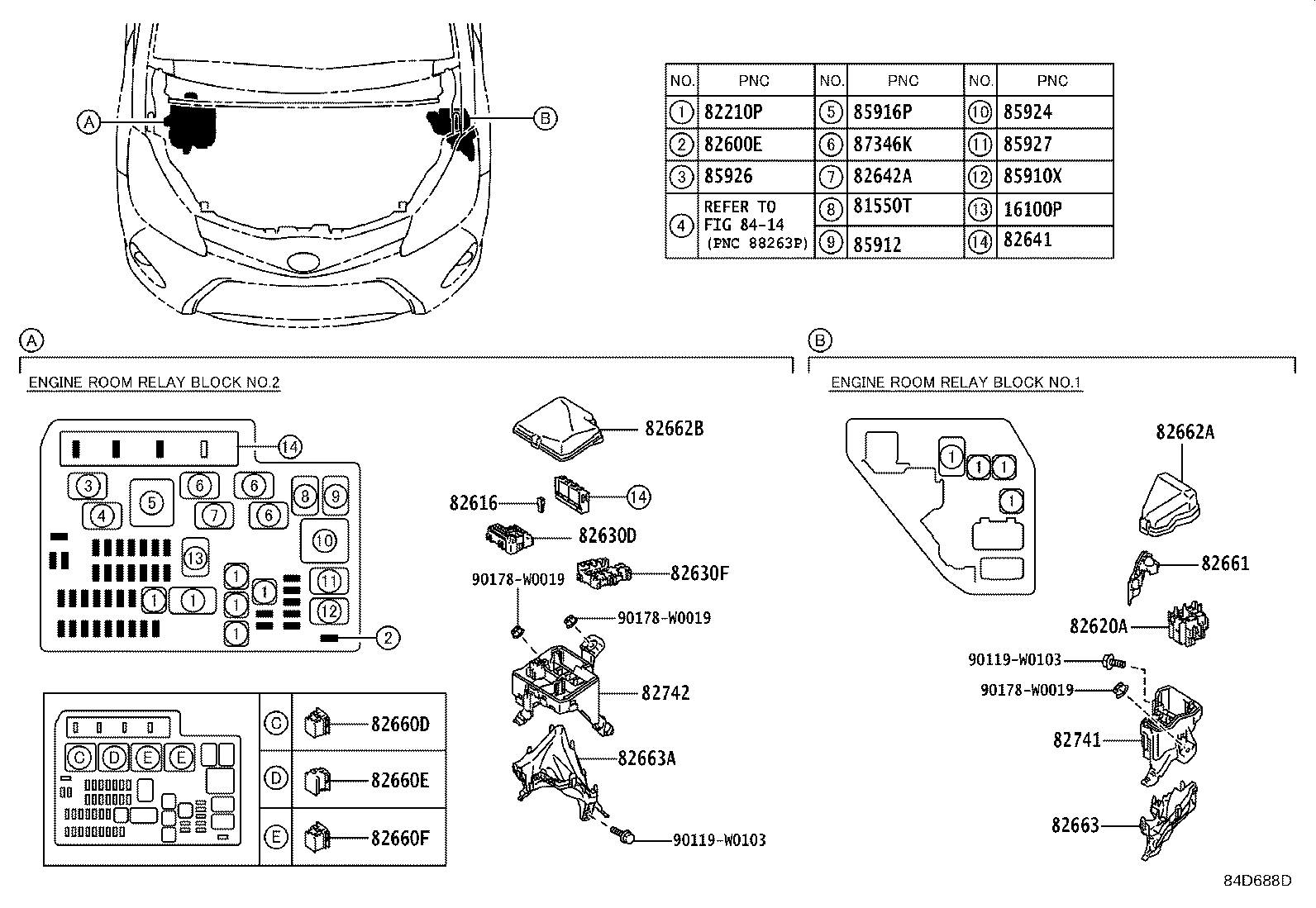

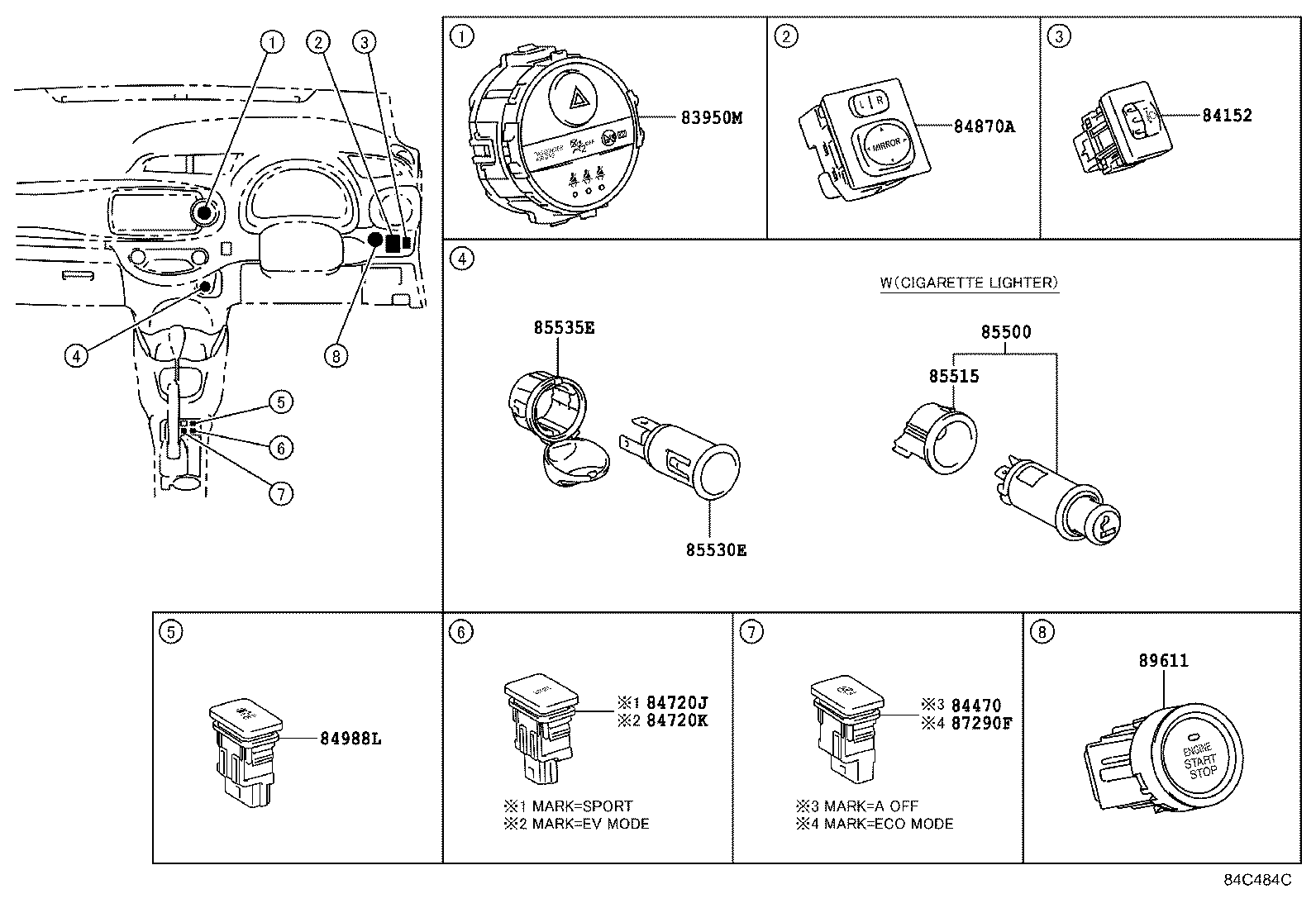

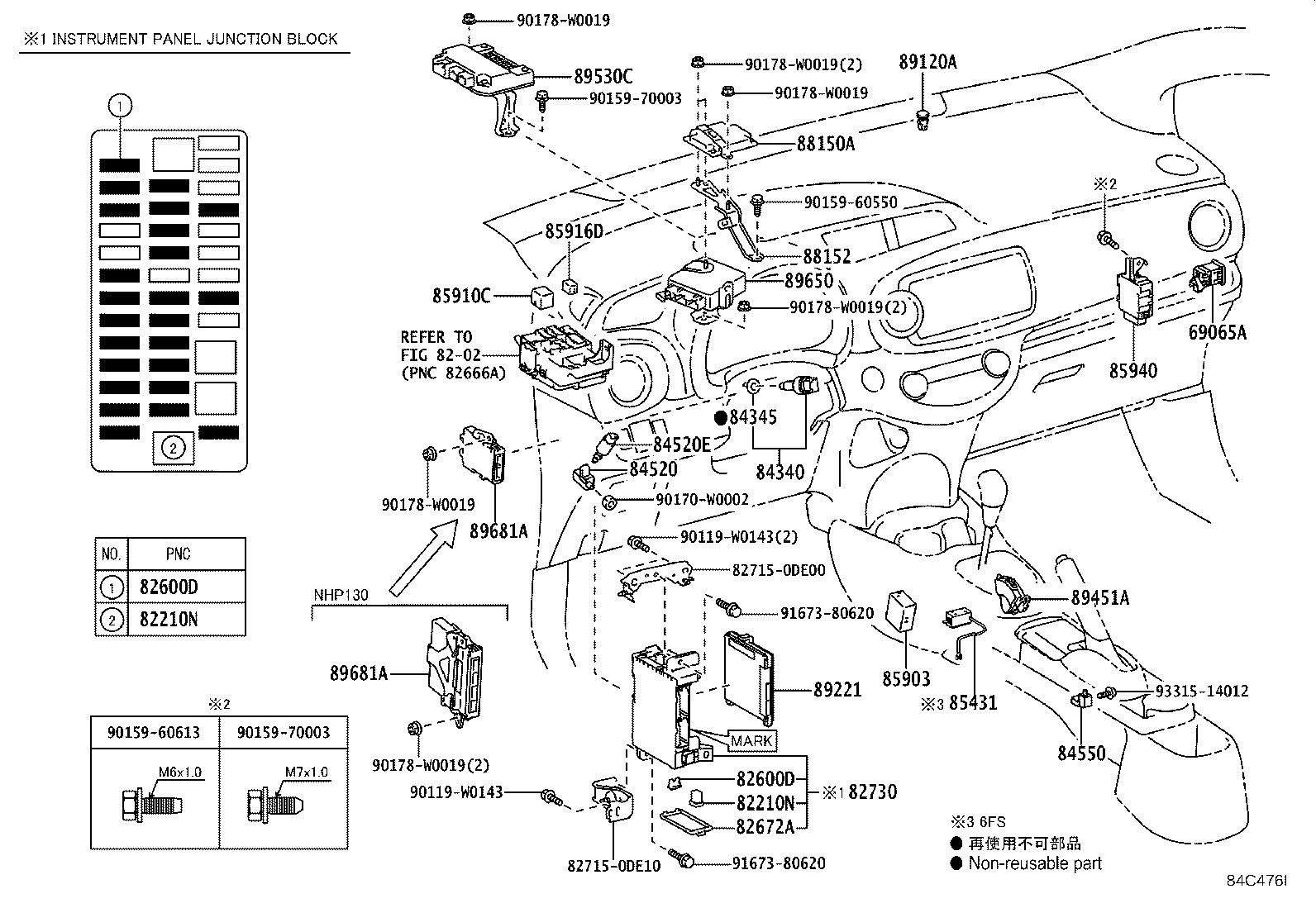

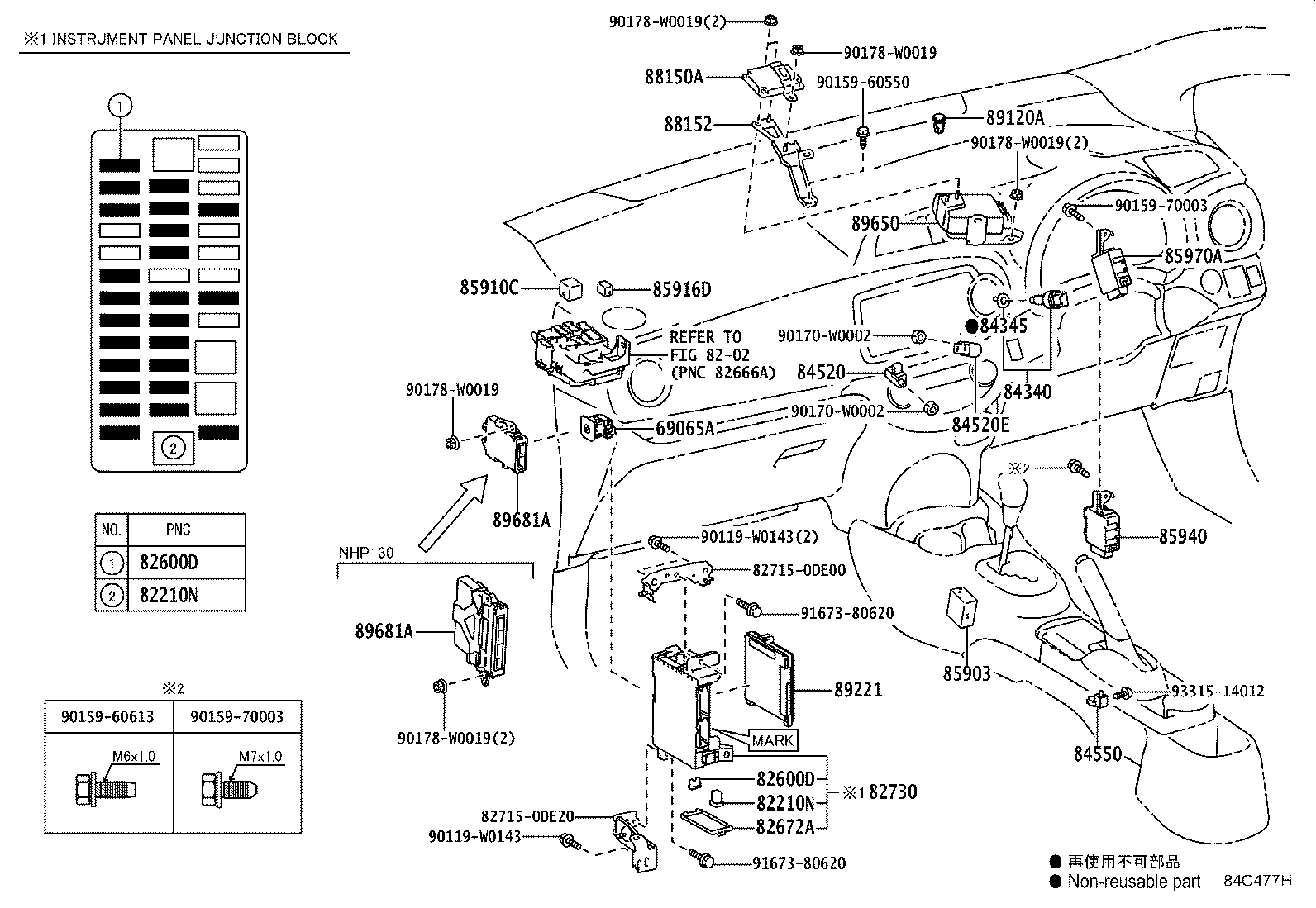

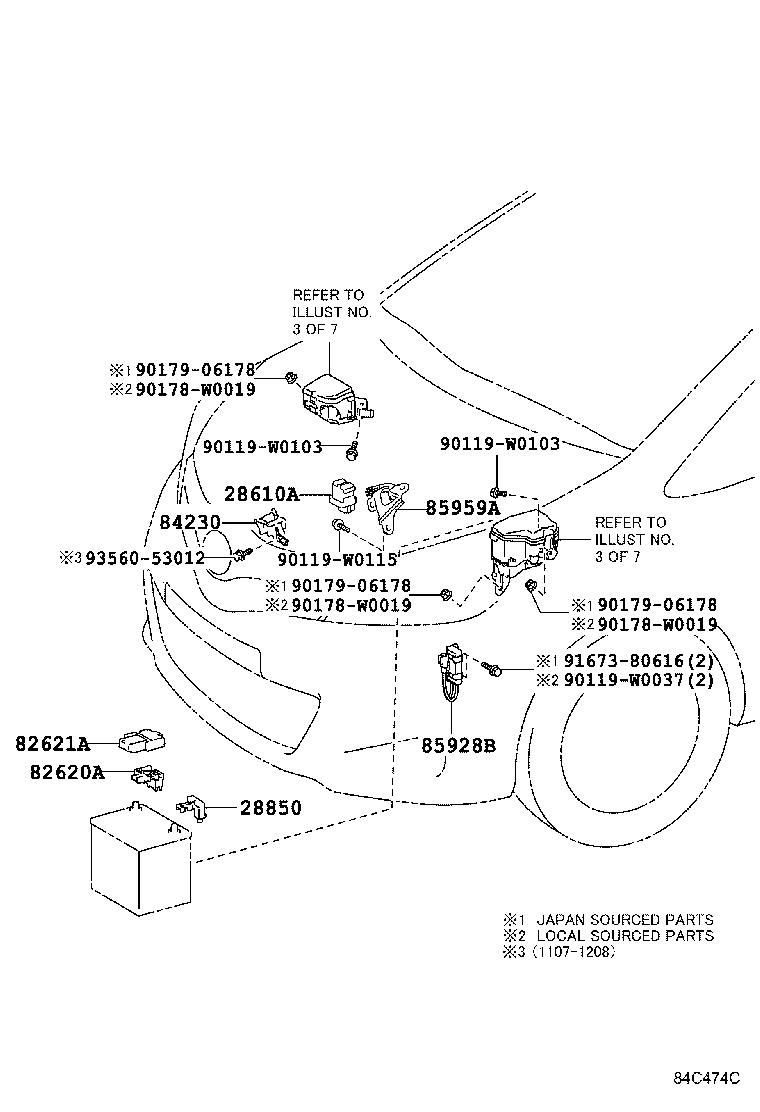

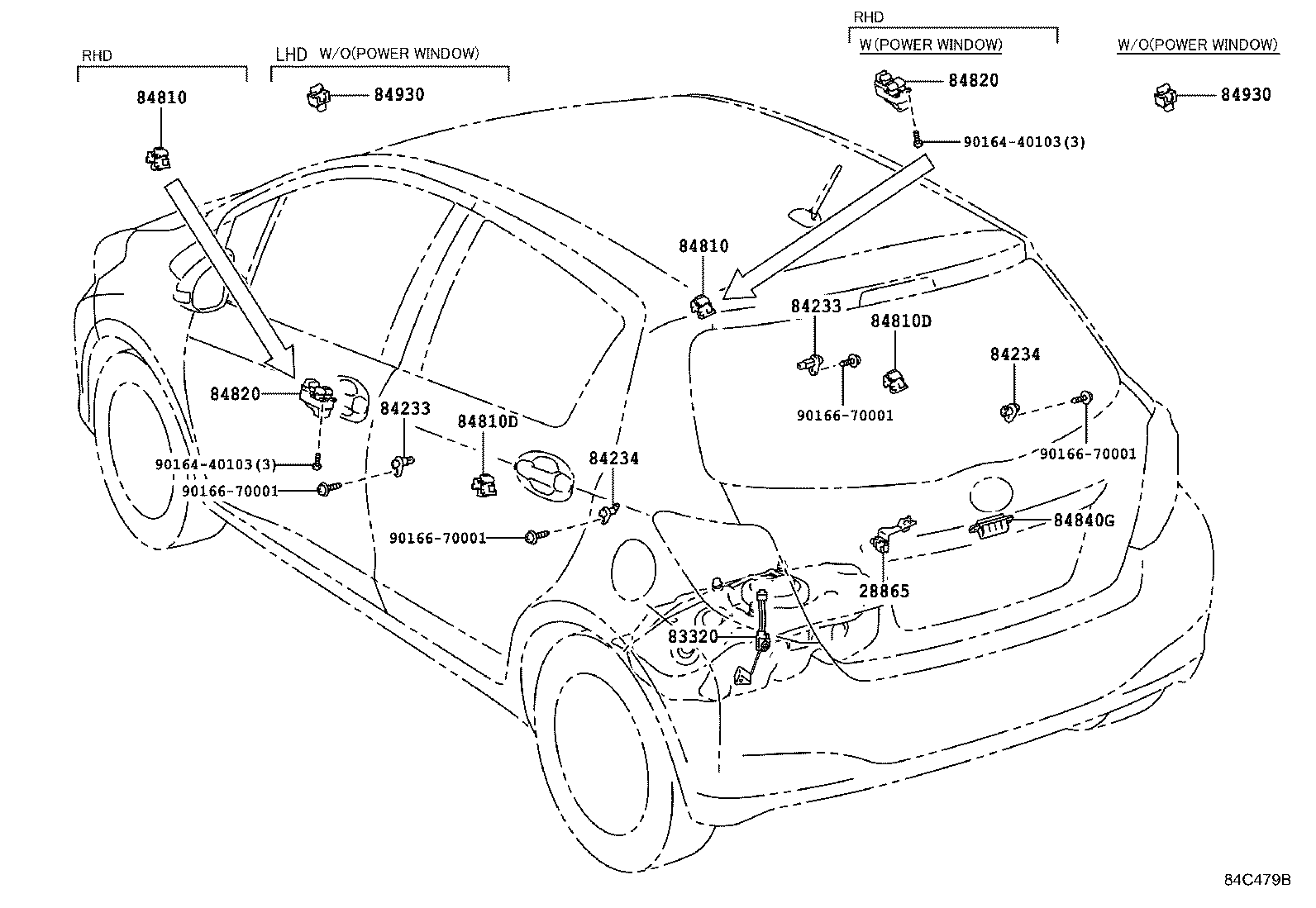

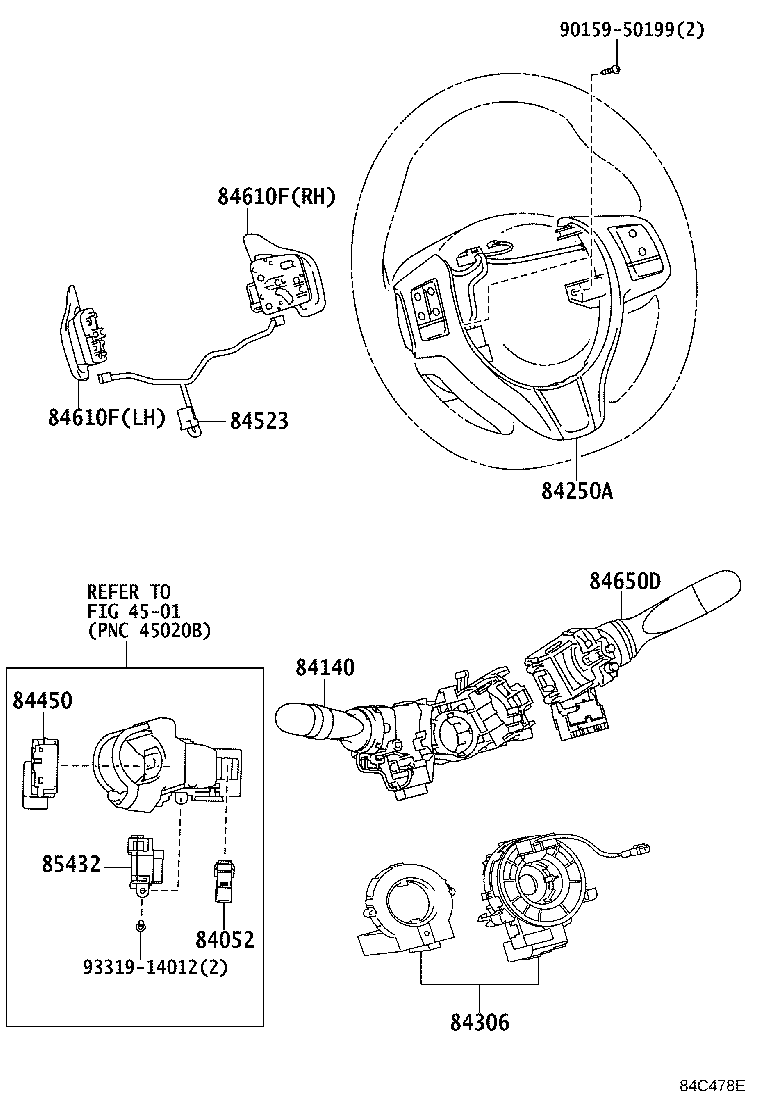

Figure 84C471B 84C471B 2011-07 → — Figure 84C472D 84C472D 2011-07 → — Figure 84C473A 84C473A 2011-07 → — Figure 84D433 84D433 2012-04 → — Figure 84C474C 84C474C 2011-07 → — Figure 84D689D 84D689D 2012-04 → — Figure 84C475C 84C475C 2011-07 → — Figure 84D688D 84D688D 2012-04 → — Figure 84C476I 84C476I 2011-07 → — Figure 84C477H 84C477H 2011-07 → — Figure 84C483C 84C483C 2011-07 → — Figure 84C484C 84C484C 2011-07 → — Figure 84C478E 84C478E 2011-07 → — Figure 84C479B 84C479B 2011-07 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
28610A Relay Assy, Glow Plug(SUB)
28850 Sensor Assy, Battery Current
28865 Sensor, Battery Thermometer
69065A Cylinder Sub-assy, Airbag Cut Off Switch
81550T Relay, Back UP Lamp
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82630 Holder Assy, Fuse
82630C Holder Assy, Fuse
82630D Holder, Fuse
82630F Holder, Fuse
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82642A Relay, Running Light
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84230 Switch Assy, Courtesy Lamp (FOR ENGINE ROOM)
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84520 Switch Assy, Clutch Start
84520E Switch Assy, Clutch Start, NO.2
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720A Switch Assy, Pattern Select, NO.1
84720J Switch Assy, Pattern Select
84720K Switch Assy, Pattern Select
84751 Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84988L Switch, Vsc Off
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85515 Stay, Cigarette Lighter Bezel
85530E Socket Assy, Power Outlet, NO.3
85535E Cover, Power Outlet Socket, NO.2
85903 Computer Sub-assy, Shift Lock Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910X Relay, Heater Mirror
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85940 Relay Assy, Windshield Wiper
85959A Holder, Relay
85970A Relay Assy, Double Lock Door Control
87290 Switch Assy, Heater
87290F Switch Assy, Eco
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88152 Bracket, Driving Support Computer
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89257 Computer, Cooling Fan
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89437 Cover, Sensor
89439 Bracket, Sensor
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
G1167A Relay (FOR OIL PUMP MOTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
