Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

5 part groups · 6 illustrations

Illustrations

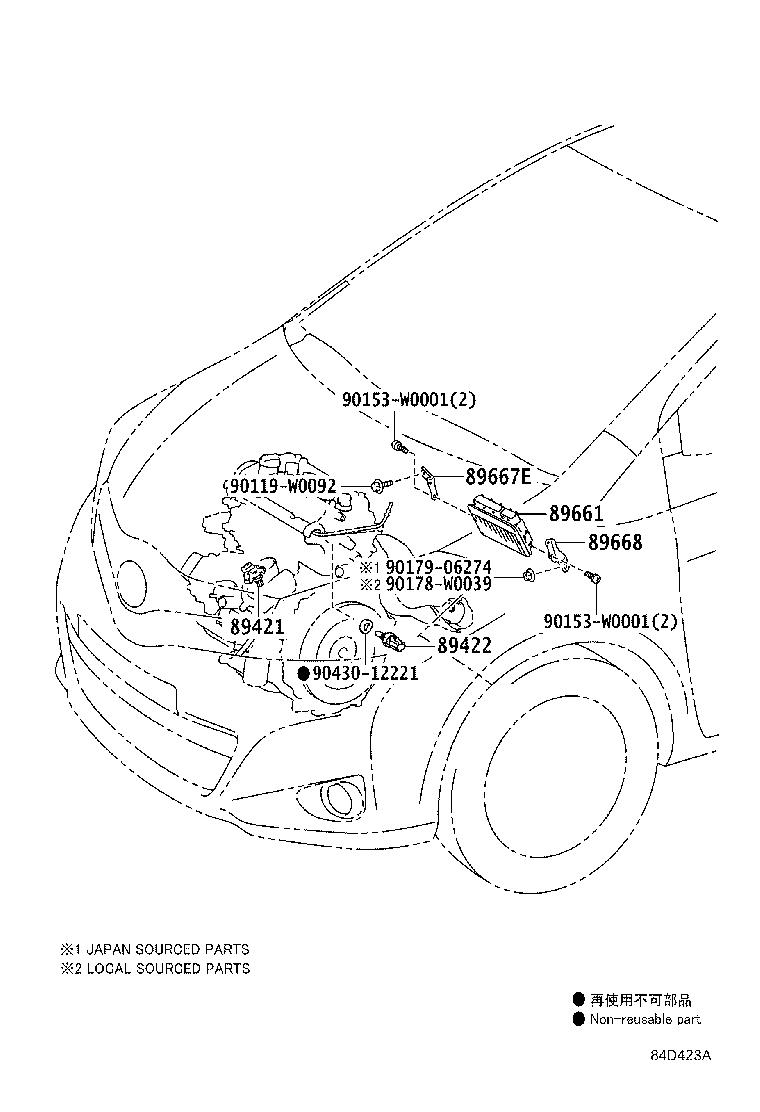

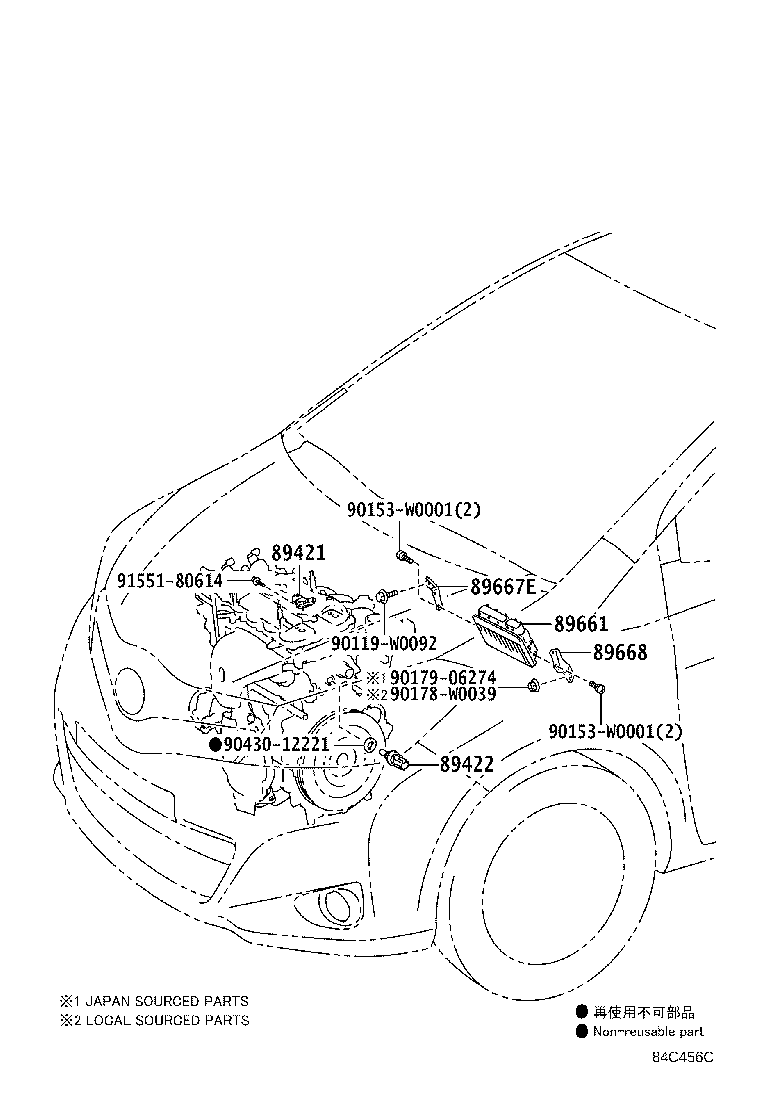

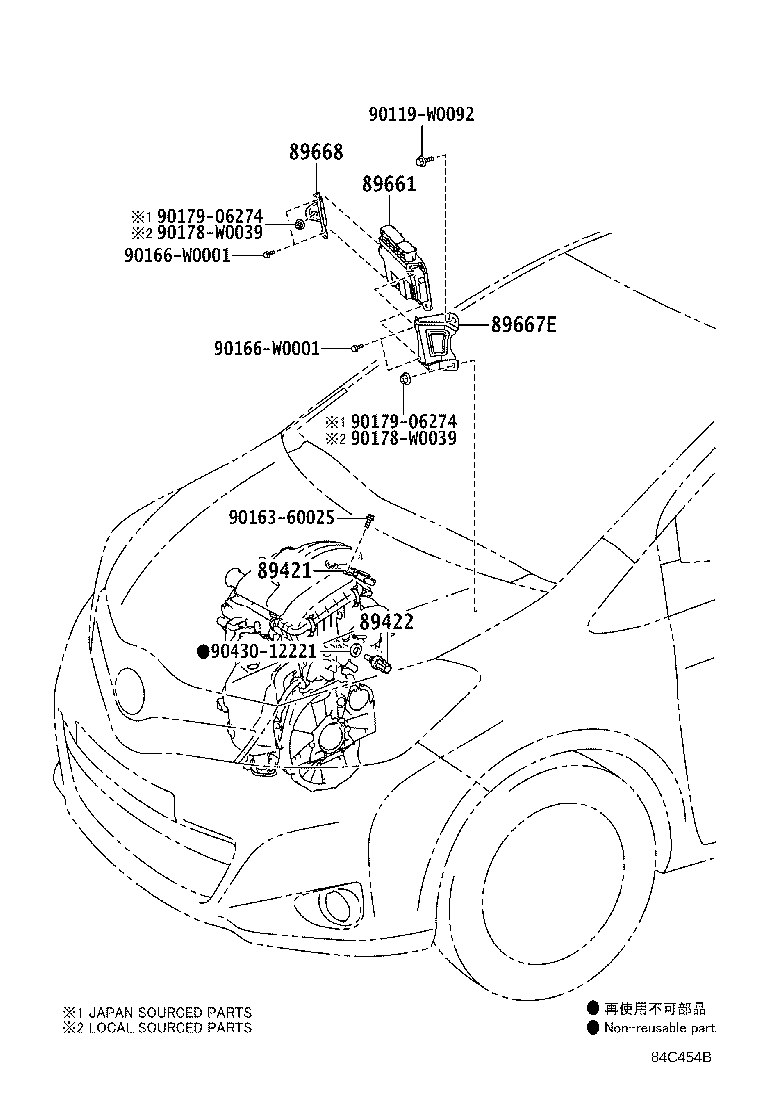

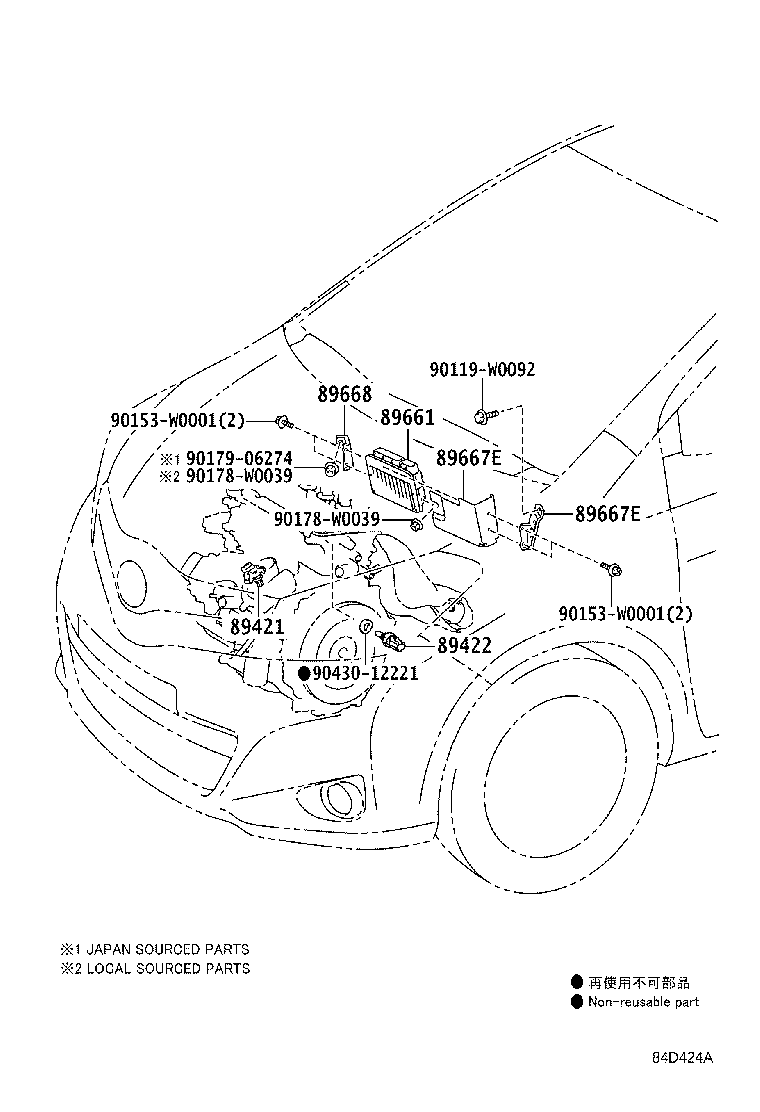

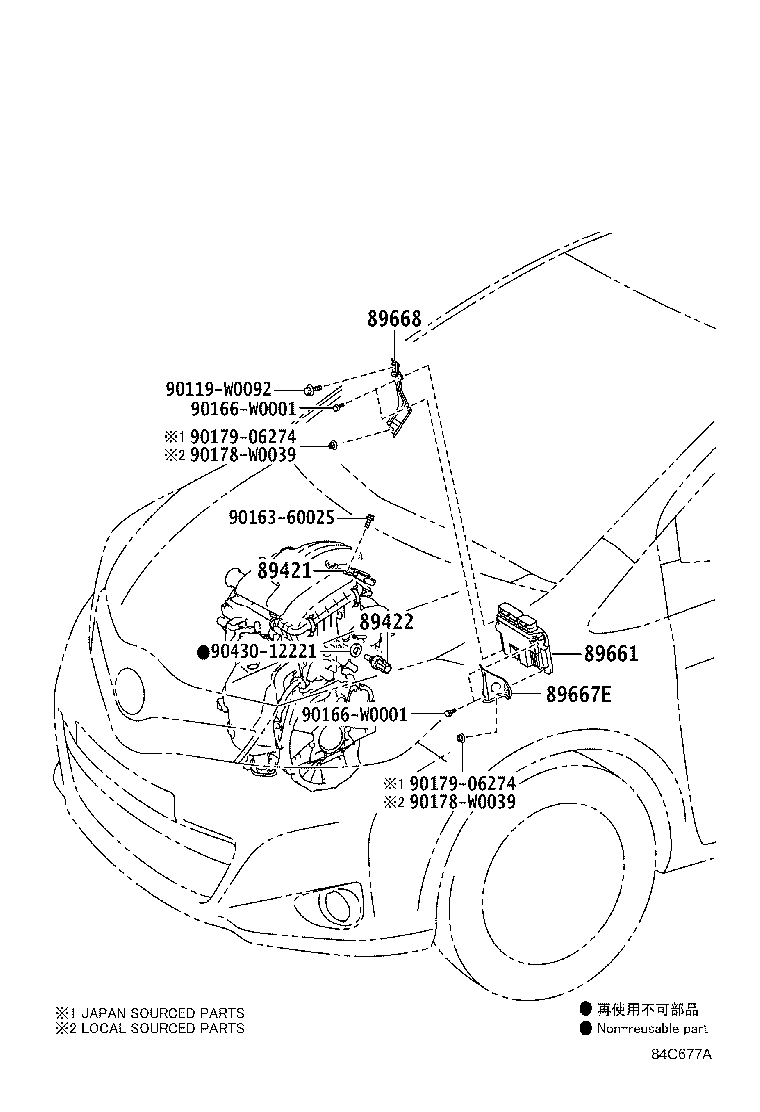

Figure 84C453C 84C453C 2011-07 → — Figure 84C454B 84C454B 2011-07 → — Figure 84C677A 84C677A 2011-07 → — Figure 84C456C 84C456C 2011-07 → — Figure 84D424A 84D424A 2012-04 → — Figure 84D423A 84D423A 2012-04 → —

Part groups

PNCDescription
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
