Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

4 part groups · 2 illustrations

Illustrations

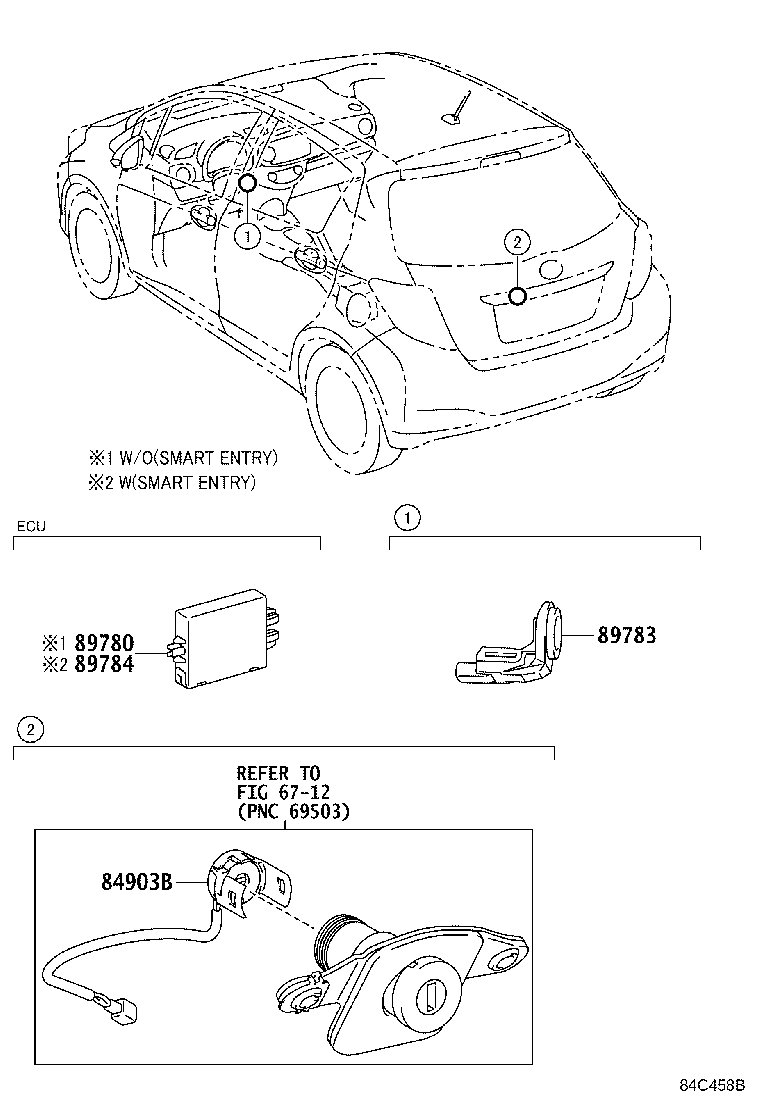

Figure 84C459B 84C459B 2011-07 → — Figure 84C458B 84C458B 2011-07 → —

Part groups

PNCDescription
84903B Switch Sub-assy, Door Unlock
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
