Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

12 part groups · 3 illustrations

Illustrations

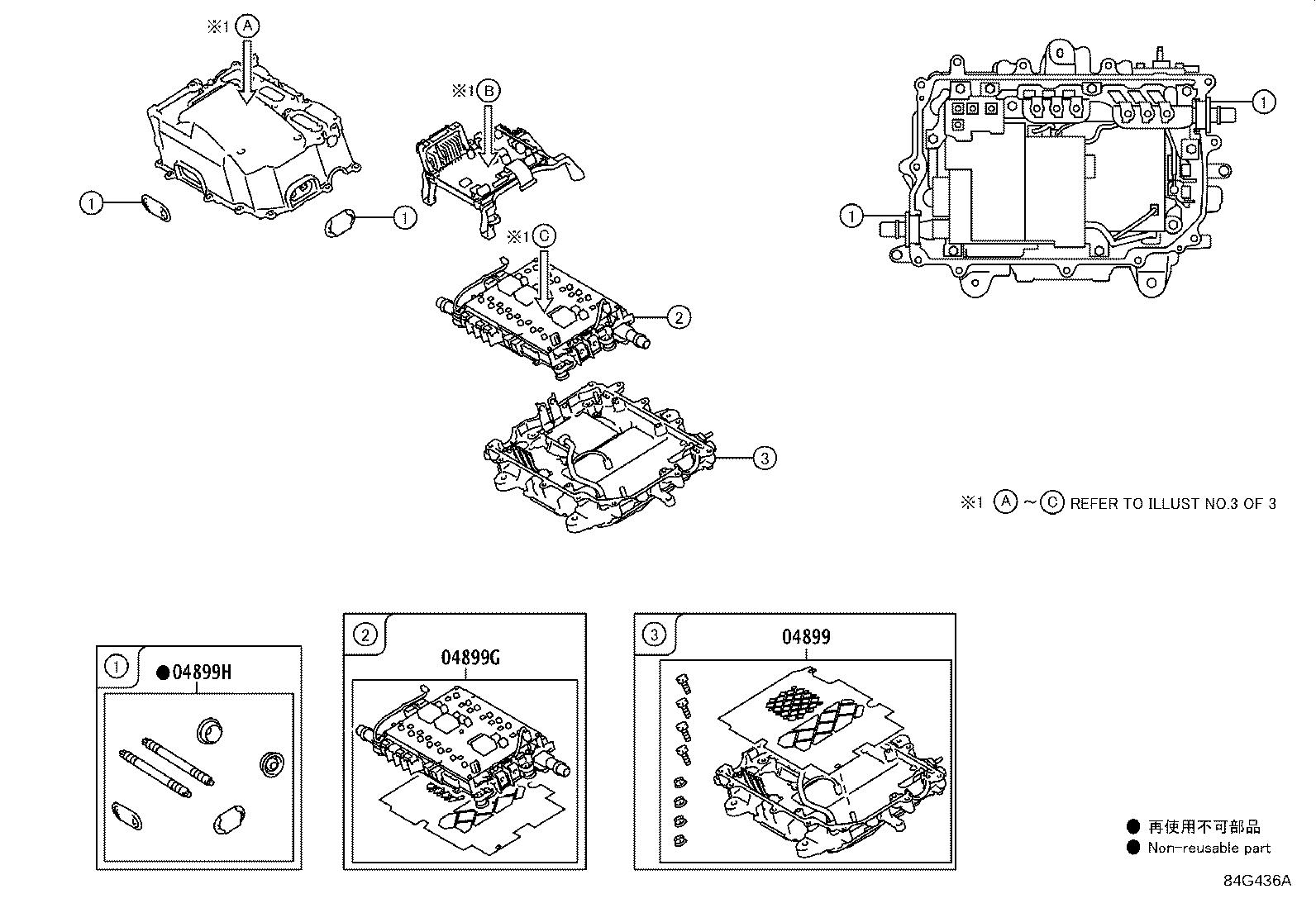

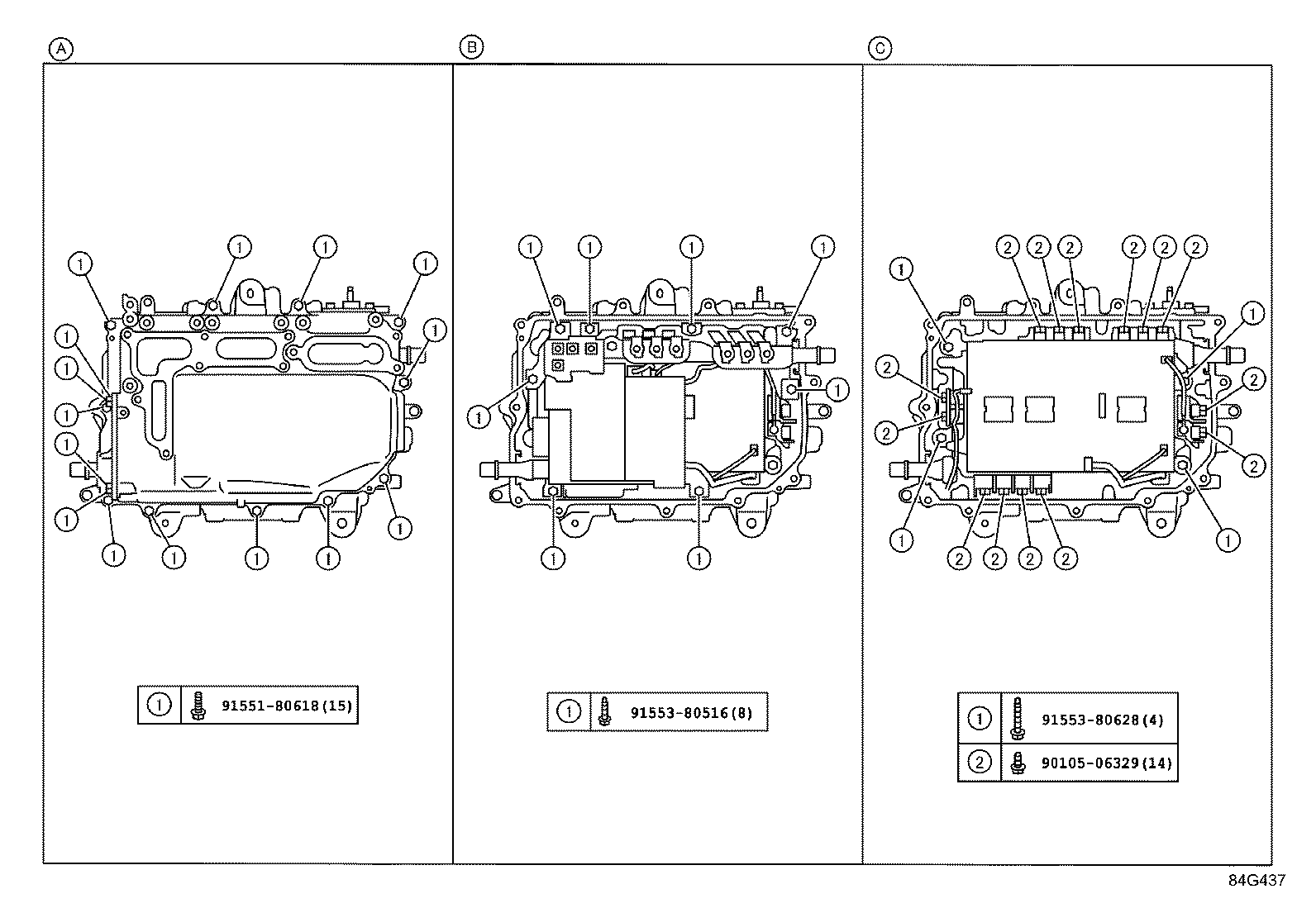

Figure 84D426I 84D426I 2012-04 → — Figure 84G436A 84G436A 2012-04 → — Figure 84G437 84G437 2012-04 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899G Transistor Kit, Power Module Intelligent
04899H Plug Kit, Inverter Drain
86210G Fuse, High Voltage
G9110 Bracket Assy, Inverter
G9200 Inverter Assy, W/Converter
G920H Computer Sub-assy, Motor Generator Control
G920J Sensor Sub-assy, Inverter Current
G9221 Cover, Inverter
G9223 Cover, Inverter Terminal
G922L Cover, Inverter Signal Connector
G9234 Plate, Inverter Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
