Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

9 part groups · 2 illustrations

Illustrations

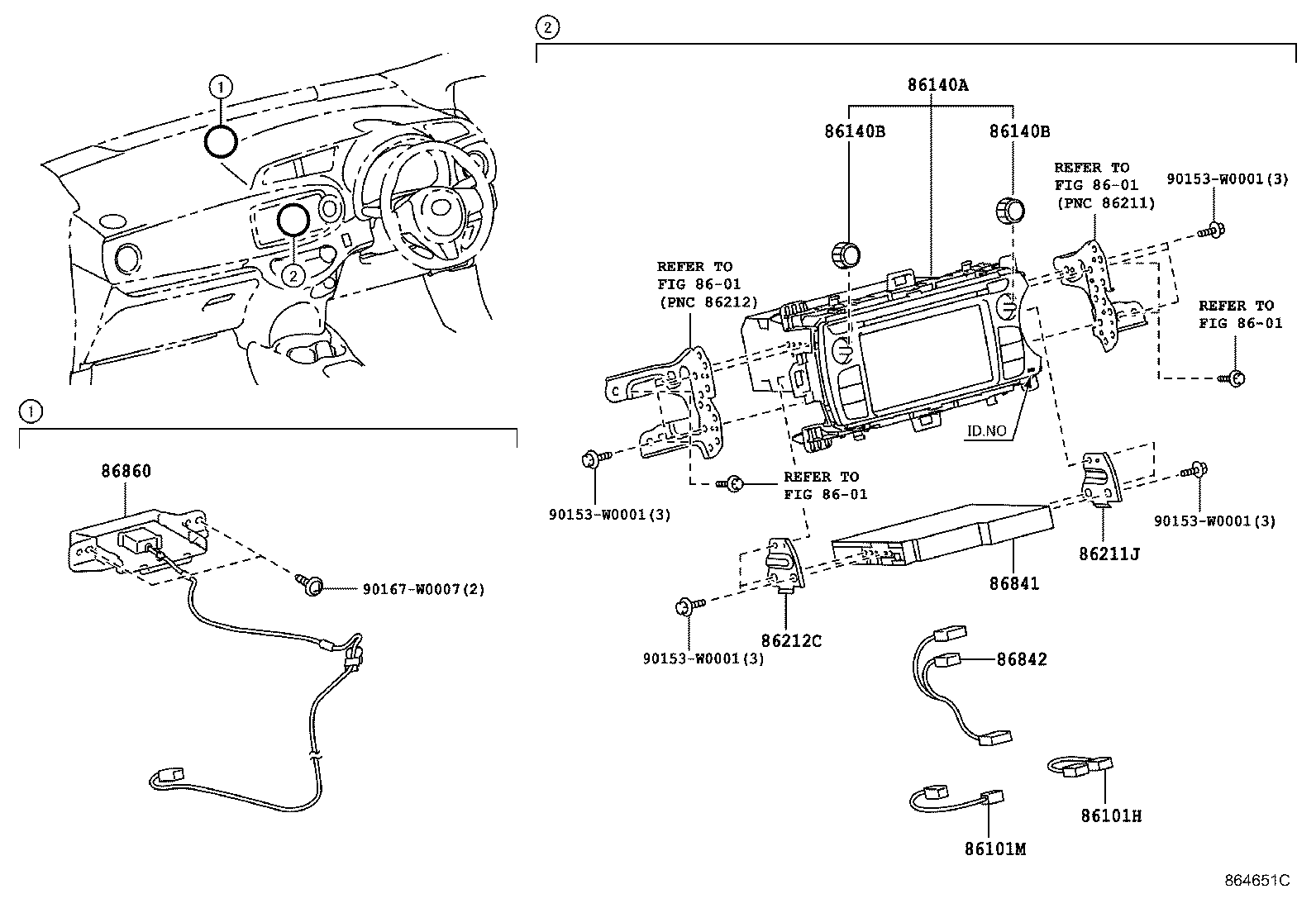

Figure 864653B 864653B 2011-07 → — Figure 864651C 864651C 2011-07 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86101M Cord Sub-assy, Antenna
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
