Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

26 part groups · 10 illustrations

Illustrations

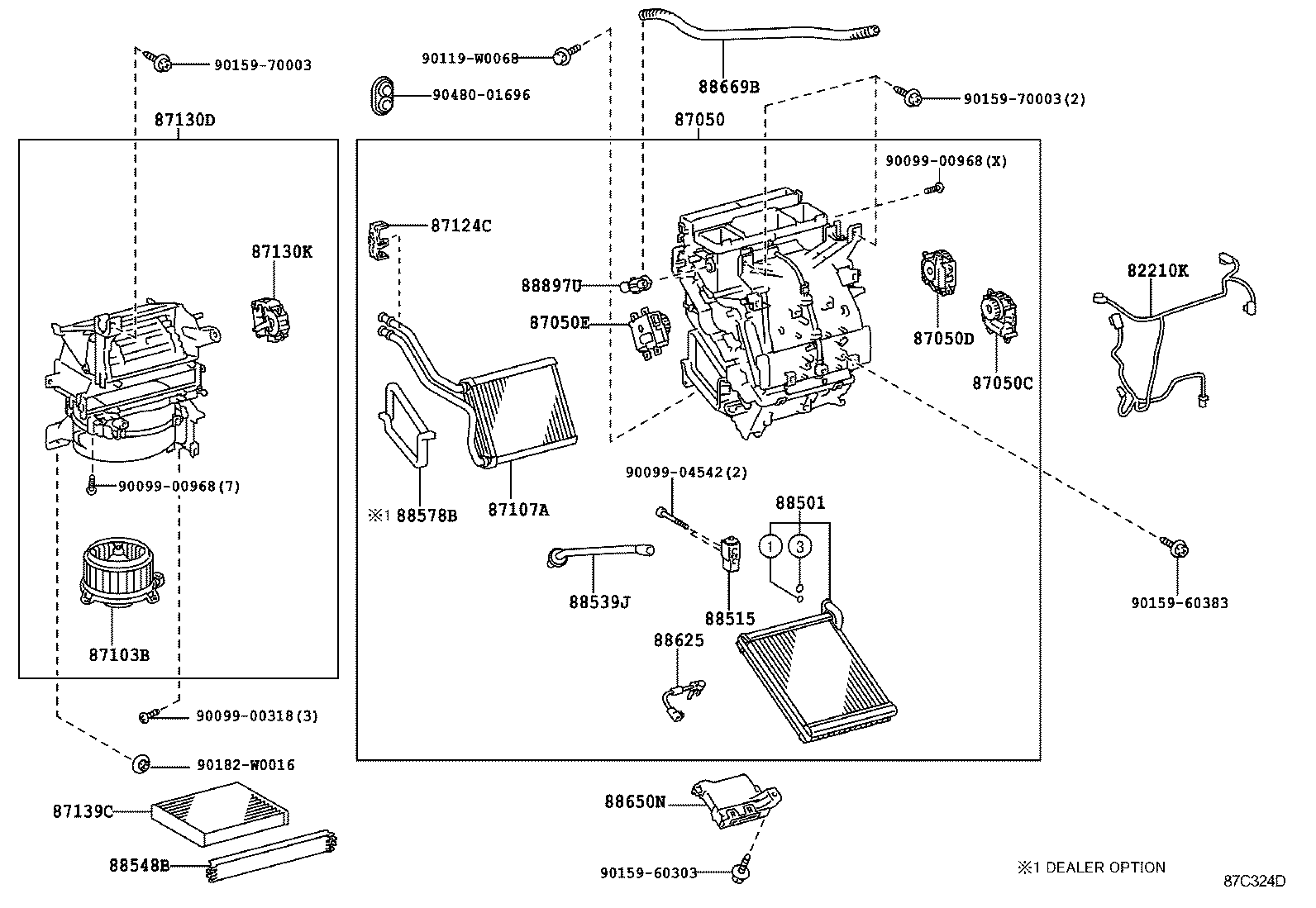

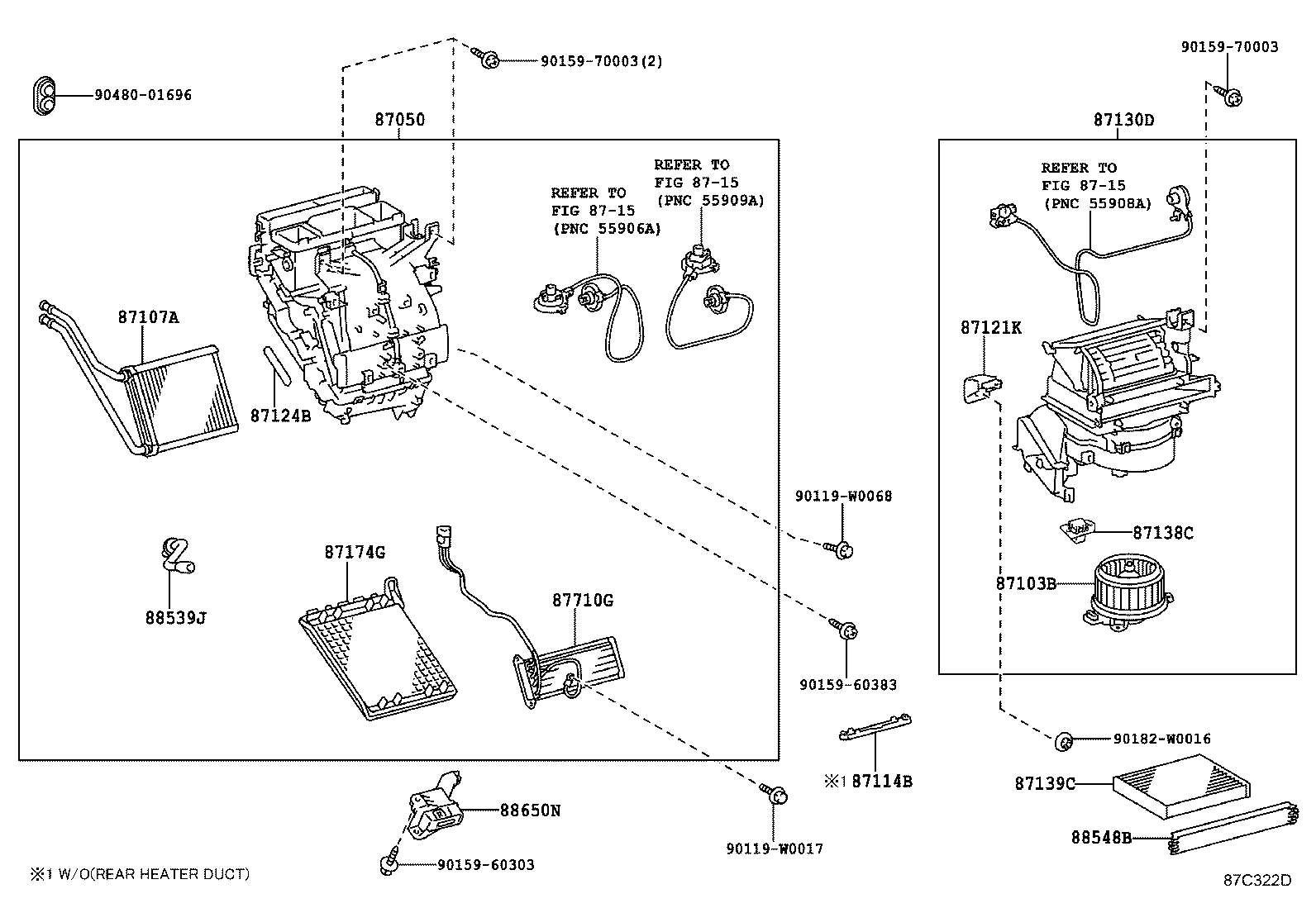

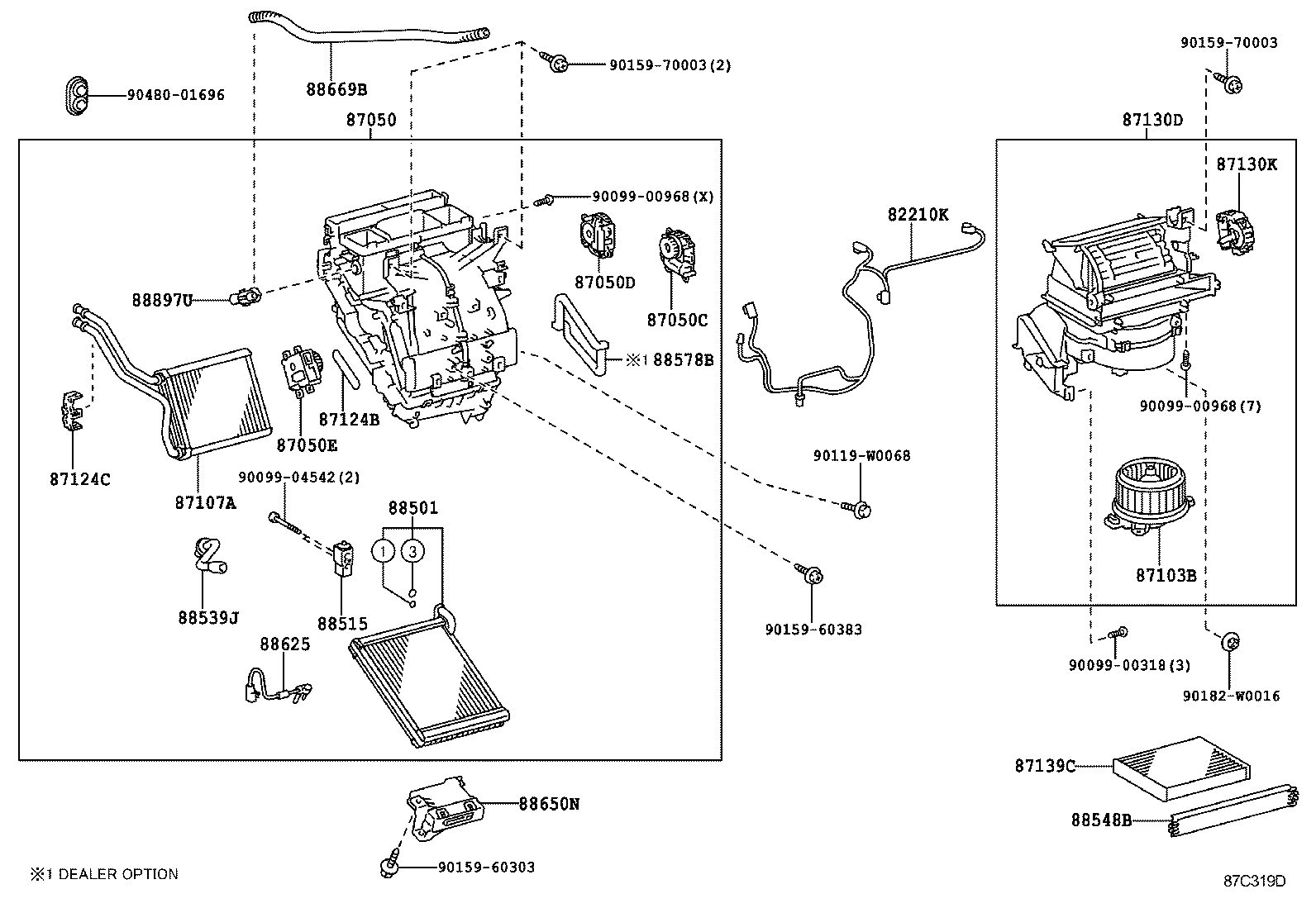

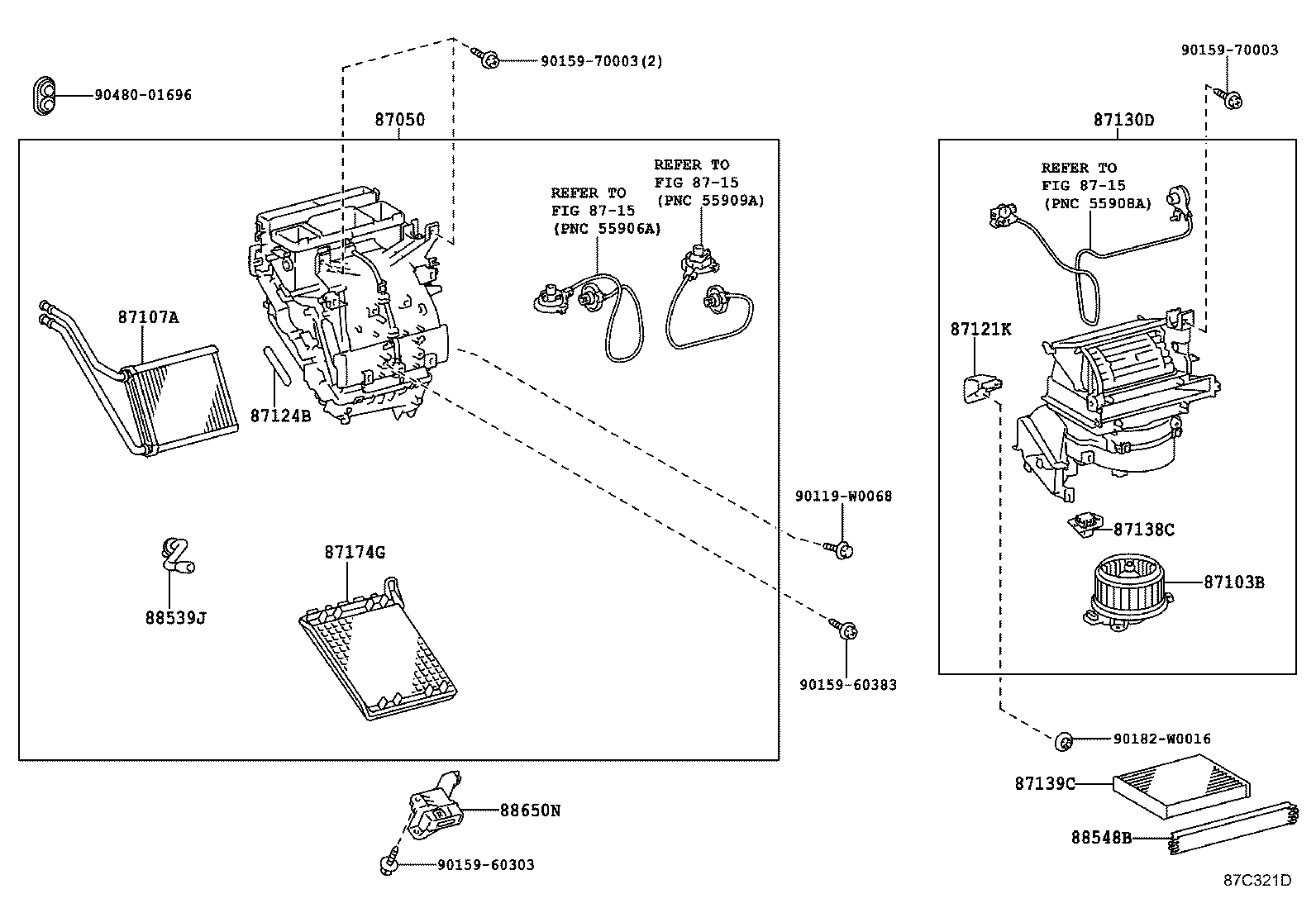

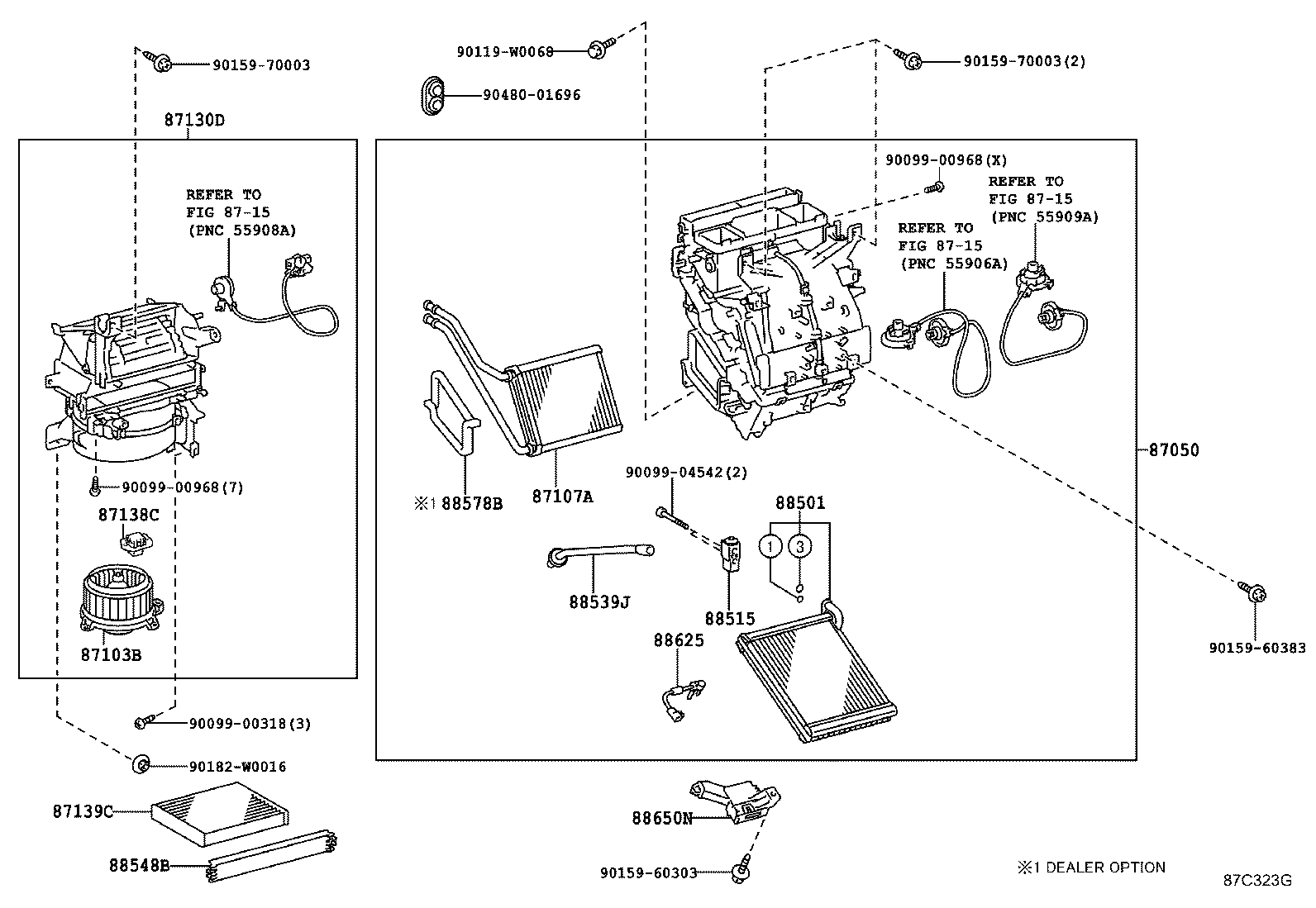

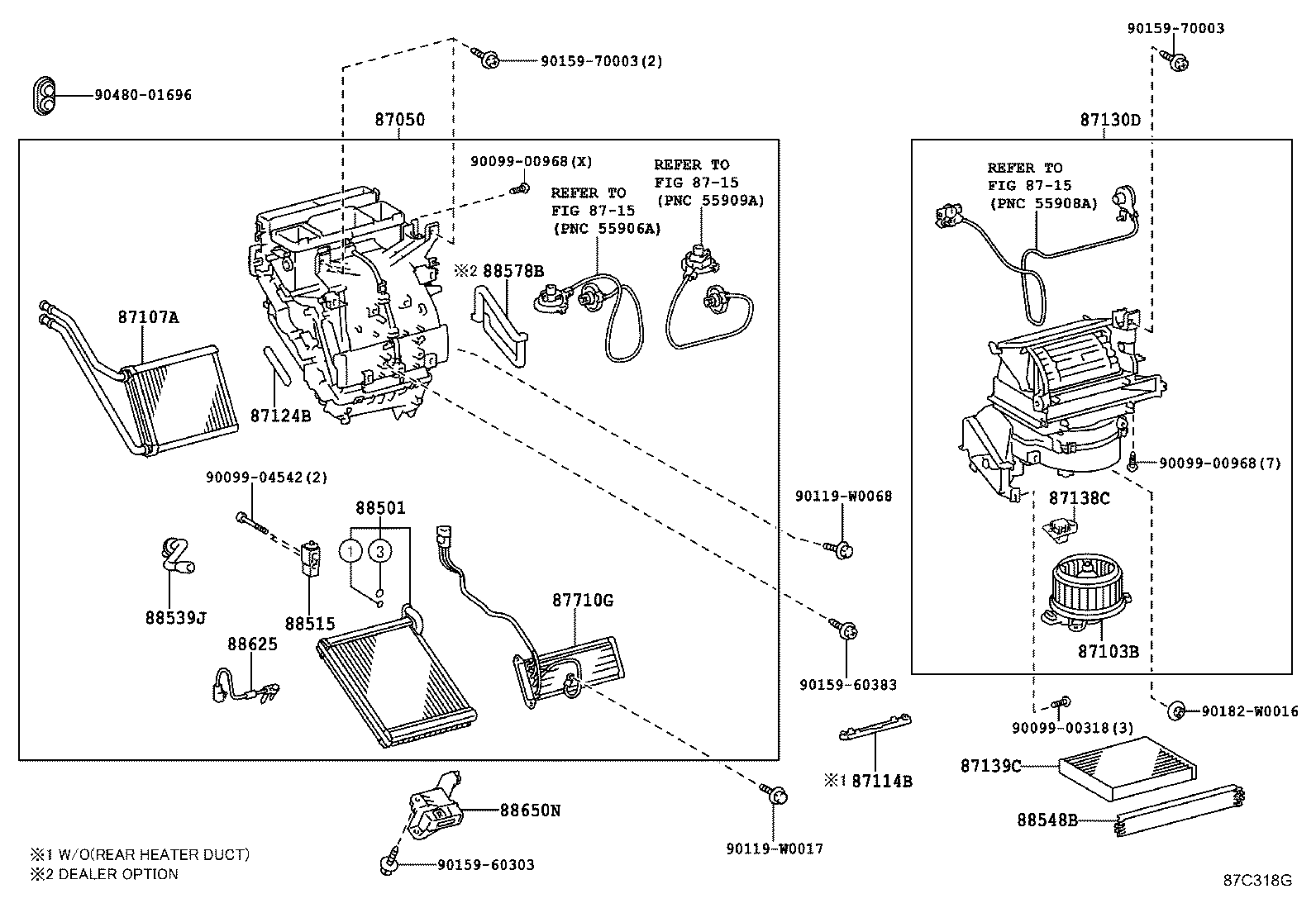

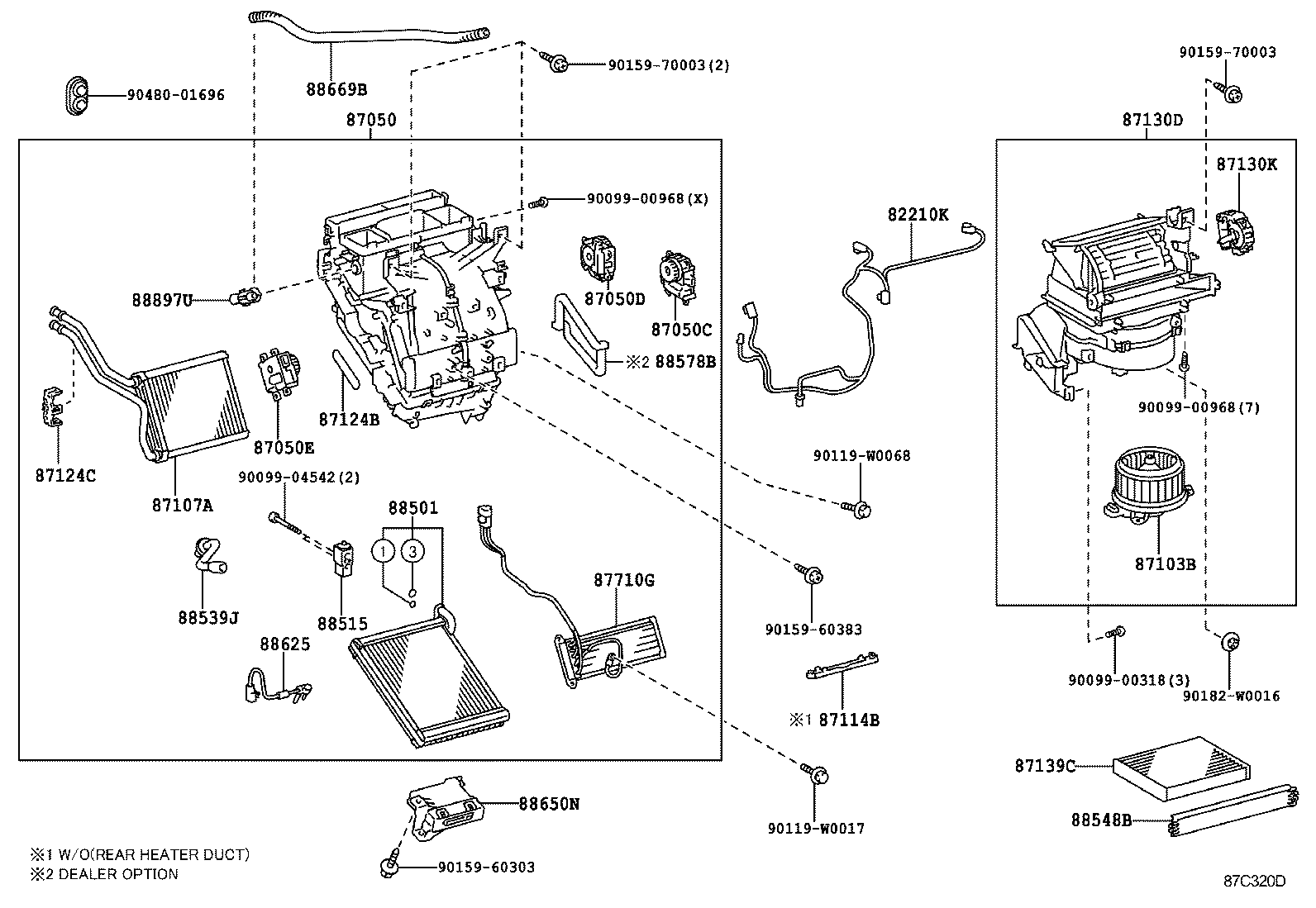

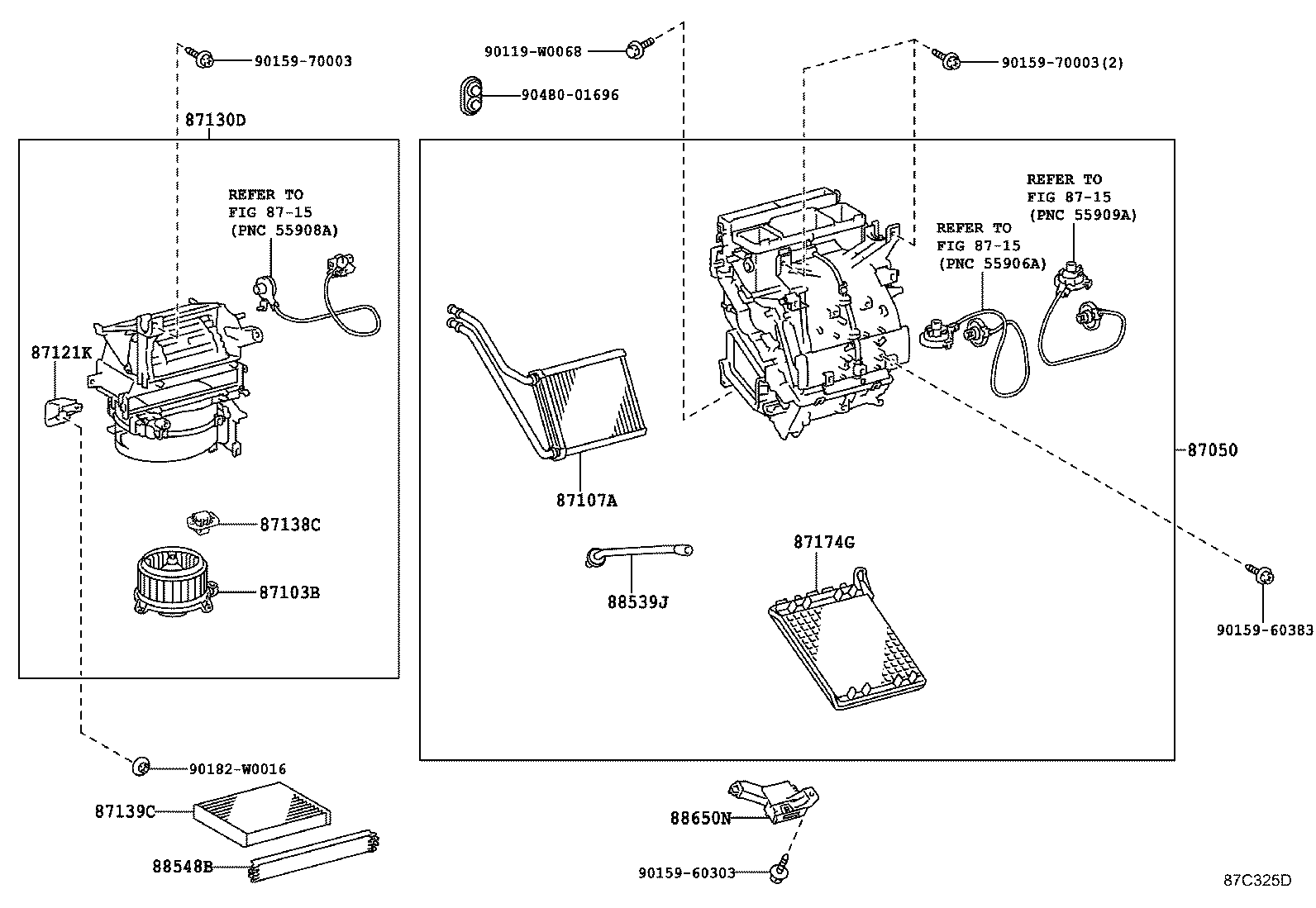

Figure 87C317F 87C317F 2011-07 → — Figure 87C318G 87C318G 2011-07 → — Figure 87C319D 87C319D 2011-07 → — Figure 87C320D 87C320D 2011-07 → — Figure 87C321D 87C321D 2011-07 → — Figure 87C322D 87C322D 2011-07 → — Figure 87C323G 87C323G 2011-07 → — Figure 87C324D 87C324D 2011-07 → — Figure 87C325D 87C325D 2011-07 → — Figure 87C370C 87C370C 2011-07 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87050E Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
87103B Motor Sub-assy, Blower W/Fan
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87121K Bracket, Heater
87124B Clamp, Heater
87124C Clamp, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87138C Resistor, Blower
87139C Filter, Clean Air
87174G Guide, Air Heater
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88669B Hose, Cooler Air
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
