Toyota Yaris/Hybrid (FRP)

2011-07 → 2014-07 · chassis KSP130,NHP130,NLP130,NSP130 · catalogue 116530 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

21 part groups · 9 illustrations

Illustrations

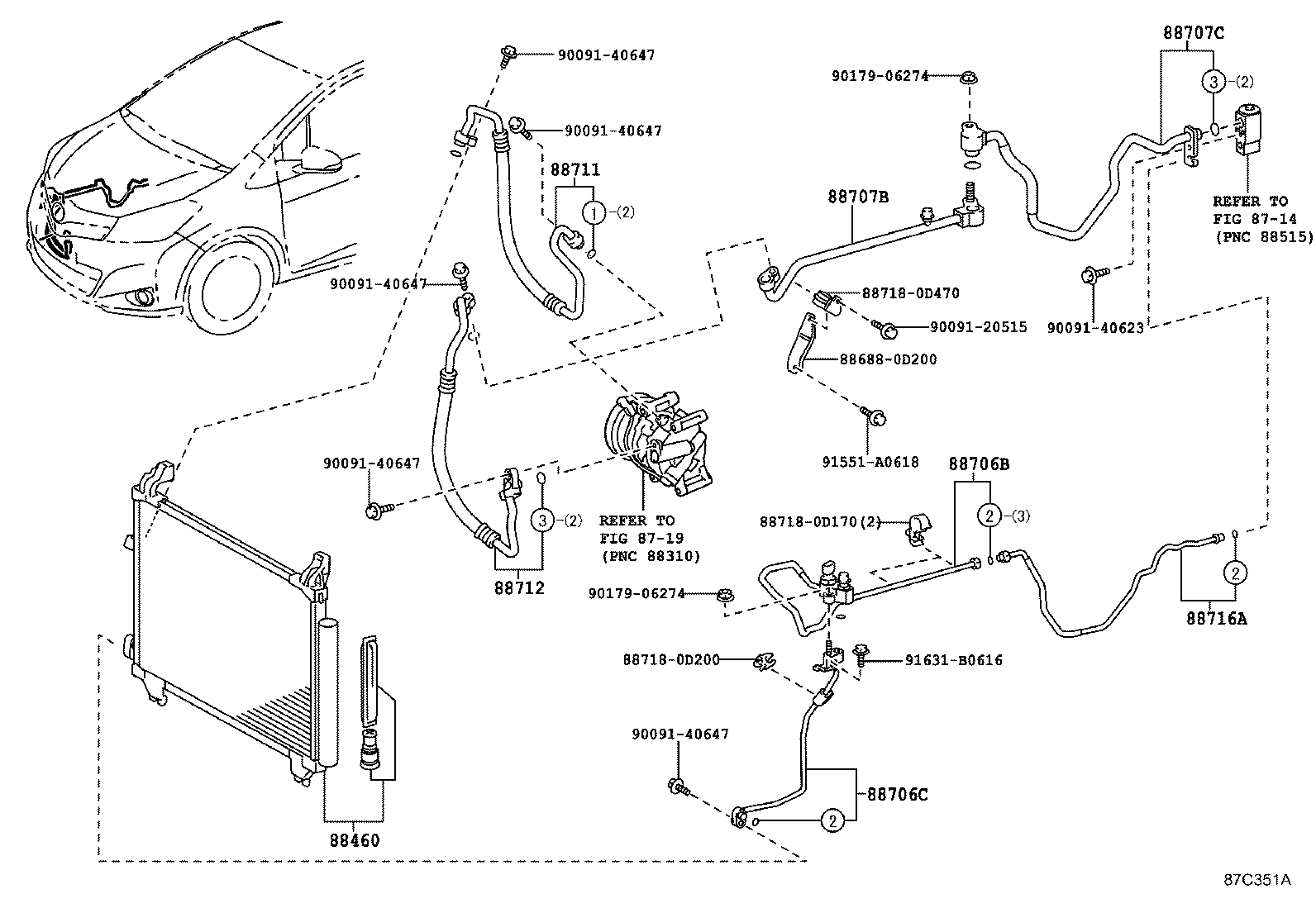

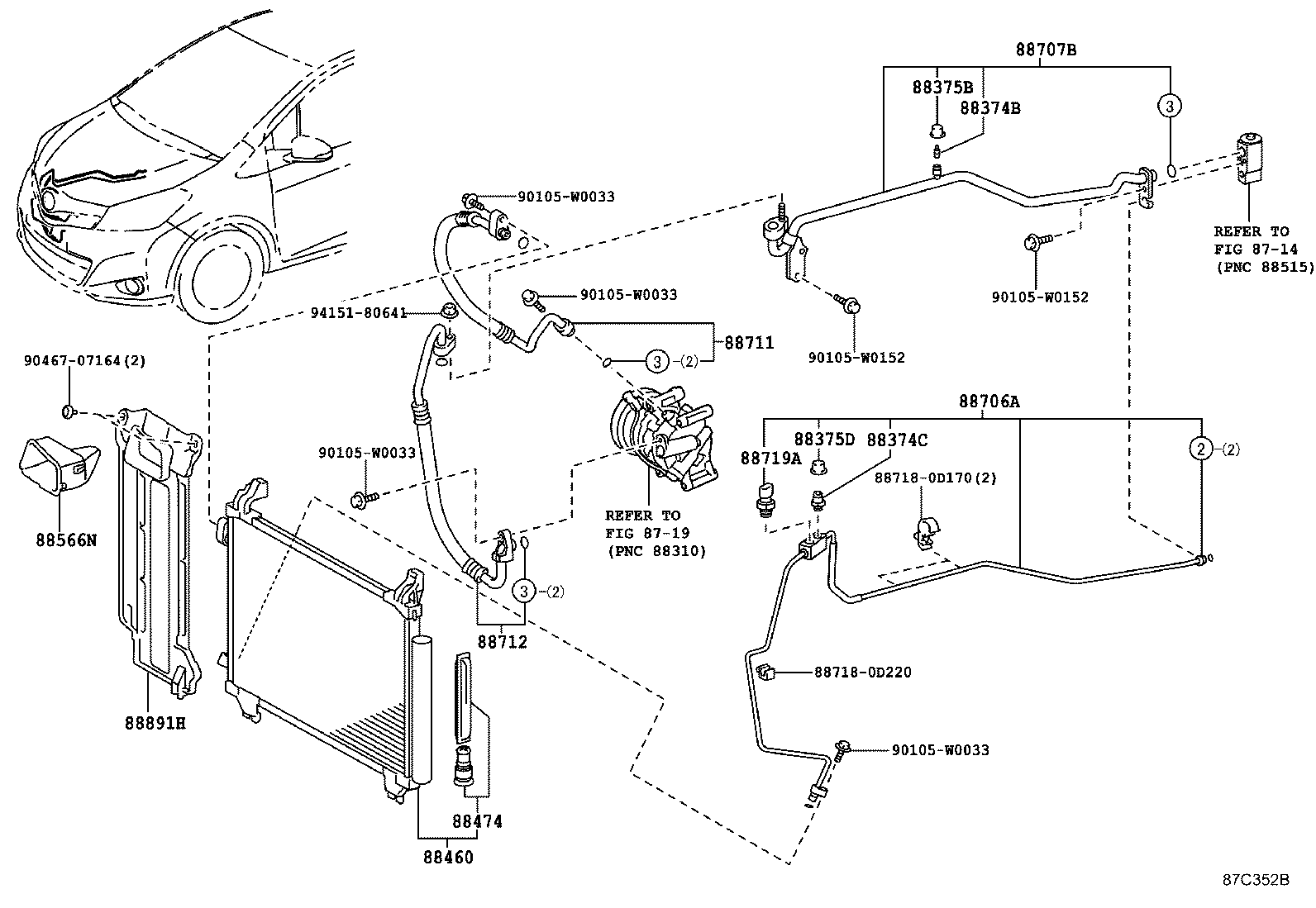

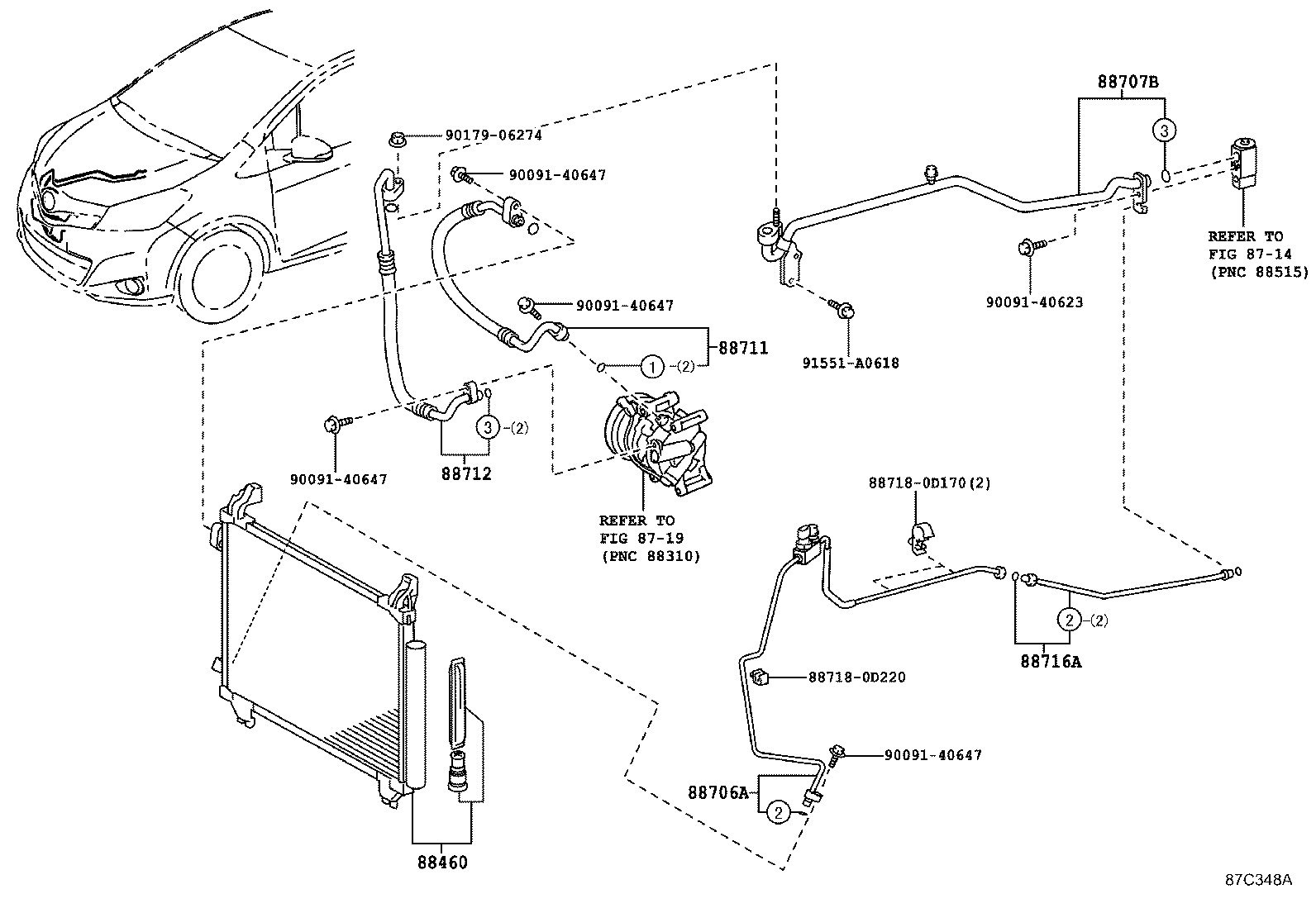

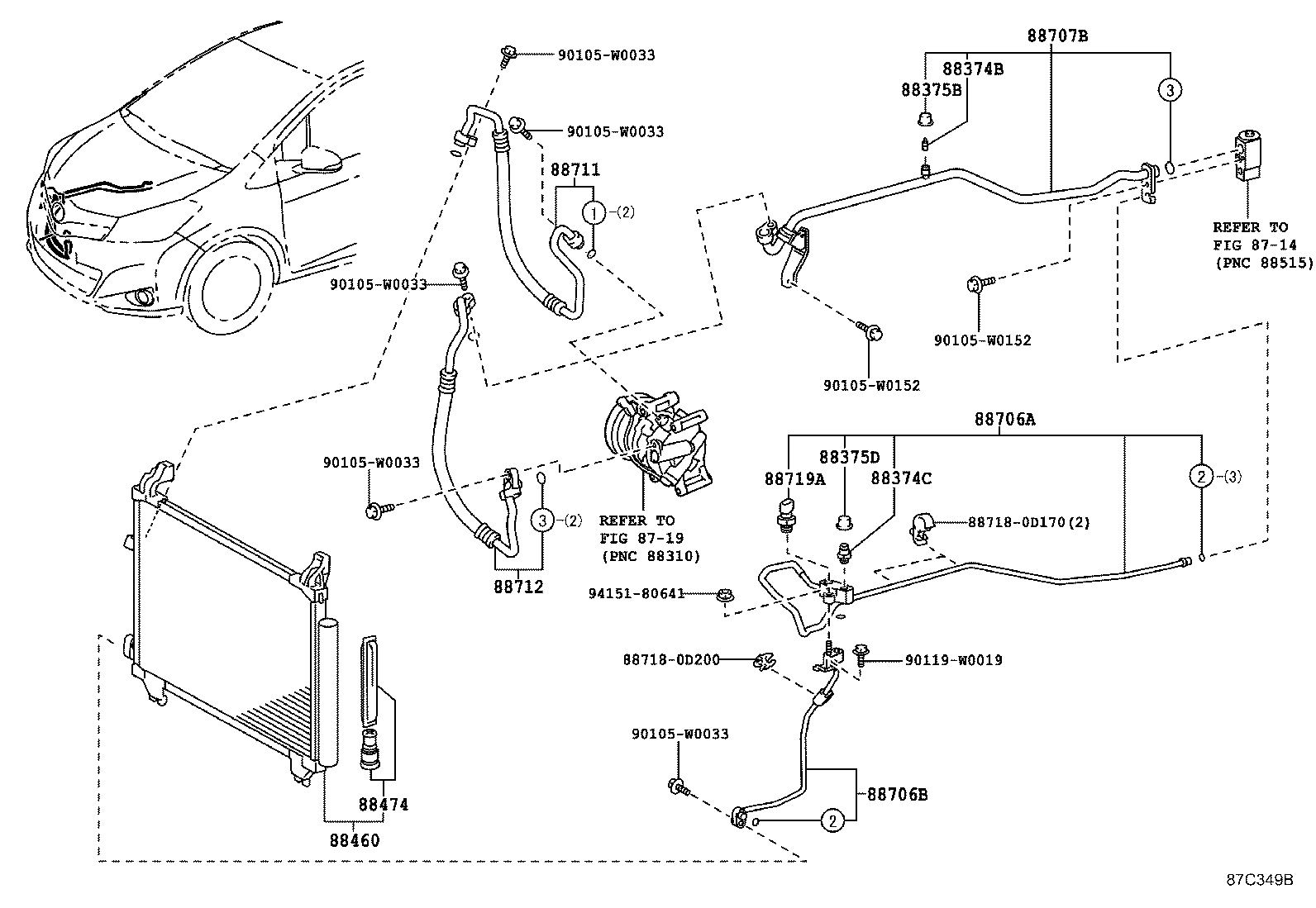

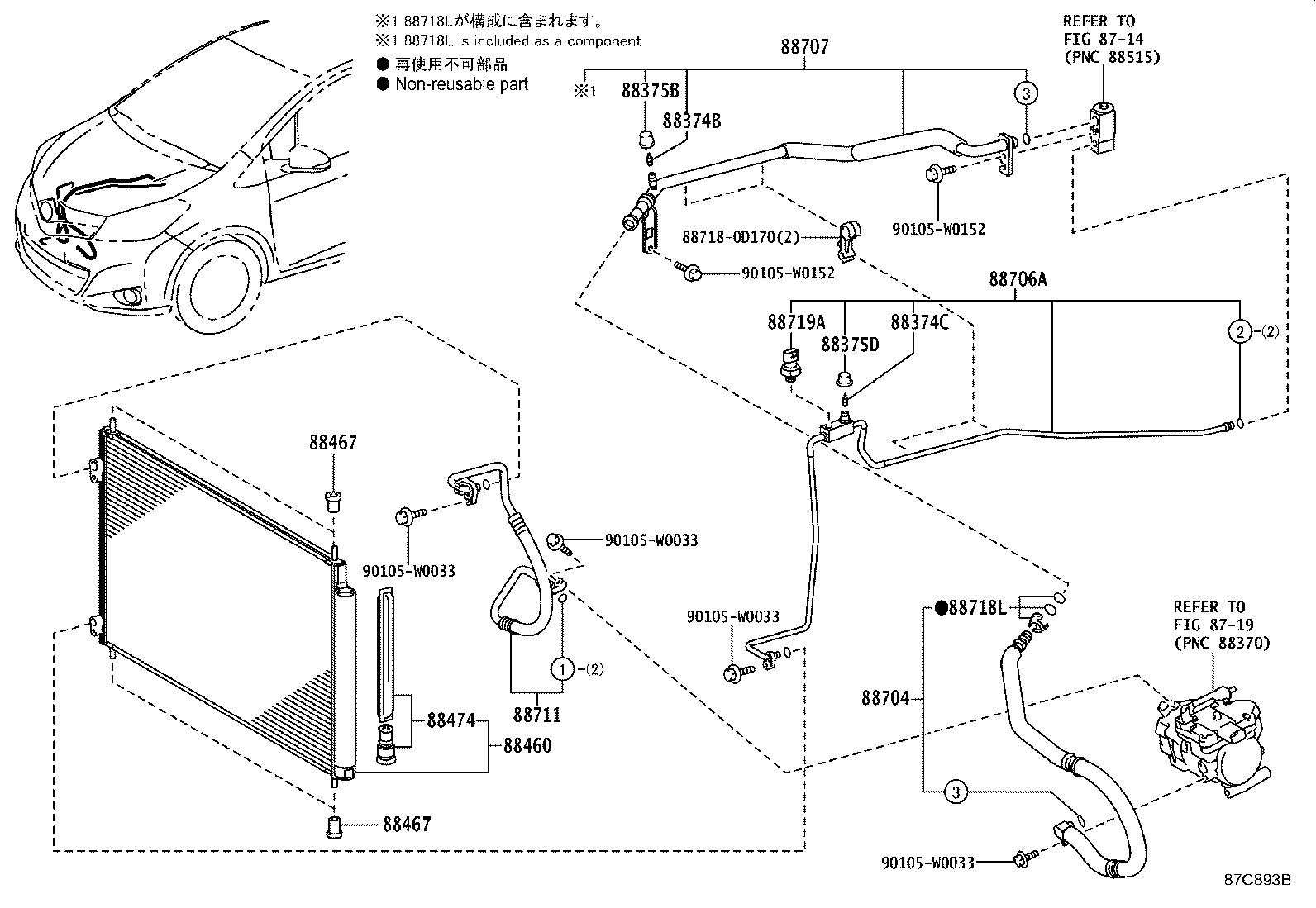

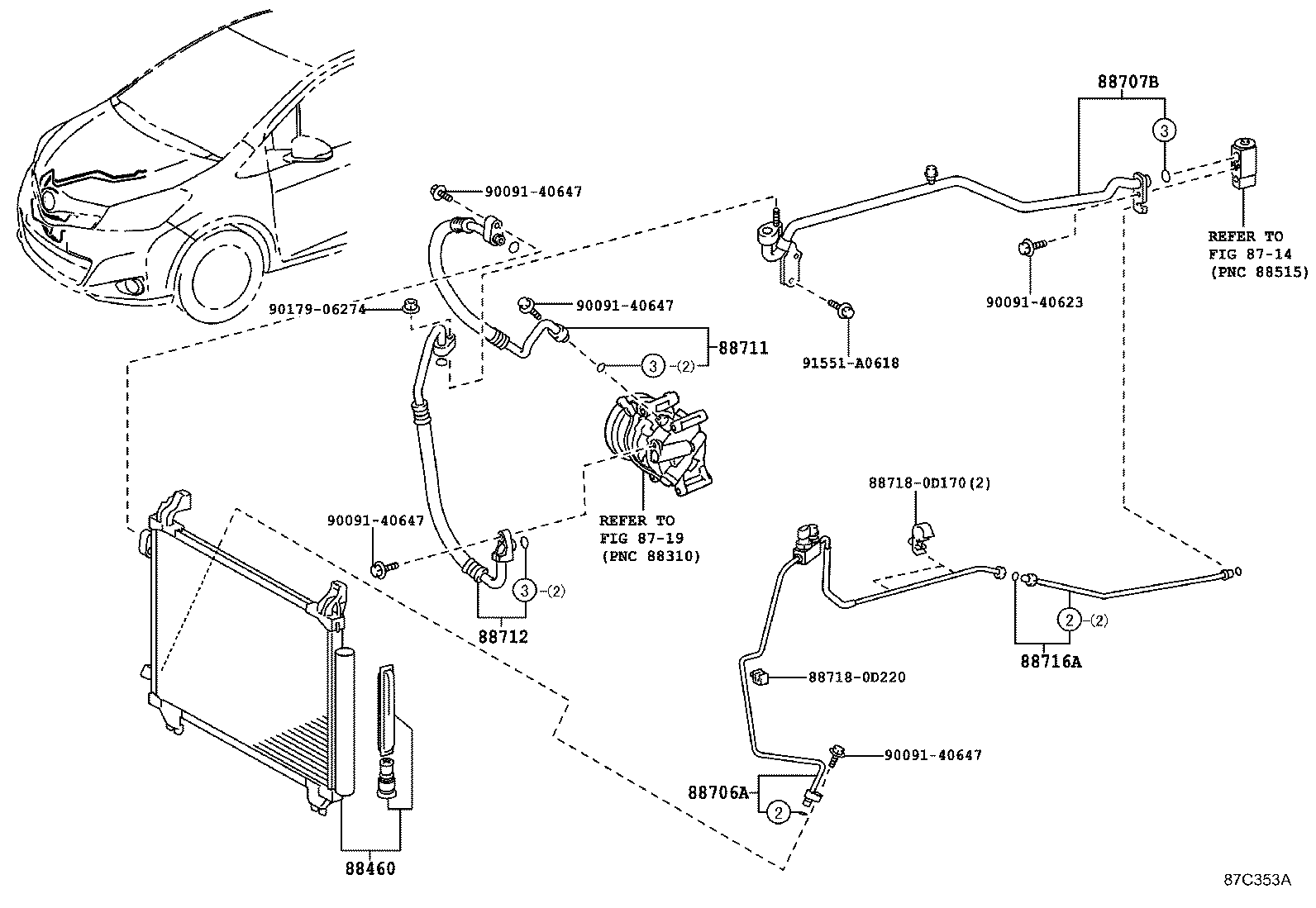

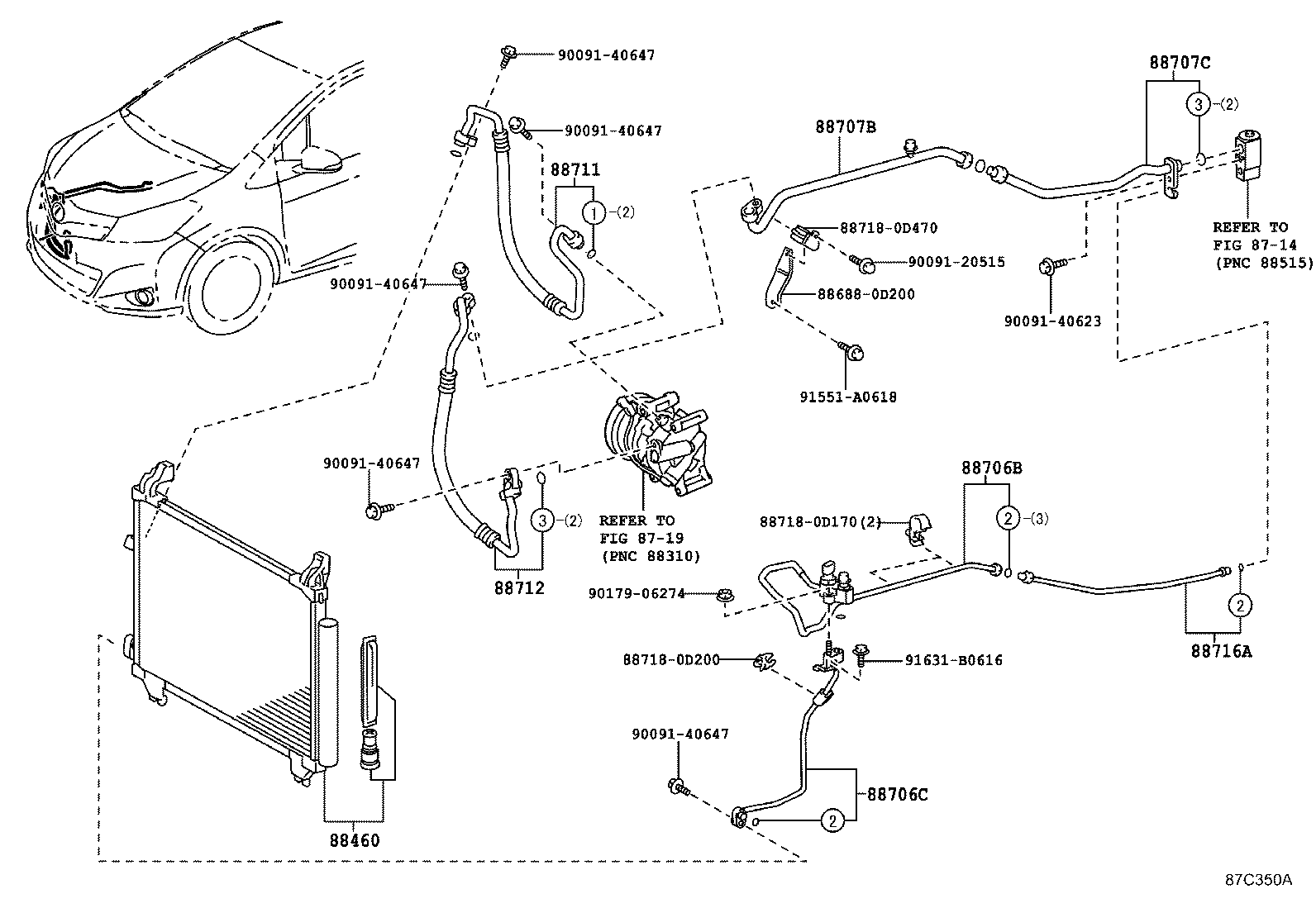

Figure 87C347B 87C347B 2011-07 → — Figure 87C348A 87C348A 2011-07 → — Figure 87C349B 87C349B 2011-07 → — Figure 87C350A 87C350A 2011-07 → — Figure 87C351A 87C351A 2011-07 → — Figure 87C352B 87C352B 2011-07 → — Figure 87C353A 87C353A 2011-07 → — Figure 87C893C 87C893C 2012-04 → — Figure 87C370D 87C370D 2011-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88566N Duct, Cooler Air, NO.1
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88707C Tube Sub-assy, Suction, C
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
