Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

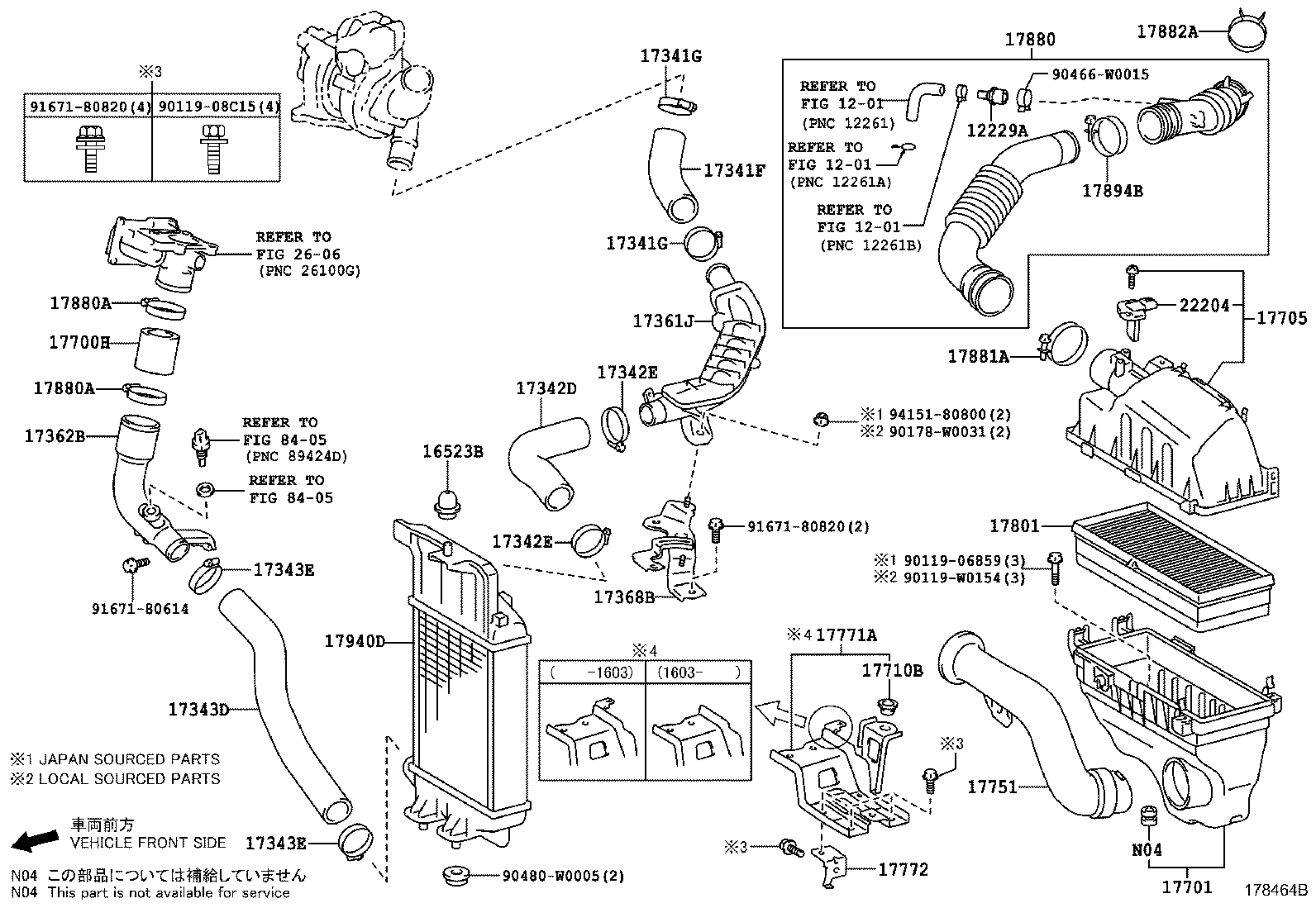

Exploded illustration 178464B 17343E — CLAMP, HOSE(FOR AIR HOSE, NO.3) (3 parts) 8405 — not listed in this catalogue 8405 — not listed in this catalogue 2606 — not listed in this catalogue 1201 — not listed in this catalogue 1201 — not listed in this catalogue 1201 — not listed in this catalogue 16523B — CUSHION, RADIATOR SUPPORT (4 parts) 17361J — TUBE, AIR, NO.1 (10 parts) 17341F — HOSE, AIR, NO.1 (10 parts) 17341G — CLAMP OR CLIP(FOR AIR HOSE, NO.1) (4 parts) 17342E — CLAMP OR CLIP(FOR AIR HOSE, NO.2) (4 parts) 17342D — HOSE, AIR, NO.2 (4 parts) 17341G — CLAMP OR CLIP(FOR AIR HOSE, NO.1) (4 parts) 17342E — CLAMP OR CLIP(FOR AIR HOSE, NO.2) (4 parts) 17880A — CLAMP, HOSE (4 parts) 17880A — CLAMP, HOSE (4 parts) 17700H — HOSE, AIR (4 parts) 17368B — SUPPORT, AIR TUBE (4 parts) 17701 — CASE SUB-ASSY, AIR CLEANER (8 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (24 parts) 17751 — INLET, AIR CLEANER, NO.1 (11 parts) 17771A — BRACKET, AIR CLEANER (5 parts) 17772 — BRACKET, INTAKE AIR CONNECTOR, NO.2 (4 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (19 parts) 17880 — HOSE ASSY, AIR CLEANER (13 parts) 12229A — PIPE, VENTILATION (8 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (9 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (7 parts) 17894B — CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) (4 parts) 17940D — INTERCOOLER ASSY (10 parts) 22204 — METER SUB-ASSY, INTAKE AIR FLOW (25 parts) 9011906859 — not listed in this catalogue 90119W0154 — not listed in this catalogue 90466W0015 — not listed in this catalogue 90480W0005 — not listed in this catalogue 9167180820 — not listed in this catalogue 9011908C15 — not listed in this catalogue 9415180800 — not listed in this catalogue 9167180820 — not listed in this catalogue 90178W0031 — not listed in this catalogue 17362B — TUBE, AIR, NO.2 (4 parts) 17343D — HOSE, AIR, NO.3 (3 parts) 17343E — CLAMP, HOSE(FOR AIR HOSE, NO.3) (3 parts) 9167180614 — not listed in this catalogue 17710B — GROMMET (4 parts)
178464B · 30 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
209 parts on this figure
Part number Description Fitment Price
12229A — Pipe, Ventilation
12229-0N010 Pipe, Ventilation
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
12229-0N010 Pipe, Ventilation
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
12229-21010 Pipe, Ventilation
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
12229-21010 Pipe, Ventilation
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
12229-0N010 Pipe, Ventilation
2017-03 → 2018-12 ended
1NDTV NLP130 —
12229-21010 Pipe, Ventilation
2017-03 → 2020-06 ended
2NRFKE NSP131 6F —
12229-21010 note Pipe, Ventilation
2017-03 → 2020-06 ended
2NRFKE NSP131 CVT —
12229-47010 note Pipe, Ventilation
2017-03 → 2020-06 ended
2NRFKE NSP131 CVT —
16523B — Cushion, Radiator Support
16523-0Q020 Cushion, Radiator Support
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
16523-0Q020 Cushion, Radiator Support
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
16523-0Q020 Cushion, Radiator Support
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
16523-0Q020 Cushion, Radiator Support
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17341F — Hose, Air, NO.1
17341-33050 Hose, Air, NO.1
2014-07 → 2015-05 ended
1NDTV NLP130 —
17341-33050 note Hose, Air, NO.1
2015-05 → 2015-11 ended
1NDTV NLP130 LHD —
17341-33050 note Hose, Air, NO.1
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
17341-33050 note Hose, Air, NO.1
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
17341-33060 Hose, Air, NO.1
2015-05 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17341-33060 Hose, Air, NO.1
2015-05 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17341-33050 note Hose, Air, NO.1
2017-03 → 2018-05 ended
1NDTV NLP130 LHD —
17341-33050 Hose, Air, NO.1
2018-05 → 2018-11 ended
1NDTV NLP130 S —
17341-33050 Hose, Air, NO.1
2018-05 → 2018-12 ended
1NDTV NLP130 G,N,R —
17341-33060 Hose, Air, NO.1
2017-03 → 2018-05 ended
1NDTV NLP130 —
17341G — Clamp OR Clip(FOR AIR HOSE, NO.1)
90460-50005 Clamp OR Clip(FOR AIR HOSE, NO.1)
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
90460-50005 Clamp OR Clip(FOR AIR HOSE, NO.1)
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
90460-50005 Clamp OR Clip(FOR AIR HOSE, NO.1)
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
90460-50005 Clamp OR Clip(FOR AIR HOSE, NO.1)
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17342D — Hose, Air, NO.2
17342-33051 Hose, Air, NO.2
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17342-33051 Hose, Air, NO.2
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17342-33051 Hose, Air, NO.2
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
17342-33051 Hose, Air, NO.2
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17342E — Clamp OR Clip(FOR AIR HOSE, NO.2)
90460-50005 Clamp OR Clip(FOR AIR HOSE, NO.2)
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
90460-50005 Clamp OR Clip(FOR AIR HOSE, NO.2)
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
90460-50005 Clamp OR Clip(FOR AIR HOSE, NO.2)
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
90460-50005 Clamp OR Clip(FOR AIR HOSE, NO.2)
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17343D — Hose, Air, NO.3
17343-33150 Hose, Air, NO.3
2014-07 → 2017-03 ended
1NDTV NLP130 —
17343-33150 Hose, Air, NO.3
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
17343-33150 Hose, Air, NO.3
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17343E — Clamp, Hose(FOR AIR HOSE, NO.3)
90460-50005 Clamp, Hose(FOR AIR HOSE, NO.3)
2014-07 → 2017-03 ended
1NDTV NLP130 —
90460-50005 Clamp, Hose(FOR AIR HOSE, NO.3)
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
90460-50005 Clamp, Hose(FOR AIR HOSE, NO.3)
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17361J — Tube, Air, NO.1
17361-0N050 note Tube, Air, NO.1
2015-05 → 2015-11 ended
1NDTV NLP130 LHD —
17361-0N050 note Tube, Air, NO.1
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
17361-0N050 note Tube, Air, NO.1
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
17361-0N050 Tube, Air, NO.1
2014-07 → 2015-05 ended
1NDTV NLP130 —
17361-33120 Tube, Air, NO.1
2015-05 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17361-33120 Tube, Air, NO.1
2015-05 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17361-0N050 note Tube, Air, NO.1
2017-03 → 2018-05 ended
1NDTV NLP130 LHD —
17361-0N050 Tube, Air, NO.1
2018-05 → 2018-11 ended
1NDTV NLP130 S —
17361-0N050 Tube, Air, NO.1
2018-05 → 2018-12 ended
1NDTV NLP130 G,N,R —
17361-33120 Tube, Air, NO.1
2017-03 → 2018-05 ended
1NDTV NLP130 —
17362B — Tube, Air, NO.2
17362-33090 Tube, Air, NO.2
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17362-33090 Tube, Air, NO.2
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17362-33090 Tube, Air, NO.2
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
17362-33090 Tube, Air, NO.2
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17368B — Support, Air Tube
17368-0N050 Support, Air Tube
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17368-0N050 Support, Air Tube
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17368-0N050 Support, Air Tube
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
17368-0N050 Support, Air Tube
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17700H — Hose, Air
17341-33080 Hose, Air
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17341-33080 Hose, Air
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17341-33080 Hose, Air
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
17341-33080 Hose, Air
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17701 — Case Sub-assy, Air Cleaner
17701-0M060 Case Sub-assy, Air Cleaner
2014-07 → 2017-03 ended
1NZFXE NHP130 —
17701-0N032 Case Sub-assy, Air Cleaner
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17701-0N032 Case Sub-assy, Air Cleaner
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17701-0M061 Case Sub-assy, Air Cleaner
2017-03 → 2020-06 ended
1NZFXE NHP130 —
17701-0N032 Case Sub-assy, Air Cleaner
2017-03 → 2018-12 ended
1NDTV NLP130 —
17701-0Y200 Case Sub-assy, Air Cleaner
2017-03 → 2020-06 ended
2NRFKE NSP131 —
17711-0Q020 Case Sub-assy, Air Cleaner
2018-05 → 2020-02 ended
1KRFE KSP130 —
17711-0Q021 Case Sub-assy, Air Cleaner
2020-03 → 2020-06 ended
1KRFE KSP130 —
17705 — Cap Sub-assy, Air Cleaner
17705-0M080 Cap Sub-assy, Air Cleaner
2014-07 → 2017-03 ended
1NZFXE NHP130 —
17705-0N050 Cap Sub-assy, Air Cleaner
2014-07 → 2015-05 ended
1NDTV NLP130 —
17705-0N050 note Cap Sub-assy, Air Cleaner
2015-05 → 2015-11 ended
1NDTV NLP130 LHD —
17705-0N050 note Cap Sub-assy, Air Cleaner
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
17705-0N050 note Cap Sub-assy, Air Cleaner
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
17705-0N110 note Cap Sub-assy, Air Cleaner
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
17705-0N110 note Cap Sub-assy, Air Cleaner
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
17705-0N110 Cap Sub-assy, Air Cleaner
2015-05 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17705-0N110 note Cap Sub-assy, Air Cleaner
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
17705-0N110 Cap Sub-assy, Air Cleaner
2015-05 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17705-0N110 note Cap Sub-assy, Air Cleaner
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
17705-0Q030 Cap Sub-assy, Air Cleaner
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
17705-0Q030 Cap Sub-assy, Air Cleaner
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
17705-0Y070 note Cap Sub-assy, Air Cleaner
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
17705-0Y070 note Cap Sub-assy, Air Cleaner
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
17705-47102 note Cap Sub-assy, Air Cleaner
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
17705-47102 note Cap Sub-assy, Air Cleaner
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
17705-0M080 Cap Sub-assy, Air Cleaner
2017-03 → 2020-06 ended
1NZFXE NHP130 —
17705-0N050 Cap Sub-assy, Air Cleaner
2018-05 → 2018-12 ended
1NDTV NLP130 —
17705-0N050 note Cap Sub-assy, Air Cleaner
2017-03 → 2018-05 ended
1NDTV NLP130 LHD —
17705-0N110 note Cap Sub-assy, Air Cleaner
2017-03 → 2018-05 ended
1NDTV NLP130 LHD —
17705-0N110 Cap Sub-assy, Air Cleaner
2017-03 → 2018-05 ended
1NDTV NLP130 —
17705-0Q030 Cap Sub-assy, Air Cleaner
2017-03 → 2018-05 ended
1KRFE KSP130 —
17705-0Y270 Cap Sub-assy, Air Cleaner
2017-03 → 2020-06 ended
2NRFKE NSP131 —
17710B — Grommet
90480-15036 Grommet
2014-07 → 2017-03 ended
1NZFXE NHP130 —
90480-18006 Grommet
2014-07 → 2017-03 ended
1NDTV NLP130 —
90480-15036 Grommet
2017-03 → 2020-06 ended
1NZFXE NHP130 —
90480-18006 Grommet
2017-03 → 2020-06 ended
1NDTV,2NRFKE NLP130,NSP131 —
17751 — Inlet, Air Cleaner, NO.1
17751-0M060 Inlet, Air Cleaner, NO.1
2014-07 → 2017-03 ended
1NZFXE NHP130 —
17751-0N032 Inlet, Air Cleaner, NO.1
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17751-0N032 Inlet, Air Cleaner, NO.1
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17751-0Q010 Inlet, Air Cleaner, NO.1
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
17751-0Q010 Inlet, Air Cleaner, NO.1
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
17751-0Y130 Inlet, Air Cleaner, NO.1
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
17751-0Y130 Inlet, Air Cleaner, NO.1
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
17751-0M060 Inlet, Air Cleaner, NO.1
2017-03 → 2020-06 ended
1NZFXE NHP130 —
17751-0N032 Inlet, Air Cleaner, NO.1
2017-03 → 2018-12 ended
1NDTV NLP130 —
17751-0Q010 Inlet, Air Cleaner, NO.1
2017-03 → 2018-05 ended
1KRFE KSP130 —
17751-47080 Inlet, Air Cleaner, NO.1
2017-03 → 2020-06 ended
2NRFKE NSP131 —
17771A — Bracket, Air Cleaner
17771-0N030 Bracket, Air Cleaner
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17771-0N030 Bracket, Air Cleaner
2014-07 → 2016-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17771-0N031 Bracket, Air Cleaner
2016-03 → 2017-03 ended
1NDTV NLP130 —
17771-0N031 Bracket, Air Cleaner
2017-03 → 2018-12 ended
1NDTV NLP130 —
17771-21050 Bracket, Air Cleaner
2017-03 → 2020-06 ended
2NRFKE NSP131 —
17772 — Bracket, Intake Air Connector, NO.2
17772-0N010 Bracket, Intake Air Connector, NO.2
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17772-0N010 Bracket, Intake Air Connector, NO.2
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17772-0N010 Bracket, Intake Air Connector, NO.2
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17772-0N010 Bracket, Intake Air Connector, NO.2
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
17801 — Element Sub-assy, Air Cleaner Filter
17801-0M030 Element Sub-assy, Air Cleaner Filter
2014-07 → 2014-11 ended
1NZFXE NHP130 —
17801-0M030 Element Sub-assy, Air Cleaner Filter
2014-07 → 2014-11 ended
1KRFE KSP130 —
17801-0M040 Element Sub-assy, Air Cleaner Filter
2014-11 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
17801-0M040 Element Sub-assy, Air Cleaner Filter
2014-11 → 2017-03 ended
1NZFXE NHP130 —
17801-0M040 Element Sub-assy, Air Cleaner Filter
2014-11 → 2015-11 ended
1KRFE KSP130 3D G —
17801-0N040 Element Sub-assy, Air Cleaner Filter
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17801-0N040 note Element Sub-assy, Air Cleaner Filter
2015-05 → 2015-11 ended
1NDTV NLP130 LHD —
17801-0N040 Element Sub-assy, Air Cleaner Filter
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17801-0N060 note Element Sub-assy, Air Cleaner Filter
2014-07 → 2015-11 ended
1NDTV NLP130 LHD —
17801-0Y010 note Element Sub-assy, Air Cleaner Filter
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
17801-0Y010 note Element Sub-assy, Air Cleaner Filter
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
17801-21030 note Element Sub-assy, Air Cleaner Filter
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
17801-21030 note Element Sub-assy, Air Cleaner Filter
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
17801-0D060 Element Sub-assy, Air Cleaner Filter
2017-03 → 2020-06 ended
2NRFKE NSP131 —
17801-0M040 Element Sub-assy, Air Cleaner Filter
2017-03 → 2018-05 ended
1KRFE KSP130 —
17801-0M040 note Element Sub-assy, Air Cleaner Filter
2018-05 → 2020-06 ended
1KRFE KSP130 —
17801-0M040 Element Sub-assy, Air Cleaner Filter
2017-03 → 2020-06 ended
1NZFXE NHP130 —
17801-0N040 Element Sub-assy, Air Cleaner Filter
2017-03 → 2018-12 ended
1NDTV NLP130 —
17801-21060 note Element Sub-assy, Air Cleaner Filter
2018-05 → 2020-06 ended
1KRFE KSP130 —
17880 — Hose Assy, Air Cleaner
17880-0M090 Hose Assy, Air Cleaner
2014-07 → 2017-03 ended
1NZFXE NHP130 —
17880-0N080 note Hose Assy, Air Cleaner
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
17880-0N080 note Hose Assy, Air Cleaner
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
17880-0N080 note Hose Assy, Air Cleaner
2015-05 → 2015-11 ended
1NDTV NLP130 LHD —
17880-0N080 Hose Assy, Air Cleaner
2014-07 → 2015-05 ended
1NDTV NLP130 —
17880-0N100 Hose Assy, Air Cleaner
2015-05 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17880-0N100 Hose Assy, Air Cleaner
2015-05 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17880-0Y030 Hose Assy, Air Cleaner
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
17880-0Y030 Hose Assy, Air Cleaner
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
17880-0M090 Hose Assy, Air Cleaner
2017-03 → 2020-06 ended
1NZFXE NHP130 —
17880-0N080 note Hose Assy, Air Cleaner
2017-03 → 2018-05 ended
1NDTV NLP130 LHD —
17880-0N080 Hose Assy, Air Cleaner
2018-05 → 2018-12 ended
1NDTV NLP130 —
17880-0N100 Hose Assy, Air Cleaner
2017-03 → 2018-05 ended
1NDTV NLP130 —
17880A — Clamp, Hose
90460-63011 Clamp, Hose
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
90460-63011 Clamp, Hose
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
90460-63011 Clamp, Hose
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
90460-63011 Clamp, Hose
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10600 Clamp(FOR AIR CLEANER HOSE, NO.1)
2014-07 → 2017-03 ended
1NZFXE NHP130 —
96111-10690 Clamp(FOR AIR CLEANER HOSE, NO.1)
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
96111-10690 Clamp(FOR AIR CLEANER HOSE, NO.1)
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
96111-10600 Clamp(FOR AIR CLEANER HOSE, NO.1)
2017-03 → 2020-06 ended
1NZFXE NHP130 —
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2017-03 → 2020-06 ended
2NRFKE NSP131 —
96111-10730 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2017-03 → 2020-06 ended
2NRFKE NSP131 —
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2017-03 → 2018-12 ended
1NDTV NLP130 —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90466-54002 Clamp(FOR AIR CLEANER HOSE, NO.2)
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
90466-54002 Clamp(FOR AIR CLEANER HOSE, NO.2)
2014-07 → 2017-03 ended
1NZFXE NHP130;1NDTV NLP130 N,R;1NDTV +3 —
90466-62002 Clamp(FOR AIR CLEANER HOSE, NO.2)
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
90466-62002 Clamp(FOR AIR CLEANER HOSE, NO.2)
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
90466-54002 Clamp(FOR AIR CLEANER HOSE, NO.2)
2017-03 → 2020-06 ended
1N# NHP130,NLP130 —
90466-62002 note Clamp(FOR AIR CLEANER HOSE, NO.2)
2017-03 → 2020-06 ended
2NRFKE NSP131 —
96111-10730 note Clamp(FOR AIR CLEANER HOSE, NO.2)
2017-03 → 2020-06 ended
2NRFKE NSP131 —
17894B — Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
96111-10630 Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
2014-07 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
96111-10630 Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
2014-07 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
96111-10630 Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
2017-03 → 2018-11 ended
1NDTV NLP130 LHD S —
96111-10630 Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
2017-03 → 2018-12 ended
1NDTV NLP130 RHD;1NDTV NLP130 +2 —
17940D — Intercooler Assy
17940-0N070 Intercooler Assy
2014-07 → 2015-05 ended
1NDTV NLP130 —
17940-0N070 note Intercooler Assy
2015-05 → 2015-11 ended
1NDTV NLP130 LHD —
17940-0N070 note Intercooler Assy
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
17940-0N070 note Intercooler Assy
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
17940-0N160 Intercooler Assy
2015-05 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
17940-0N160 Intercooler Assy
2015-05 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
17940-0N070 Intercooler Assy
2018-05 → 2018-12 ended
1NDTV NLP130 G,N,R —
17940-0N070 Intercooler Assy
2018-05 → 2018-11 ended
1NDTV NLP130 S —
17940-0N070 note Intercooler Assy
2017-03 → 2018-05 ended
1NDTV NLP130 LHD —
17940-0N160 Intercooler Assy
2017-03 → 2018-05 ended
1NDTV NLP130 —
22204 — Meter Sub-assy, Intake Air Flow
22204-0T040 note Meter Sub-assy, Intake Air Flow
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
22204-0T040 note Meter Sub-assy, Intake Air Flow
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
22204-0V010 note Meter Sub-assy, Intake Air Flow
2014-07 → 2017-03 ended
1NZFXE NHP130;1NRFE NSP130 N,R;1NRFE +3 —
22204-0V010 note Meter Sub-assy, Intake Air Flow
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
22204-0V020 note Meter Sub-assy, Intake Air Flow
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
22204-0V020 note Meter Sub-assy, Intake Air Flow
2014-07 → 2017-03 ended
1NZFXE NHP130;1NRFE NSP130 N,R;1NRFE +3 —
22204-26010 note Meter Sub-assy, Intake Air Flow
2015-05 → 2015-11 ended
1NDTV NLP130 LHD —
22204-26010 note Meter Sub-assy, Intake Air Flow
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
22204-26010 note Meter Sub-assy, Intake Air Flow
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
22204-26010 Meter Sub-assy, Intake Air Flow
2014-07 → 2015-05 ended
1NDTV NLP130 —
22204-28010 note Meter Sub-assy, Intake Air Flow
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
22204-28010 note Meter Sub-assy, Intake Air Flow
2014-07 → 2017-03 ended
1NZFXE NHP130;1NRFE NSP130 N,R;1NRFE +3 —
22204-30030 note Meter Sub-assy, Intake Air Flow
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
22204-30030 note Meter Sub-assy, Intake Air Flow
2015-05 → 2015-11 ended
1NDTV NLP130 LHD 3D +1 —
22204-30030 Meter Sub-assy, Intake Air Flow
2015-05 → 2015-11 ended
1NDTV NLP130 3D (G,S) —
22204-30030 Meter Sub-assy, Intake Air Flow
2015-05 → 2017-03 ended
1NDTV NLP130 N,R;1NDTV NLP130 +2 —
22204-30030 note Meter Sub-assy, Intake Air Flow
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
22204-30030 note Meter Sub-assy, Intake Air Flow
2015-05 → 2017-03 ended
1NDTV NLP130 LHD (N,R);1NDTV +4 —
22204-0V010 note Meter Sub-assy, Intake Air Flow
2017-03 → 2020-06 ended
1NZFXE,2NRFKE NHP130,NSP131 —
22204-0V020 note Meter Sub-assy, Intake Air Flow
2017-03 → 2020-06 ended
1NZFXE,2NRFKE NHP130,NSP131 —
22204-26010 note Meter Sub-assy, Intake Air Flow
2017-03 → 2018-05 ended
1NDTV NLP130 LHD —
22204-26010 Meter Sub-assy, Intake Air Flow
2018-05 → 2018-12 ended
1NDTV NLP130 —
22204-28010 note Meter Sub-assy, Intake Air Flow
2017-03 → 2020-06 ended
1NZFXE,2NRFKE NHP130,NSP131 —
22204-30030 Meter Sub-assy, Intake Air Flow
2017-03 → 2018-05 ended
1NDTV NLP130 —
22204-30030 note Meter Sub-assy, Intake Air Flow
2017-03 → 2018-05 ended
1NDTV NLP130 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
