Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 223365A 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 7701 — not listed in this catalogue 23842A — CLAMP, FUEL PIPE, NO.2(FOR EFI) (4 parts) 22030 — BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR (9 parts) 22271 — GASKET, THROTTLE BODY (5 parts) 23250 — INJECTOR ASSY, FUEL (9 parts) 23250B — RING, O(FOR FUEL INJECTOR) (9 parts) 23291 — INSULATOR, INJECTOR VIBRATION (12 parts) 23814B — PIPE, FUEL DELIVERY (10 parts) 23891 — SPACER, FUEL DELIVERY (5 parts) 90105W0138 — not listed in this catalogue 9155180860 — not listed in this catalogue 23841B — CLAMP, FUEL PIPE, NO.1(FOR EFI) (7 parts) 23901 — TUBE SUB-ASSY, FUEL (12 parts) 90105W0033 — not listed in this catalogue 9155180625 — not listed in this catalogue

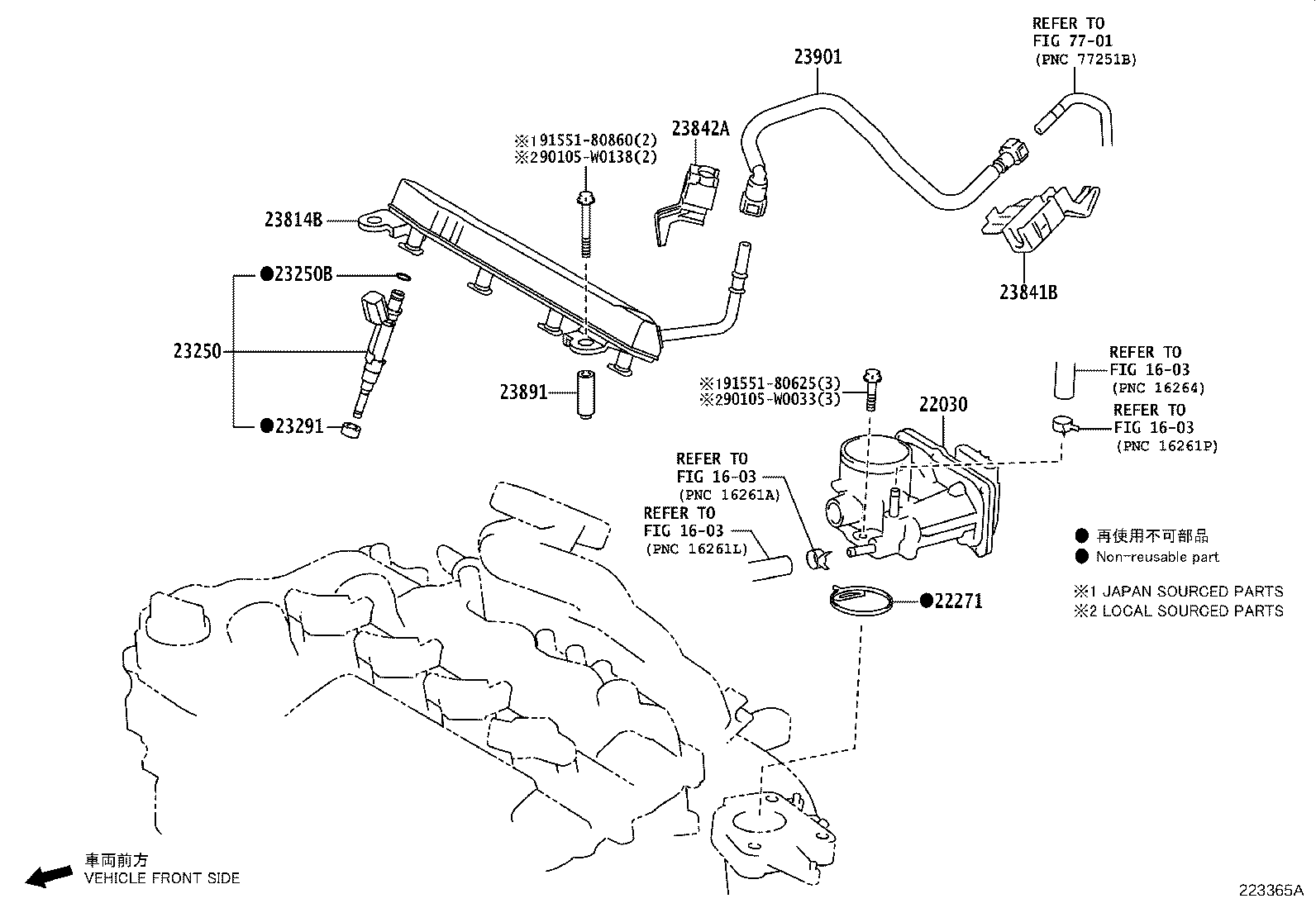

223365A · 10 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
82 parts on this figure
Part number Description Fitment Price
22030 — Body Assy, Throttle W/Throttle Position Sensor
22030-0Q030 Body Assy, Throttle W/Throttle Position Sensor
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
22030-0Q030 Body Assy, Throttle W/Throttle Position Sensor
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
22030-47010 Body Assy, Throttle W/Throttle Position Sensor
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
22030-47010 Body Assy, Throttle W/Throttle Position Sensor
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
22030-47040 Body Assy, Throttle W/Throttle Position Sensor
2014-07 → 2017-03 ended
1NZFXE NHP130 —
22030-0Q030 Body Assy, Throttle W/Throttle Position Sensor
2017-03 → 2018-05 ended
1KRFE KSP130 —
22030-0Q040 Body Assy, Throttle W/Throttle Position Sensor
2018-05 → 2020-06 ended
1KRFE KSP130 —
22030-0Y110 Body Assy, Throttle W/Throttle Position Sensor
2017-03 → 2020-06 ended
2NRFKE NSP131 —
22030-47040 Body Assy, Throttle W/Throttle Position Sensor
2017-03 → 2020-06 ended
1NZFXE NHP130 —
22271 — Gasket, Throttle Body
22271-21070 Gasket, Throttle Body
2014-07 → 2017-03 ended
1NZFXE NHP130 —
22271-47010 Gasket, Throttle Body
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
22271-47010 Gasket, Throttle Body
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
22271-21070 Gasket, Throttle Body
2017-03 → 2020-06 ended
1NZFXE NHP130 —
22271-47050 Gasket, Throttle Body
2017-03 → 2020-06 ended
2NRFKE NSP131 —
23250 — Injector Assy, Fuel
23209-09270 Injector Assy, Fuel
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
23209-09270 Injector Assy, Fuel
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
23209-21091 Injector Assy, Fuel
2014-07 → 2017-03 ended
1NZFXE NHP130 —
23209-49205 Injector Assy, Fuel
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
23209-49205 Injector Assy, Fuel
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
23209-09270 Injector Assy, Fuel
2017-03 → 2018-05 ended
1KRFE KSP130 —
23209-09420 Injector Assy, Fuel
2018-05 → 2020-06 ended
1KRFE KSP130 —
23209-21091 Injector Assy, Fuel
2017-03 → 2020-06 ended
1NZFXE NHP130 —
23209-49275 Injector Assy, Fuel
2017-03 → 2020-06 ended
2NRFKE NSP131 —
23250B — Ring, O(FOR FUEL INJECTOR)
90301-07033 Ring, O(FOR FUEL INJECTOR)
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
90301-07033 Ring, O(FOR FUEL INJECTOR)
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
90301-07037 Ring, O(FOR FUEL INJECTOR)
2014-07 → 2017-03 ended
1NZFXE NHP130 —
90301-07042 Ring, O(FOR FUEL INJECTOR)
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
90301-07042 Ring, O(FOR FUEL INJECTOR)
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
90301-07033 Ring, O(FOR FUEL INJECTOR)
2017-03 → 2018-05 ended
1KRFE KSP130 —
90301-07033 Ring, O(FOR FUEL INJECTOR)
2018-05 → 2020-06 ended
1KRFE KSP130 —
90301-07037 Ring, O(FOR FUEL INJECTOR)
2017-03 → 2020-06 ended
1NZFXE NHP130 —
90301-07042 Ring, O(FOR FUEL INJECTOR)
2017-03 → 2020-06 ended
2NRFKE NSP131 —
23291 — Insulator, Injector Vibration
23291-0J020 note Insulator, Injector Vibration
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
23291-0J020 note Insulator, Injector Vibration
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
23291-23010 note Insulator, Injector Vibration
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
23291-23010 Insulator, Injector Vibration
2014-07 → 2017-03 ended
1NZFXE NHP130;1NRFE NSP130 N,R;1NRFE +3 —
23291-23010 note Insulator, Injector Vibration
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
23291-23010 Insulator, Injector Vibration
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
23291-0J020 note Insulator, Injector Vibration
2017-03 → 2018-05 ended
1KRFE KSP130 —
23291-0J020 Insulator, Injector Vibration
2017-03 → 2020-06 ended
2NRFKE NSP131 —
23291-0J020 note Insulator, Injector Vibration
2018-05 → 2020-06 ended
1KRFE KSP130 —
23291-23010 note Insulator, Injector Vibration
2018-05 → 2020-06 ended
1KRFE KSP130 —
23291-23010 Insulator, Injector Vibration
2017-03 → 2020-06 ended
1NZFXE NHP130 —
23291-23010 note Insulator, Injector Vibration
2017-03 → 2018-05 ended
1KRFE KSP130 —
23814B — Pipe, Fuel Delivery
23814-21073 Pipe, Fuel Delivery
2014-07 → 2017-03 ended
1NZFXE NHP130 —
23814-40040 Pipe, Fuel Delivery
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
23814-40040 Pipe, Fuel Delivery
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
23814-47050 Pipe, Fuel Delivery
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
23814-47050 Pipe, Fuel Delivery
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
23814-21073 Pipe, Fuel Delivery
2017-03 → 2020-06 ended
1NZFXE NHP130 —
23814-40040 Pipe, Fuel Delivery
2017-03 → 2018-05 ended
1KRFE KSP130 —
23814-40050 Pipe, Fuel Delivery
2018-05 → 2020-06 ended
1KRFE KSP130 —
23814-47050 Pipe, Fuel Delivery
2017-03 → 2018-05 ended
2NRFKE NSP131 —
23814-47051 Pipe, Fuel Delivery
2018-06 → 2020-06 ended
2NRFKE NSP131 —
23841B — Clamp, Fuel Pipe, NO.1(FOR EFI)
23841-21050 Clamp, Fuel Pipe, NO.1(FOR EFI)
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
23841-21050 Clamp, Fuel Pipe, NO.1(FOR EFI)
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
23841-21050 Clamp, Fuel Pipe, NO.1(FOR EFI)
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
23841-21050 Clamp, Fuel Pipe, NO.1(FOR EFI)
2014-07 → 2017-03 ended
1NZFXE NHP130;1NRFE NSP130 N,R;1NRFE +3 —
23841-21050 Clamp, Fuel Pipe, NO.1(FOR EFI)
2017-03 → 2020-06 ended
1KRFE KSP130 —
23841-21050 Clamp, Fuel Pipe, NO.1(FOR EFI)
2017-03 → 2020-06 ended
1NZFXE NHP130 —
23841-37090 Clamp, Fuel Pipe, NO.1(FOR EFI)
2017-03 → 2020-06 ended
2NRFKE NSP131 —
23842A — Clamp, Fuel Pipe, NO.2(FOR EFI)
23842-47020 Clamp, Fuel Pipe, NO.2(FOR EFI)
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
23842-47020 Clamp, Fuel Pipe, NO.2(FOR EFI)
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
23841-21050 Clamp, Fuel Pipe, NO.2(FOR EFI)
2017-03 → 2020-06 ended
2NRFKE NSP131 —
23842-47020 Clamp, Fuel Pipe, NO.2(FOR EFI)
2017-03 → 2018-05 ended
1KRFE KSP130 —
23891 — Spacer, Fuel Delivery
23891-21010 Spacer, Fuel Delivery
2014-07 → 2017-03 ended
1NZFXE NHP130 —
23891-47030 Spacer, Fuel Delivery
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
23891-47030 Spacer, Fuel Delivery
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
23891-21010 Spacer, Fuel Delivery
2017-03 → 2020-06 ended
1NZFXE NHP130 —
23891-47030 Spacer, Fuel Delivery
2017-03 → 2020-06 ended
2NRFKE NSP131 —
23901 — Tube Sub-assy, Fuel
23901-0M020 Tube Sub-assy, Fuel
2014-07 → 2017-03 ended
1NZFXE NHP130 —
23901-0Q060 Tube Sub-assy, Fuel
2014-07 → 2015-11 ended
1KRFE KSP130 3D G —
23901-0Q060 Tube Sub-assy, Fuel
2014-07 → 2017-03 ended
1KRFE KSP130 N,R;1KRFE KSP130 +2 —
23901-0Y050 Tube Sub-assy, Fuel
2014-07 → 2015-11 ended
1NRFE NSP130 3D (G,S) —
23901-0Y050 Tube Sub-assy, Fuel
2014-07 → 2017-03 ended
1NRFE NSP130 N,R;1NRFE NSP130 +2 —
23901-0M020 Tube Sub-assy, Fuel
2017-03 → 2019-05 ended
1NZFXE NHP130 —
23901-0M050 Tube Sub-assy, Fuel
2019-05 → 2020-06 ended
1NZFXE NHP130 —
23901-0Q060 Tube Sub-assy, Fuel
2017-03 → 2018-05 ended
1KRFE KSP130 —
23901-0Q080 Tube Sub-assy, Fuel
2018-05 → 2019-05 ended
1KRFE KSP130 —
23901-0Q110 Tube Sub-assy, Fuel
2019-05 → 2020-06 ended
1KRFE KSP130 —
23901-0Y240 Tube Sub-assy, Fuel
2017-03 → 2019-05 ended
2NRFKE NSP131 —
23901-0Y410 Tube Sub-assy, Fuel
2019-05 → 2020-06 ended
2NRFKE NSP131 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
