Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

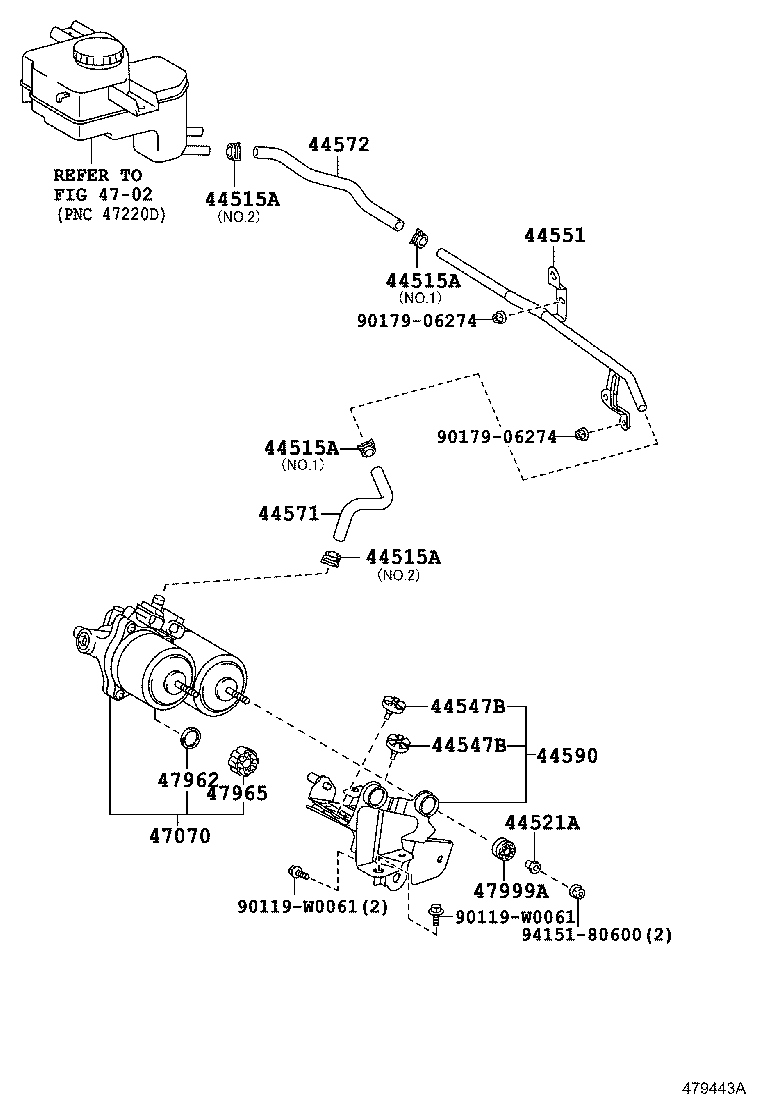

Exploded illustration 479443A 44551 — TUBE, BRAKE ACTUATOR, NO.1 (2 parts) 44572 — HOSE, BRAKE ACTUATOR, NO.2 (2 parts) 44571 — HOSE, BRAKE ACTUATOR (4 parts) 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 4702 — not listed in this catalogue 44590 — BRACKET ASSY, BRAKE ACTUATOR (25 parts) 44521A — COLLAR, BRAKE ACTUATOR CASE, NO.1 (5 parts) 44547B — CUSHION, BRAKE ACTUATOR BRACKET (2 parts) 44515A — CLIP(FOR BRAKE ACTUATOR HOSE) (6 parts) 44515A — CLIP(FOR BRAKE ACTUATOR HOSE) (6 parts) 44515A — CLIP(FOR BRAKE ACTUATOR HOSE) (6 parts) 44515A — CLIP(FOR BRAKE ACTUATOR HOSE) (6 parts) 44547B — CUSHION, BRAKE ACTUATOR BRACKET (2 parts) 47999A — BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET) (2 parts) 9415180600 — not listed in this catalogue 90119W0061 — not listed in this catalogue 90119W0061 — not listed in this catalogue 47070 — PUMP ASSY, BRAKE BOOSTER (2 parts) 47962 — COLLAR, BRAKE BOOSTER PUMP (2 parts) 47965 — BUSH, BRAKE BOOSTER PUMP (2 parts)
479443A · 15 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
44515A — Clip(FOR BRAKE ACTUATOR HOSE)
96137-41501 note Clip(FOR BRAKE ACTUATOR HOSE)
2014-07 → 2017-03 ended
NHP130 RHD —
96137-51501 Clip(FOR BRAKE ACTUATOR HOSE)
2014-07 → 2017-03 ended
NHP130 LHD —
96137-51501 note Clip(FOR BRAKE ACTUATOR HOSE)
2014-07 → 2017-03 ended
NHP130 RHD —
96137-41501 note Clip(FOR BRAKE ACTUATOR HOSE)
2017-03 → 2020-06 ended
NHP130 RHD —
96137-51501 Clip(FOR BRAKE ACTUATOR HOSE)
2017-03 → 2020-06 ended
NHP130 LHD —
96137-51501 note Clip(FOR BRAKE ACTUATOR HOSE)
2017-03 → 2020-06 ended
NHP130 RHD —
44521A — Collar, Brake Actuator Case, NO.1
44521-0D020 Collar, Brake Actuator Case, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 3D (G,S) —
44521-0D020 Collar, Brake Actuator Case, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 N,R;KSP130,NLP130,NSP130 5D (G,S) —
44521-47010 Collar, Brake Actuator Case, NO.1
2014-07 → 2017-03 ended
NHP130 —
44521-0D020 Collar, Brake Actuator Case, NO.1
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 —
44521-47010 Collar, Brake Actuator Case, NO.1
2017-03 → 2020-06 ended
NHP130 —
44547B — Cushion, Brake Actuator Bracket
47131-47070 Cushion, Brake Actuator Bracket
2014-07 → 2017-03 ended
NHP130 —
47131-47070 Cushion, Brake Actuator Bracket
2017-03 → 2020-06 ended
NHP130 —
44551 — Tube, Brake Actuator, NO.1
44551-52010 Tube, Brake Actuator, NO.1
2014-07 → 2017-03 ended
NHP130 RHD —
44551-52010 Tube, Brake Actuator, NO.1
2017-03 → 2020-06 ended
NHP130 RHD —
44571 — Hose, Brake Actuator
44571-52010 Hose, Brake Actuator
2014-07 → 2017-03 ended
NHP130 RHD —
44571-52030 Hose, Brake Actuator
2014-07 → 2017-03 ended
NHP130 LHD —
44571-52010 Hose, Brake Actuator
2017-03 → 2020-06 ended
NHP130 RHD —
44571-52030 Hose, Brake Actuator
2017-03 → 2020-06 ended
NHP130 LHD —
44572 — Hose, Brake Actuator, NO.2
44572-52010 Hose, Brake Actuator, NO.2
2014-07 → 2017-03 ended
NHP130 RHD —
44572-52010 Hose, Brake Actuator, NO.2
2017-03 → 2020-06 ended
NHP130 RHD —
44590 — Bracket Assy, Brake Actuator
44590-0D110 note Bracket Assy, Brake Actuator
2015-05 → 2017-03 ended
NLP130 LHD (N,R);NLP130 LHD +2 —
44590-0D110 note Bracket Assy, Brake Actuator
2014-07 → 2017-03 ended
NSP130 LHD 5D 6F +4 —
44590-0D110 note Bracket Assy, Brake Actuator
2015-05 → 2015-11 ended
NLP130 LHD —
44590-0D110 note Bracket Assy, Brake Actuator
2015-05 → 2015-11 ended
NLP130 LHD 5D G;NLP130 +3 —
44590-0D110 note Bracket Assy, Brake Actuator
2014-07 → 2015-11 ended
KSP130 LHD G;NSP130 LHD +7 —
44590-0D110 note Bracket Assy, Brake Actuator
2014-07 → 2015-05 ended
NLP130 LHD —
44590-0D120 note Bracket Assy, Brake Actuator
2014-07 → 2015-11 ended
KSP130 RHD G;NSP130 RHD +7 —
44590-0D120 note Bracket Assy, Brake Actuator
2014-07 → 2015-11 ended
NSP130 RHD CVT —
44590-0D120 note Bracket Assy, Brake Actuator
2014-07 → 2015-11 ended
NSP130 5D CVT G;NSP130 +3 —
44590-0D120 note Bracket Assy, Brake Actuator
2014-07 → 2017-03 ended
NSP130 CVT N;NSP130 5D +2 —
44590-0D120 note Bracket Assy, Brake Actuator
2014-07 → 2017-03 ended
NSP130 RHD 5D 6F +4 —
44590-0D120 note Bracket Assy, Brake Actuator
2015-11 → 2017-03 ended
NSP130 RHD CVT (N,S) —
44590-0D130 Bracket Assy, Brake Actuator
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D MTM +1 —
44590-0D130 Bracket Assy, Brake Actuator
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD MTM (N,R);KSP130,NLP130,NSP130 +4 —
44590-0D140 Bracket Assy, Brake Actuator
2014-07 → 2015-11 ended
NSP130 LHD 3D CVT +4 —
44590-0D140 Bracket Assy, Brake Actuator
2014-07 → 2017-03 ended
NSP130 SP130,NLP130,NSP130 LHD RHD +10 —
44590-0D150 Bracket Assy, Brake Actuator
2014-07 → 2017-03 ended
NHP130 —
44590-0D110 note Bracket Assy, Brake Actuator
2018-05 → 2020-06 ended
NLP130 5D —
44590-0D110 note Bracket Assy, Brake Actuator
2017-03 → 2020-06 ended
KSP130 LHD 5D;NSP131 LHD +2 —
44590-0D110 note Bracket Assy, Brake Actuator
2017-03 → 2018-11 ended
NSP131 LHD 5D 6F +1 —
44590-0D110 note Bracket Assy, Brake Actuator
2017-03 → 2018-05 ended
NLP130 LHD 5D —
44590-0D120 note Bracket Assy, Brake Actuator
2017-03 → 2018-11 ended
KSP130,NSP131 RHD 5D MTM —
44590-0D130 Bracket Assy, Brake Actuator
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 LHD MTM —
44590-0D140 Bracket Assy, Brake Actuator
2017-03 → 2020-06 ended
NSP131 LHD CVT;KSP130,NLP130,NSP131 RHD —
44590-0D150 Bracket Assy, Brake Actuator
2017-03 → 2020-06 ended
NHP130 —
47070 — Pump Assy, Brake Booster
47070-12020 Pump Assy, Brake Booster
2014-07 → 2017-03 ended
NHP130 —
47070-12020 Pump Assy, Brake Booster
2017-03 → 2020-06 ended
NHP130 —
47962 — Collar, Brake Booster Pump
47962-60090 Collar, Brake Booster Pump
2014-07 → 2017-03 ended
NHP130 —
47962-60090 Collar, Brake Booster Pump
2017-03 → 2020-06 ended
NHP130 —
47965 — Bush, Brake Booster Pump
47965-30010 Bush, Brake Booster Pump
2014-07 → 2017-03 ended
NHP130 —
47965-30010 Bush, Brake Booster Pump
2017-03 → 2020-06 ended
NHP130 —
47999A — Bush(FOR BRAKE TRACTION ACTUATOR BRACKET)
47965-24010 Bush(FOR BRAKE TRACTION ACTUATOR BRACKET)
2014-07 → 2017-03 ended
NHP130 —
47965-24010 Bush(FOR BRAKE TRACTION ACTUATOR BRACKET)
2017-03 → 2020-06 ended
NHP130 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
