Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

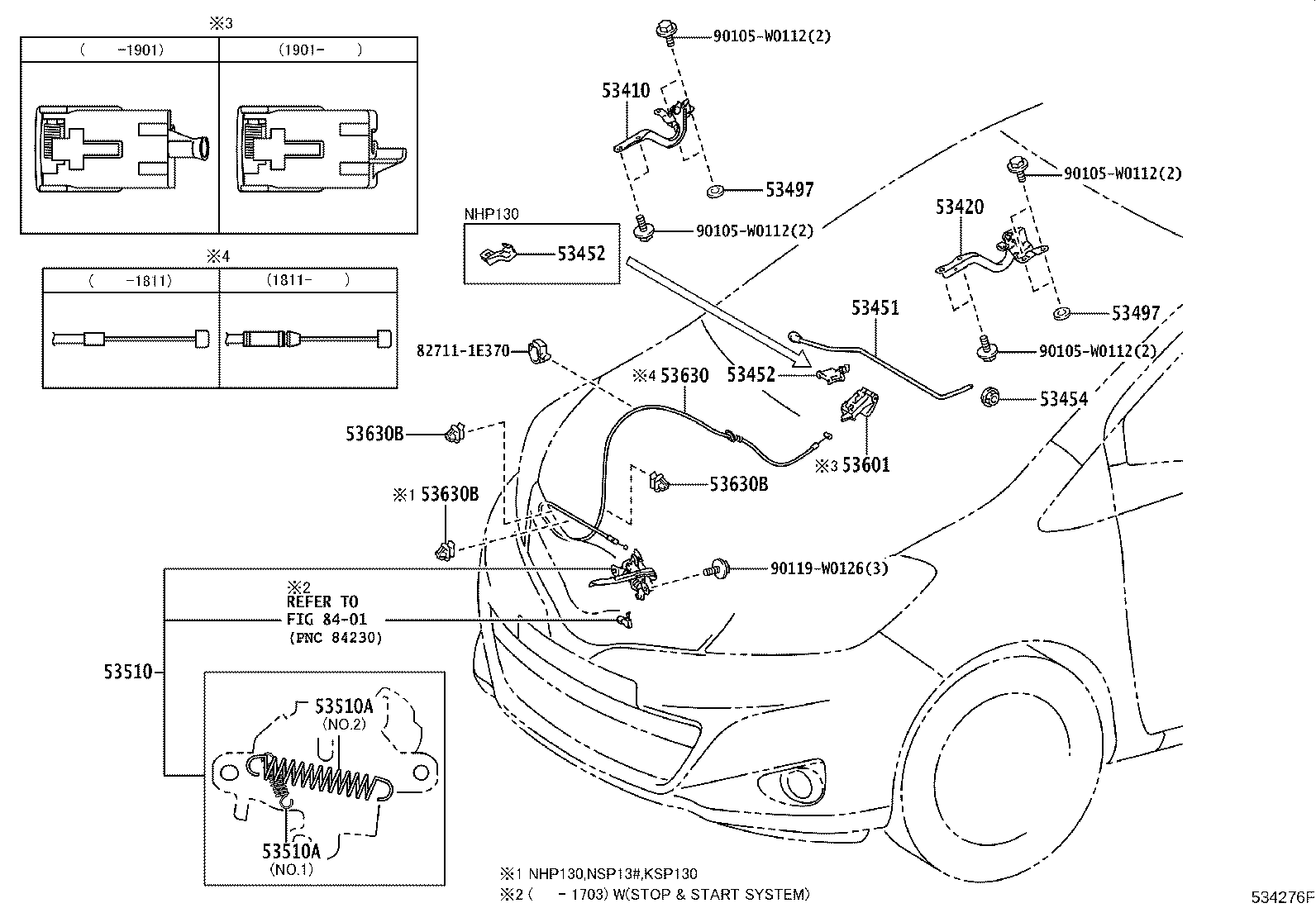

Exploded illustration 534276F 53410 — HINGE ASSY, HOOD, RH (3 parts) 53420 — HINGE ASSY, HOOD, LH (3 parts) 53452 — HOLDER, HOOD STAY (5 parts) 53451 — ROD, HOOD SUPPORT (3 parts) 53454 — CLIP, HOOD SUPPORT ROD (3 parts) 53452 — HOLDER, HOOD STAY (5 parts) 53497 — PAD, HOOD HINGE, NO.1 (3 parts) 53630B — CLAMP(FOR HOOD LOCK CONTROL CABLE) (6 parts) 53630 — CABLE ASSY, HOOD LOCK CONTROL (4 parts) 53601 — LEVER SUB-ASSY, HOOD LOCK CONTROL (8 parts) 53630B — CLAMP(FOR HOOD LOCK CONTROL CABLE) (6 parts) 53630B — CLAMP(FOR HOOD LOCK CONTROL CABLE) (6 parts) 53497 — PAD, HOOD HINGE, NO.1 (3 parts) 53510 — LOCK ASSY, HOOD (16 parts) 90105W0112 — not listed in this catalogue 90105W0112 — not listed in this catalogue 827111E370 — not listed in this catalogue 90119W0126 — not listed in this catalogue 90105W0112 — not listed in this catalogue 90105W0112 — not listed in this catalogue 8401 — not listed in this catalogue 53510A — SPRING, TENSION(FOR HOOD LOCK) (9 parts) 53510A — SPRING, TENSION(FOR HOOD LOCK) (9 parts)
534276F · 16 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
53410 — Hinge Assy, Hood, RH
53410-0D320 Hinge Assy, Hood, RH
2014-07 → 2017-03 ended
NHP130;KSP130,NLP130,NSP130 N,R;KSP130,NLP130,NSP130 5D (G,S) —
53410-0D320 Hinge Assy, Hood, RH
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 3D (G,S) —
53410-0D320 Hinge Assy, Hood, RH
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 —
53420 — Hinge Assy, Hood, LH
53420-0D320 Hinge Assy, Hood, LH
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 3D (G,S) —
53420-0D320 Hinge Assy, Hood, LH
2014-07 → 2017-03 ended
NHP130;KSP130,NLP130,NSP130 N,R;KSP130,NLP130,NSP130 5D (G,S) —
53420-0D320 Hinge Assy, Hood, LH
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 —
53451 — Rod, Hood Support
53440-0D100 Rod, Hood Support
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 3D (G,S) —
53440-0D100 Rod, Hood Support
2014-07 → 2017-03 ended
NHP130;KSP130,NLP130,NSP130 N,R;KSP130,NLP130,NSP130 5D (G,S) —
53440-0D100 Rod, Hood Support
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 —
53452 — Holder, Hood Stay
53452-0D010 Holder, Hood Stay
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 3D (G,S) —
53452-0D010 Holder, Hood Stay
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 N,R;KSP130,NLP130,NSP130 5D (G,S) —
53452-0D060 Holder, Hood Stay
2014-07 → 2017-03 ended
NHP130 —
53452-0D010 Holder, Hood Stay
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 —
53452-0D060 Holder, Hood Stay
2017-03 → 2020-06 ended
NHP130 —
53454 — Clip, Hood Support Rod
53454-52020 Clip, Hood Support Rod
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 3D (G,S) —
53454-52020 Clip, Hood Support Rod
2014-07 → 2017-03 ended
NHP130;KSP130,NLP130,NSP130 N,R;KSP130,NLP130,NSP130 5D (G,S) —
53454-52020 Clip, Hood Support Rod
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 —
53497 — Pad, Hood Hinge, NO.1
53497-05010 note Pad, Hood Hinge, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 3D (G,S) —
53497-05010 note Pad, Hood Hinge, NO.1
2014-07 → 2017-03 ended
NHP130;KSP130,NLP130,NSP130 N,R;KSP130,NLP130,NSP130 5D (G,S) —
53497-05010 note Pad, Hood Hinge, NO.1
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 —
53510 — Lock Assy, Hood
53510-0D290 Lock Assy, Hood
2014-07 → 2017-03 ended
NHP130 RHD;KSP130,NLP130,NSP130 RHD (N,R);KSP130,NLP130,NSP130 +3 —
53510-0D290 Lock Assy, Hood
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D (G,S) —
53510-0D300 Lock Assy, Hood
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D (G,S) —
53510-0D300 Lock Assy, Hood
2014-07 → 2017-03 ended
NHP130 LHD;KSP130,NLP130,NSP130 LHD (N,R);KSP130,NLP130,NSP130 +3 —
53510-0D310 note Lock Assy, Hood
2014-07 → 2015-05 ended
KSP130 RHD —
53510-0D320 note Lock Assy, Hood
2014-07 → 2015-11 ended
NSP130 LHD 3D (G,S) —
53510-0D320 note Lock Assy, Hood
2014-07 → 2015-11 ended
KSP130 LHD G —
53510-0D320 note Lock Assy, Hood
2015-05 → 2015-11 ended
NLP130 LHD 3D (G,S) —
53510-0D320 note Lock Assy, Hood
2014-07 → 2017-03 ended
NSP130 LHD (N,R);NSP130 LHD +2 —
53510-0D320 note Lock Assy, Hood
2014-07 → 2017-03 ended
KSP130 LHD (N,R) —
53510-0D320 note Lock Assy, Hood
2015-05 → 2017-03 ended
NLP130 LHD (N,R);NLP130 LHD +2 —
53510-0D290 Lock Assy, Hood
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD —
53510-0D300 Lock Assy, Hood
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD —
53510-0D320 note Lock Assy, Hood
2017-03 → 2018-05 ended
NLP130 LHD —
53510-0D320 note Lock Assy, Hood
2017-03 → 2020-06 ended
KSP130 LHD —
53510-0D320 note Lock Assy, Hood
2017-03 → 2020-06 ended
NSP131 LHD (G,N,R) —
53510A — Spring, Tension(FOR HOOD LOCK)
90506-W0004 note Spring, Tension(FOR HOOD LOCK)
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D (G,S) —
90506-W0004 note Spring, Tension(FOR HOOD LOCK)
2014-07 → 2017-03 ended
NHP130 RHD;KSP130,NLP130,NSP130 RHD (N,R);KSP130,NLP130,NSP130 +3 —
90506-W0005 note Spring, Tension(FOR HOOD LOCK)
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D (G,S) —
90506-W0005 note Spring, Tension(FOR HOOD LOCK)
2014-07 → 2017-03 ended
NHP130 LHD;KSP130,NLP130,NSP130 LHD (N,R);KSP130,NLP130,NSP130 +3 —
90506-W0006 note Spring, Tension(FOR HOOD LOCK)
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 3D (G,S) —
90506-W0006 note Spring, Tension(FOR HOOD LOCK)
2014-07 → 2017-03 ended
NHP130;KSP130,NLP130,NSP130 N,R;KSP130,NLP130,NSP130 5D (G,S) —
90506-W0004 note Spring, Tension(FOR HOOD LOCK)
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD —
90506-W0005 note Spring, Tension(FOR HOOD LOCK)
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD —
90506-W0006 note Spring, Tension(FOR HOOD LOCK)
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 —
53601 — Lever Sub-assy, Hood Lock Control
53601-05030-C0 note Lever Sub-assy, Hood Lock Control
2014-07 → 2014-08 ended
KSP130,NHP130,NLP130,NSP130 —
53601-05030-C1 note Lever Sub-assy, Hood Lock Control
2014-08 → 2017-03 ended
NSP130 30 6F 3D +8 —
53601-05030-C1 note Lever Sub-assy, Hood Lock Control
2014-08 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 5D G —
53601-05030-C1 note Lever Sub-assy, Hood Lock Control
2014-08 → 2017-03 ended
KSP130,NLP130,NSP130 R —
53601-05030-C1 note Lever Sub-assy, Hood Lock Control
2014-08 → 2017-03 ended
NHP130,NSP130 CVT N —
53601-05030-C1 note Lever Sub-assy, Hood Lock Control
2017-03 → 2018-11 ended
KSP130,NHP130,NLP130,NSP131 —
53601-F4020-C0 note Lever Sub-assy, Hood Lock Control
2019-01 → 2020-06 ended
KSP130,NHP130,NSP131 —
53601-F4020-C1 note Lever Sub-assy, Hood Lock Control
2018-11 → 2019-01 ended
KSP130,NHP130,NLP130,NSP131 —
53630 — Cable Assy, Hood Lock Control
53630-52120 Cable Assy, Hood Lock Control
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 3D (G,S) —
53630-52120 Cable Assy, Hood Lock Control
2014-07 → 2017-03 ended
NHP130;KSP130,NLP130,NSP130 N,R;KSP130,NLP130,NSP130 5D (G,S) —
53630-52120 Cable Assy, Hood Lock Control
2017-03 → 2018-11 ended
KSP130,NHP130,NLP130,NSP131 —
53630-52230 Cable Assy, Hood Lock Control
2018-11 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 —
53630B — Clamp(FOR HOOD LOCK CONTROL CABLE)
90469-06005 Clamp(FOR HOOD LOCK CONTROL CABLE)
2014-07 → 2015-11 ended
NLP130 RHD 3D (G,S) —
90469-06005 Clamp(FOR HOOD LOCK CONTROL CABLE)
2014-07 → 2015-11 ended
NLP130 LHD 3D (G,S);KSP130,NSP130 +2 —
90469-06005 Clamp(FOR HOOD LOCK CONTROL CABLE)
2014-07 → 2017-03 ended
NLP130 RHD (N,R);NLP130 RHD +2 —
90469-06005 Clamp(FOR HOOD LOCK CONTROL CABLE)
2014-07 → 2017-03 ended
NHP130;KSP130,NSP130 .5D N,R;NLP130 (G,S) +5 —
90469-06005 Clamp(FOR HOOD LOCK CONTROL CABLE)
2017-03 → 2018-04 ended
NLP130 RHD —
90469-06005 Clamp(FOR HOOD LOCK CONTROL CABLE)
2017-03 → 2020-06 ended
NLP130 LHD;KSP130,NHP130,NSP131 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
