Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

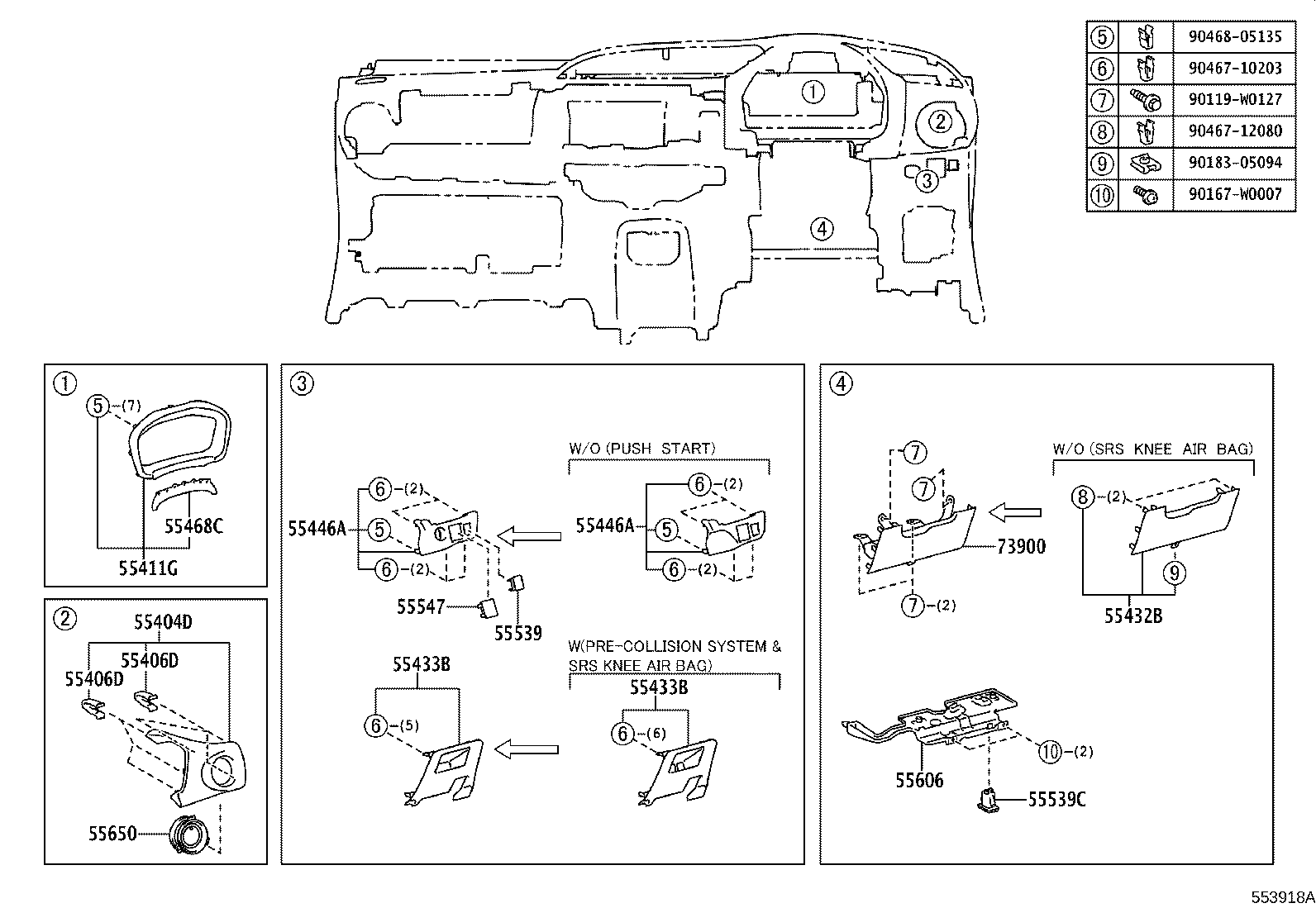

Exploded illustration 553918A 55411G — PANEL, INSTRUMENT CLUSTER FINISH, NO.1 (18 parts) 55468C — SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 (6 parts) 55404D — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH (62 parts) 55406D — CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) (8 parts) 55406D — CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) (8 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (16 parts) 55446A — BASE, SWITCH HOLE, NO.1 (18 parts) 55446A — BASE, SWITCH HOLE, NO.1 (18 parts) 55547 — COVER, REMOTE CONTROL MIRROR HOLE (3 parts) 9046710203 — not listed in this catalogue 9046805135 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9046712080 — not listed in this catalogue 90119W0127 — not listed in this catalogue 9018305094 — not listed in this catalogue 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (52 parts) 73900 — AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1 (13 parts) 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (32 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (6 parts) 55539C — COVER, SPARE SWITCH HOLE (23 parts) 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (52 parts) 55539 — COVER, SPARE SWITCH HOLE (17 parts)
553918A · 16 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
274 parts on this figure
Part number Description Fitment Price
55404D — Panel Sub-assy, Instrument Cluster Finish
55404-0D020-B1 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2015-11 ended
NSP130 LHD CVT N —
55404-0D020-B1 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 LHD N —
55404-0D020-B1 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
55404-0D040-B1 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2015-11 ended
NSP130 RHD CVT N —
55404-0D040-B1 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 RHD N —
55404-0D040-B1 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD R —
55404-0D070-B2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 LHD 5D G —
55404-0D070-B2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 LHD N —
55404-0D070-B2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD 5D N —
55404-0D070-B2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD 3D N —
55404-0D070-B3 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 LHD —
55404-0D070-B4 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NLP130,NSP130 LHD 5D S —
55404-0D070-B4 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 LHD G —
55404-0D070-B4 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2015-11 ended
NLP130,NSP130 LHD 3D S —
55404-0D070-B5 note Panel Sub-assy, Instrument Cluster Finish
2015-11 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 LHD G —
55404-0D070-C2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 LHD G —
55404-0D070-C2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD 5D G —
55404-0D070-C2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 LHD 5D N —
55404-0D070-D0 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 LHD —
55404-0D070-D0 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NLP130,NSP130 LHD S —
55404-0D070-E0 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 5D G —
55404-0D070-E0 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D G —
55404-0D080-B2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 RHD N —
55404-0D080-B2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D N —
55404-0D080-B2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 3D N —
55404-0D080-B2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 RHD 5D G —
55404-0D080-B3 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 RHD —
55404-0D080-B4 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2015-11 ended
NLP130,NSP130 RHD 3D S —
55404-0D080-B4 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 RHD G —
55404-0D080-B4 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NLP130,NSP130 RHD 5D S —
55404-0D080-B5 note Panel Sub-assy, Instrument Cluster Finish
2015-11 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 RHD G —
55404-0D080-C2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 RHD G —
55404-0D080-C2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D G —
55404-0D080-C2 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 RHD 5D N —
55404-0D080-D0 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NHP130 RHD —
55404-0D080-D0 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2017-03 ended
NLP130,NSP130 RHD S —
55404-0D080-E0 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 5D G —
55404-0D080-E0 note Panel Sub-assy, Instrument Cluster Finish
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D G —
55404-0D020-B1 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 LHD R —
55404-0D020-B1 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
NHP130 LHD N —
55404-0D020-B1 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
NHP130 LHD N —
55404-0D040-B1 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 RHD R —
55404-0D040-B1 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
NHP130 RHD N —
55404-0D040-B1 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
NHP130 RHD N —
55404-0D070-B5 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD 5D (G,N) —
55404-0D070-B7 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2019-12 ended
KSP130,NLP130,NSP131 LHD 3D N —
55404-0D070-B7 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD 5D N —
55404-0D070-C2 note Panel Sub-assy, Instrument Cluster Finish
2018-11 → 2020-06 ended
KSP130,NHP130,NSP131 LHD 5D N —
55404-0D070-C2 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2019-12 ended
KSP130,NLP130,NSP131 LHD 3D N —
55404-0D070-C2 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD 5D (G,N,S) —
55404-0D070-D1 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD 5D (G,N) —
55404-0D070-J0 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD (G,S) —
55404-0D080-B5 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2018-11 ended
KSP130,NHP130,NLP130,NSP131 RHD 5D (G,N) —
55404-0D080-B7 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2019-12 ended
KSP130,NLP130,NSP131 RHD 3D N —
55404-0D080-B7 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD 5D N —
55404-0D080-C2 note Panel Sub-assy, Instrument Cluster Finish
2018-11 → 2020-06 ended
KSP130,NHP130 RHD G —
55404-0D080-C2 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2019-12 ended
KSP130,NLP130,NSP131 RHD 3D N —
55404-0D080-C2 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2018-11 ended
KSP130,NHP130 RHD G —
55404-0D080-C2 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NHP130 RHD 5D (N,S);NLP130,NSP131 +3 —
55404-0D080-D1 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2018-11 ended
KSP130,NHP130,NLP130,NSP131 RHD 5D (G,N) —
55404-0D080-J0 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
KSP130,NHP130 RHD G —
55404-0D080-J0 note Panel Sub-assy, Instrument Cluster Finish
2017-03 → 2020-06 ended
NSP131 RHD (G,S);NHP130,NLP130 RHD +1 —
55406D — Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
67773-07020 note Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2014-07 → 2015-11 ended
NSP130 CVT N —
67773-07020 Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 R —
67773-07020 note Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2014-07 → 2017-03 ended
NHP130 N —
90467-13082-A0 note Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 G,N,S —
67773-07020 Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 R —
67773-07020 note Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2017-03 → 2020-06 ended
NHP130 N —
67773-07020 note Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2017-03 → 2020-06 ended
NHP130 N —
90467-13082-A0 note Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 G,N,S —
55411G — Panel, Instrument Cluster Finish, NO.1
55411-0D250-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD 5D G —
55411-0D250-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D G —
55411-0D250-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD MTM N —
55411-0D250-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
55411-0D250-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
NLP130,NSP130 LHD S —
55411-0D250-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
NSP130 LHD CVT N —
55411-0D250-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
NHP130 LHD N —
55411-0D250-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
NHP130 LHD G —
55411-0D260-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
NHP130 RHD N —
55411-0D260-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
NHP130 RHD G —
55411-0D260-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
NSP130 RHD CVT N —
55411-0D260-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
NLP130,NSP130 RHD S —
55411-0D260-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD R —
55411-0D260-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD MTM N —
55411-0D260-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D G —
55411-0D260-C1 note Panel, Instrument Cluster Finish, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D G —
55411-0D250-C1 note Panel, Instrument Cluster Finish, NO.1
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD —
55411-0D260-C1 note Panel, Instrument Cluster Finish, NO.1
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD —
55432B — Panel, Instrument Panel Finish, Lower
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 5D G —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NHP130 LHD G —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NSP130 LHD CVT N —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NLP130,NSP130 LHD S —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD MTM N —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NHP130 LHD N;KSP130,NLP130,NSP130 LHD +2 —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NHP130 RHD N —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
KSP130,NSP130 RHD R —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
KSP130,NSP130 RHD MTM N —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NSP130 RHD 6F S —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NSP130 RHD CVT S —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NSP130 RHD CVT N —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
KSP130,NSP130 RHD MTM N —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
KSP130,NSP130 RHD R —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NSP130 RHD CVT N —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2015-11 ended
KSP130,NSP130 RHD 5D MTM +1 —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2015-11 ended
KSP130,NSP130 RHD 3D MTM +1 —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2015-11 ended
NSP130 RHD 3D CVT +1 —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2015-11 ended
NSP130 RHD 5D CVT +1 —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2015-11 ended
KSP130,NSP130 RHD 3D G —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2015-11 ended
KSP130,NSP130 RHD 5D G —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2014-07 → 2017-03 ended
NSP130 RHD S —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2018-05 → 2018-12 ended
NLP130 5D —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2017-03 → 2020-06 ended
NSP131 LHD 5D CVT —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2017-03 → 2020-06 ended
KSP130 LHD 5D;NSP131 LHD +2 —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2017-03 → 2020-06 ended
NHP130 LHD —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2017-03 → 2018-11 ended
NSP131 LHD 5D 6F +1 —
55432-0D030-C1 note Panel, Instrument Panel Finish, Lower
2017-03 → 2018-05 ended
NLP130 LHD 5D —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2018-05 → 2018-11 ended
KSP130,NSP131 RHD 5D MTM —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2017-03 → 2018-05 ended
KSP130,NSP131 RHD 5D MTM —
55432-0D040-C1 note Panel, Instrument Panel Finish, Lower
2017-03 → 2020-06 ended
NSP131 RHD 5D CVT —
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 5D G —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NHP130 LHD G —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD 5D G —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD MTM N —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NLP130,NSP130 LHD S —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NSP130 LHD CVT N —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NHP130 LHD N —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NHP130 LHD G —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D G —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
KSP130,NSP130 RHD MTM N —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NSP130 RHD CVT N —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NSP130 RHD CVT S —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NSP130 RHD 6F S —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
KSP130,NSP130 RHD MTM N —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NHP130 RHD N —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NSP130 RHD S —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD R —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NSP130 RHD CVT N —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 RHD 5D G —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
NHP130 RHD N —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2015-11 ended
KSP130,NSP130 RHD 5D MTM +1 —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2015-11 ended
KSP130,NSP130 RHD 3D MTM +1 —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2015-11 ended
NSP130 RHD 3D CVT +1 —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2015-11 ended
NSP130 RHD 5D CVT +1 —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2015-11 ended
KSP130,NSP130 RHD 3D G —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2015-11 ended
KSP130,NSP130 RHD 5D G —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D (N,S);KSP130,NLP130,NSP130 +3 —
55433-0D220-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-05 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
55433-0D220-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-05 → 2017-03 ended
NHP130,NSP130 LHD CVT N —
55433-0D220-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-05 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 LHD 5D G —
55433-0D220-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-05 → 2017-03 ended
NSP130 D LHD (N,S);KSP130,NLP130 +13 —
55433-0D230-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-05 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 RHD 5D G —
55433-0D230-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-05 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D (N,S);KSP130,NLP130,NSP130 +3 —
55433-0D230-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-05 → 2017-03 ended
KSP130,NLP130,NSP130 RHD R —
55433-0D230-C0 note Panel, Instrument Panel Finish, Lower NO.2
2015-05 → 2017-03 ended
NHP130 RHD N —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2018-05 ended
NLP130 LHD 5D —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2018-05 ended
NLP130 LHD —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2018-11 ended
NSP131 LHD 5D 6F +1 —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2018-05 → 2018-12 ended
NLP130 —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2020-06 ended
NHP130 LHD —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2020-06 ended
KSP130 LHD 5D;NSP131 LHD +2 —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2020-06 ended
KSP130,NHP130,NSP131 LHD —
55433-0D030-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2020-06 ended
NSP131 LHD 5D CVT —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2018-05 ended
KSP130,NSP131 RHD 5D MTM —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2018-05 → 2018-11 ended
KSP130,NSP131 RHD 5D MTM —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD —
55433-0D170-C1 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2020-06 ended
NSP131 RHD 5D CVT —
55433-0D180-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-05 → 2020-06 ended
KSP130,NHP130,NSP131 LHD —
55433-0D190-C0 note Panel, Instrument Panel Finish, Lower NO.2
2018-05 → 2020-06 ended
KSP130,NHP130,NSP131 RHD —
55433-0D380-C0 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2018-05 ended
KSP130,NHP130,NLP130,NSP131 LHD —
55433-0D390-C0 note Panel, Instrument Panel Finish, Lower NO.2
2017-03 → 2018-05 ended
KSP130,NHP130,NLP130,NSP131 RHD —
55446A — Base, Switch Hole, NO.1
55446-0D060-C1 note Base, Switch Hole, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D G —
55446-0D060-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
NHP130 RHD N —
55446-0D060-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
NSP130 RHD CVT N —
55446-0D060-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
NLP130,NSP130 RHD S —
55446-0D060-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD R —
55446-0D060-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD MTM N —
55446-0D060-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D G —
55446-0D070-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D N —
55446-0D070-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
NHP130 RHD N —
55446-0D070-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
NHP130 RHD N;KSP130,NLP130,NSP130 RHD +2 —
55446-0D070-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
NLP130,NSP130 RHD S —
55446-0D070-C1 note Base, Switch Hole, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D N —
55446-0D070-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
NHP130 RHD G —
55446-0D070-C1 note Base, Switch Hole, NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D G —
55446-0D060-C1 note Base, Switch Hole, NO.1
2017-03 → 2020-06 ended
NHP130 RHD N;KSP130,NLP130,NSP131 RHD —
55446-0D070-C1 note Base, Switch Hole, NO.1
2017-03 → 2020-06 ended
NHP130 RHD (G,S) —
55446-0D070-C1 note Base, Switch Hole, NO.1
2017-03 → 2020-06 ended
NHP130 RHD N;KSP130,NLP130,NSP131 RHD +2 —
55446-0D070-C1 note Base, Switch Hole, NO.1
2017-03 → 2020-06 ended
NHP130 RHD N —
55468C — Seal, Instrument Cluster Finish Panel, NO.1
55468-0D170 Seal, Instrument Cluster Finish Panel, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D (G,S) —
55468-0D170 Seal, Instrument Cluster Finish Panel, NO.1
2014-07 → 2017-03 ended
NHP130 LHD;KSP130,NLP130,NSP130 LHD (N,R);KSP130,NLP130,NSP130 +3 —
55468-0D180 Seal, Instrument Cluster Finish Panel, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D (G,S) —
55468-0D180 Seal, Instrument Cluster Finish Panel, NO.1
2014-07 → 2017-03 ended
NHP130 RHD;KSP130,NLP130,NSP130 RHD (N,R);KSP130,NLP130,NSP130 +3 —
55468-0D170 Seal, Instrument Cluster Finish Panel, NO.1
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD —
55468-0D180 Seal, Instrument Cluster Finish Panel, NO.1
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD —
55539 — Cover, Spare Switch Hole
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NLP130 LHD N —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NLP130 LHD G —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NLP130 LHD R —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NLP130 LHD G —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NLP130 LHD N —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NLP130 LHD S —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NLP130 LHD S —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD G —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NLP130 LHD R —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130 LHD G —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130 LHD N —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NSP130 LHD CVT N —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD MTM N —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NLP130,NSP130 LHD S —
55539-52070-C0 note Cover, Spare Switch Hole
2017-03 → 2018-12 ended
NLP130 LHD —
55539-52070-C0 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD —
55539C — Cover, Spare Switch Hole
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
KSP130 R —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
KSP130 RHD R —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130 RHD N;KSP130,NSP130 RHD +1 —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130 RHD;KSP130,NSP130 RHD N;KSP130,NSP130 +3 —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130 RHD;KSP130,NSP130 RHD (N,R) —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130 N;NLP130 LHD R;KSP130,NSP130 +1 —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130;KSP130,NSP130 N,R;NLP130 LHD (N,R) —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2015-11 ended
KSP130,NSP130 RHD 3D (G,S) —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2015-11 ended
KSP130,NSP130 RHD G —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2015-11 ended
NLP130 LHD 3D (G,S);KSP130,NSP130 +2 —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2015-11 ended
NLP130 LHD G;KSP130,NSP130 G —
55539-48020 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130;NLP130 G,S) LHD N;KSP130,NSP130 +6 —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2018-05 ended
KSP130,NHP130,NSP131 RHD —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
NHP130 S;KSP130,NSP131;NHP130 LHD (G,N) —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
NHP130 S;KSP130,NSP131;NHP130 LHD (G,N) —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
KSP130 R —
55539-48020 Cover, Spare Switch Hole
2018-05 → 2018-12 ended
NLP130 —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2018-11 ended
NHP130 RHD (G,N) —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2018-11 ended
NHP130 RHD (G,N) —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2018-05 ended
KSP130,NHP130,NSP131 RHD —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2018-05 ended
KSP130 RHD R —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2018-05 ended
NLP130 LHD —
55539-48020 note Cover, Spare Switch Hole
2017-03 → 2018-05 ended
NLP130 LHD —
55547 — Cover, Remote Control Mirror Hole
55547-28010-C0 note Cover, Remote Control Mirror Hole
2014-07 → 2017-03 ended
NHP130 N —
55547-28010-C0 note Cover, Remote Control Mirror Hole
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 R —
55547-28010-C0 note Cover, Remote Control Mirror Hole
2017-03 → 2020-06 ended
NHP130 N;KSP130,NLP130,NSP131 R —
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-0D050 Cover Sub-assy, Instrument Panel Under, NO.1
2014-07 → 2017-03 ended
NHP130 LHD;KSP130,NLP130,NSP130 LHD (N,R);KSP130,NLP130,NSP130 +3 —
55606-0D050 Cover Sub-assy, Instrument Panel Under, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D (G,S) —
55606-0D060 Cover Sub-assy, Instrument Panel Under, NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D (G,S) —
55606-0D060 Cover Sub-assy, Instrument Panel Under, NO.1
2014-07 → 2017-03 ended
NHP130 RHD;KSP130,NLP130,NSP130 RHD (N,R);KSP130,NLP130,NSP130 +3 —
55606-0D050 Cover Sub-assy, Instrument Panel Under, NO.1
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD —
55606-0D060 Cover Sub-assy, Instrument Panel Under, NO.1
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD —
55650 — Register Assy, Instrument Panel, NO.1
55680-52240-C2 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
KSP130,NLP130,NSP131 R —
55680-52240-C2 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
NHP130 N —
55680-52240-C2 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
NHP130 N —
55680-52240-C3 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
KSP130,NLP130,NSP131 R —
55680-52240-C3 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
NHP130 N —
55680-52240-C3 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
NHP130 N —
55680-52260-C3 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
KSP130,NHP130,NLP130,NSP131 N,S —
55680-52260-C4 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD G —
55680-52260-C4 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 G —
55680-52260-C4 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD G —
55680-52260-C4 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 N,S —
55680-52280-C2 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
KSP130,NHP130,NLP130,NSP131 G —
55680-52280-C3 note Register Assy, Instrument Panel, NO.1
2018-11 → 2019-05 ended
NSP131 5D 6F N —
55680-52280-C3 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
NHP130 N —
55680-52280-C3 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
KSP130,NHP130,NSP131 5D N —
55680-52280-C3 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 G —
73900 — Airbag Assy, Instrument Panel, Lower NO.1
73900-0D031-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 LHD 5D G —
73900-0D031-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
NSP130 D LHD (N,S);KSP130,NLP130 +13 —
73900-0D031-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
NHP130,NSP130 LHD CVT N —
73900-0D031-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
73900-0D041-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D G —
73900-0D041-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
NHP130 RHD N —
73900-0D041-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
NHP130 RHD G —
73900-0D041-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
NLP130,NSP130 RHD S —
73900-0D041-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD R —
73900-0D041-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D G —
73900-0D041-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD N —
73900-0D031-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD —
73900-0D041-C1 note Airbag Assy, Instrument Panel, Lower NO.1
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
