Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

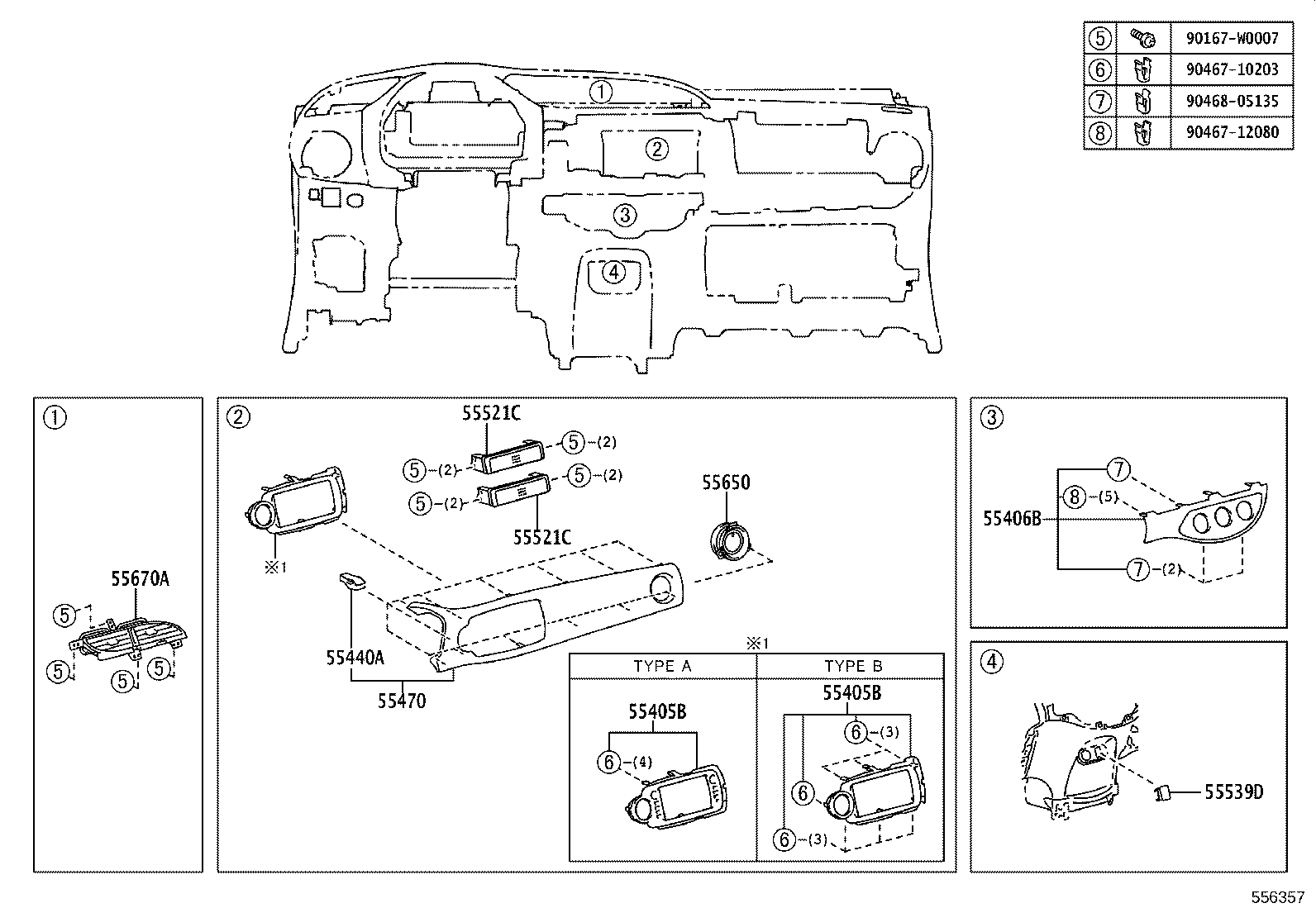

Exploded illustration 556357 9046710203 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9046805135 — not listed in this catalogue 9046712080 — not listed in this catalogue 55406B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER (28 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (30 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (30 parts) 55539D — COVER, SPARE SWITCH HOLE (11 parts) 55670A — REGISTER ASSY, INSTRUMENT PANEL, CENTER (24 parts) 55521C — COVER, STEREO OPENING (4 parts) 55521C — COVER, STEREO OPENING (4 parts) 55470 — GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL (63 parts) 55440A — CLIP(FOR INSTRUMENT PANEL CENTER GARNISH) (8 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (16 parts)
556357 · 10 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
184 parts on this figure
Part number Description Fitment Price
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-0D620 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2016-07 ended
NHP130 N —
55405-0D620 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2016-07 ended
NHP130 N —
55405-0D620 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2016-07 ended
KSP130,NLP130,NSP130 N,R —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2016-07 → 2017-03 ended
NHP130 N —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2016-07 → 2017-03 ended
NHP130 N —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2016-07 → 2017-03 ended
KSP130,NLP130,NSP130 R —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2016-07 → 2017-03 ended
KSP130,NLP130,NSP130 N —
86451-0D030-C2 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 R —
86451-0D030-C2 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2017-03 ended
NHP130 N;KSP130,NLP130,NSP130 3D G —
86451-0D030-C2 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 5D G —
86451-0D030-C2 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 N —
86451-0D030-C2 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2017-03 ended
NHP130 G —
86451-0D030-C2 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2017-03 ended
NLP130,NSP130 S —
86451-0D040 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2016-07 ended
KSP130,NLP130,NSP130 N —
86451-0D040 note Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2016-07 ended
NHP130 N —
86451-0D040 Panel Sub-assy, Instrument Cluster Finish, Center
2014-07 → 2016-07 ended
KSP130,NLP130,NSP130 R —
86451-0D040-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2016-07 → 2017-03 ended
KSP130,NLP130,NSP130 R —
86451-0D040-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2016-07 → 2017-03 ended
NHP130 N —
86451-0D040-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2016-07 → 2017-03 ended
KSP130,NLP130,NSP130 N —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-03 → 2020-06 ended
KSP130 LHD 5D N —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2019-05 → 2020-06 ended
KSP130,NHP130,NSP131 5D (G,N) —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-03 → 2020-06 ended
NHP130 N —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 N —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2018-11 → 2019-05 ended
KSP130,NHP130,NSP131 5D (G,N) —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 R —
55405-0D620-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 N —
86451-0D050-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 LHD R —
86451-0D050-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD (G,N,S) —
86451-0D060-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD (G,N,S) —
86451-0D060-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 RHD R —
55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-11 → 2017-03 ended
KSP130,NLP130,NSP130 LHD G —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-11 → 2017-03 ended
KSP130,NLP130,NSP130 LHD G —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD MTM N —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
NLP130,NSP130 LHD S —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
NSP130 LHD CVT N —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD MTM N —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
NLP130,NSP130 LHD S —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
NSP130 LHD CVT N —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D G —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 5D G —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD MTM N —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
NLP130,NSP130 RHD S —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-11 → 2017-03 ended
KSP130,NLP130,NSP130 RHD G —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-11 → 2017-03 ended
KSP130,NLP130,NSP130 RHD G —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
NSP130 RHD CVT N —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD MTM N —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD R —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
NLP130,NSP130 RHD S —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2017-03 ended
NSP130 RHD CVT N —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D G —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 5D G —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 LHD (N,R,S) —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 LHD G —
55406-0D390-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 LHD (N,S) —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 RHD (N,R,S) —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 RHD (N,S) —
55406-0D400-C2 note Panel Sub-assy, Instrument Cluster Finish, Lower Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 RHD G —
55440A — Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
67773-07020 note Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
2014-07 → 2015-11 ended
NSP130 CVT N —
67773-07020 Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 R —
67773-07020 note Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
2014-07 → 2017-03 ended
NHP130 N —
90467-13082-A0 note Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 G,N,S —
67773-07020 note Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
2017-03 → 2020-06 ended
NHP130 N —
67773-07020 note Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
2017-03 → 2020-06 ended
NHP130 N —
67773-07020 Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 R —
90467-13082-A0 note Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 G,N,S —
55470 — Garnish Assy, Instrument Cluster Finish Panel
55470-0D070-B1 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2015-11 ended
NSP130 LHD CVT N —
55470-0D070-B1 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
55470-0D070-B1 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 LHD N —
55470-0D080-B1 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2015-11 ended
NSP130 RHD CVT N —
55470-0D080-B1 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD R —
55470-0D080-B1 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 RHD N —
55470-0D090-B2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 LHD 5D G —
55470-0D090-B2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD 3D N —
55470-0D090-B2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 LHD N —
55470-0D090-B2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD 5D N —
55470-0D090-B3 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 LHD —
55470-0D090-B4 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2015-11 ended
NLP130,NSP130 LHD 3D S —
55470-0D090-B4 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NLP130,NSP130 LHD 5D S —
55470-0D090-B4 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 LHD G —
55470-0D090-B5 note Garnish Assy, Instrument Cluster Finish Panel
2015-11 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 LHD G —
55470-0D090-C2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 LHD G —
55470-0D090-C2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD 5D G —
55470-0D090-C2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 LHD 5D N —
55470-0D090-D0 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 LHD —
55470-0D090-D0 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NLP130,NSP130 LHD S —
55470-0D090-E0 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 3D G —
55470-0D090-E0 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 LHD 5D G —
55470-0D100-B2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 RHD 5D G —
55470-0D100-B2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 3D N —
55470-0D100-B2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D N —
55470-0D100-B2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 RHD N —
55470-0D100-B3 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 RHD —
55470-0D100-B4 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 RHD G —
55470-0D100-B4 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NLP130,NSP130 RHD 5D S —
55470-0D100-B4 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2015-11 ended
NLP130,NSP130 RHD 3D S —
55470-0D100-B5 note Garnish Assy, Instrument Cluster Finish Panel
2015-11 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 RHD G —
55470-0D100-C2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 RHD G —
55470-0D100-C2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D G —
55470-0D100-C2 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 RHD 5D N —
55470-0D100-D0 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NHP130 RHD —
55470-0D100-D0 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2017-03 ended
NLP130,NSP130 RHD S —
55470-0D100-E0 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 3D G —
55470-0D100-E0 note Garnish Assy, Instrument Cluster Finish Panel
2014-07 → 2015-11 ended
KSP130,NLP130,NSP130 RHD 5D G —
55470-0D070-B1 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
NHP130 LHD N —
55470-0D070-B1 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
NHP130 LHD N —
55470-0D070-B1 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 LHD R —
55470-0D080-B1 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
NHP130 RHD N —
55470-0D080-B1 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
NHP130 RHD N —
55470-0D080-B1 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 RHD R —
55470-0D090-B5 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD 5D (G,N) —
55470-0D090-B7 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2019-12 ended
KSP130,NLP130,NSP131 LHD 3D N —
55470-0D090-B7 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD 5D N —
55470-0D090-C2 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2019-12 ended
KSP130,NLP130,NSP131 LHD 3D N —
55470-0D090-C2 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD 5D (G,N,S) —
55470-0D090-D1 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD 5D (G,N) —
55470-0D090-J0 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD (G,S) —
55470-0D100-B5 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2018-11 ended
KSP130,NHP130,NLP130,NSP131 RHD 5D (G,N) —
55470-0D100-B7 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2019-12 ended
KSP130,NLP130,NSP131 RHD 3D N —
55470-0D100-B7 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD 5D N —
55470-0D100-C2 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2018-11 ended
KSP130,NHP130 RHD G —
55470-0D100-C2 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NHP130 RHD 5D (N,S);NLP130,NSP131 +3 —
55470-0D100-C2 note Garnish Assy, Instrument Cluster Finish Panel
2018-11 → 2020-06 ended
KSP130,NHP130 RHD G —
55470-0D100-C2 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2019-12 ended
KSP130,NLP130,NSP131 RHD 3D N —
55470-0D100-D1 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2018-11 ended
KSP130,NHP130,NLP130,NSP131 RHD 5D (G,N) —
55470-0D100-J0 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
NSP131 RHD (G,S);NHP130,NLP130 RHD +1 —
55470-0D100-J0 note Garnish Assy, Instrument Cluster Finish Panel
2017-03 → 2020-06 ended
KSP130,NHP130 RHD G —
55470-0D110-C0 note Garnish Assy, Instrument Cluster Finish Panel
2018-11 → 2020-06 ended
KSP130,NHP130,NSP131 LHD 5D N —
55470-0D120-C0 note Garnish Assy, Instrument Cluster Finish Panel
2018-11 → 2020-06 ended
KSP130,NHP130,NSP131 RHD 5D N —
55521C — Cover, Stereo Opening
55521-05030 note Cover, Stereo Opening
2014-07 → 2017-03 ended
KSP130,NHP130,NLP130,NSP130 N,R —
55521-05030 note Cover, Stereo Opening
2014-07 → 2017-03 ended
NHP130 N —
55521-05030 note Cover, Stereo Opening
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 N,R —
55521-05030 note Cover, Stereo Opening
2017-03 → 2020-06 ended
NHP130 N —
55539D — Cover, Spare Switch Hole
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 N —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 R —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130 N —
55539-52070-C0 note Cover, Spare Switch Hole
2014-07 → 2017-03 ended
NHP130 N —
55539-52070-C0 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 R —
55539-52070-C0 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
KSP130 LHD 5D N —
55539-52070-C0 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 N —
55539-52070-C0 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 N —
55539-52070-C0 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
NHP130 N —
55539-52070-C0 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
NHP130 N —
55539-52070-C0 note Cover, Spare Switch Hole
2017-03 → 2020-06 ended
NHP130 N —
55650 — Register Assy, Instrument Panel, NO.1
55680-52240-C2 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
KSP130,NLP130,NSP131 R —
55680-52240-C2 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
NHP130 N —
55680-52240-C2 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
NHP130 N —
55680-52240-C3 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
NHP130 N —
55680-52240-C3 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
NHP130 N —
55680-52240-C3 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
KSP130,NLP130,NSP131 R —
55680-52260-C3 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
KSP130,NHP130,NLP130,NSP131 N,S —
55680-52260-C4 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 N,S —
55680-52260-C4 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD G —
55680-52260-C4 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD G —
55680-52260-C4 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 G —
55680-52280-C2 note Register Assy, Instrument Panel, NO.1
2017-03 → 2017-10 ended
KSP130,NHP130,NLP130,NSP131 G —
55680-52280-C3 note Register Assy, Instrument Panel, NO.1
2018-11 → 2019-05 ended
NSP131 5D 6F N —
55680-52280-C3 note Register Assy, Instrument Panel, NO.1
2017-10 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 G —
55680-52280-C3 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
NHP130 N —
55680-52280-C3 note Register Assy, Instrument Panel, NO.1
2018-11 → 2020-06 ended
KSP130,NHP130,NSP131 5D N —
55670A — Register Assy, Instrument Panel, Center
55670-0D240-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
NHP130 LHD N —
55670-0D240-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD R —
55670-0D240-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2015-11 ended
NSP130 LHD CVT N —
55670-0D250-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD R —
55670-0D250-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
NHP130 RHD N —
55670-0D250-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2015-11 ended
NSP130 RHD CVT N —
55670-0D260-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
NHP130 LHD G —
55670-0D260-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
NLP130,NSP130 LHD S —
55670-0D260-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD 5D G —
55670-0D260-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
NHP130 LHD N;KSP130,NLP130,NSP130 LHD +2 —
55670-0D260-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 LHD N —
55670-0D270-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD 5D G —
55670-0D270-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
KSP130,NLP130,NSP130 RHD N —
55670-0D270-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
NHP130 RHD N;KSP130,NLP130,NSP130 RHD +2 —
55670-0D270-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
NLP130,NSP130 RHD S —
55670-0D270-C1 note Register Assy, Instrument Panel, Center
2014-07 → 2017-03 ended
NHP130 RHD G —
55670-0D240-C1 note Register Assy, Instrument Panel, Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 LHD R —
55670-0D240-C1 note Register Assy, Instrument Panel, Center
2017-03 → 2020-06 ended
NHP130 LHD N —
55670-0D240-C1 note Register Assy, Instrument Panel, Center
2017-03 → 2020-06 ended
NHP130 LHD N —
55670-0D250-C1 note Register Assy, Instrument Panel, Center
2017-03 → 2020-06 ended
KSP130,NLP130,NSP131 RHD R —
55670-0D250-C1 note Register Assy, Instrument Panel, Center
2017-03 → 2020-06 ended
NHP130 RHD N —
55670-0D250-C1 note Register Assy, Instrument Panel, Center
2017-03 → 2020-06 ended
NHP130 RHD N —
55670-0D260-C1 note Register Assy, Instrument Panel, Center
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 LHD (G,N,S) —
55670-0D270-C1 note Register Assy, Instrument Panel, Center
2017-03 → 2020-06 ended
KSP130,NHP130,NLP130,NSP131 RHD (G,N,S) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
