Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 87E351B 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 8714 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 8714 — not listed in this catalogue 90119W0105 — not listed in this catalogue 90178W0019 — not listed in this catalogue 90119W0019 — not listed in this catalogue 90178W0019 — not listed in this catalogue 90178W0019 — not listed in this catalogue 90178W0019 — not listed in this catalogue 9613251100 — not listed in this catalogue 90178W0019 — not listed in this catalogue 90178W0019 — not listed in this catalogue 87403A — PIPE SUB-ASSY, EXHAUST (4 parts) 87408A — PUMP SUB-ASSY, FUEL (3 parts) 87110D — HEATER ASSY (3 parts) 87101B — BRACKET SUB-ASSY, HEATER NO.2 (3 parts) 87101A — BRACKET SUB-ASSY, HEATER NO.1 (3 parts) 87246A — HOSE, HEATER WATER, OUTLET A (18 parts) 87245A — HOSE, HEATER WATER, INLET A (18 parts) 90466W0009 — not listed in this catalogue 90466W0009 — not listed in this catalogue 90466W0009 — not listed in this catalogue 90466W0009 — not listed in this catalogue 90466W0009 — not listed in this catalogue 90178W0019 — not listed in this catalogue 87100A — HEATER & ACCESSORY ASSY (4 parts) 7701 — not listed in this catalogue

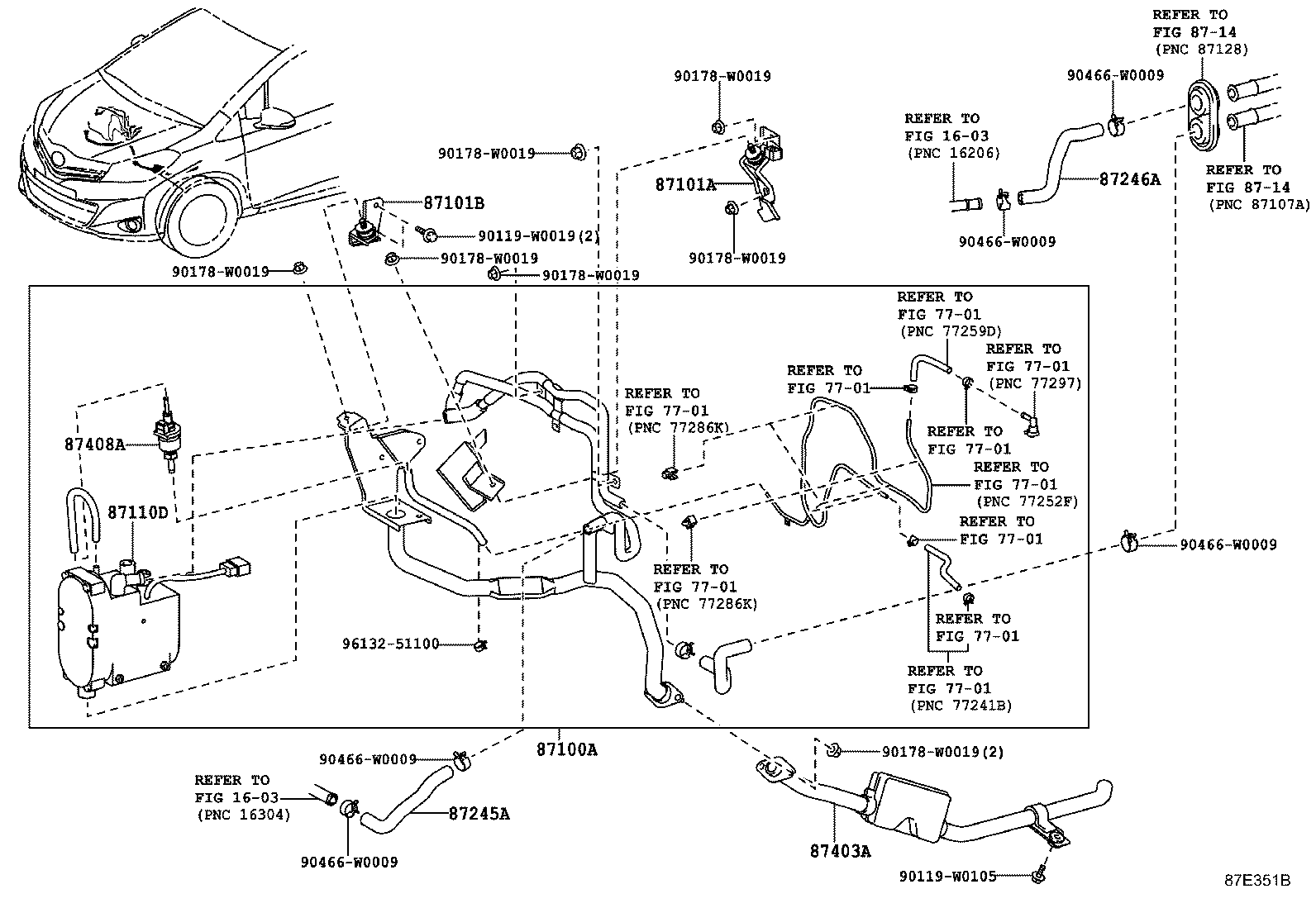

87E351B · 8 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
87100A — Heater & Accessory Assy
87100-0D050 note Heater & Accessory Assy
2014-07 → 2015-05 ended
NLP130 LHD —
87100-0D060 note Heater & Accessory Assy
2015-05 → 2015-11 ended
NLP130 LHD 3D (G,S) —
87100-0D060 note Heater & Accessory Assy
2015-05 → 2017-03 ended
NLP130 LHD (N,R);NLP130 LHD +2 —
87100-0D060 note Heater & Accessory Assy
2017-03 → 2018-05 ended
NLP130 LHD —
87101A — Bracket Sub-assy, Heater NO.1
87101-0D050 note Bracket Sub-assy, Heater NO.1
2014-07 → 2015-11 ended
NLP130 LHD 3D (G,S) —
87101-0D050 note Bracket Sub-assy, Heater NO.1
2014-07 → 2017-03 ended
NLP130 LHD (N,R);NLP130 LHD +2 —
87101-0D050 note Bracket Sub-assy, Heater NO.1
2017-03 → 2018-05 ended
NLP130 LHD —
87101B — Bracket Sub-assy, Heater NO.2
87101-0D040 note Bracket Sub-assy, Heater NO.2
2014-07 → 2015-11 ended
NLP130 LHD 3D (G,S) —
87101-0D040 note Bracket Sub-assy, Heater NO.2
2014-07 → 2017-03 ended
NLP130 LHD (N,R);NLP130 LHD +2 —
87101-0D040 note Bracket Sub-assy, Heater NO.2
2017-03 → 2018-05 ended
NLP130 LHD —
87110D — Heater Assy
87110-0D020 note Heater Assy
2014-07 → 2015-11 ended
NLP130 LHD 3D (G,S) —
87110-0D020 note Heater Assy
2014-07 → 2017-03 ended
NLP130 LHD (N,R);NLP130 LHD +2 —
87110-0D020 note Heater Assy
2017-03 → 2018-05 ended
NLP130 LHD —
87245A — Hose, Heater Water, Inlet A
87209-0D230 Hose, Heater Water, Inlet A
2014-07 → 2017-03 ended
NHP130 —
87245-0D430 Hose, Heater Water, Inlet A
2014-07 → 2015-05 ended
NLP130 —
87245-0D430 note Hose, Heater Water, Inlet A
2015-05 → 2017-03 ended
NLP130 LHD (N,R);NLP130 LHD +2 —
87245-0D430 note Hose, Heater Water, Inlet A
2015-05 → 2015-11 ended
NLP130 LHD 3D (G,S) —
87245-0D430 note Hose, Heater Water, Inlet A
2015-05 → 2015-11 ended
NLP130 LHD —
87245-0D450 note Hose, Heater Water, Inlet A
2014-07 → 2015-05 ended
NLP130 LHD —
87245-0D460 Hose, Heater Water, Inlet A
2015-05 → 2015-11 ended
NLP130 3D (G,S) —
87245-0D460 Hose, Heater Water, Inlet A
2015-05 → 2017-03 ended
NLP130 N,R;NLP130 5D (G,S) —
87245-0D590 Hose, Heater Water, Inlet A
2014-07 → 2015-11 ended
KSP130 3D G —
87245-0D590 Hose, Heater Water, Inlet A
2014-07 → 2017-03 ended
KSP130 N,R;KSP130 5D G —
87209-0D230 Hose, Heater Water, Inlet A
2017-03 → 2020-06 ended
NHP130 —
87245-0D430 note Hose, Heater Water, Inlet A
2017-03 → 2018-05 ended
NLP130 LHD —
87245-0D430 Hose, Heater Water, Inlet A
2018-05 → 2018-12 ended
NLP130 —
87245-0D460 Hose, Heater Water, Inlet A
2017-03 → 2018-05 ended
NLP130 RHD;NLP130 LHD (G,N,R) —
87245-0D460 Hose, Heater Water, Inlet A
2017-03 → 2018-04 ended
NLP130 LHD S —
87245-0D590 Hose, Heater Water, Inlet A
2017-03 → 2018-05 ended
KSP130 —
87245-52230 Hose, Heater Water, Inlet A
2017-03 → 2020-06 ended
NSP131 —
87245-52310 Hose, Heater Water, Inlet A
2018-05 → 2020-06 ended
KSP130 —
87246A — Hose, Heater Water, Outlet A
87245-0D440 Hose, Heater Water, Outlet A
2014-07 → 2015-05 ended
NLP130 —
87245-0D440 note Hose, Heater Water, Outlet A
2014-07 → 2015-05 ended
NLP130 LHD —
87245-0D440 note Hose, Heater Water, Outlet A
2015-05 → 2015-11 ended
NLP130 LHD —
87245-0D440 note Hose, Heater Water, Outlet A
2015-05 → 2017-03 ended
NLP130 LHD —
87245-0D470 Hose, Heater Water, Outlet A
2014-07 → 2017-03 ended
NHP130 —
87245-0D610 Hose, Heater Water, Outlet A
2015-05 → 2017-03 ended
NLP130 —
87245-0D610 note Hose, Heater Water, Outlet A
2015-05 → 2017-03 ended
NLP130 LHD —
87245-52190 Hose, Heater Water, Outlet A
2014-07 → 2017-03 ended
KSP130 —
87245-0D440 Hose, Heater Water, Outlet A
2018-05 → 2018-12 ended
NLP130 —
87245-0D440 note Hose, Heater Water, Outlet A
2017-03 → 2018-05 ended
NLP130 LHD —
87245-0D470 Hose, Heater Water, Outlet A
2017-03 → 2020-06 ended
NHP130 —
87245-0D610 Hose, Heater Water, Outlet A
2017-03 → 2018-05 ended
NLP130 RHD;NLP130 LHD (G,N,R) —
87245-0D610 note Hose, Heater Water, Outlet A
2017-03 → 2018-05 ended
NLP130 LHD —
87245-0D610 Hose, Heater Water, Outlet A
2017-03 → 2018-04 ended
NLP130 LHD S —
87245-0D860 Hose, Heater Water, Outlet A
2018-05 → 2020-06 ended
KSP130 —
87245-52190 Hose, Heater Water, Outlet A
2017-03 → 2018-05 ended
KSP130 —
87245-52280 Hose, Heater Water, Outlet A
2017-03 → 2018-09 ended
NSP131 6F —
87245-52280 Hose, Heater Water, Outlet A
2017-03 → 2020-06 ended
NSP131 CVT —
87403A — Pipe Sub-assy, Exhaust
87403-0D020 note Pipe Sub-assy, Exhaust
2014-07 → 2015-05 ended
NLP130 LHD —
87403-0D030 note Pipe Sub-assy, Exhaust
2015-05 → 2015-11 ended
NLP130 LHD 3D (G,S) —
87403-0D030 note Pipe Sub-assy, Exhaust
2015-05 → 2017-03 ended
NLP130 LHD (N,R);NLP130 LHD +2 —
87403-0D030 note Pipe Sub-assy, Exhaust
2017-03 → 2018-05 ended
NLP130 LHD —
87408A — Pump Sub-assy, Fuel
87408-0D011 note Pump Sub-assy, Fuel
2014-07 → 2015-11 ended
NLP130 LHD 3D (G,S) —
87408-0D011 note Pump Sub-assy, Fuel
2014-07 → 2017-03 ended
NLP130 LHD (N,R);NLP130 LHD +2 —
87408-0D011 note Pump Sub-assy, Fuel
2017-03 → 2018-05 ended
NLP130 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
