Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

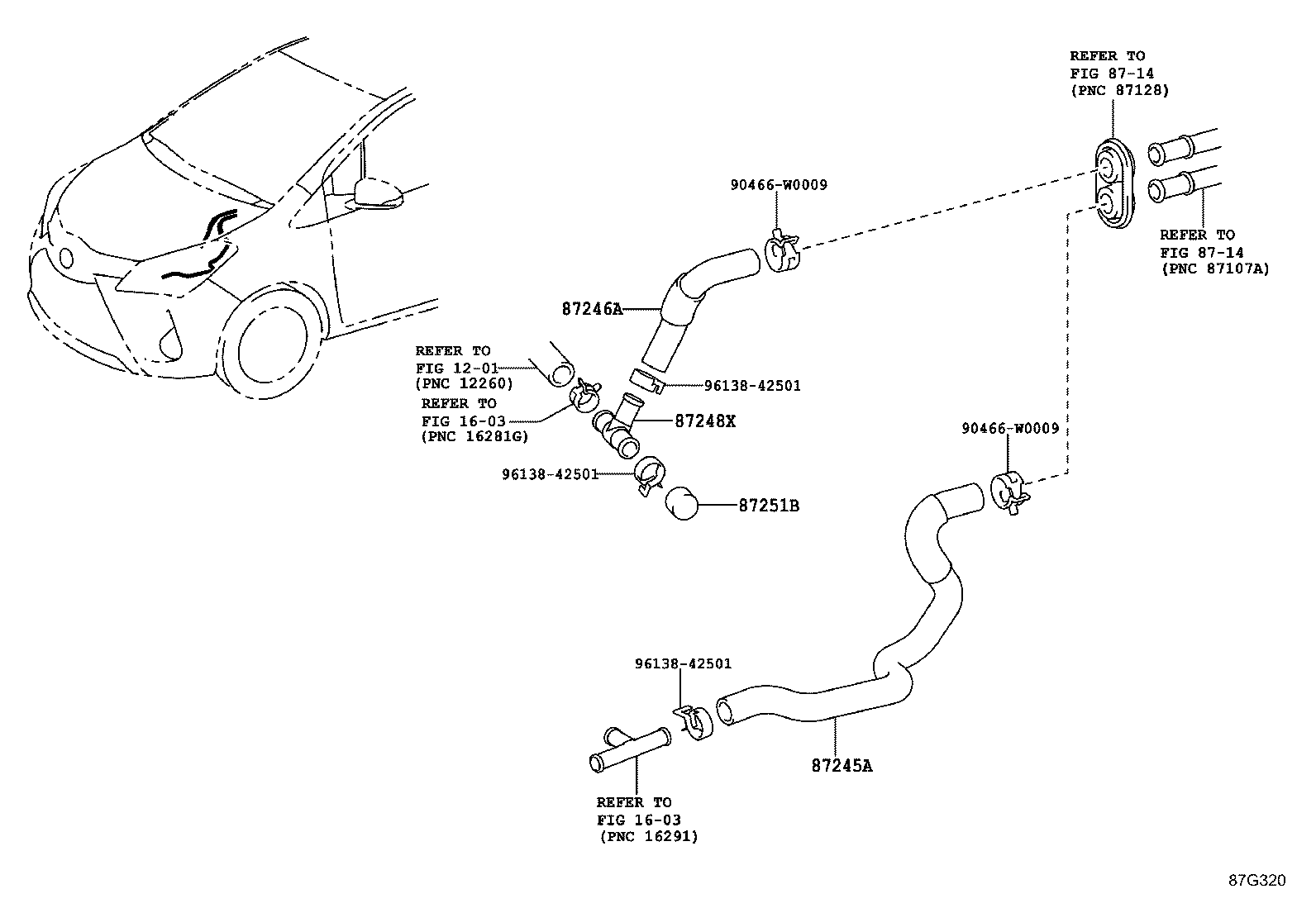

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245A — Hose, Heater Water, Inlet A | ||||
| 87209-0D230 |
Hose, Heater Water, Inlet A
2014-07 → 2017-03
ended
|
NHP130 | — | |
| 87245-0D430 |
Hose, Heater Water, Inlet A
2014-07 → 2015-05
ended
|
NLP130 | — | |
| 87245-0D430 note |
Hose, Heater Water, Inlet A
2015-05 → 2017-03
ended
|
NLP130 LHD (N,R);NLP130 LHD +2 | — | |
| 87245-0D430 note |
Hose, Heater Water, Inlet A
2015-05 → 2015-11
ended
|
NLP130 LHD | — | |
| 87245-0D430 note |
Hose, Heater Water, Inlet A
2015-05 → 2015-11
ended
|
NLP130 LHD 3D (G,S) | — | |
| 87245-0D450 note |
Hose, Heater Water, Inlet A
2014-07 → 2015-05
ended
|
NLP130 LHD | — | |
| 87245-0D460 |
Hose, Heater Water, Inlet A
2015-05 → 2015-11
ended
|
NLP130 3D (G,S) | — | |
| 87245-0D460 |
Hose, Heater Water, Inlet A
2015-05 → 2017-03
ended
|
NLP130 N,R;NLP130 5D (G,S) | — | |
| 87245-0D590 |
Hose, Heater Water, Inlet A
2014-07 → 2017-03
ended
|
KSP130 N,R;KSP130 5D G | — | |
| 87245-0D590 |
Hose, Heater Water, Inlet A
2014-07 → 2015-11
ended
|
KSP130 3D G | — | |
| 87209-0D230 |
Hose, Heater Water, Inlet A
2017-03 → 2020-06
ended
|
NHP130 | — | |
| 87245-0D430 note |
Hose, Heater Water, Inlet A
2017-03 → 2018-05
ended
|
NLP130 LHD | — | |
| 87245-0D430 |
Hose, Heater Water, Inlet A
2018-05 → 2018-12
ended
|
NLP130 | — | |
| 87245-0D460 |
Hose, Heater Water, Inlet A
2017-03 → 2018-04
ended
|
NLP130 LHD S | — | |
| 87245-0D460 |
Hose, Heater Water, Inlet A
2017-03 → 2018-05
ended
|
NLP130 RHD;NLP130 LHD (G,N,R) | — | |
| 87245-0D590 |
Hose, Heater Water, Inlet A
2017-03 → 2018-05
ended
|
KSP130 | — | |
| 87245-52230 |
Hose, Heater Water, Inlet A
2017-03 → 2020-06
ended
|
NSP131 | — | |
| 87245-52310 |
Hose, Heater Water, Inlet A
2018-05 → 2020-06
ended
|
KSP130 | — | |
| 87246A — Hose, Heater Water, Outlet A | ||||
| 87245-0D440 note |
Hose, Heater Water, Outlet A
2015-05 → 2017-03
ended
|
NLP130 LHD | — | |
| 87245-0D440 note |
Hose, Heater Water, Outlet A
2014-07 → 2015-05
ended
|
NLP130 LHD | — | |
| 87245-0D440 |
Hose, Heater Water, Outlet A
2014-07 → 2015-05
ended
|
NLP130 | — | |
| 87245-0D440 note |
Hose, Heater Water, Outlet A
2015-05 → 2015-11
ended
|
NLP130 LHD | — | |
| 87245-0D470 |
Hose, Heater Water, Outlet A
2014-07 → 2017-03
ended
|
NHP130 | — | |
| 87245-0D610 |
Hose, Heater Water, Outlet A
2015-05 → 2017-03
ended
|
NLP130 | — | |
| 87245-0D610 note |
Hose, Heater Water, Outlet A
2015-05 → 2017-03
ended
|
NLP130 LHD | — | |
| 87245-52190 |
Hose, Heater Water, Outlet A
2014-07 → 2017-03
ended
|
KSP130 | — | |
| 87245-0D440 note |
Hose, Heater Water, Outlet A
2017-03 → 2018-05
ended
|
NLP130 LHD | — | |
| 87245-0D440 |
Hose, Heater Water, Outlet A
2018-05 → 2018-12
ended
|
NLP130 | — | |
| 87245-0D470 |
Hose, Heater Water, Outlet A
2017-03 → 2020-06
ended
|
NHP130 | — | |
| 87245-0D610 note |
Hose, Heater Water, Outlet A
2017-03 → 2018-05
ended
|
NLP130 LHD | — | |
| 87245-0D610 |
Hose, Heater Water, Outlet A
2017-03 → 2018-05
ended
|
NLP130 RHD;NLP130 LHD (G,N,R) | — | |
| 87245-0D610 |
Hose, Heater Water, Outlet A
2017-03 → 2018-04
ended
|
NLP130 LHD S | — | |
| 87245-0D860 |
Hose, Heater Water, Outlet A
2018-05 → 2020-06
ended
|
KSP130 | — | |
| 87245-52190 |
Hose, Heater Water, Outlet A
2017-03 → 2018-05
ended
|
KSP130 | — | |
| 87245-52280 |
Hose, Heater Water, Outlet A
2017-03 → 2018-09
ended
|
NSP131 6F | — | |
| 87245-52280 |
Hose, Heater Water, Outlet A
2017-03 → 2020-06
ended
|
NSP131 CVT | — | |
| 87248X — Pipe, Heater Water | ||||
| 87248-26880 |
Pipe, Heater Water
2017-03 → 2018-09
ended
|
NSP131 6F | — | |
| 87248-26880 |
Pipe, Heater Water
2017-03 → 2020-06
ended
|
NSP131 CVT | — | |
| 87251B — Plug, Heater Water | ||||
| 90339-16001 |
Plug, Heater Water
2017-03 → 2018-09
ended
|
NSP131 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
