Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

3 part groups · 5 illustrations

Illustrations

Figure 165693B

165693B 2014-07 → —

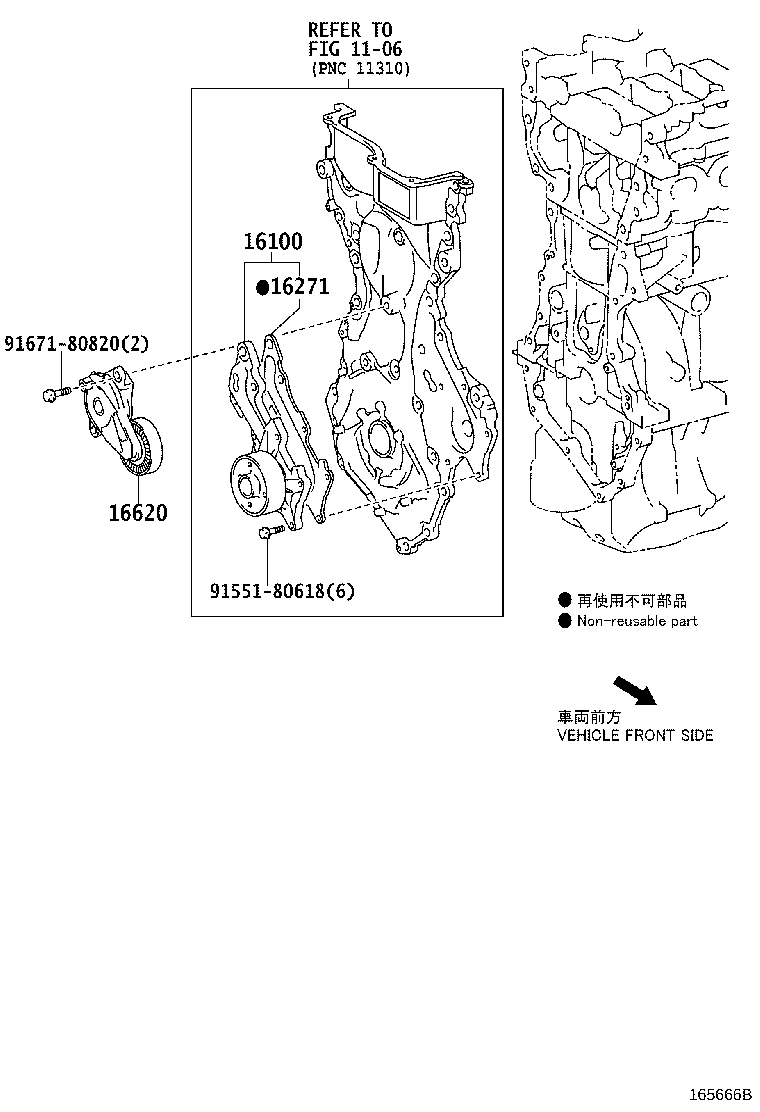

Figure 165666B

165666B 2014-07 → —

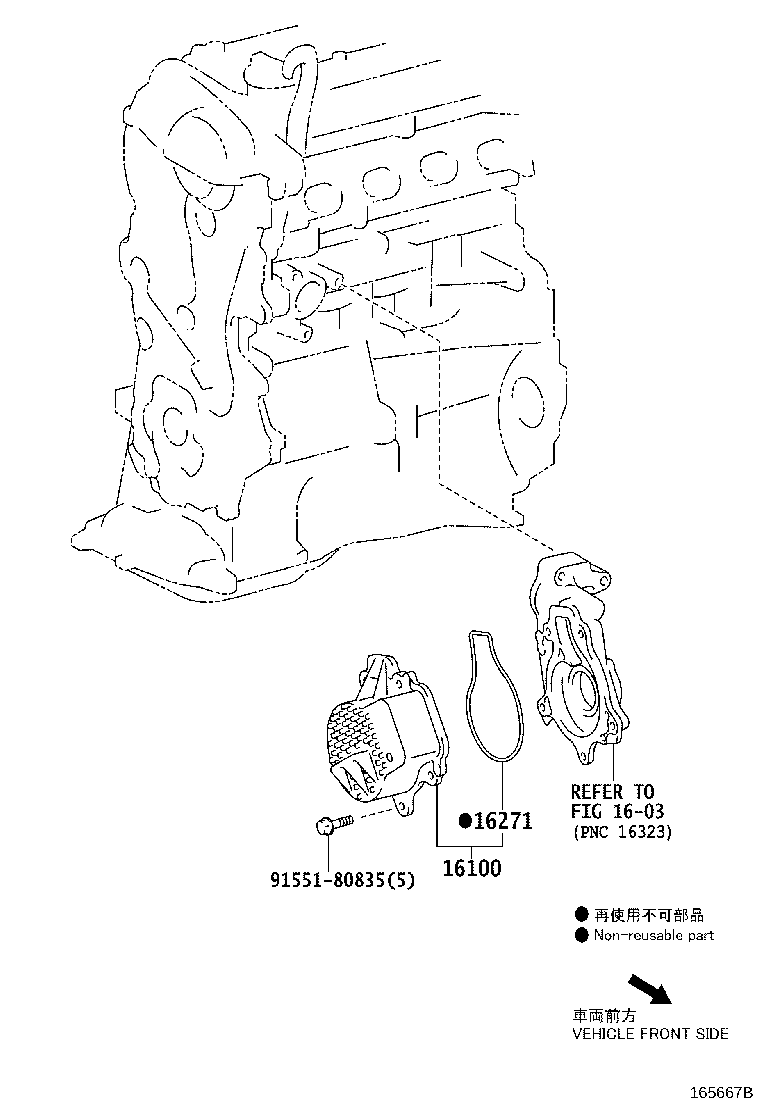

Figure 165667B

165667B 2014-07 → —

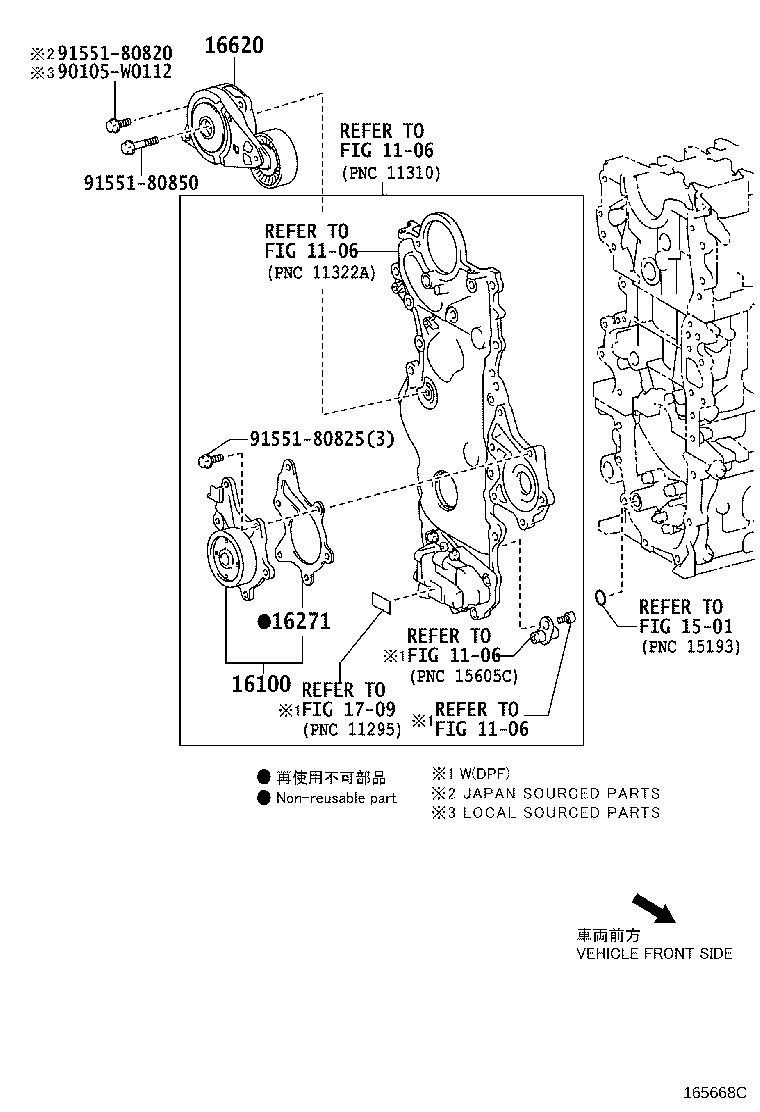

Figure 165668C

165668C 2014-07 → —

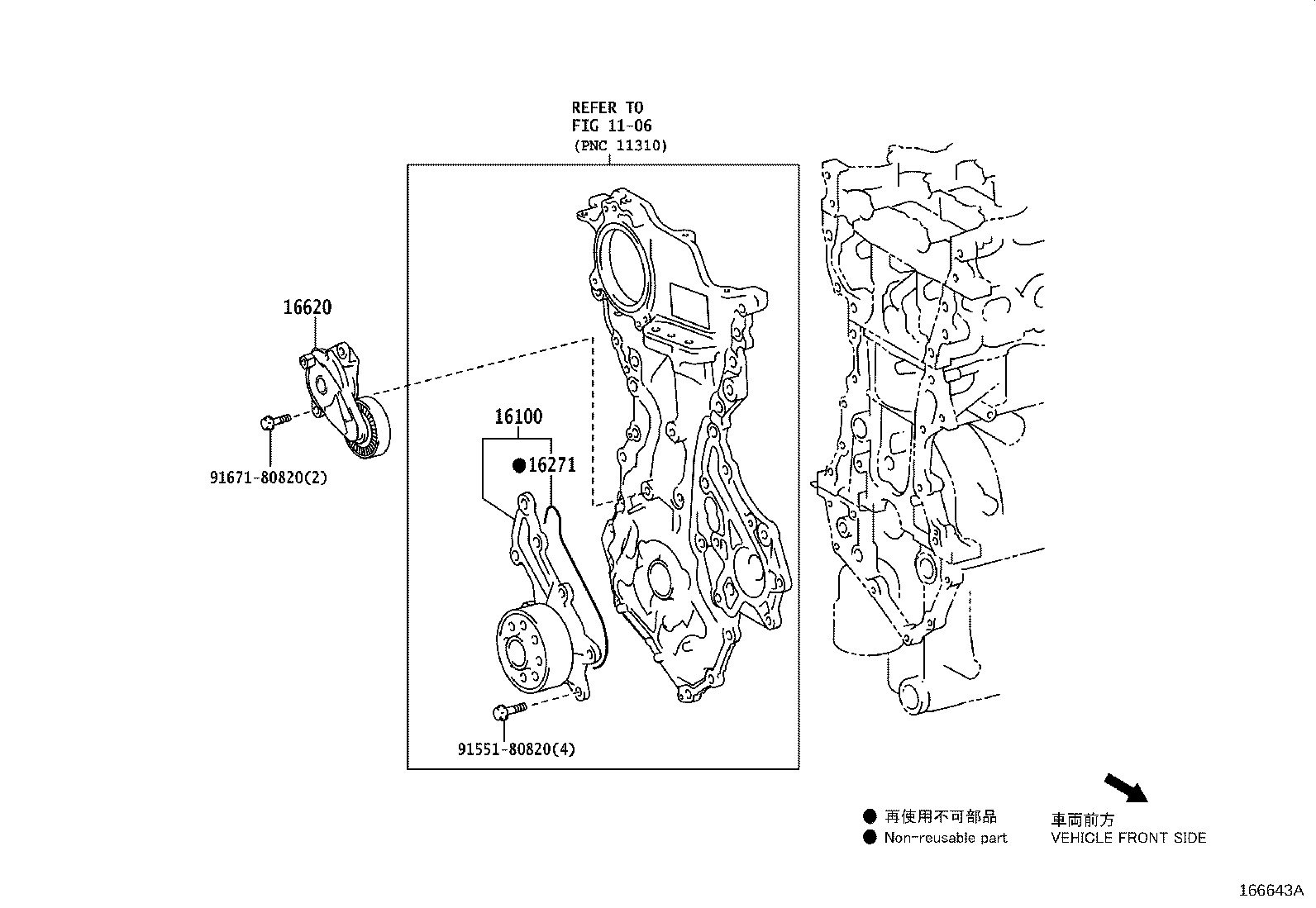

Figure 166643A

166643A 2017-03 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
