Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

6 part groups · 5 illustrations

Illustrations

Figure 178493B

178493B 2014-07 → —

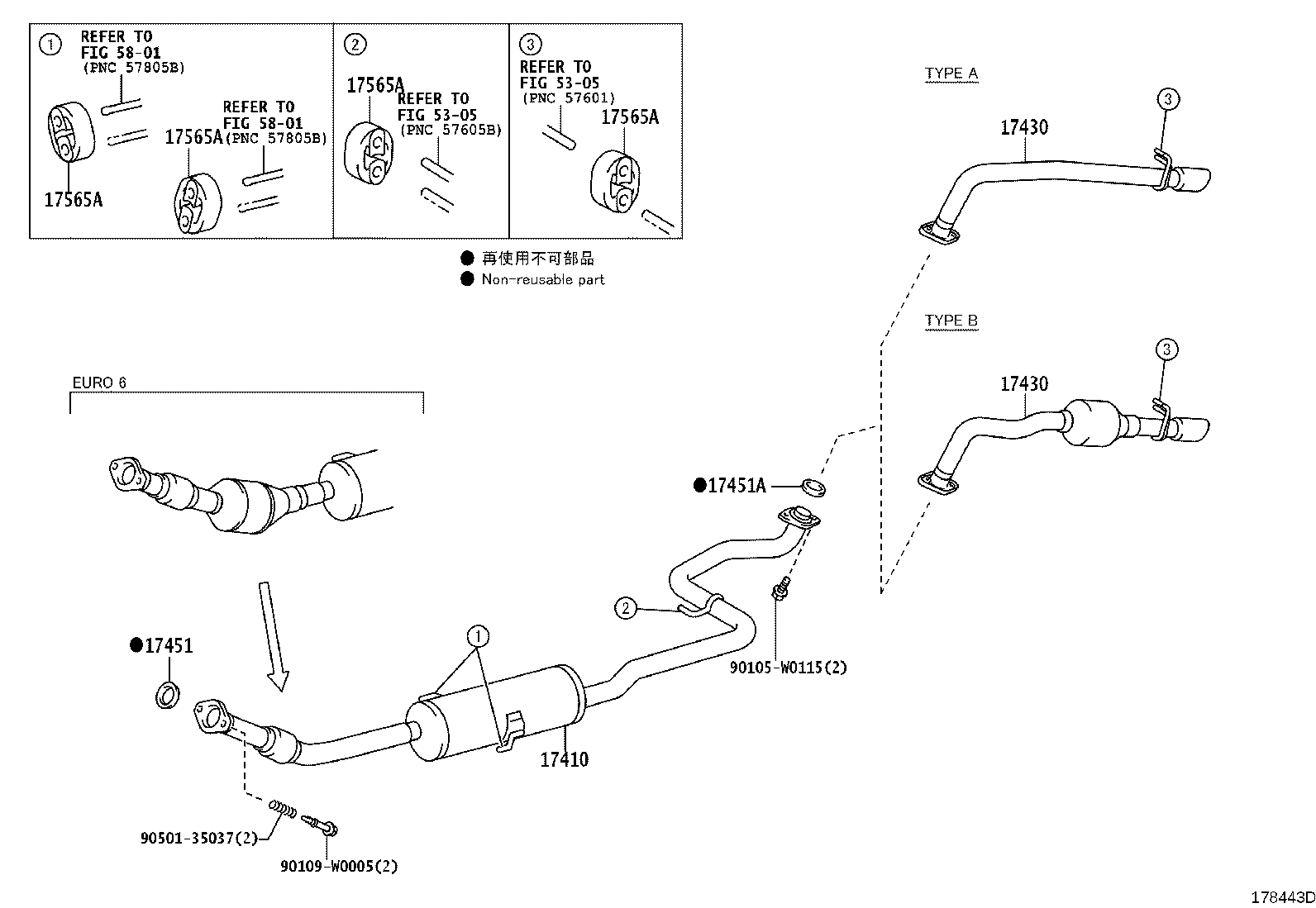

Figure 178443D

178443D 2014-07 → —

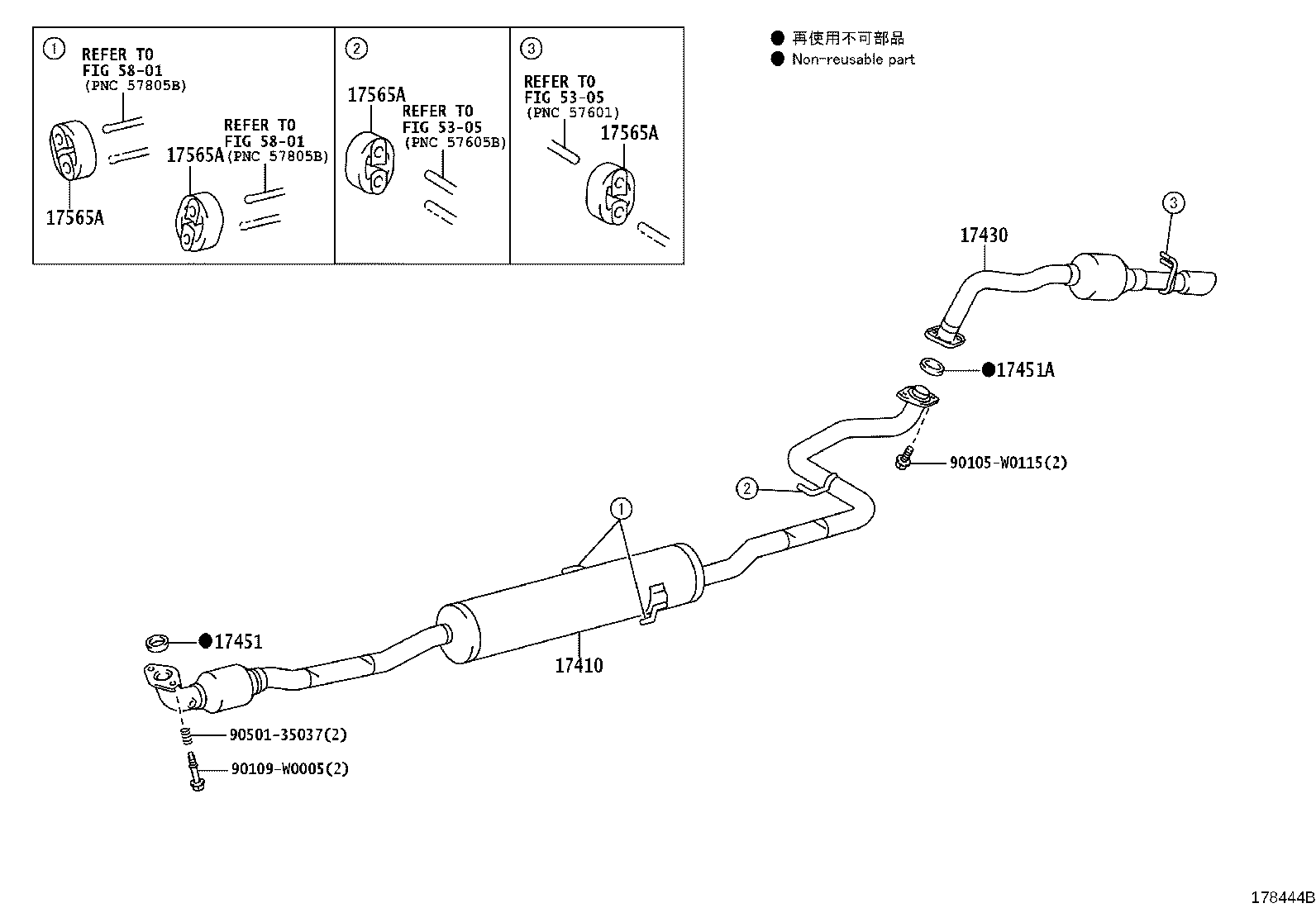

Figure 178444B

178444B 2014-07 → —

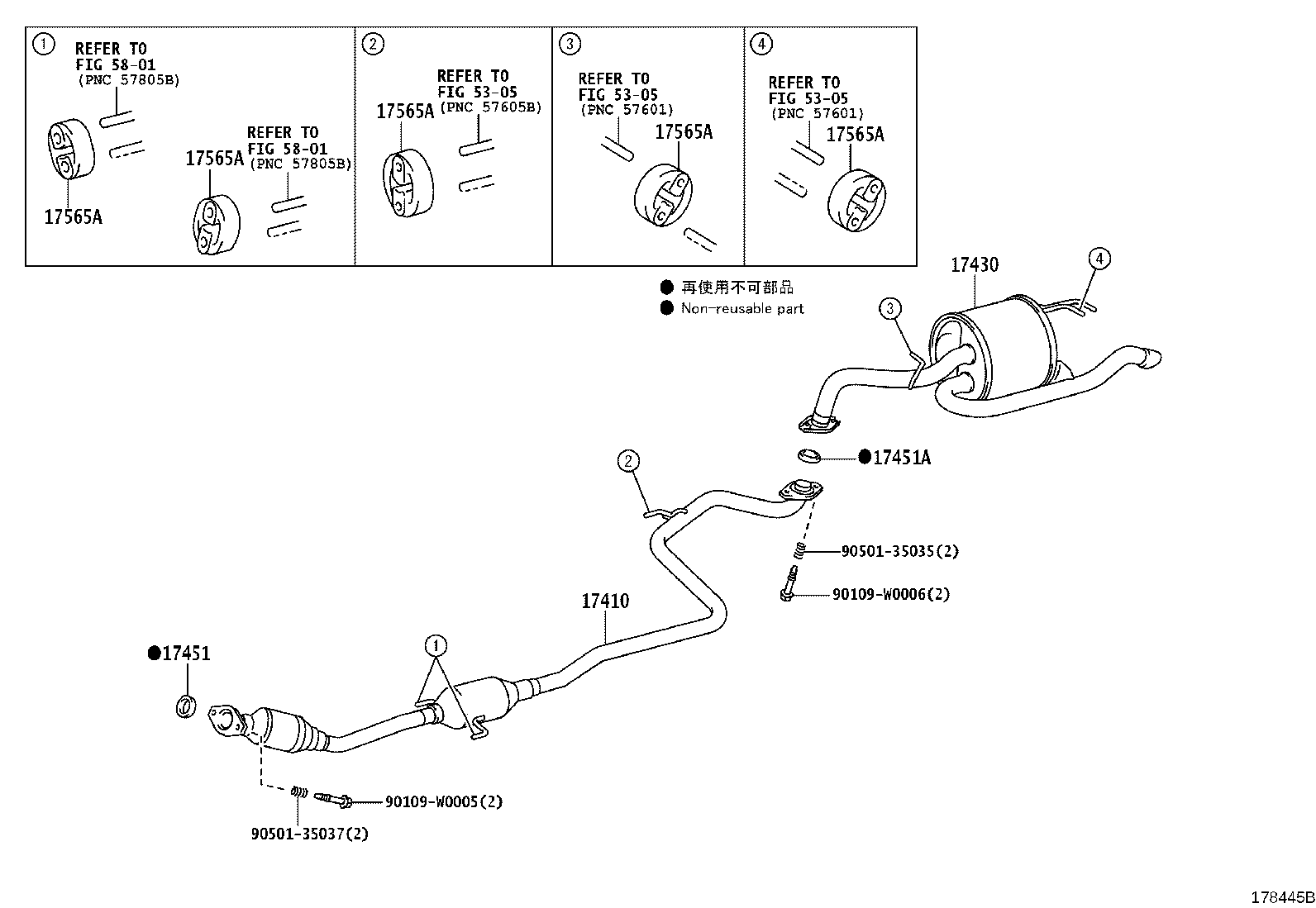

Figure 178445B

178445B 2014-07 → —

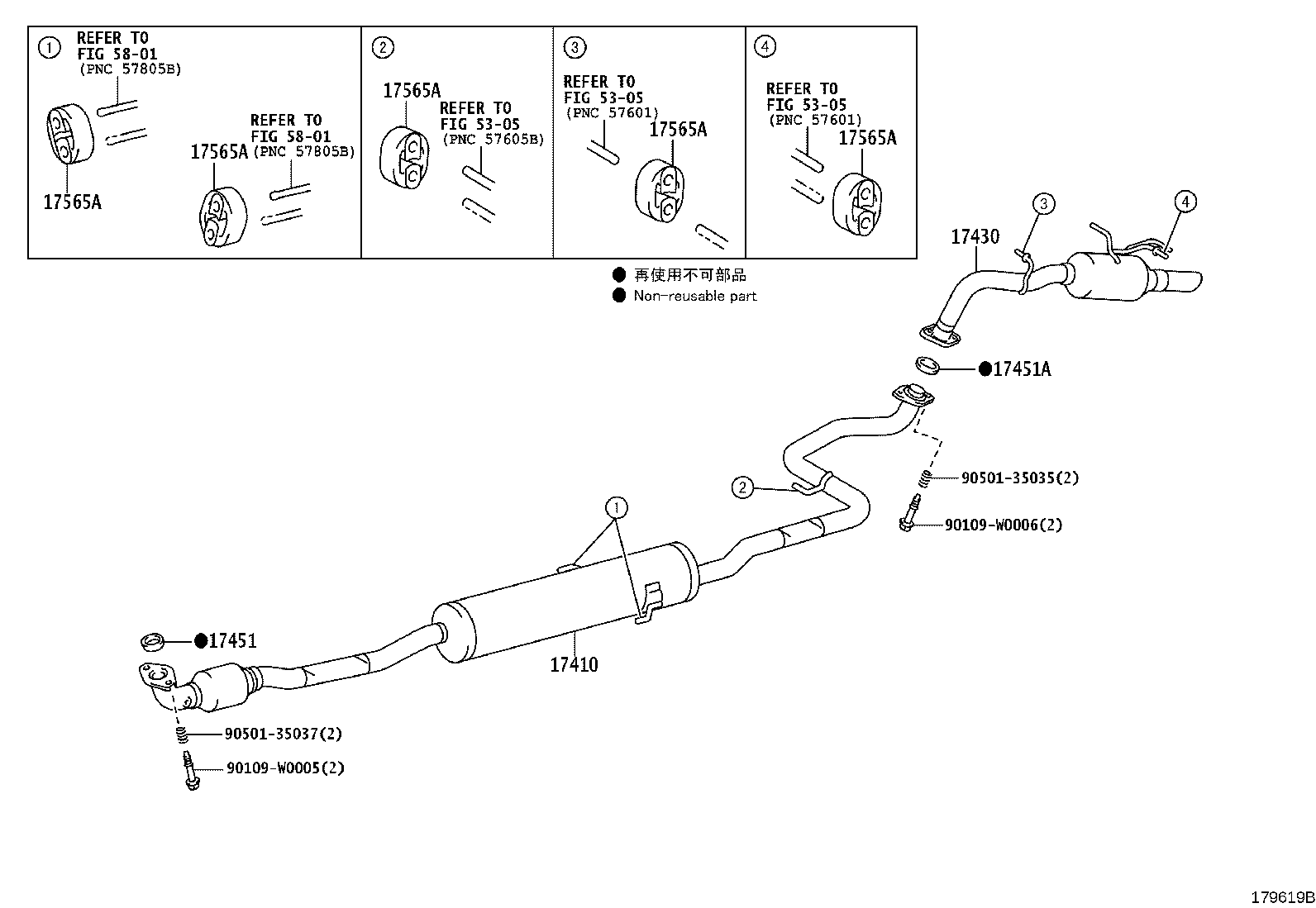

Figure 179619B

179619B 2017-03 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17451A	Gasket, Exhaust Pipe, NO.2
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
