Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

7 part groups · 4 illustrations

Illustrations

Figure 194423B

194423B 2014-07 → 2018-05

195340 2018-05 → —

Figure 194400A

194400A 2014-07 → —

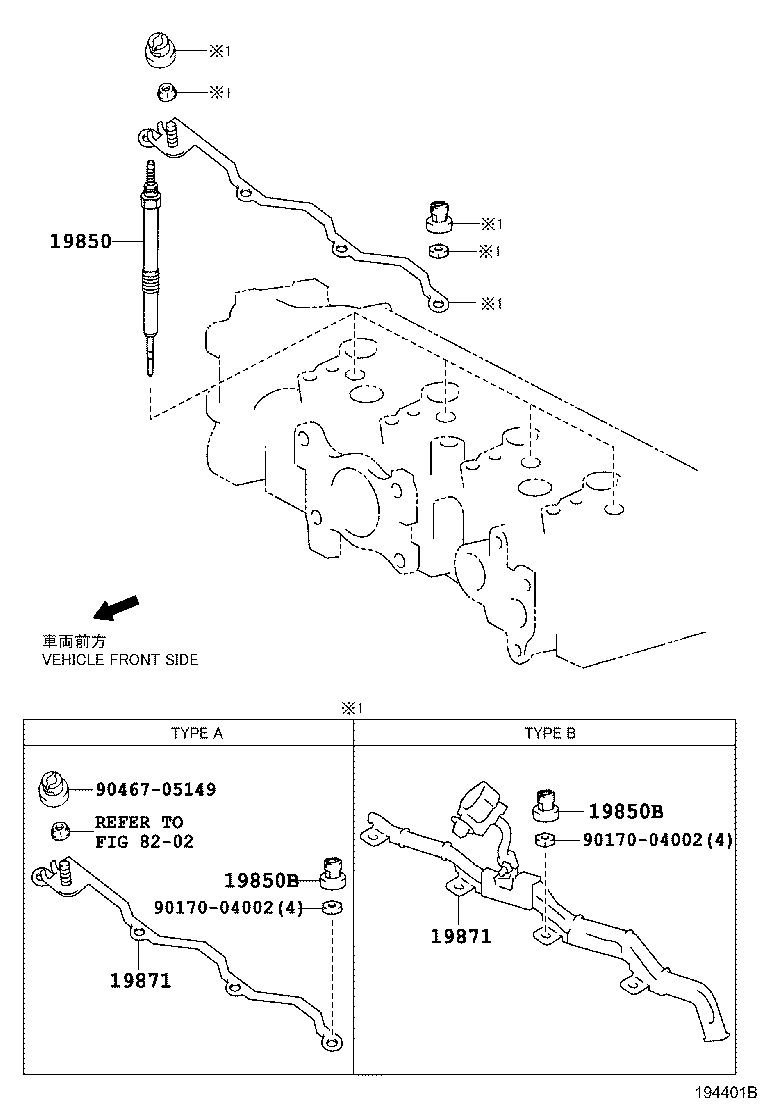

Figure 194401B

194401B 2014-07 → —

Part groups

PNC	Description
19100P	Plug, Spark
19500	Coil Assy, Ignition
19500D	Coil, Ignition, NO.1
19500F	Cap, Plug
19850	Plug Assy, Glow
19850B	Grommet, Screw(FOR GLOW PLUG)
19871	Connector, Glow Plug NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
