Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

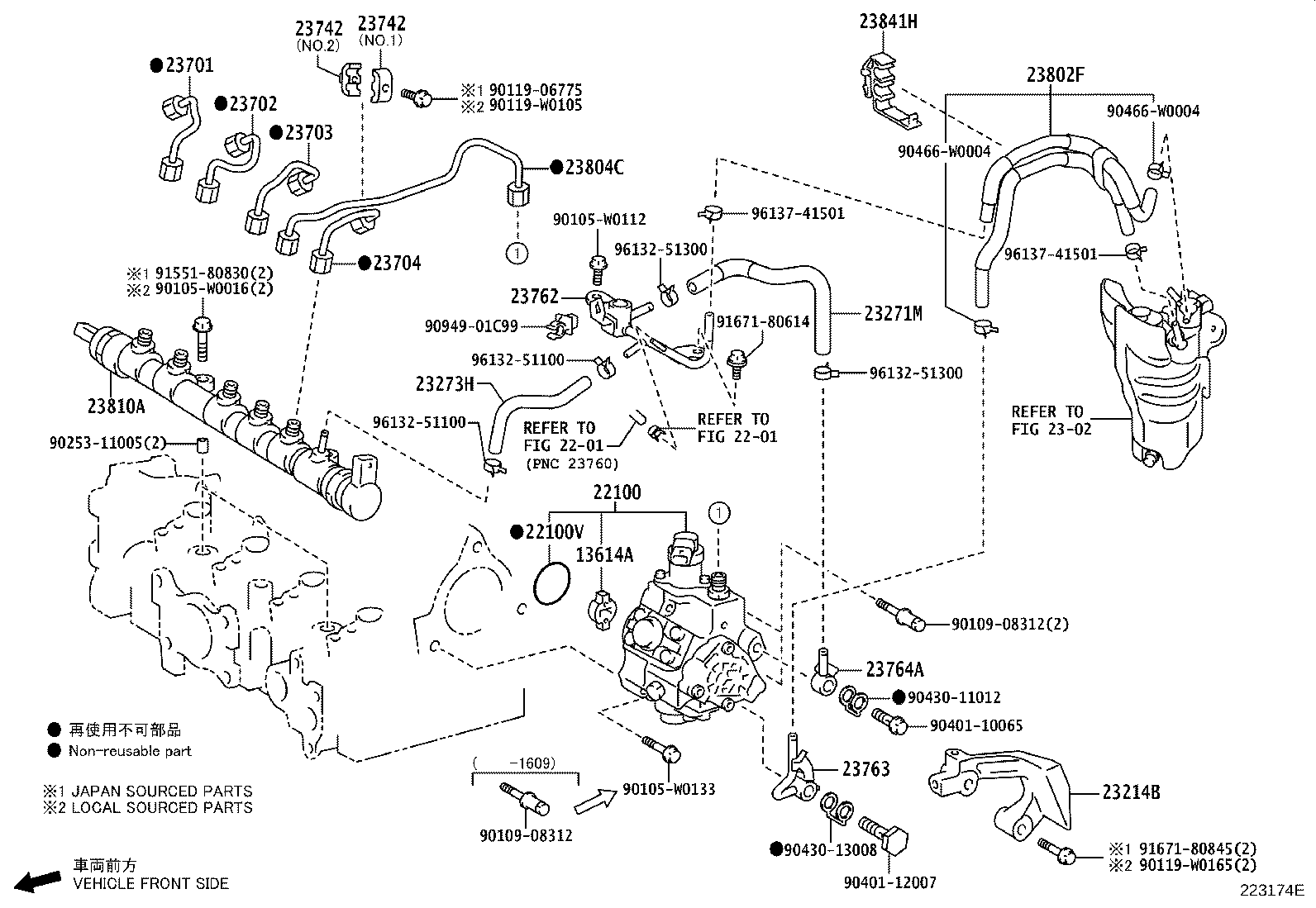

Injection Pump Assembly
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 13614A | Coupling, Supply Pump Drive, NO.1 |
| 17135B | Insulator, Intake Manifold, NO.1 |
| 17136A | Insulator, Intake Manifold, NO.2 |
| 22100 | Pump Assy, Injection OR Supply |
| 22100V | Ring, O(FOR INJECTION PUMP) |
| 23214B | Protector, Fuel Pump |
| 23271M | Hose, Fuel |
| 23273H | Hose, Fuel, NO.2 |
| 23282D | Hose, Fuel, NO.4 |
| 23701 | Pipe Sub-assy, Injection, NO.1 |
| 23702 | Pipe Sub-assy, Injection, NO.2 |
| 23703 | Pipe Sub-assy, Injection, NO.3 |
| 23704 | Pipe Sub-assy, Injection, NO.4 |
| 23742 | Clamp, Injection Pipe, NO.2 |
| 23762 | Pipe, Nozzle Leakage, NO.2 |
| 23763 | Pipe, Nozzle Leakage, NO.3 |
| 23764A | Pipe, Nozzle Leakage, NO.4 |
| 23802F | Hose, Fuel |
| 23804C | Pipe Sub-assy, Fuel Inlet |
| 23810A | Rail Assy, Common |
| 23811G | Pipe, Fuel, NO.1 |
| 23812D | Pipe, Fuel, NO.2 |
| 23841H | Clamp, Fuel Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
