Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

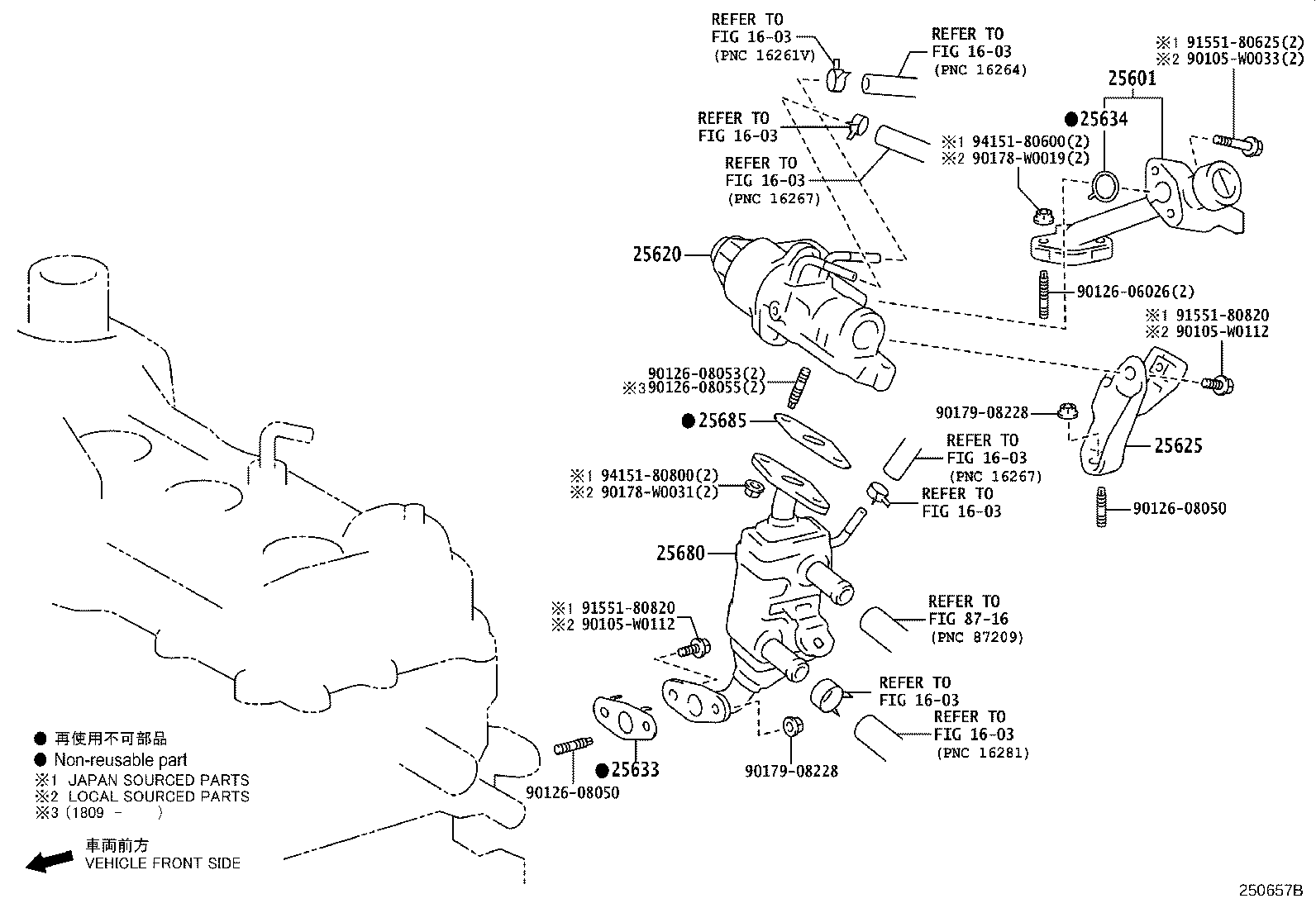

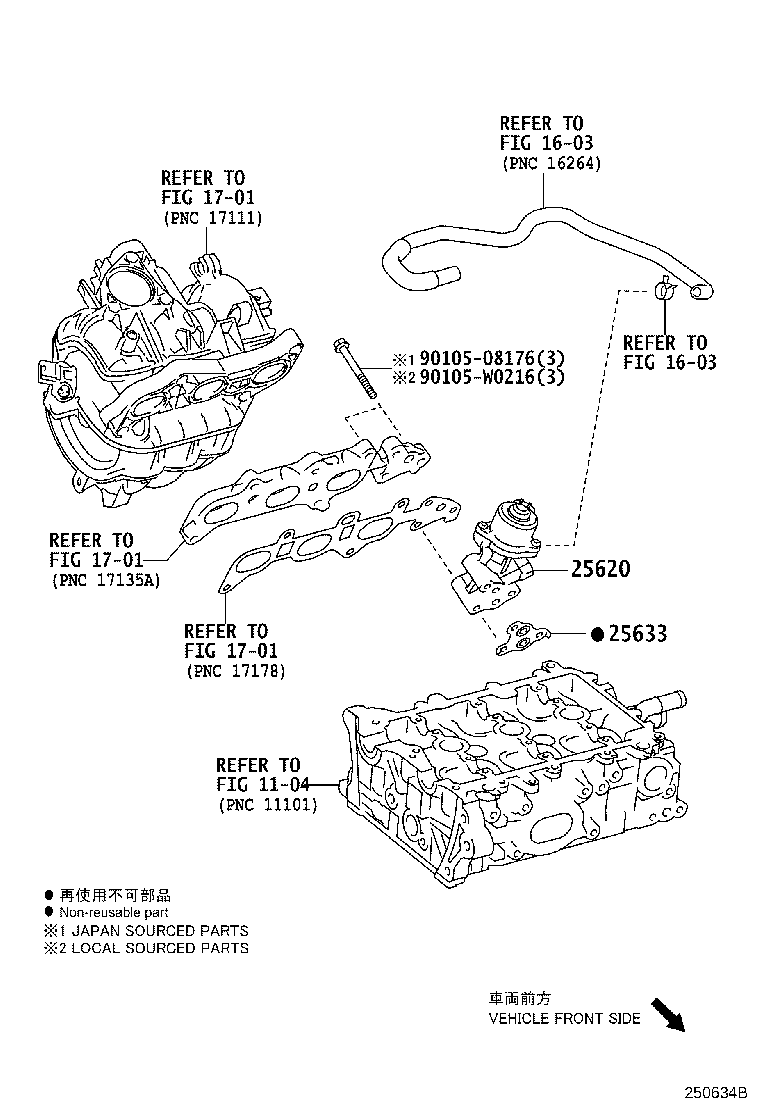

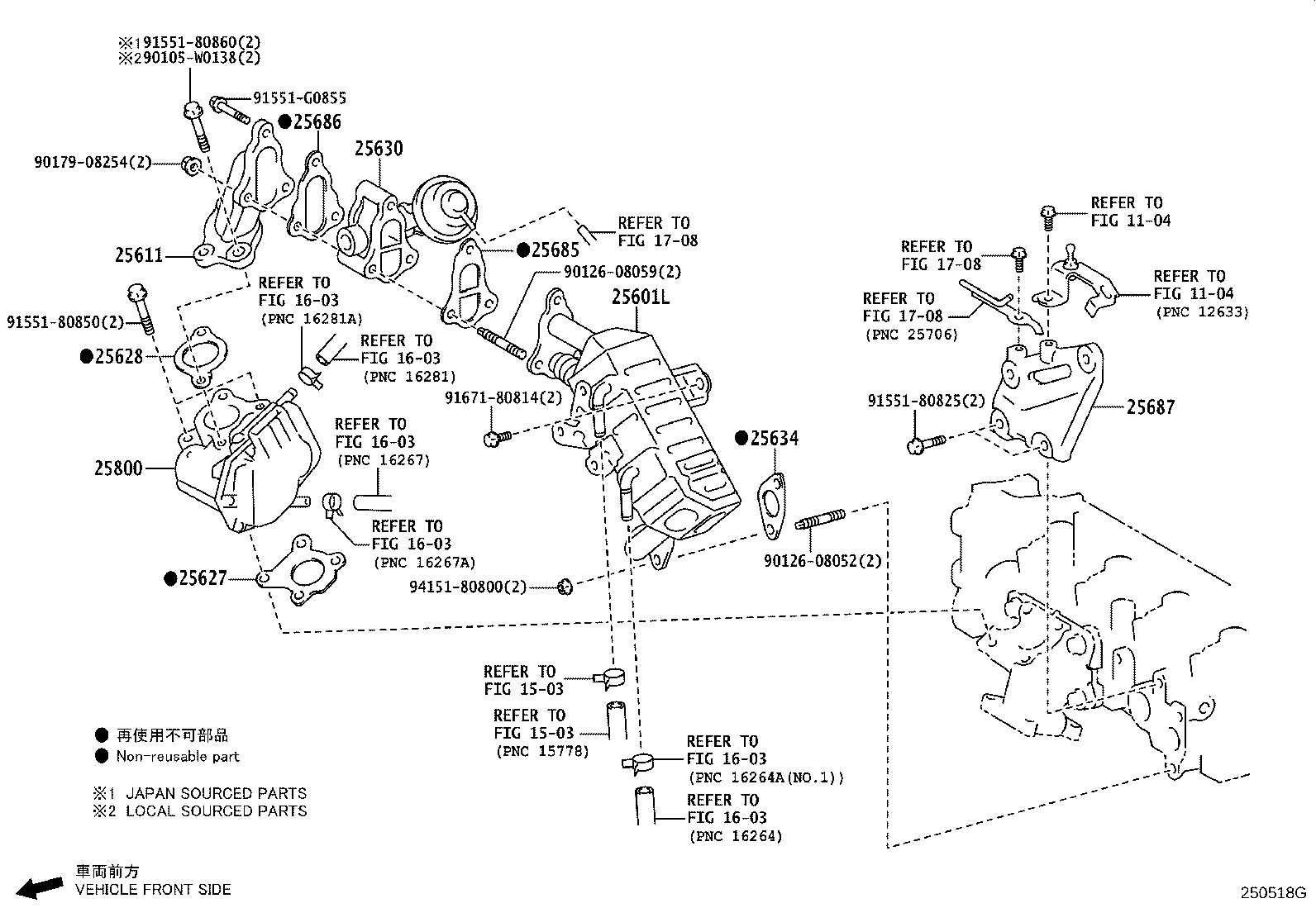

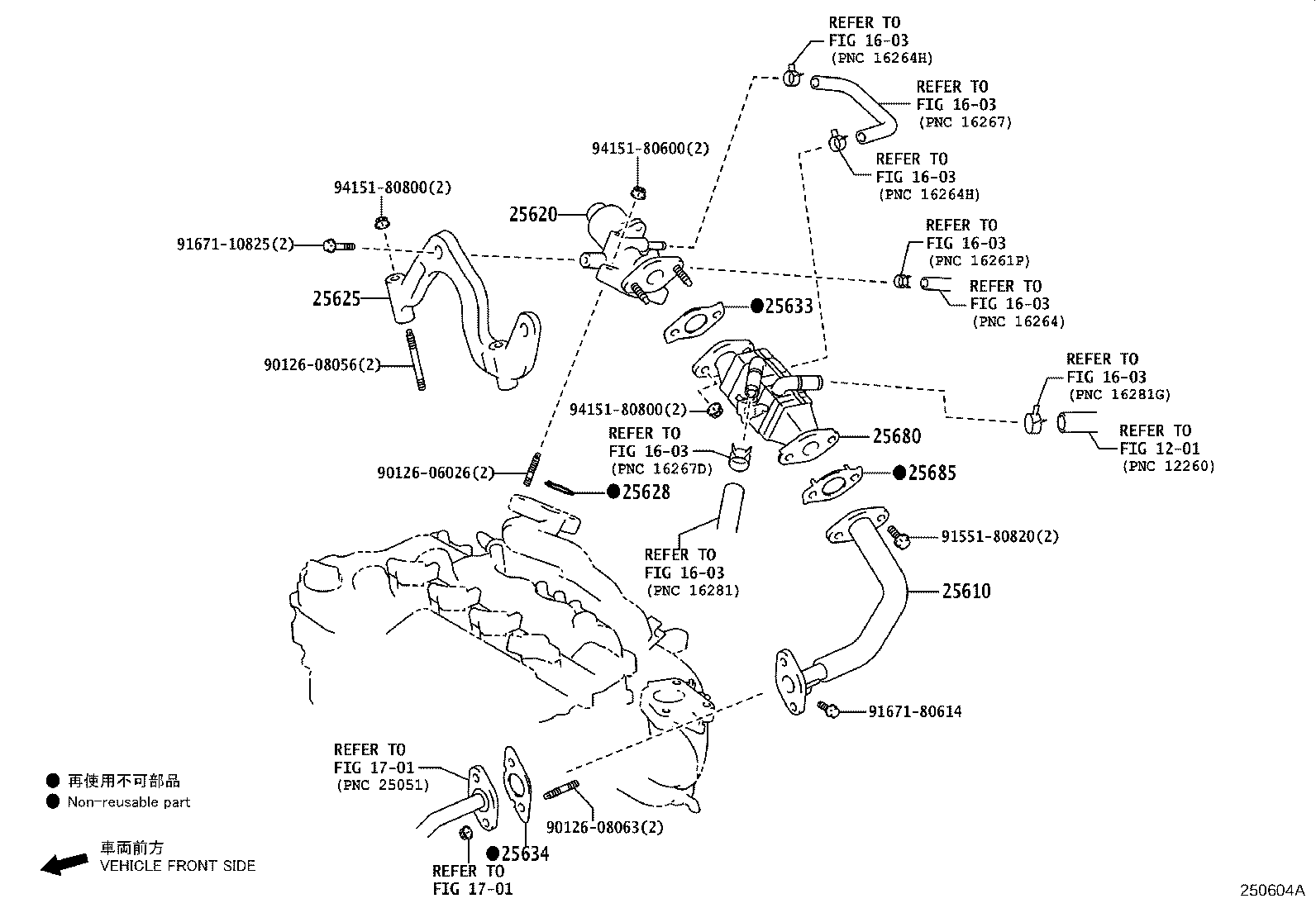

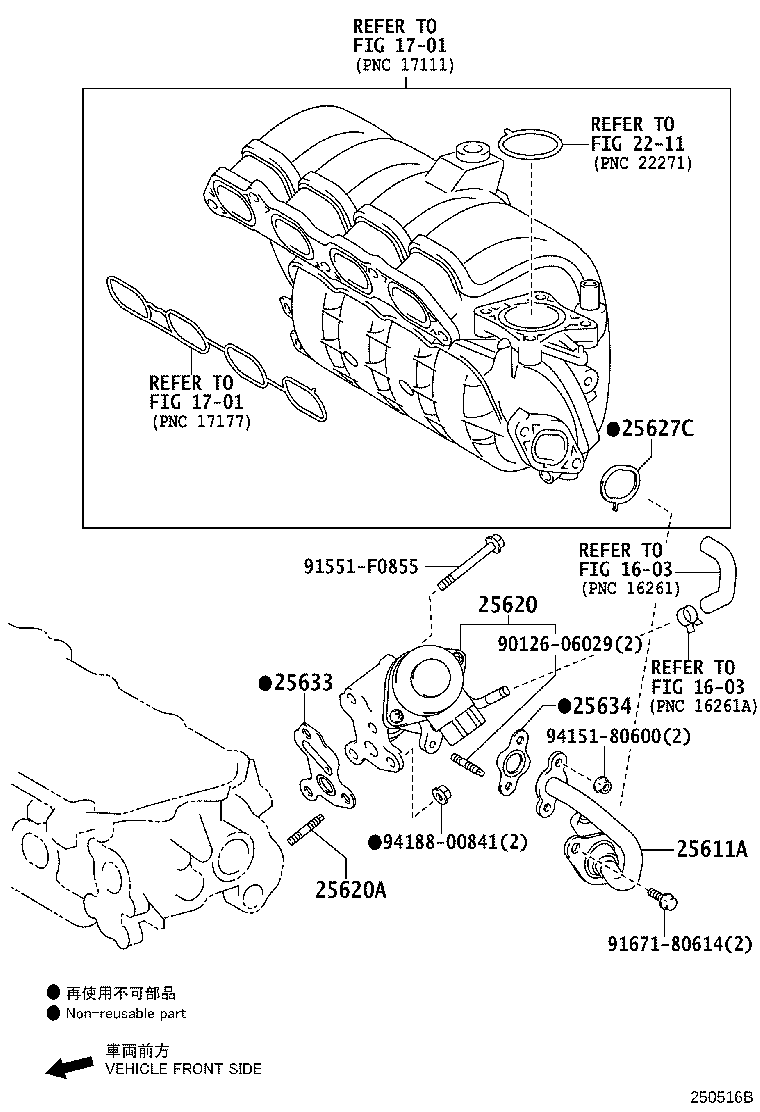

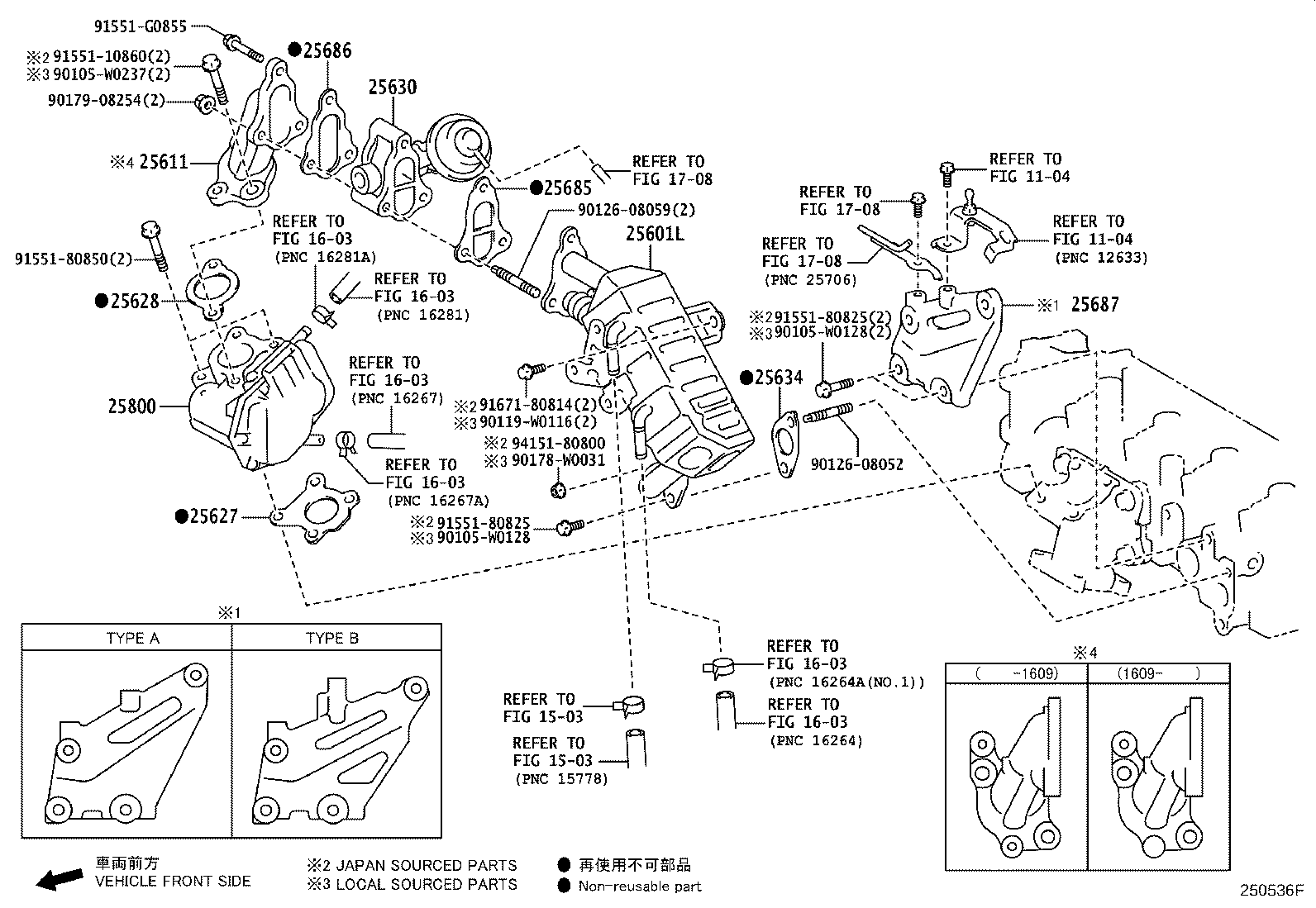

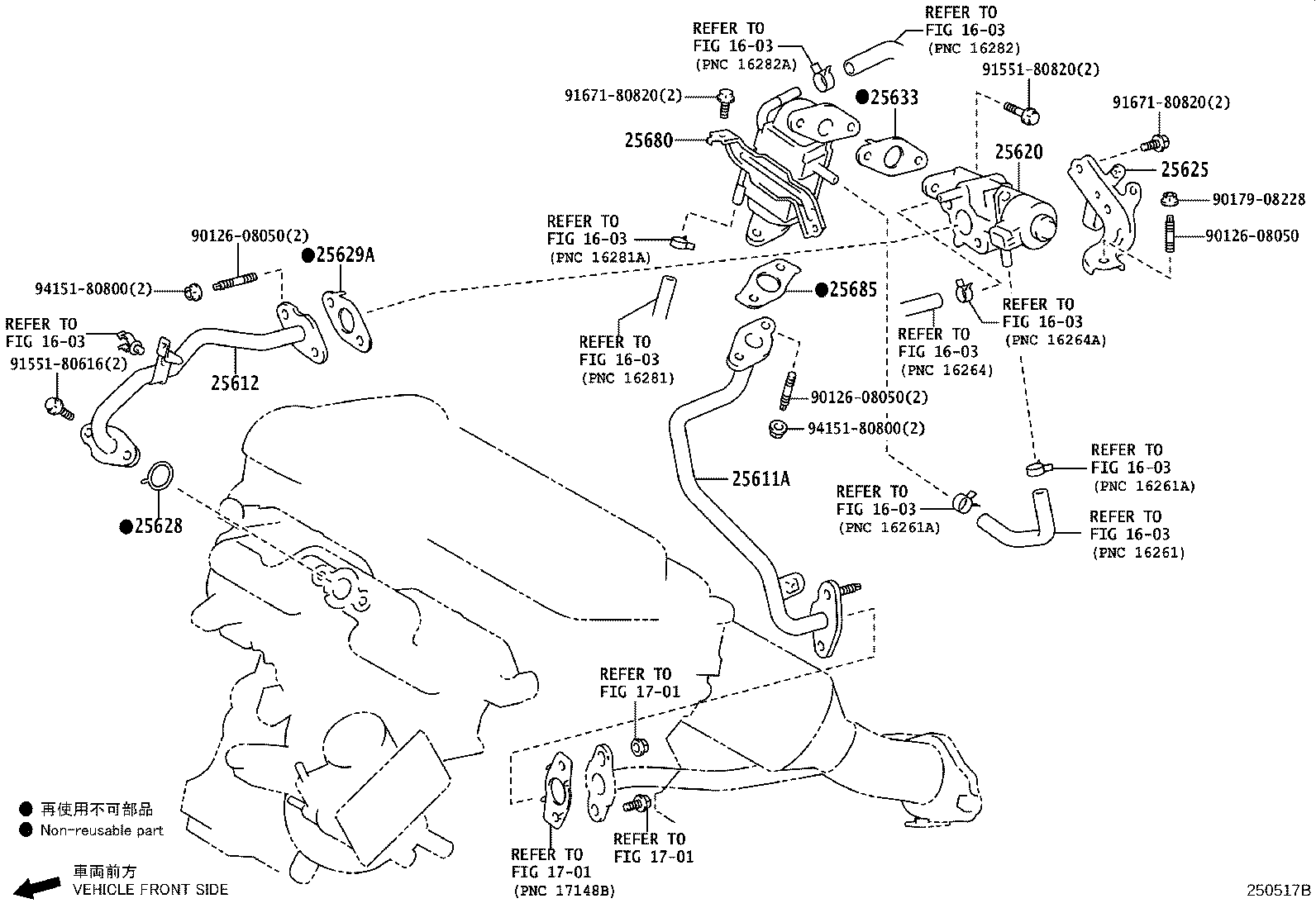

Exhaust Gas Recirculation System
21 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601L | Pipe Sub-assy, Egr W/Cooler |
| 25610 | Pipe Assy, Egr |
| 25611 | Connector, Egr Pipe |
| 25611A | Pipe, Egr, NO.1 |
| 25612 | Pipe, Egr, NO.2 |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25627C | Gasket(FOR EGR PIPE NO.2) |
| 25628 | Gasket, Egr Inlet |
| 25629A | Gasket, Egr Pipe, NO.2 |
| 25630 | Valve Assy, Egr, NO.2 |
| 25633 | Gasket, Egr Valve |
| 25634 | Gasket, Egr Pipe |
| 25680 | Cooler Assy, Egr |
| 25685 | Gasket, Egr Cooler, NO.1 |
| 25686 | Gasket, Egr Cooler, NO.2 |
| 25687 | Bracket, Egr Cooler, NO.1 |
| 25800 | Valve Assy, Electric Egr Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
