Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

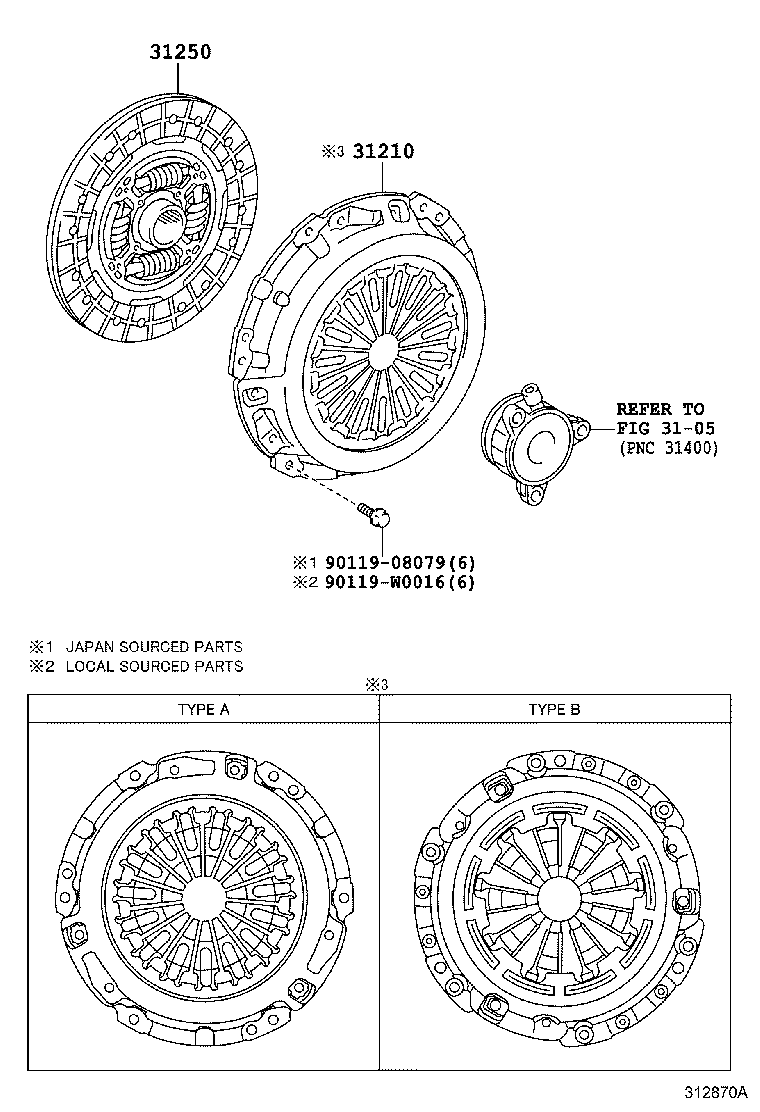

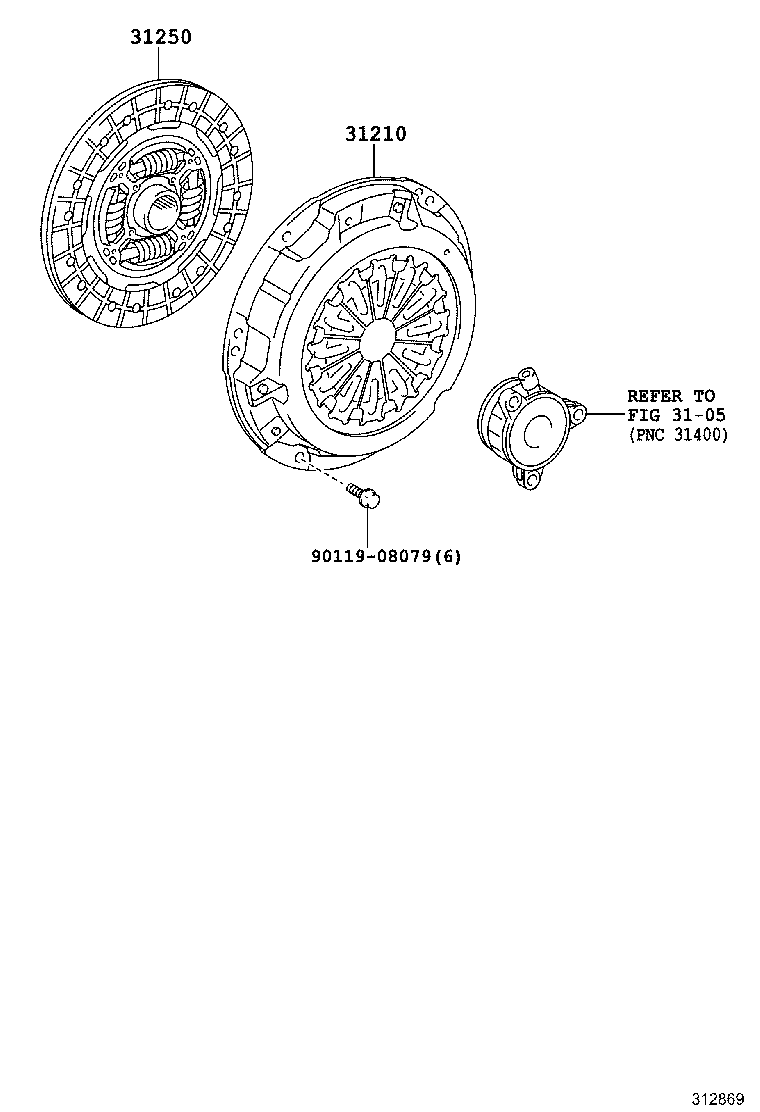

Clutch & Release Fork
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31204 | Fork Sub-assy, Clutch Release |
| 31207A | Seal, Oil(FOR CLUTCH RELEASE FORK LEVER) |
| 31209A | Bush, Bimetal Formed(FOR CLUTCH RELEASE LEVER SUPPORT) |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31232A | Clip, Release Bearing Hub |
| 31233 | Fork, Clutch Release |
| 31250 | Disc Assy, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
