Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

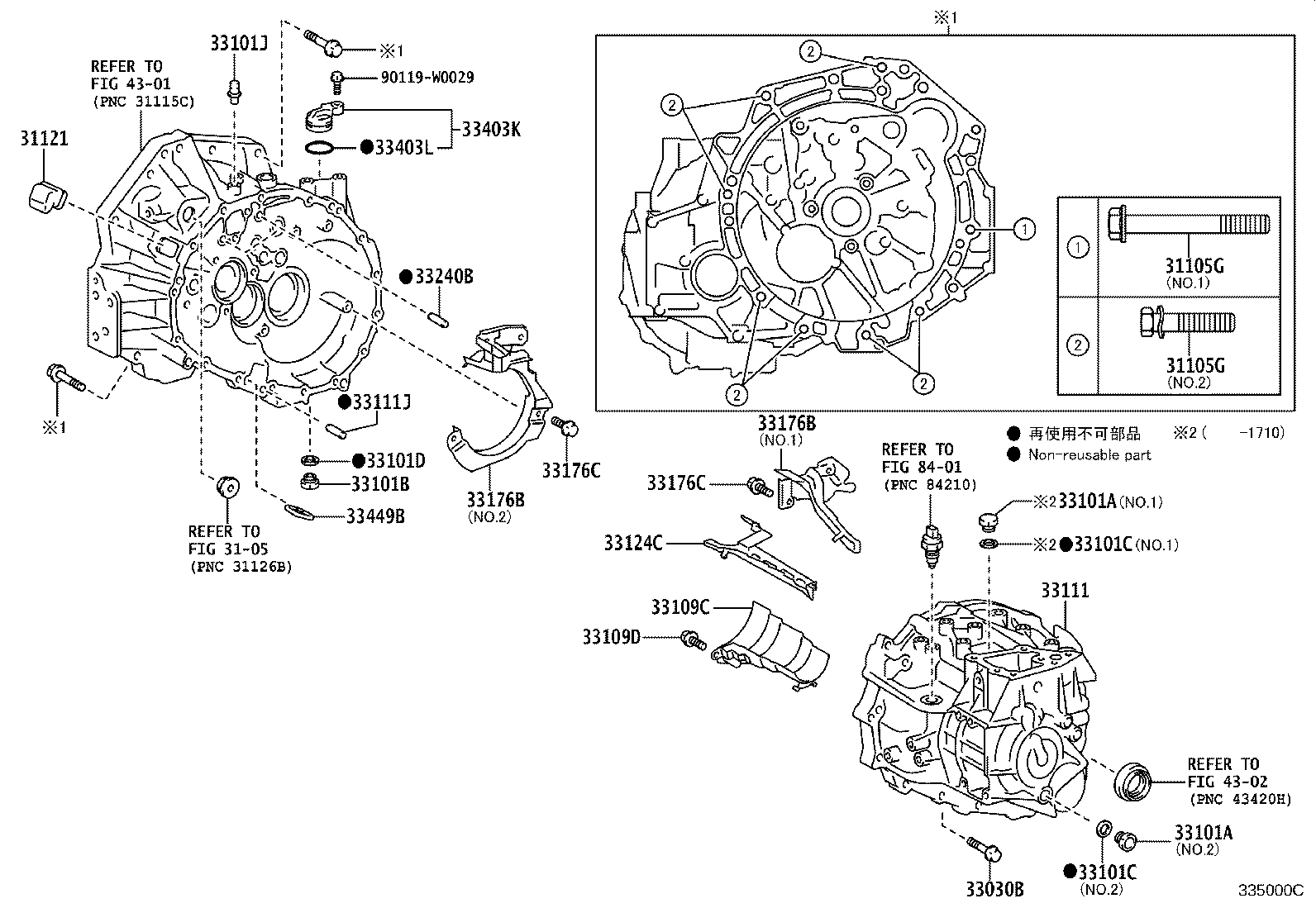

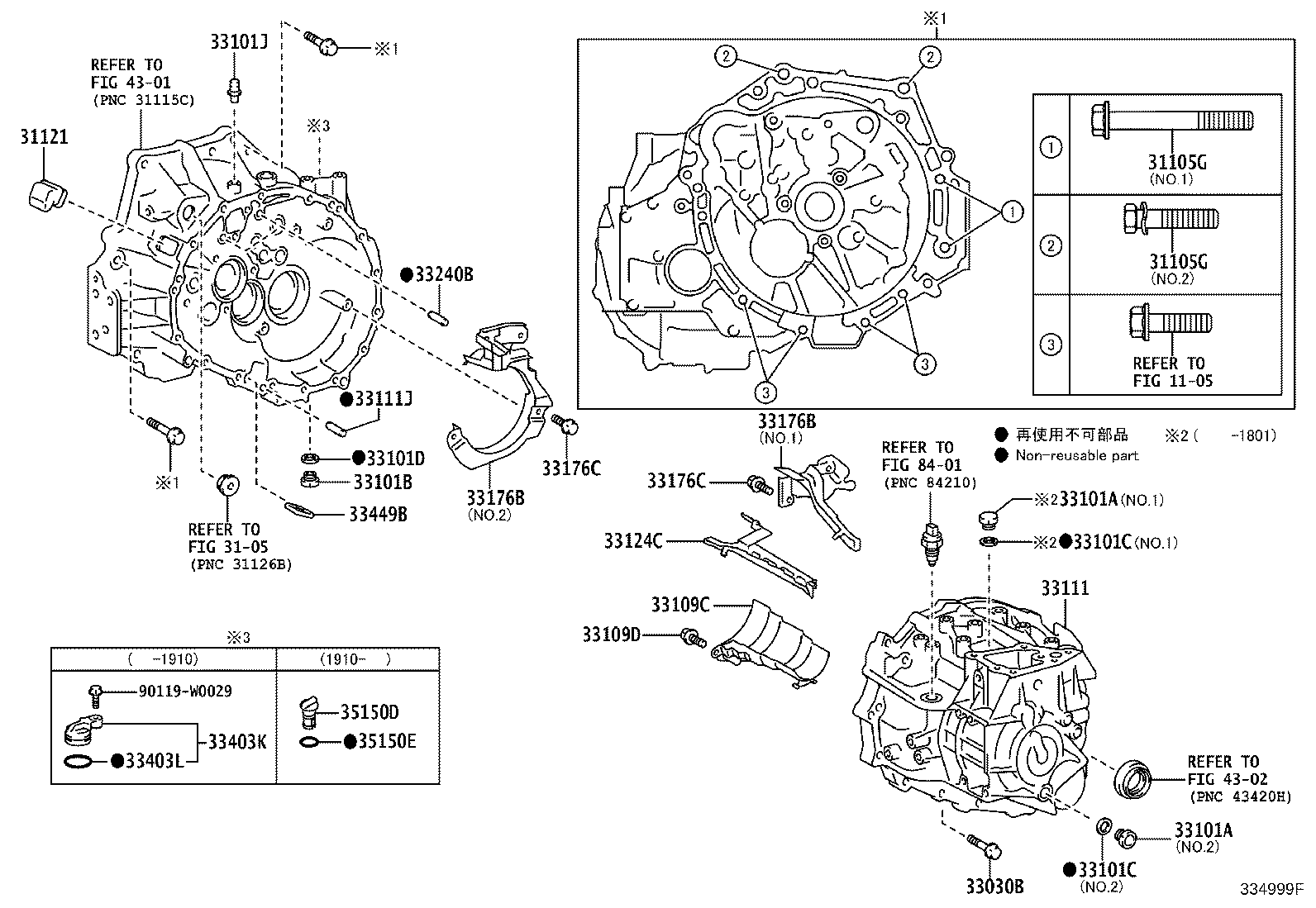

Clutch Housing & Transmission Case (MTM)
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105G | Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) |
| 31121 | Cover, Clutch Housing, NO.1 |
| 33030B | Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101B | Plug(FOR MANUAL TRANSMISSION DRAIN) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101D | Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG) |
| 33101J | Plug, Breather |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33109C | Separator Sub-assy, Manual Transmission Oil |
| 33109D | Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33176B | Separator, Transmission Oil(MTM) |
| 33176C | Bolt(FOR TRANSMISSION OIL SEPARATOR) |
| 33240B | Pin, Straight(FOR REVERSE SHIFT ARM BRACKET) |
| 33403K | Cover Sub-assy, Speedometer Driven Hole |
| 33403L | Ring, O |
| 33449B | Magnet, Transmission |
| 35150D | Plug Assy, Transmission Case |
| 35150E | Ring, O (FOR TRANSMISSION CASE PLUG) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
