Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

9 part groups · 2 illustrations

Illustrations

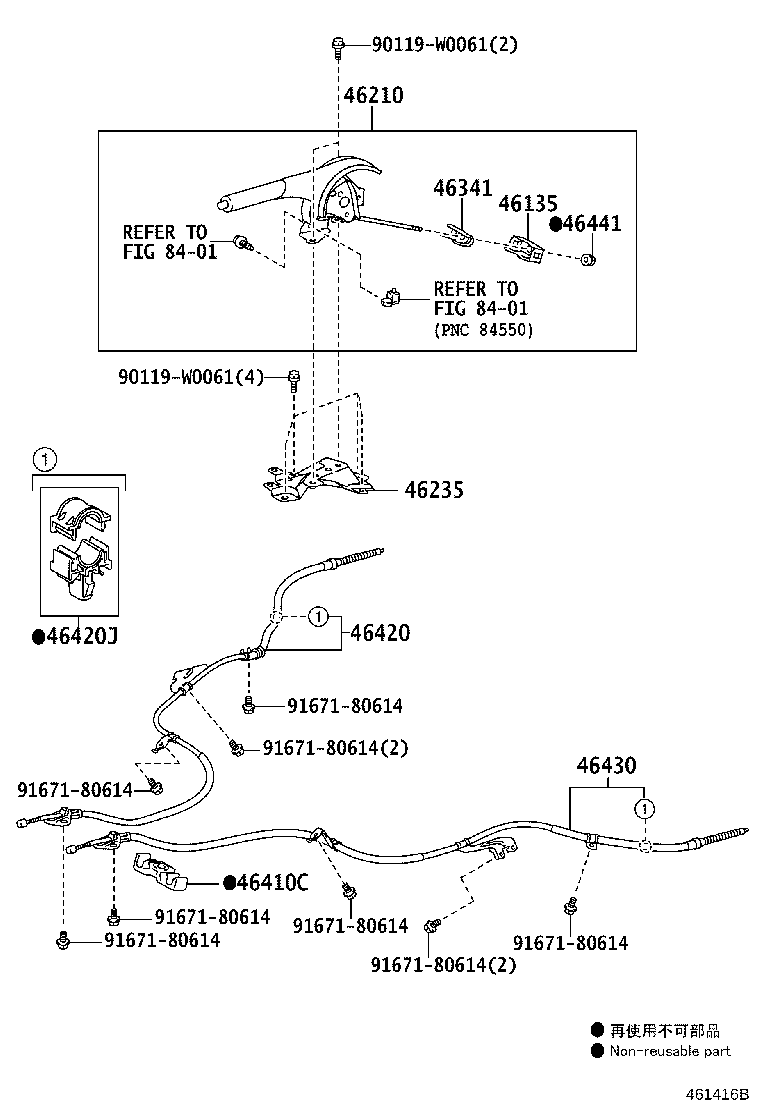

Figure 461417A 461417A 2014-07 → — Figure 461416B 461416B 2014-07 → —

Part groups

PNCDescription
46135 Stopper, Parking Brake Cable End
46210 Lever Assy, Parking Brake
46235 Bracket, Parking Brake Lever Support
46341 Equalizer, Parking Brake
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
