Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

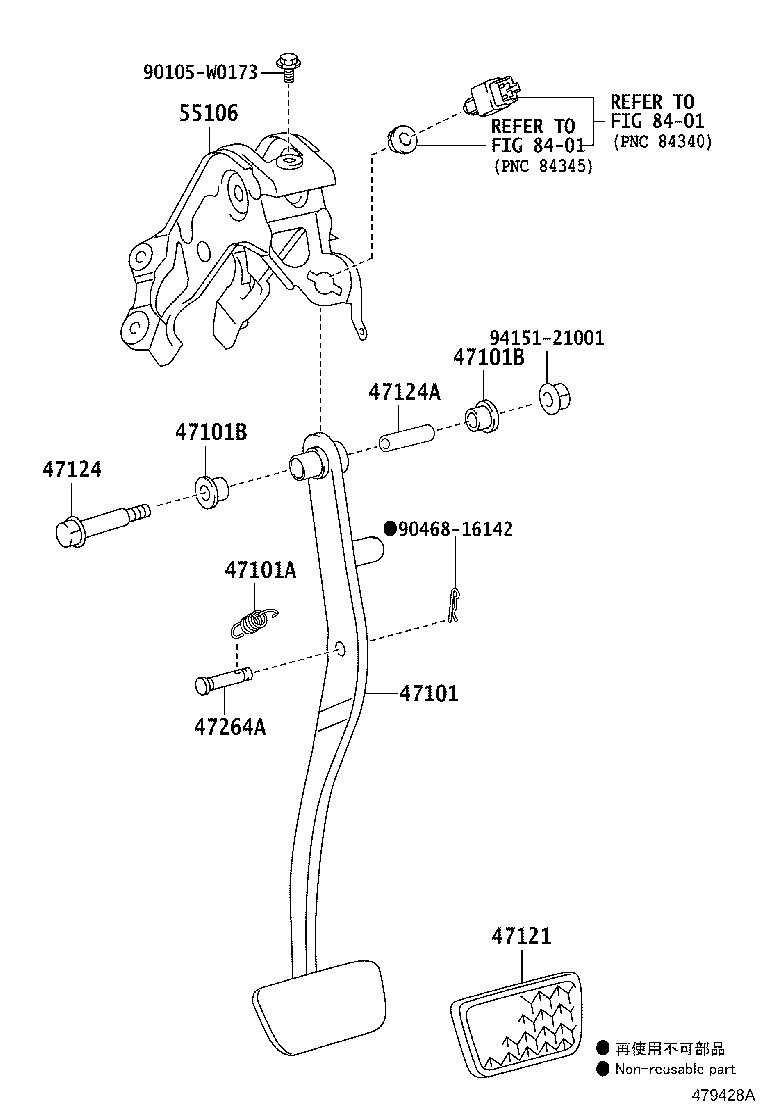

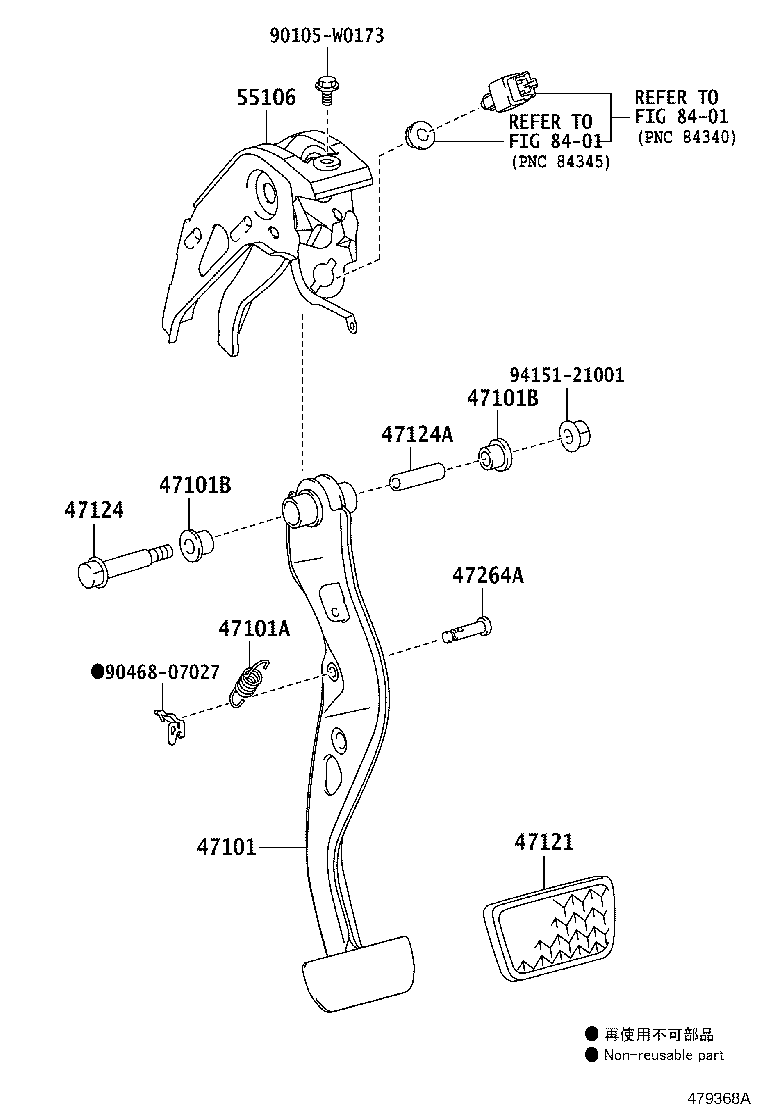

Brake Pedal & Bracket
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101 | Pedal Sub-assy, Brake |
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47110 | Support Assy, Brake Pedal |
| 47121 | Pad, Brake Pedal |
| 47124 | Shaft, Brake Pedal |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47264A | Pin(FOR PUSH ROD) |
| 55106 | Support Sub-assy, Brake Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
