Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

23 part groups · 10 illustrations

Illustrations

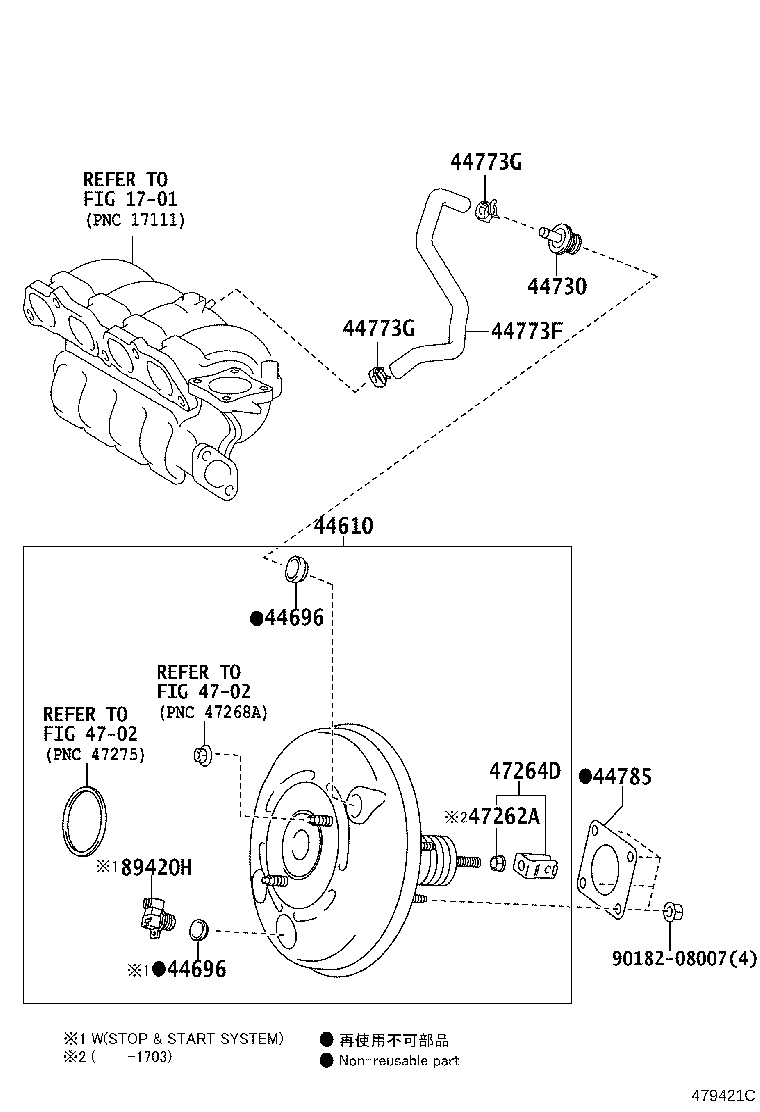

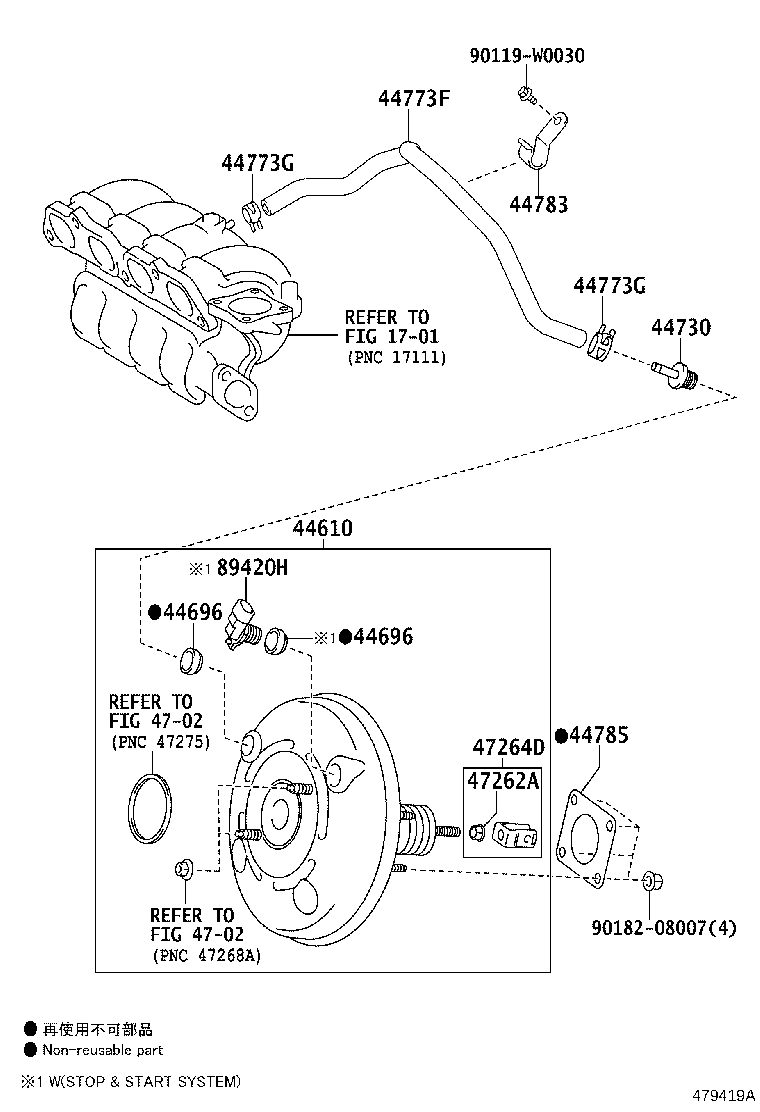

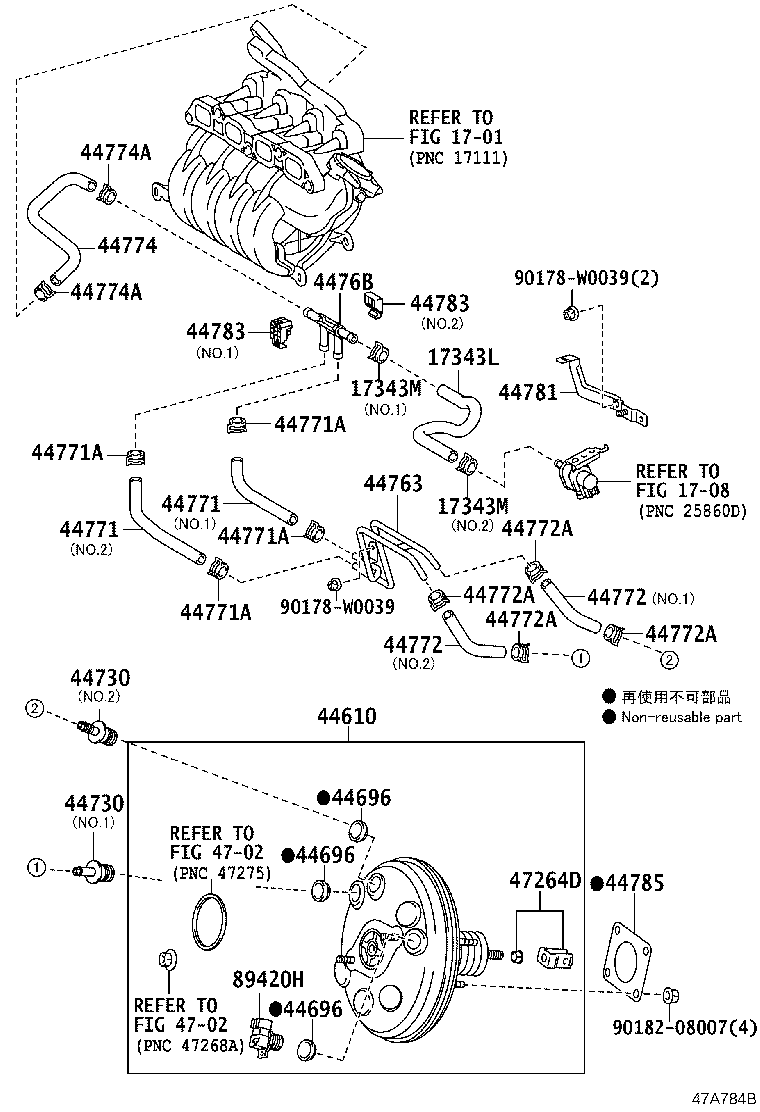

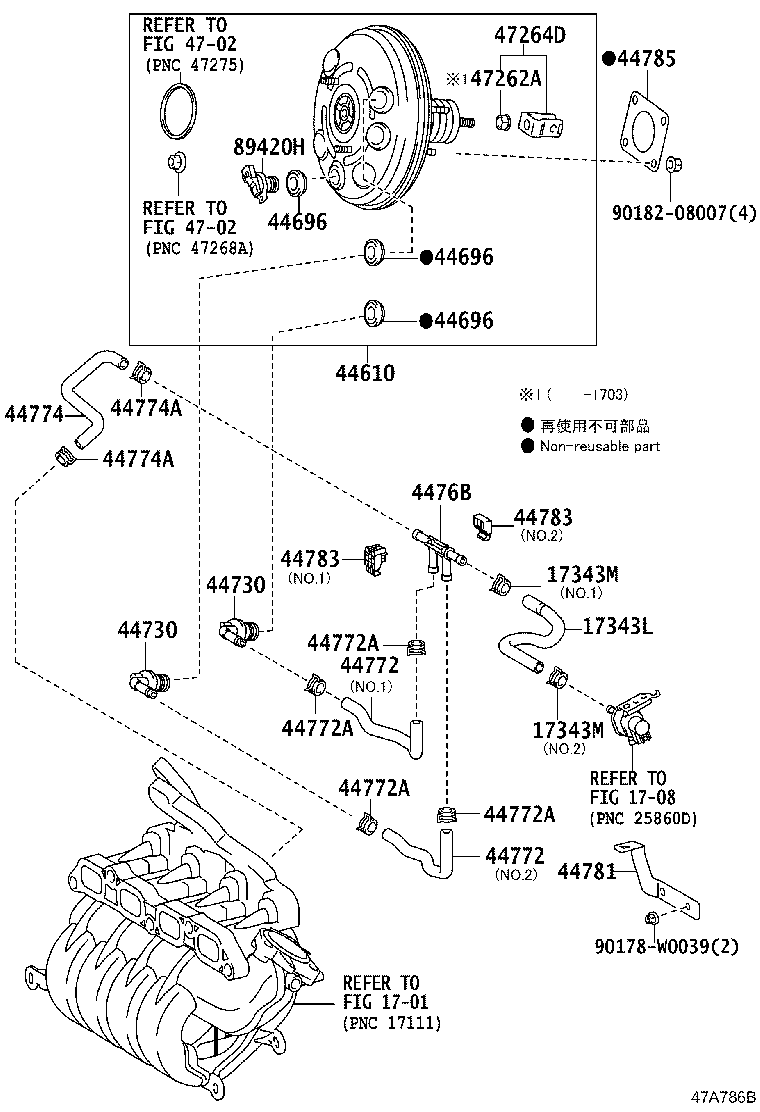

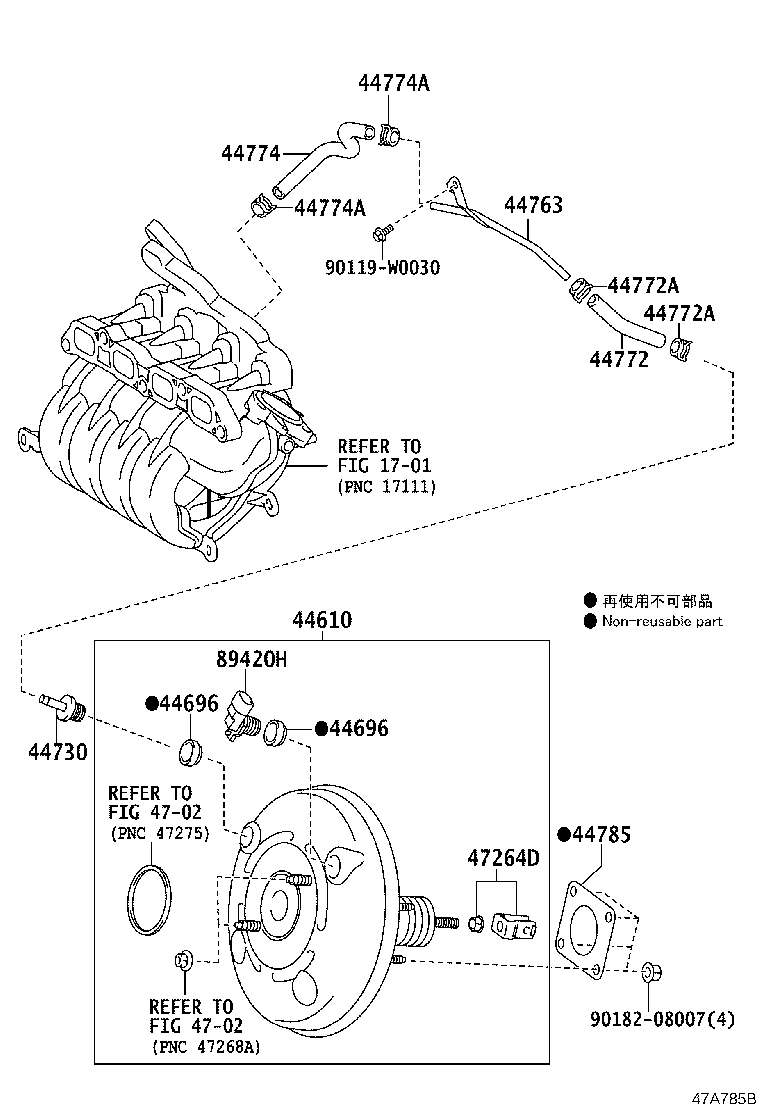

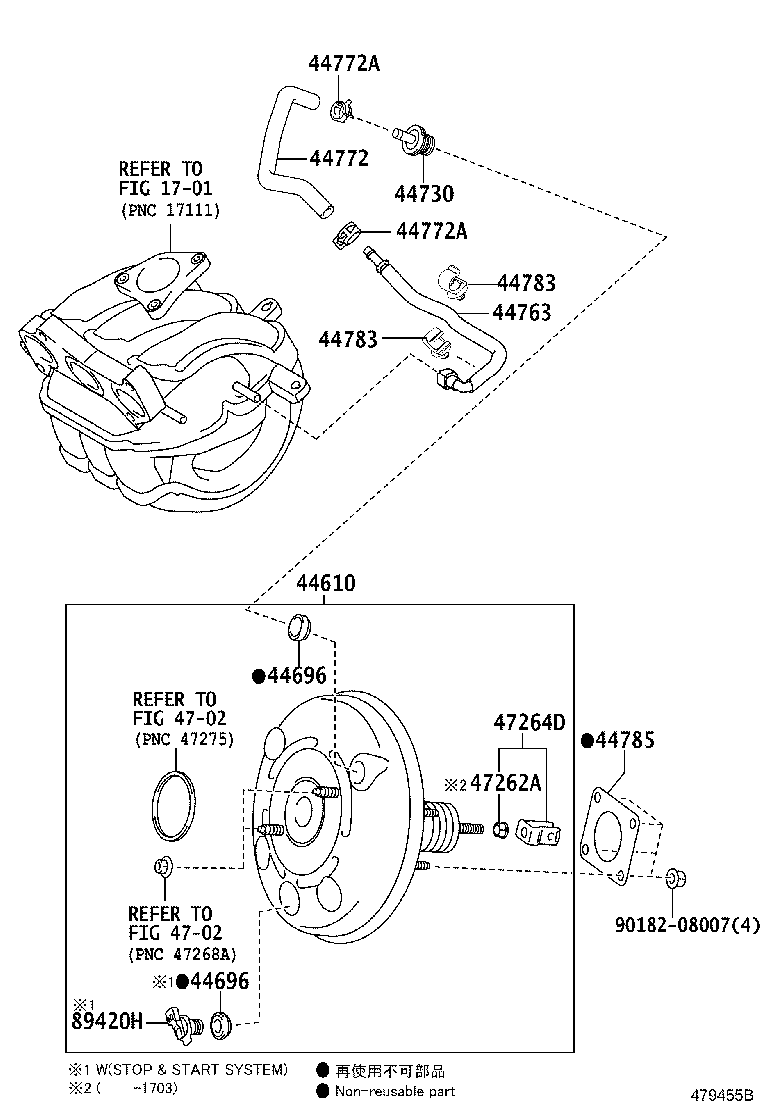

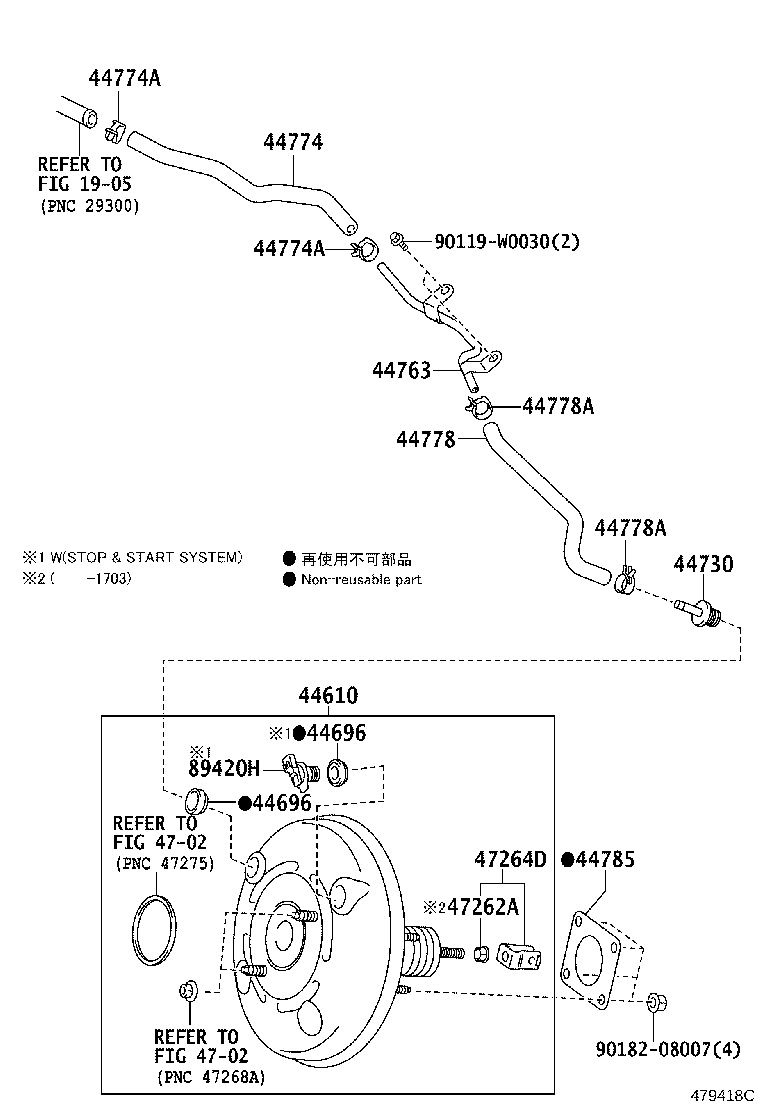

Figure 479454B 479454B 2014-07 → — Figure 479455B 479455B 2014-07 → — Figure 479418C 479418C 2014-07 → — Figure 479420B 479420B 2014-07 → — Figure 479419A 479419A 2014-07 → 2017-03 Figure 47A784B 47A784B 2017-03 → — Figure 47A785B 47A785B 2017-03 → — Figure 479421C 479421C 2014-07 → 2017-03 Figure 479421C 479421C 2017-03 → — Figure 47A786B 47A786B 2017-03 → —

Part groups

PNCDescription
17343L Hose, Air, NO.3
17343M Clip(FOR AIR HOSE NO.3)
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763 Tube, Booster Vacuum
4476B Ejector, Brake Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44778 Hose, Connector TO Check Valve
44778A Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
44781 Bracket, Hose
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47262A Nut, Master Cylinder Push Rod Clevis Lock
47264D Clevis, Brake Master Cylinder Push Rod
89420H Sensor Assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
