Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 2 illustrations

Illustrations

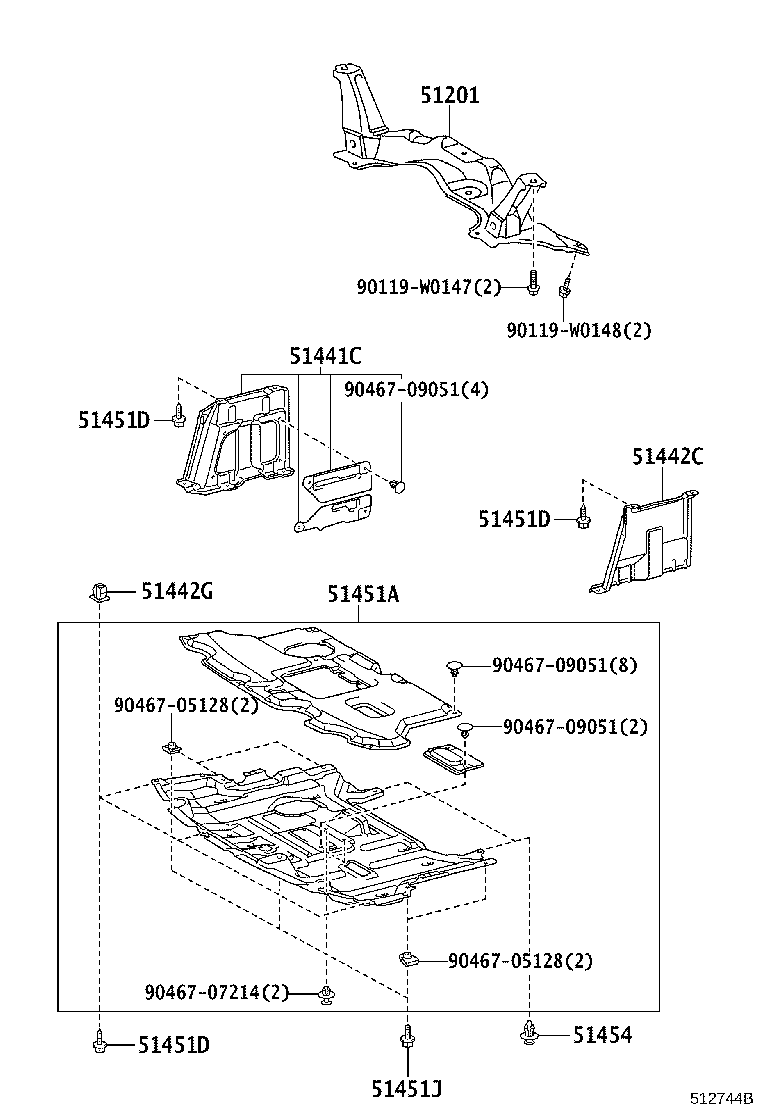

Figure 512743B 512743B 2014-07 → — Figure 512744B 512744B 2014-07 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51442G Clip, Engine Under Cover, NO.1
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51451J Bolt, NO.1
51454 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
