Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

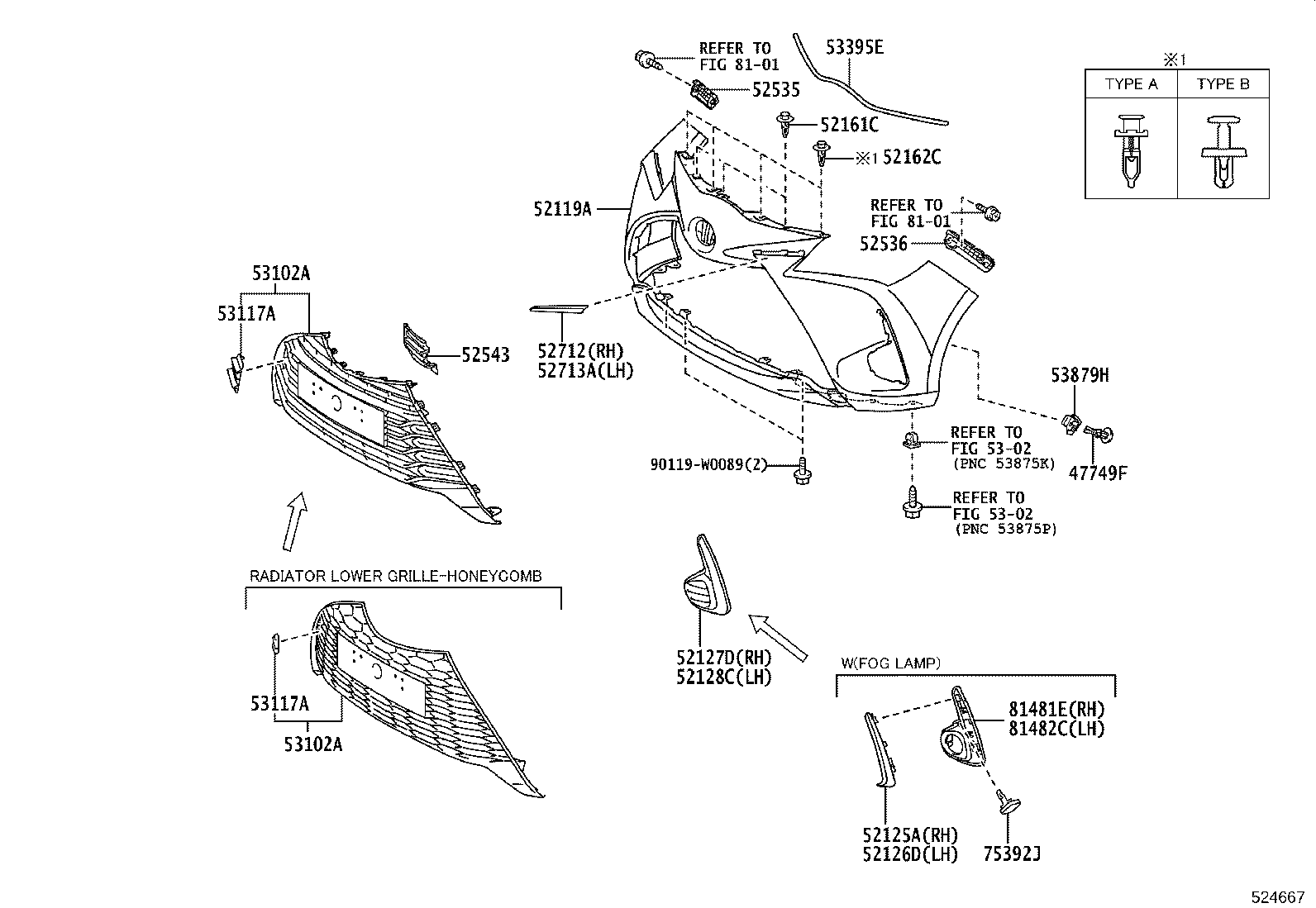

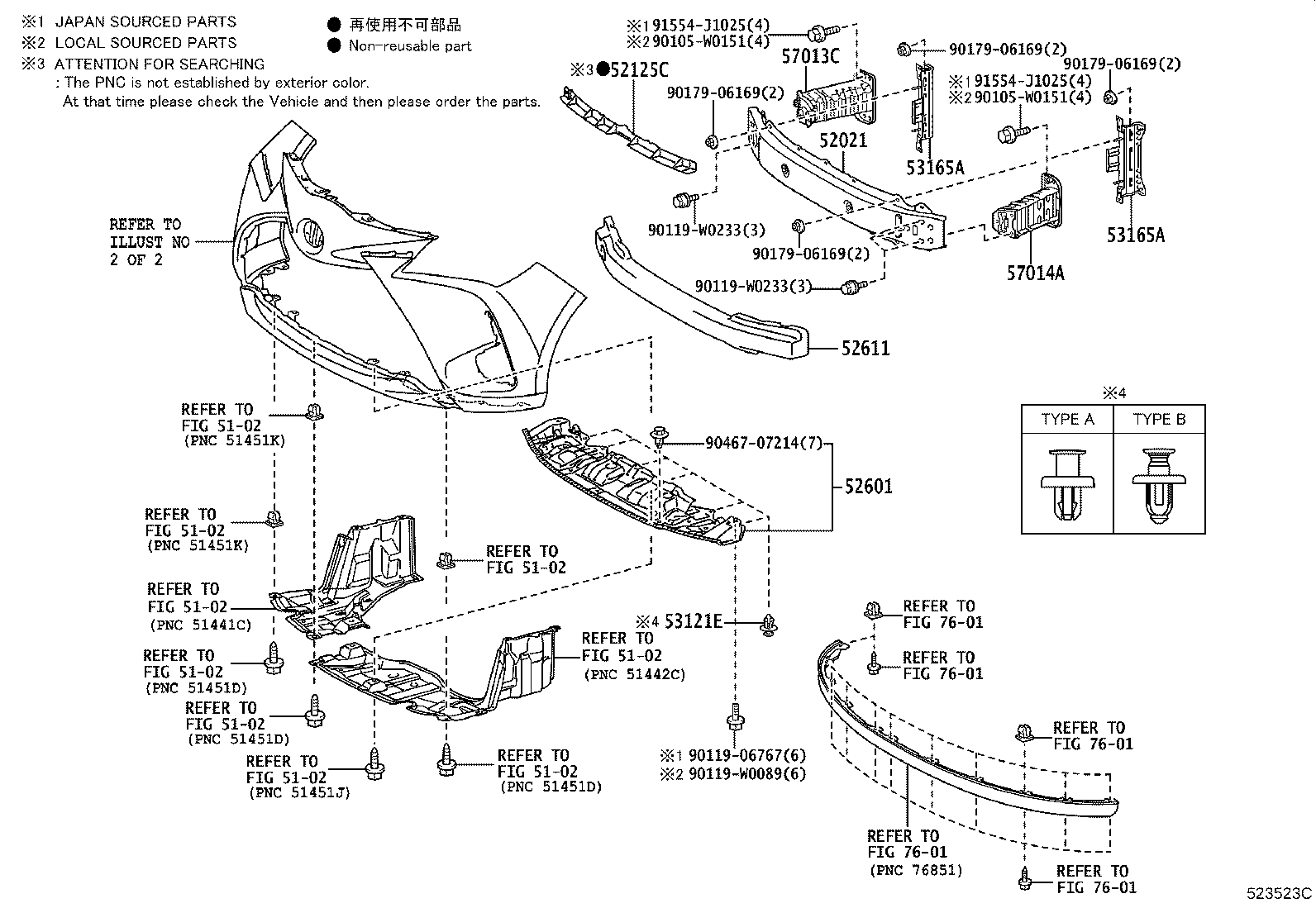

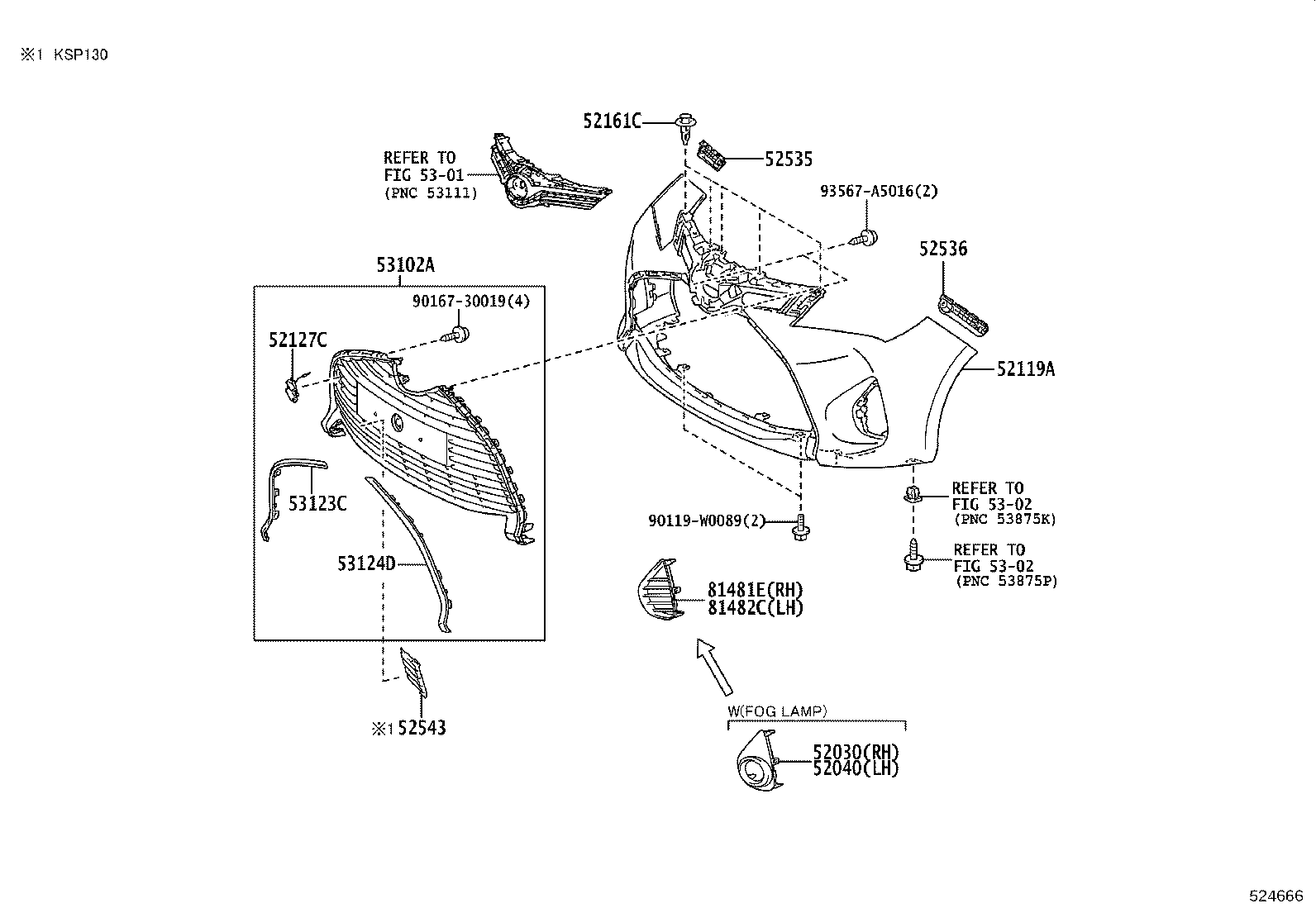

Front Bumper & Bumper Stay
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52040 | Cover Assy, Front Bumper Hole, LH |
| 52119A | Cover, Front Bumper |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52125C | Extension, Front Bumper Reinforcement |
| 52126D | Bracket, Fog Lamp Mounting, LH |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52161C | Piece, Front Bumper |
| 52162C | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52543 | Seal, Front Bumper Side, RH |
| 52601 | Absorber Sub-assy, Front Bumper Energy |
| 52611 | Absorber, Front Bumper Energy |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53117A | Cover, Radiator Grille Service Hole, RH |
| 53121E | Clip(FOR FRONT BUMPER), NO.1 |
| 53123C | Moulding, Radiator Grille, Lower RH |
| 53124D | Moulding, Radiator Grille, Lower LH |
| 53165A | Bracket, Front Bumper Stone Deflector, NO.1 |
| 53395E | Seal, Hood TO Front End Panel |
| 53879H | Retainer, Front Fender Liner |
| 57013C | Bracket Sub-assy, Front Side Member, RH |
| 57014A | Bracket Sub-assy, Front Side Member, LH |
| 75392J | Retainer, Outside Moulding |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
