Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

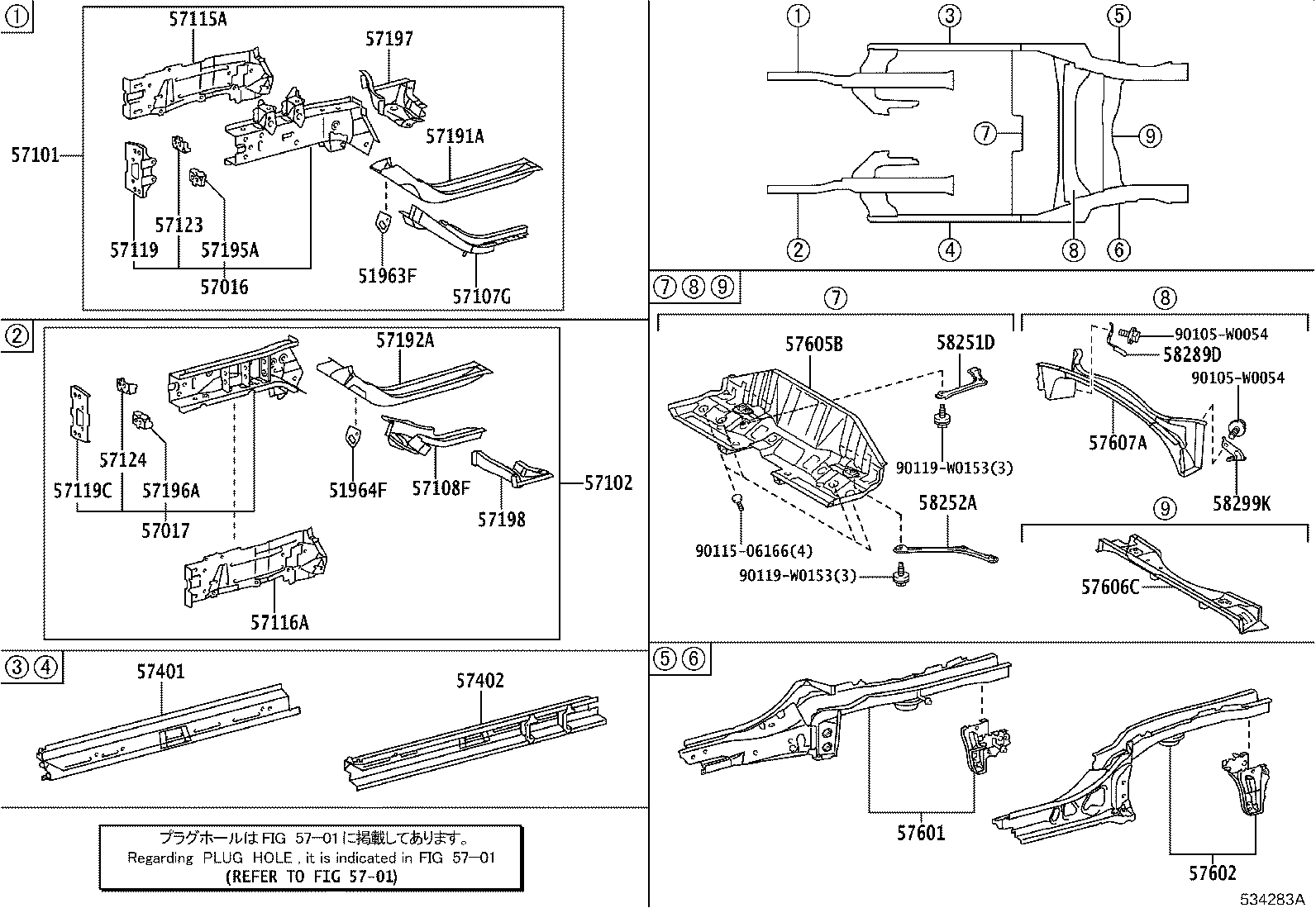

Floor Side Member
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51963F | Hook, Transport |
| 51964F | Hook, Transport, LH |
| 57016 | Reinforcement Sub-assy, Front Side Member, RH |
| 57017 | Reinforcement Sub-assy, Front Side Member, LH |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57107G | Bracket Sub-assy, Front Suspension Member Mounting, Rear RH |
| 57108F | Bracket Sub-assy, Front Suspension Member Mounting, Rear LH |
| 57115A | Plate, Front Side Member, Outer RH |
| 57116A | Plate, Front Side Member, Outer LH |
| 57119 | Plate, Front Side Member, Front |
| 57119C | Plate, Front Side Member, Front |
| 57123 | Support, Front Side Member, RH |
| 57124 | Support, Front Side Member, LH |
| 57191A | Member, Front Side, Inner Rear RH |
| 57192A | Member, Front Side, Inner Rear LH |
| 57195A | Reinforcement, Front Side Member, Front RH |
| 57196A | Reinforcement, Front Side Member, Front LH |
| 57197 | Box, Torque, Front RH |
| 57198 | Box, Torque, Front LH |
| 57401 | Member Sub-assy, Main Floor Side, RH |
| 57402 | Member Sub-assy, Main Floor Side, LH |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57605B | Member Sub-assy, Rear Floor Cross, NO.1 |
| 57606C | Member Sub-assy, Rear Floor Cross, NO.2 |
| 57607A | Member Sub-assy, Rear Floor Cross, NO.3 |
| 58251D | Brace, Floor Panel, Front |
| 58252A | Brace, Floor Panel, Rear |
| 58289D | Bracket, Floor Brake Hose, Rear |
| 58299K | Bracket, Floor Brake Hose, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
