Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

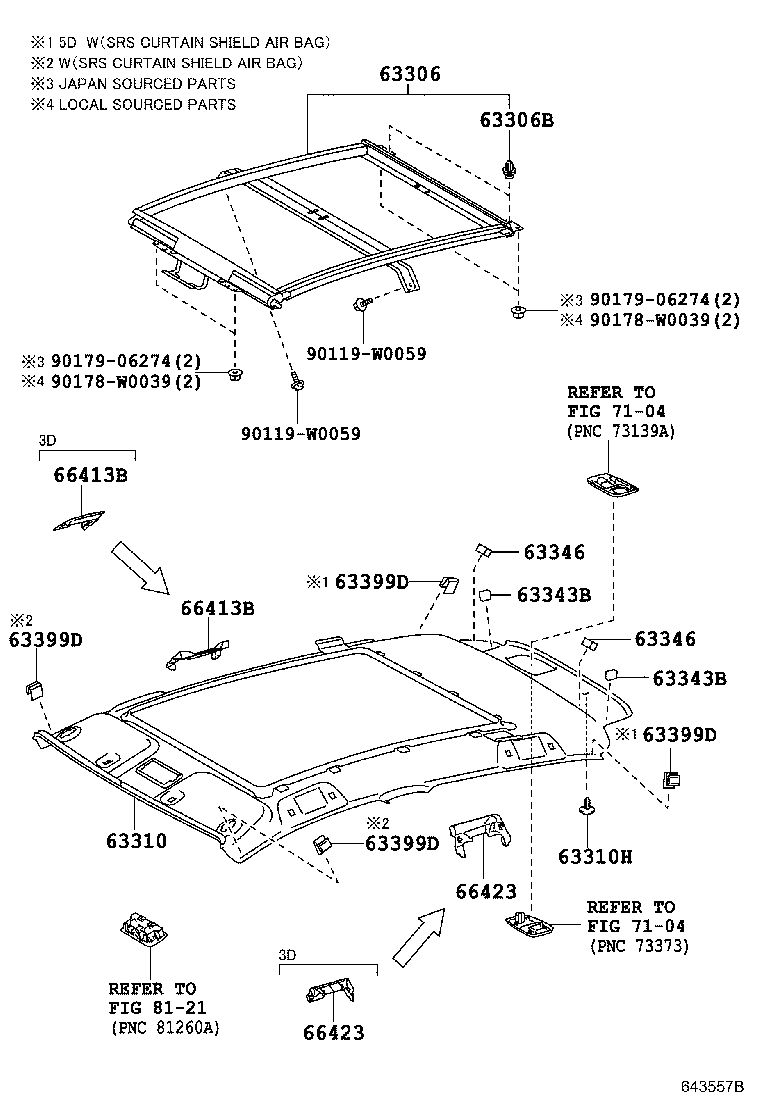

Roof Headlining & Silencer Pad
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63306B | Clip(FOR SUNSHADE TRIM) |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63339A | Cover, Roof Headlining Service Hole |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341G | Pad, Roof Silencer |
| 63343B | Pad, Roof Silencer, Rear |
| 63344H | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63346 | Pad, Roof Silencer, NO.6 |
| 63399D | Clip, Roof Headlining |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66416 | Spacer, Side Rail, Rear NO.3 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 66426B | Spacer, Side Rail, Rear NO.3 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
