Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

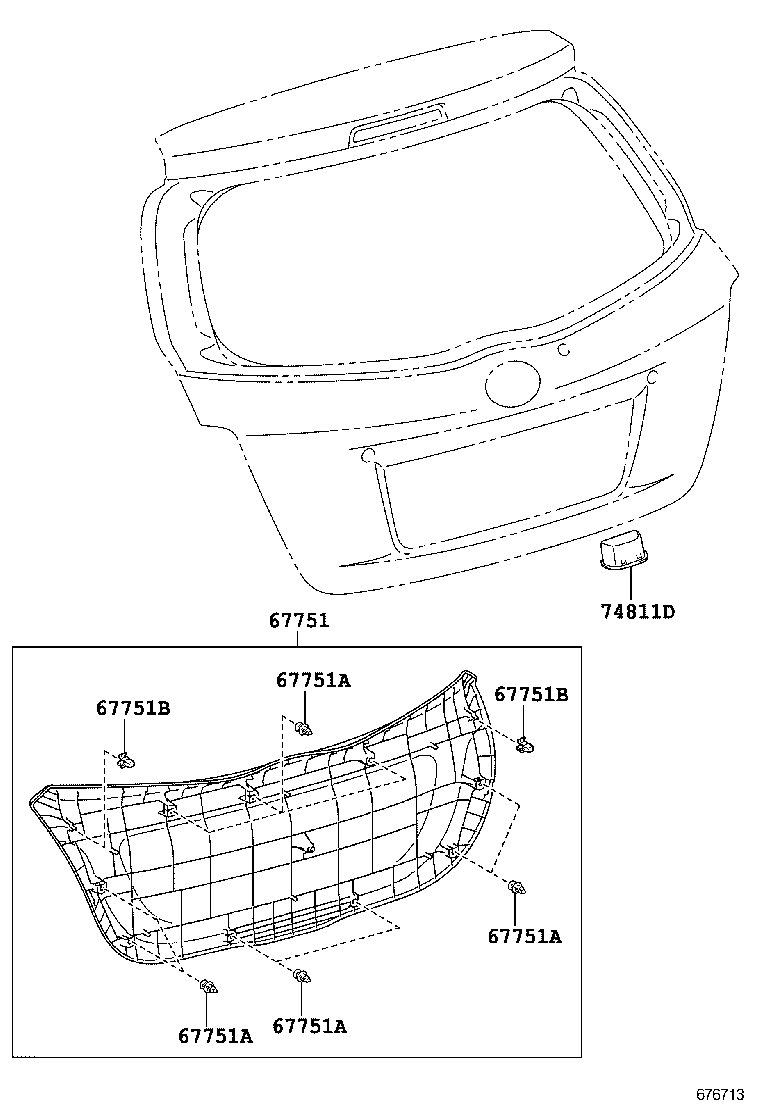

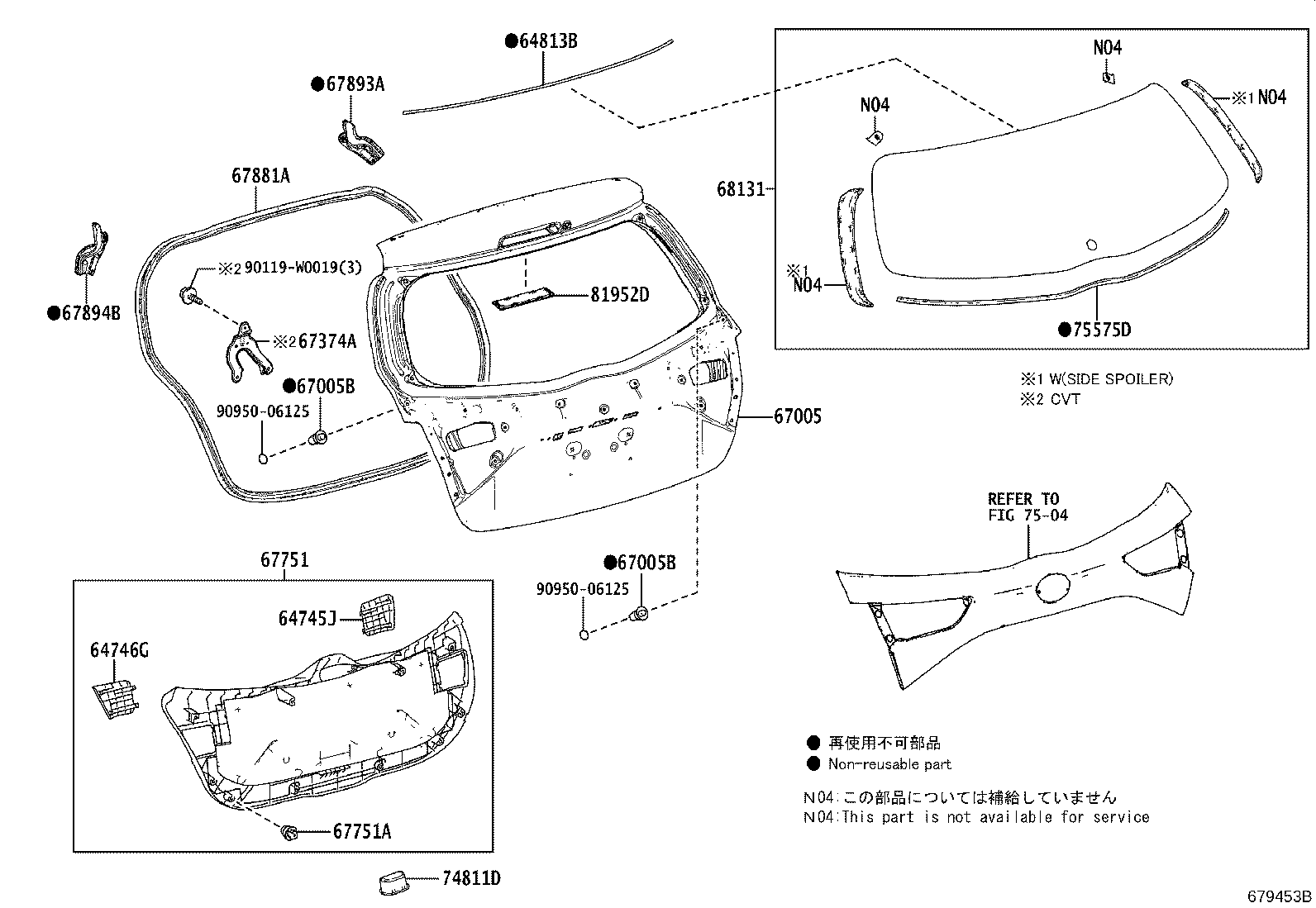

Back Door Panel & Glass
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 64745J | Cover, Rear Combination Lamp Service, RH |
| 64746G | Cover, Rear Combination Lamp Service, LH |
| 64813B | Dam, Back Window Glass Adhesive |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67372A | Weight, Back Door |
| 67374A | Retainer, Back Door Weight, LH |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67751B | Retainer(FOR BACK DOOR TRIM BOARD) |
| 67881A | Weatherstrip, Back Door |
| 67893A | Protector, Back Door Panel, NO.1 |
| 67894B | Protector, Back Door Panel, NO.2 |
| 68131 | Glass, Back Door |
| 74811D | Handle, Door Pull |
| 75575D | Moulding, Back Window, Lower |
| 81952D | Cover, Rear Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
