Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

70 part groups · 9 illustrations

Illustrations

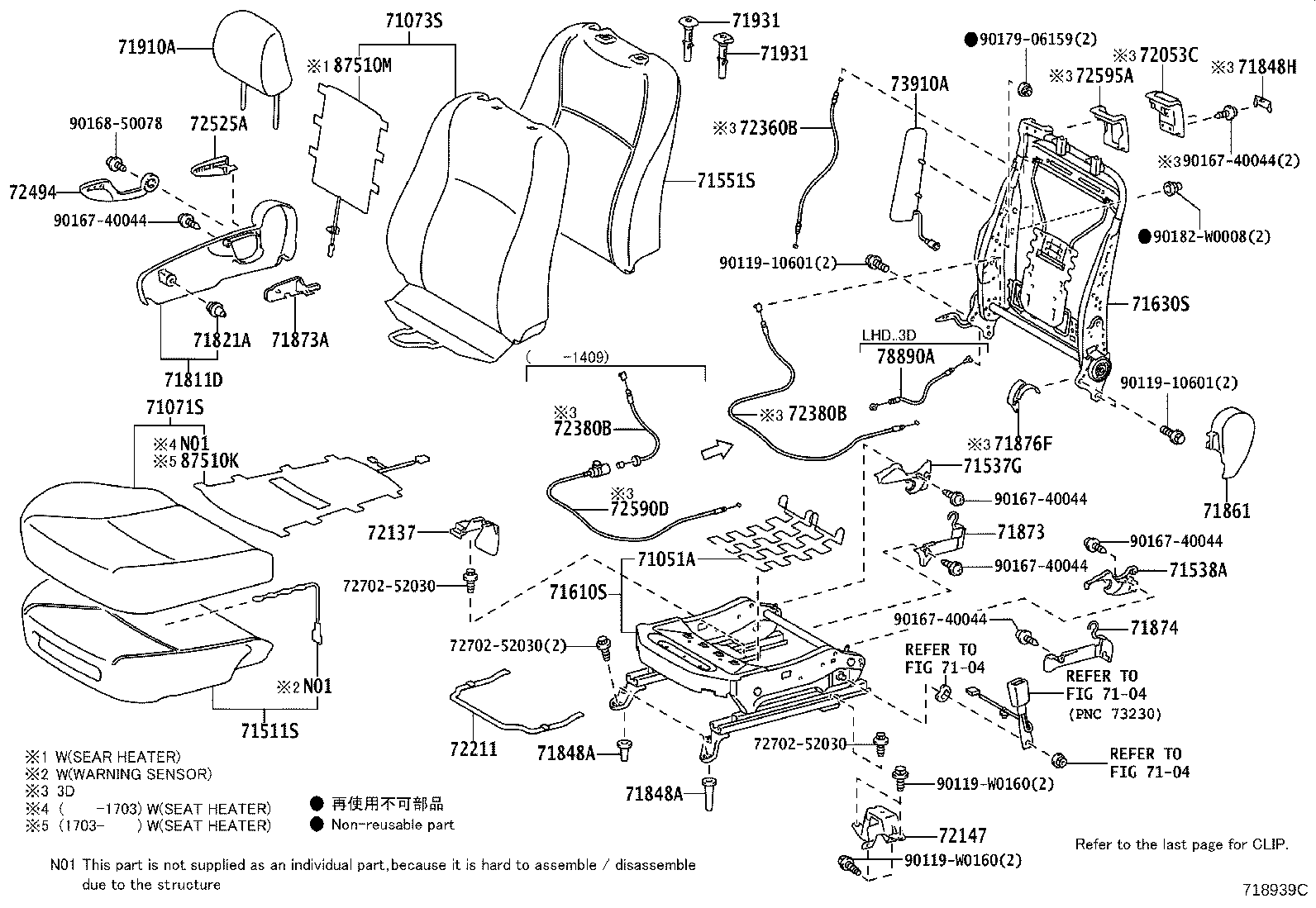

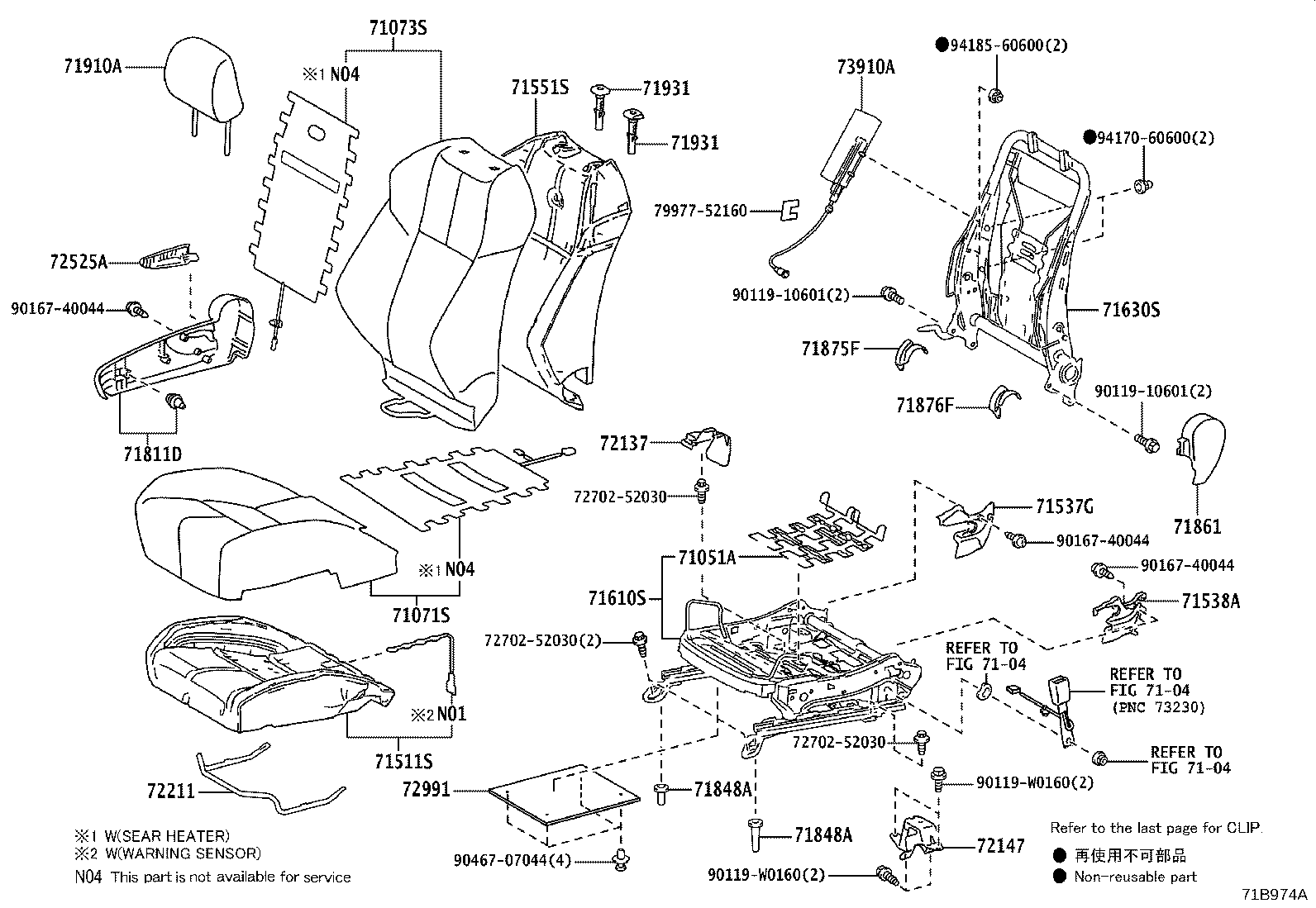

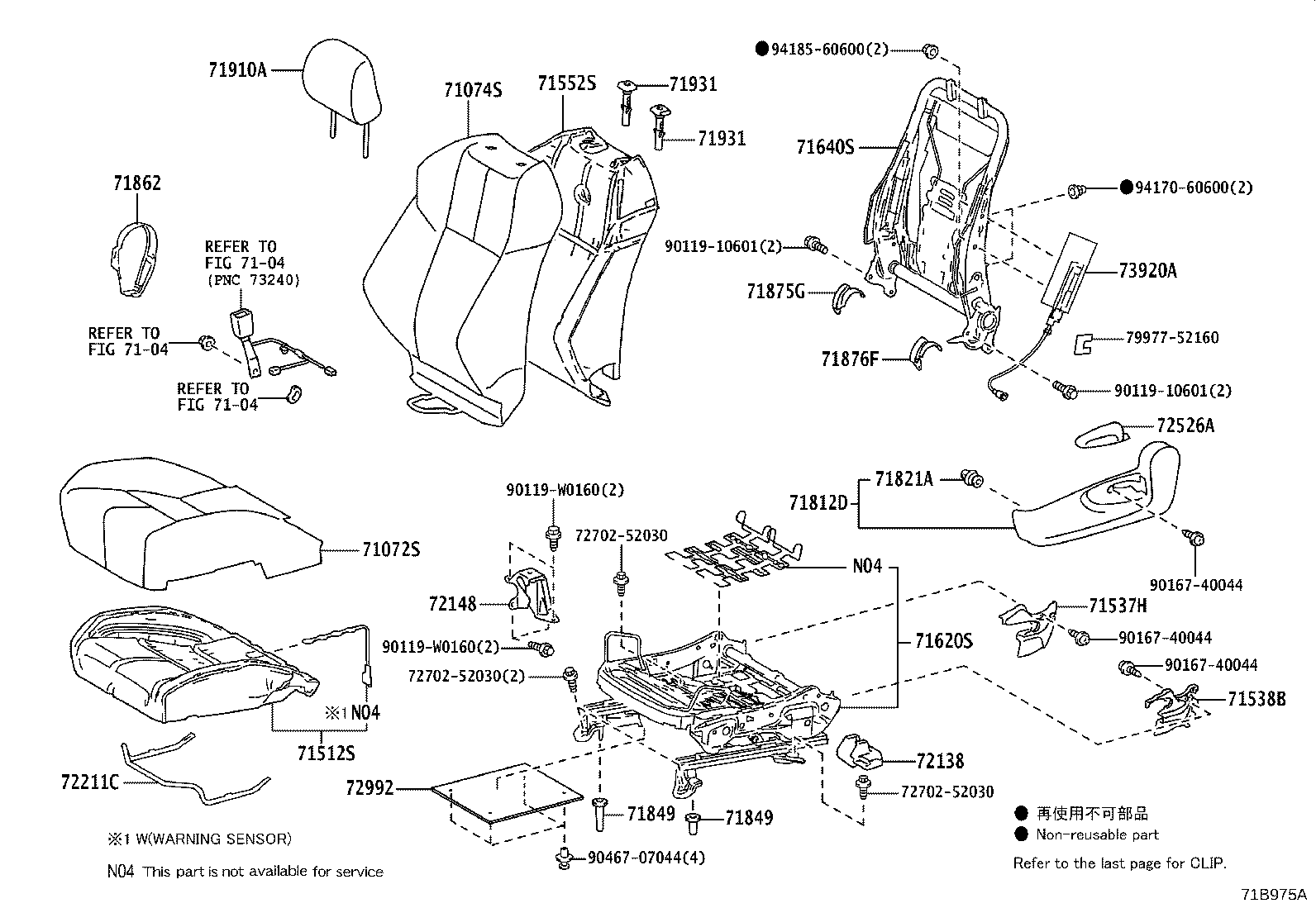

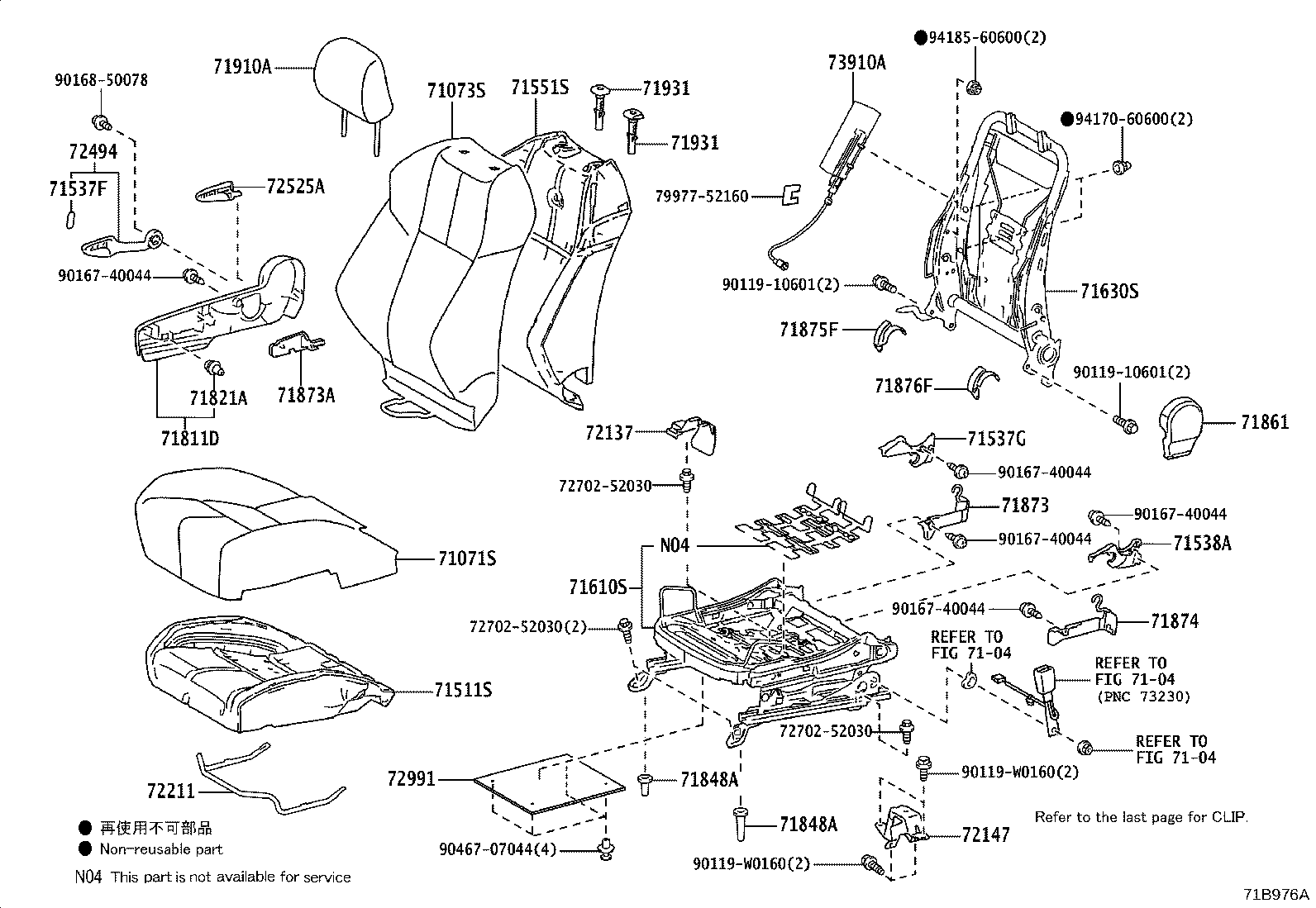

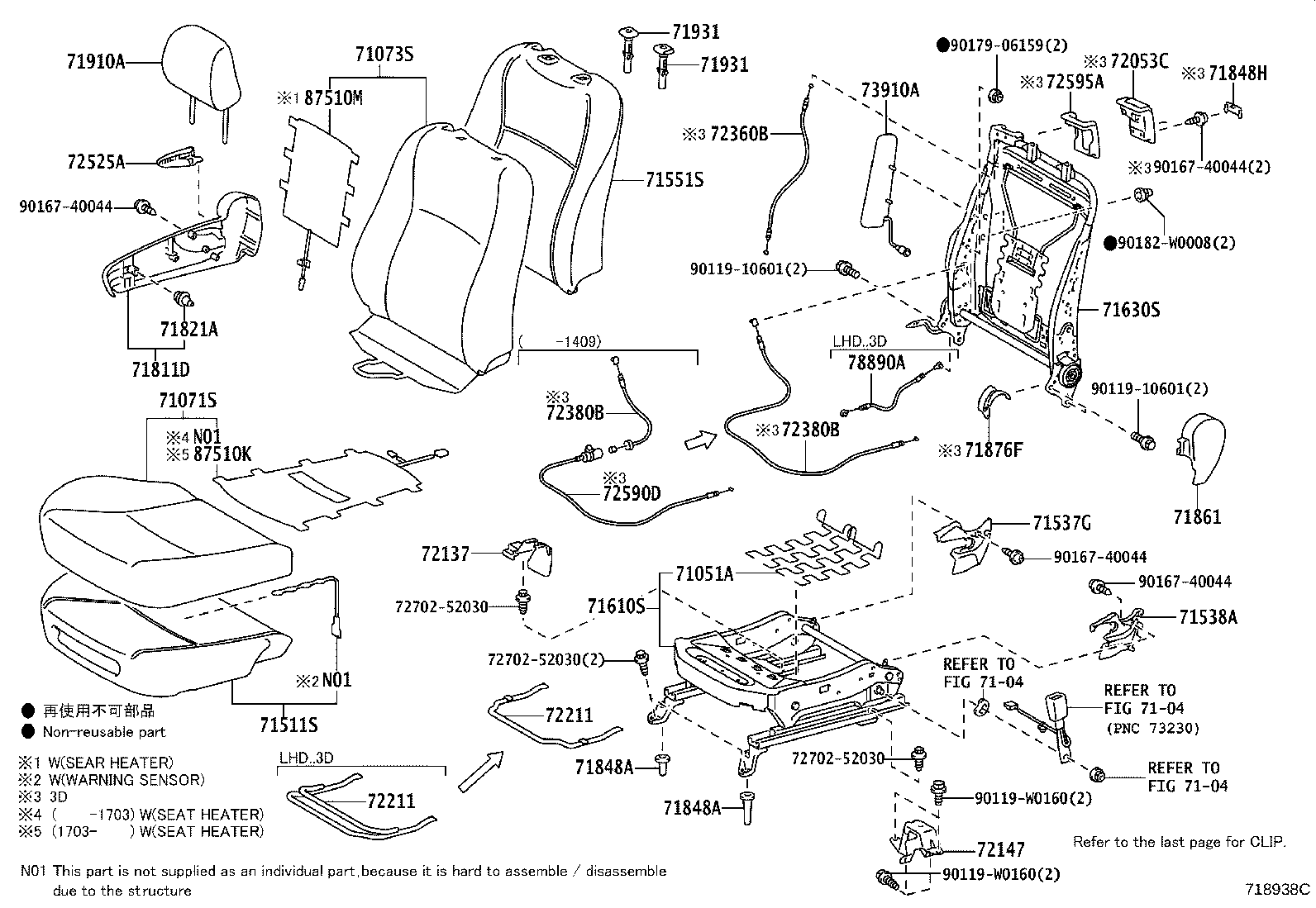

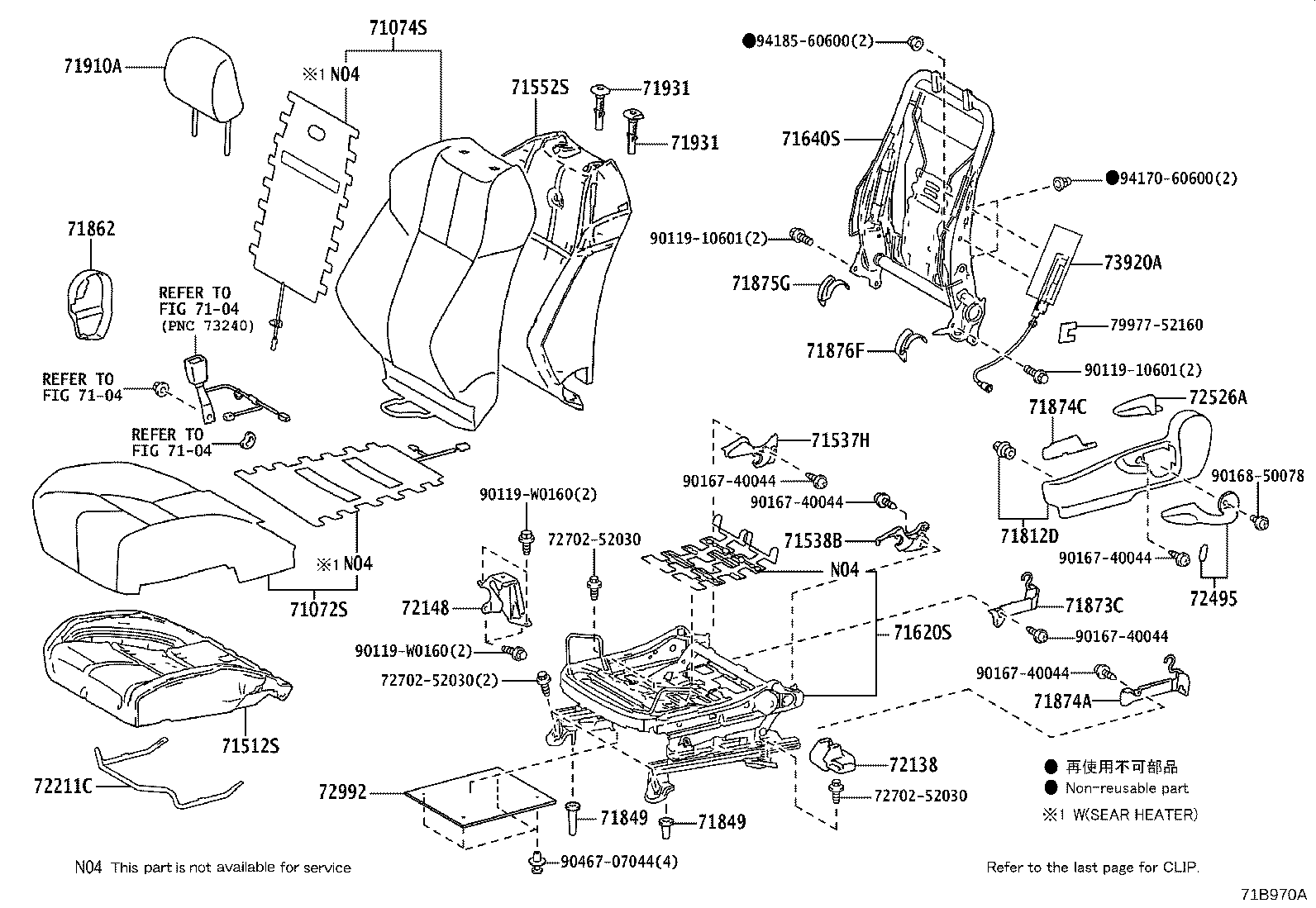

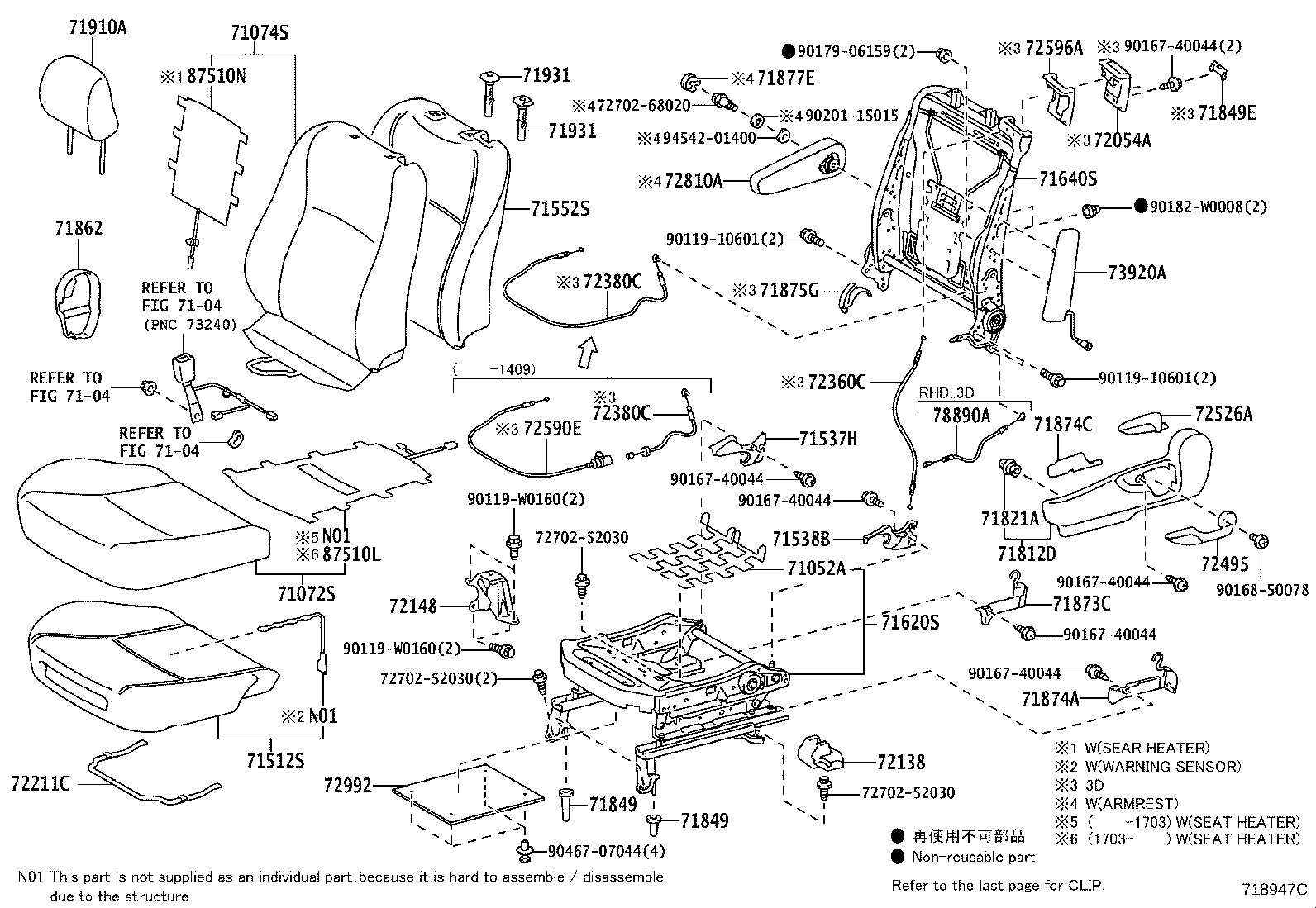

Figure 718946C 718946C 2014-07 → — Figure 718947C 718947C 2014-07 → — Figure 71B970A 71B970A 2018-11 → — Figure 71B975A 71B975A 2018-11 → — Figure 718938C 718938C 2014-07 → — Figure 718939C 718939C 2014-07 → — Figure 71B974A 71B974A 2018-11 → — Figure 71B976A 71B976A 2018-11 → — Figure 718166A 718166A 2014-07 → —

Part groups

PNCDescription
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537F Protector, Front Seat Cushion, NO.2
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71821A Clip (FOR FRONT SEAT SIDE SHIELD)
71848A Cap, Seat Adjuster Cover, RH
71848H Cap, Reclining Remote Control, RH
71849 Cap, Seat Adjuster Cover, LH
71849E Cap, Reclining Remote Control, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71873C Shield, Rear Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874C Shield, Front Seat Cushion, Lower
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71877E Cover, Seat Armrest Hole, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72053C Lever Sub-assy, Reclining Remote Control, RH
72054A Lever Sub-assy, Reclining Remote Control, LH
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72147 Bracket, Front Inner Seat Track, Lower Rear RH
72148 Bracket, Front Inner Seat Track, Lower Rear LH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72360B Cable Assy, Reclining Adjuster Equalizing RH
72360C Cable Assy, Reclining Adjuster Equalizing LH
72380B Cable Assy, Seat Adjuster Control, NO.2 RH
72380C Cable Assy, Seat Adjuster Control, NO.2 LH
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72590D Cable Assy, Reclining Remote Control, RH
72590E Cable Assy, Reclining Remote Control, LH
72595A Base, Reclining Remote Control, RH
72596A Base, Reclining Remote Control, LH
72810A Armrest Assy, Seat, RH
72991 Cover, Front Seat Cushion, RH
72992 Cover, Front Seat Cushion, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
78890A Cable Assy, Sub-seat Lock Control
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
