Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

14 part groups · 6 illustrations

Illustrations

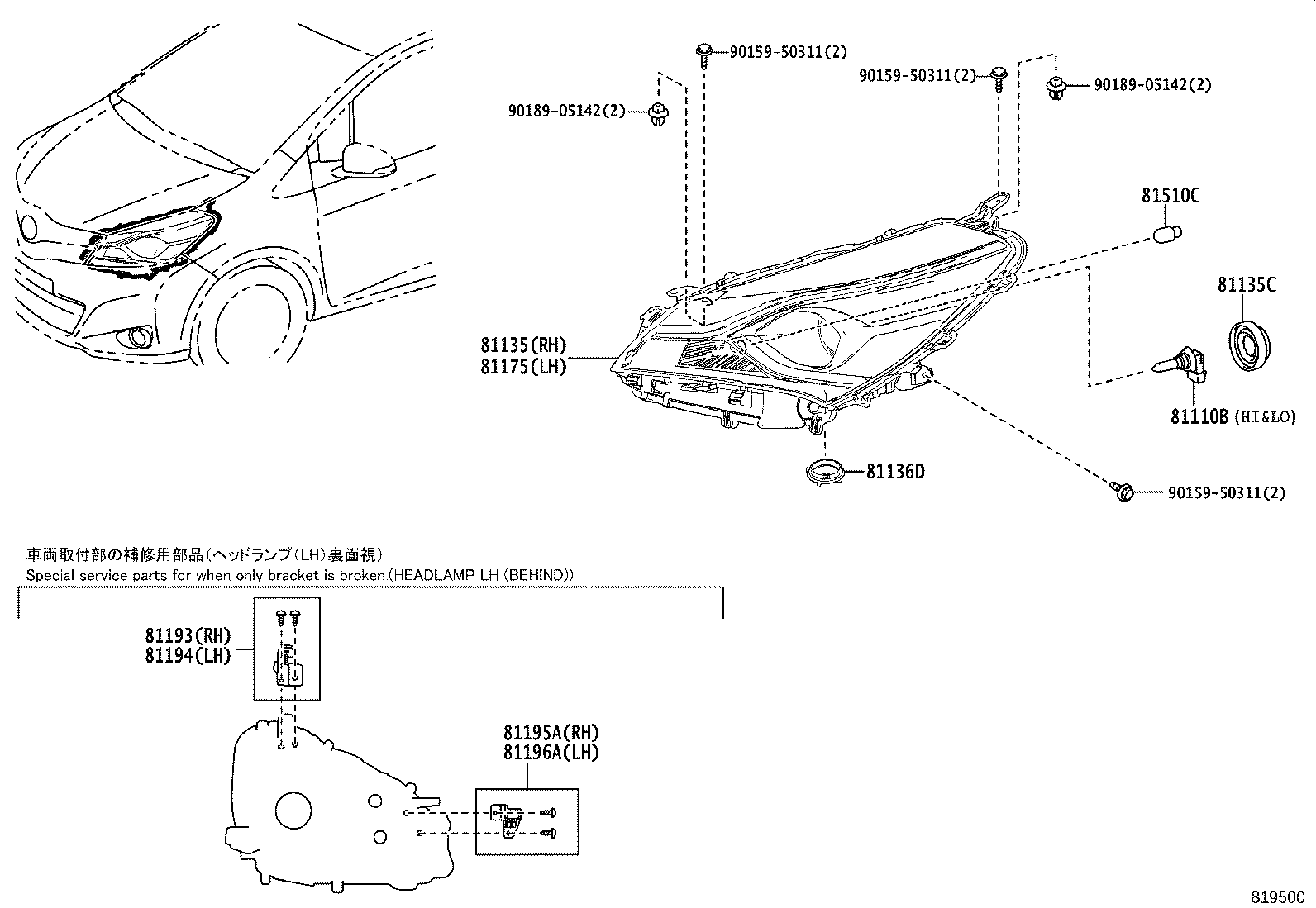

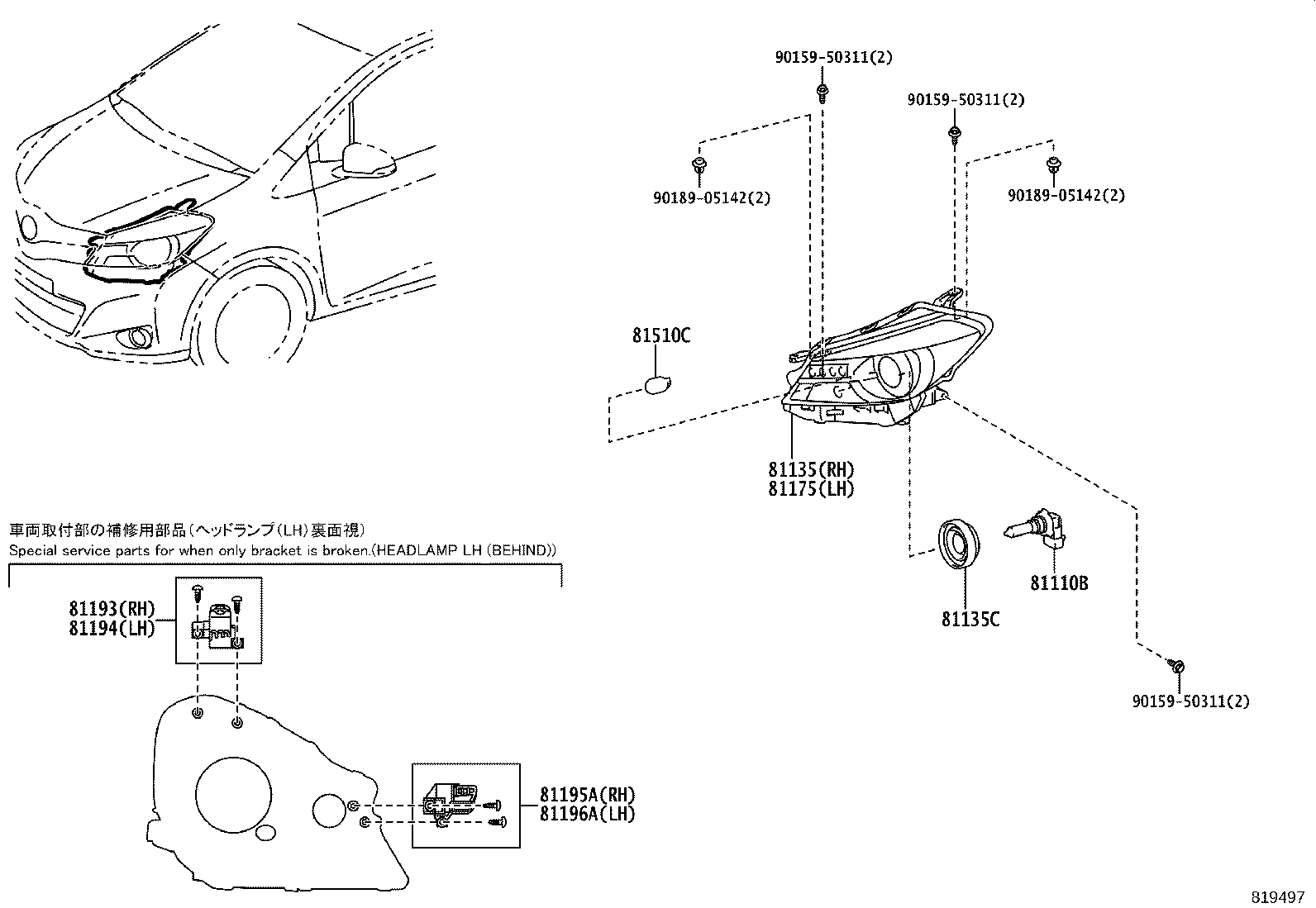

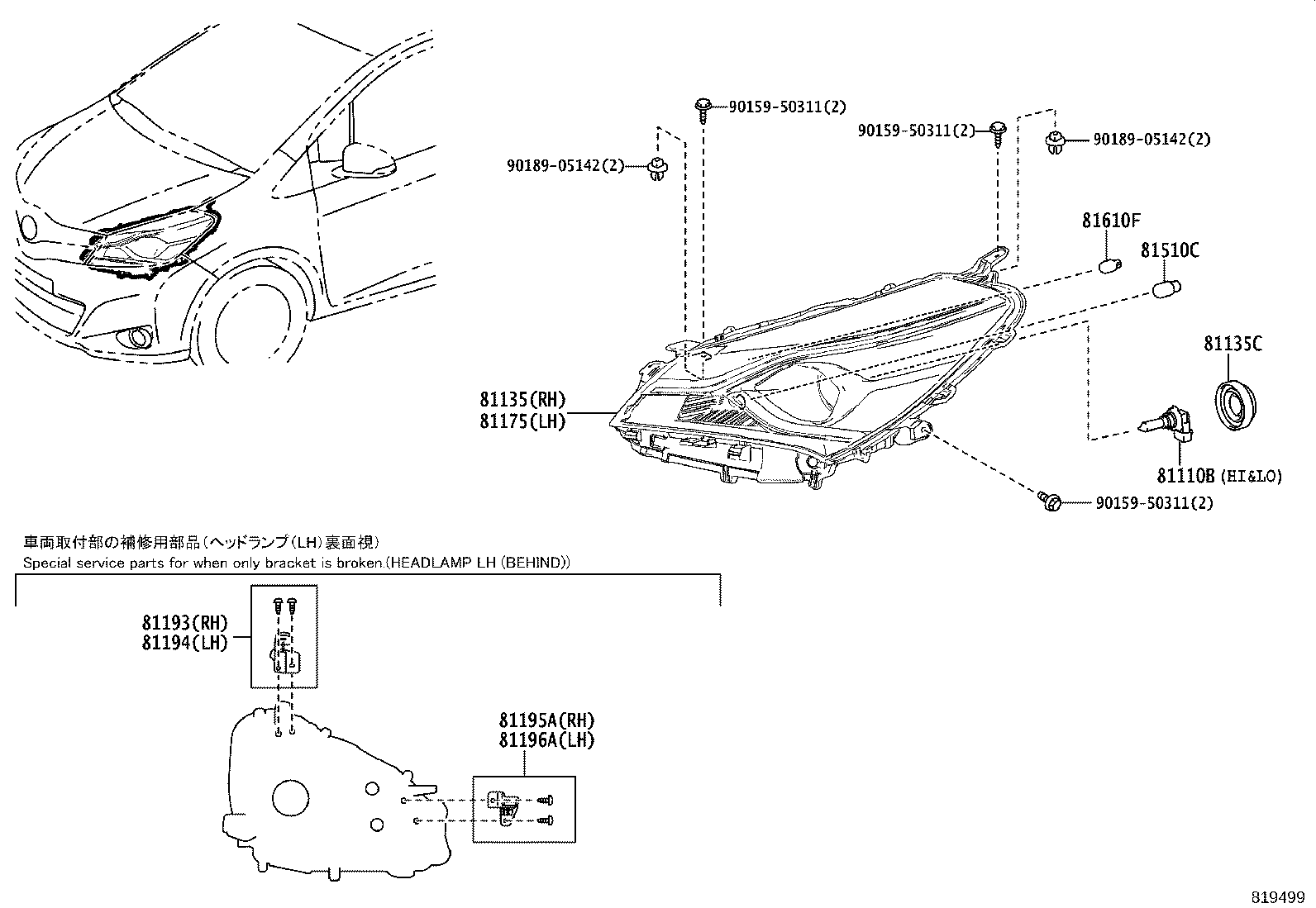

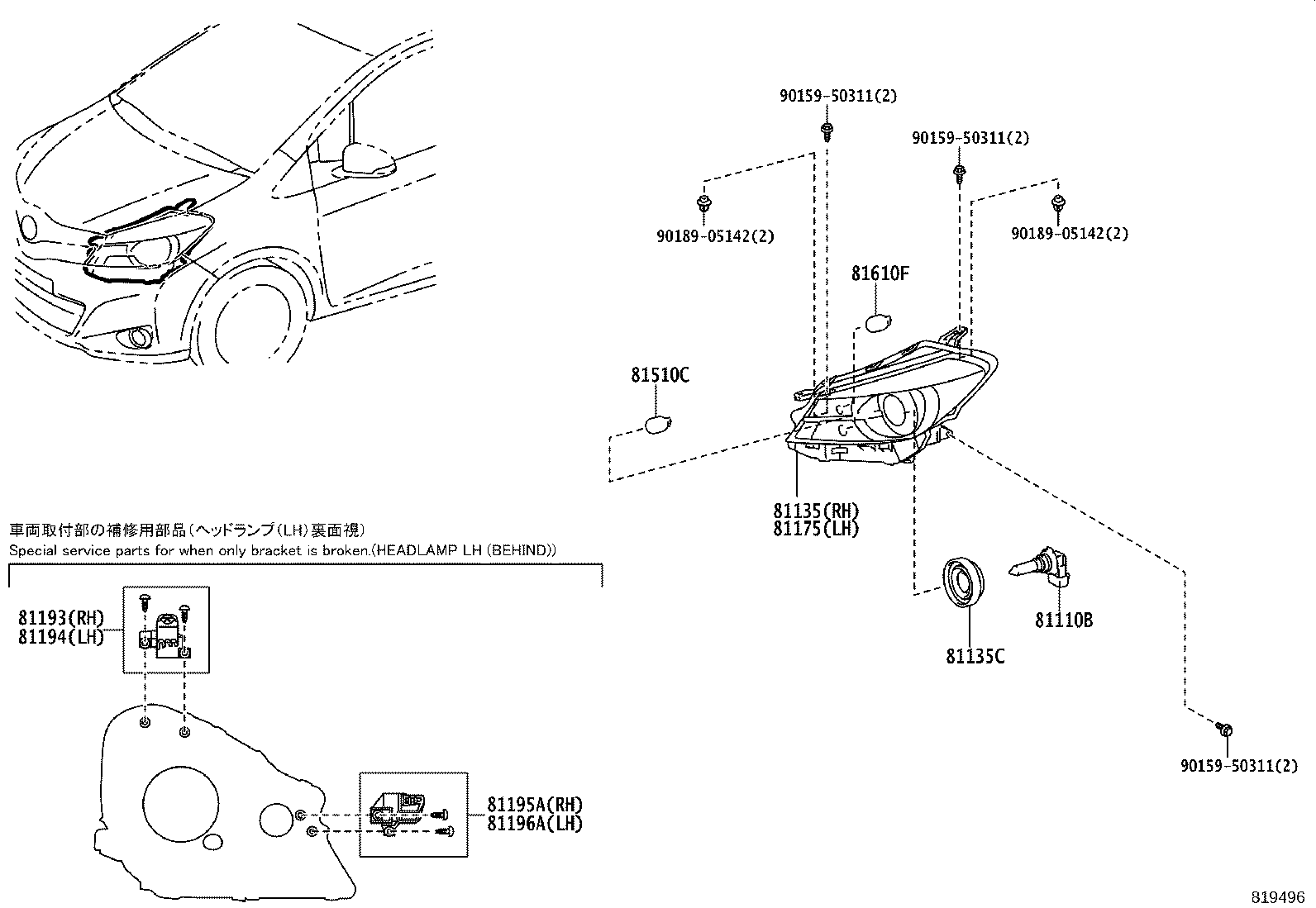

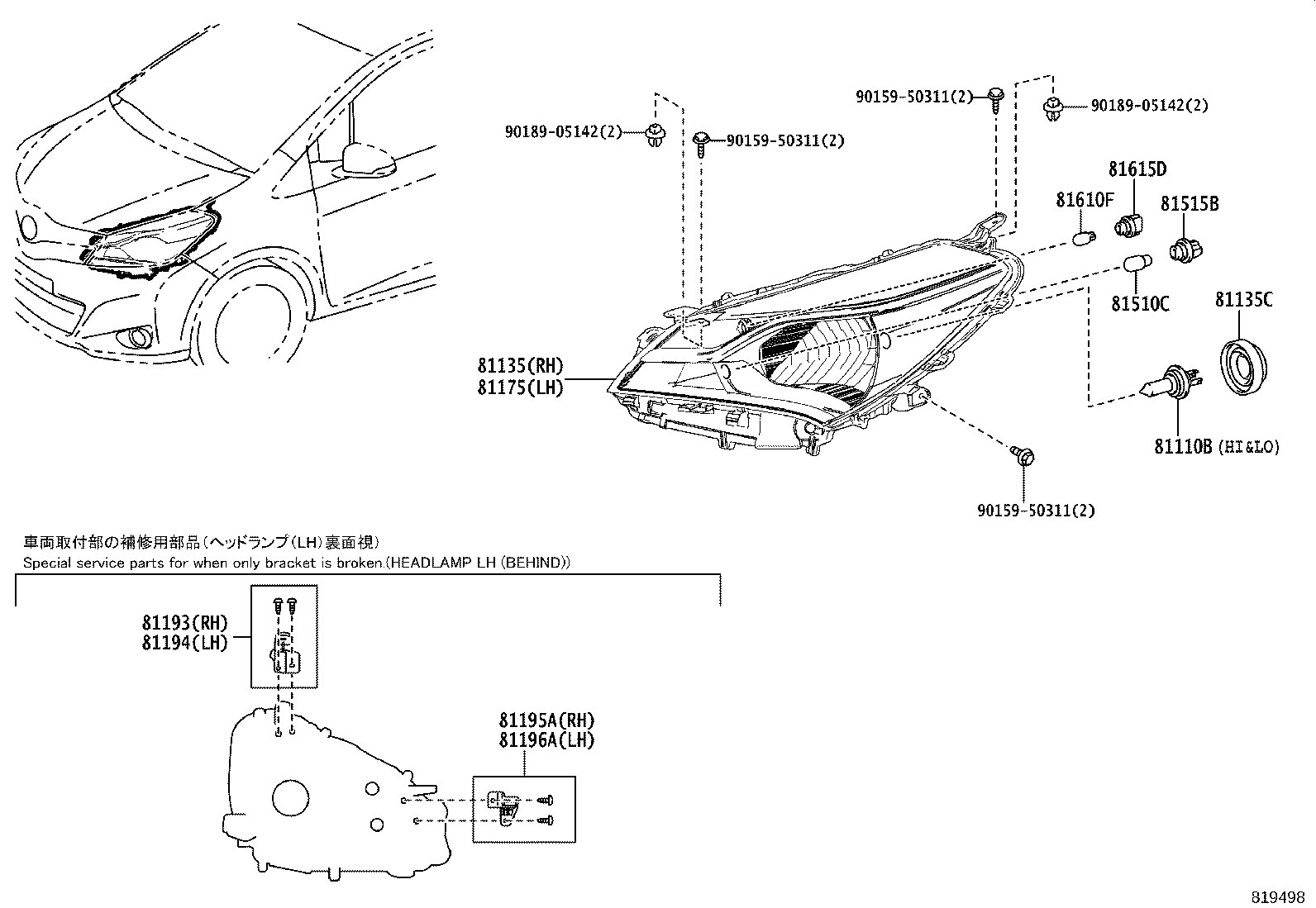

Figure 819495 819495 2014-07 → 2017-03 Figure 819496 819496 2014-07 → 2017-03 Figure 819497 819497 2014-07 → 2017-03 Figure 819498 819498 2017-03 → — Figure 819499 819499 2017-03 → — Figure 819500 819500 2017-03 → —

Part groups

PNCDescription
81110B Bulb(FOR HEADLAMP, NO.1)
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81136D Cover, Headlamp
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81515G Socket & Wire, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
