Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05

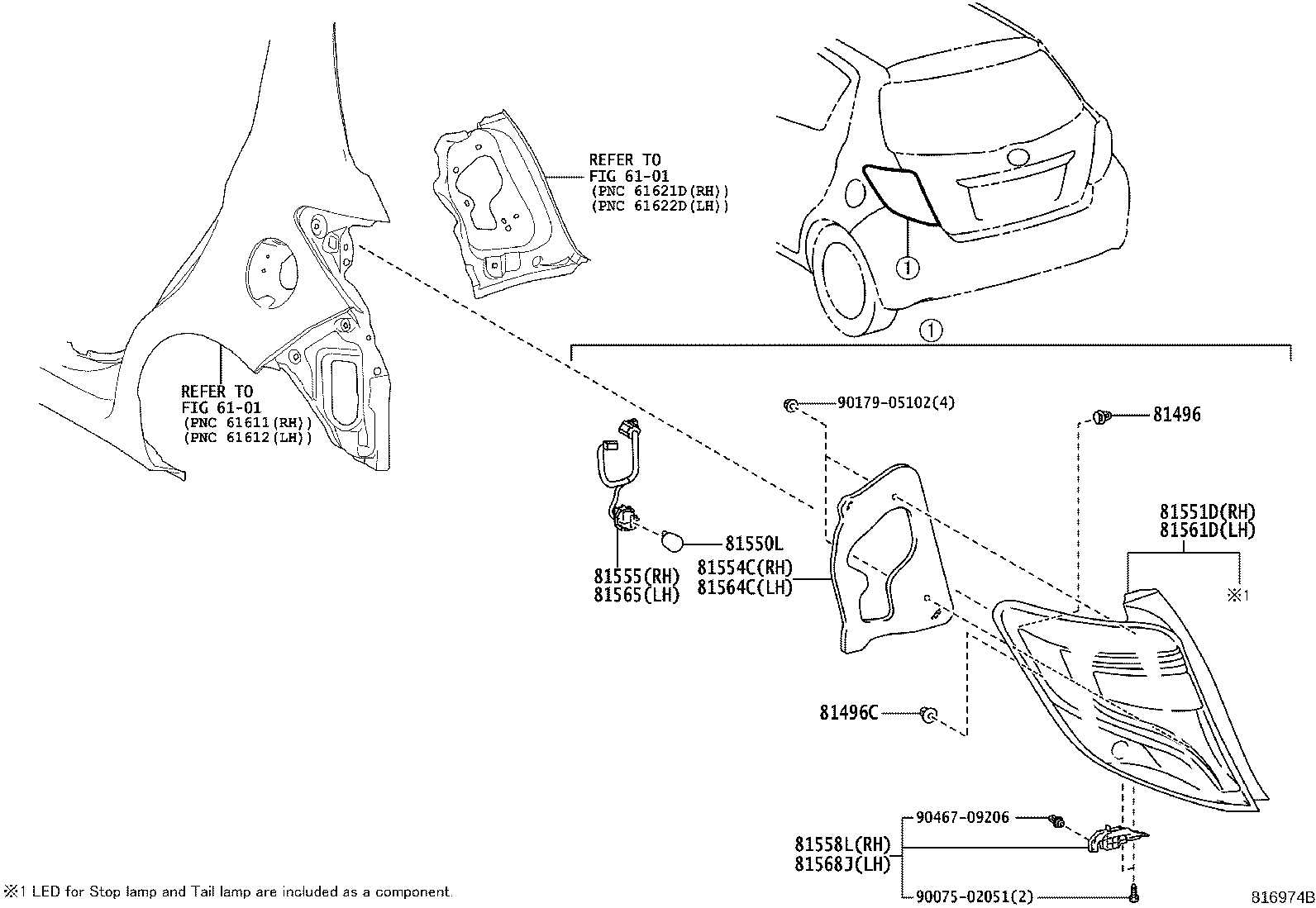

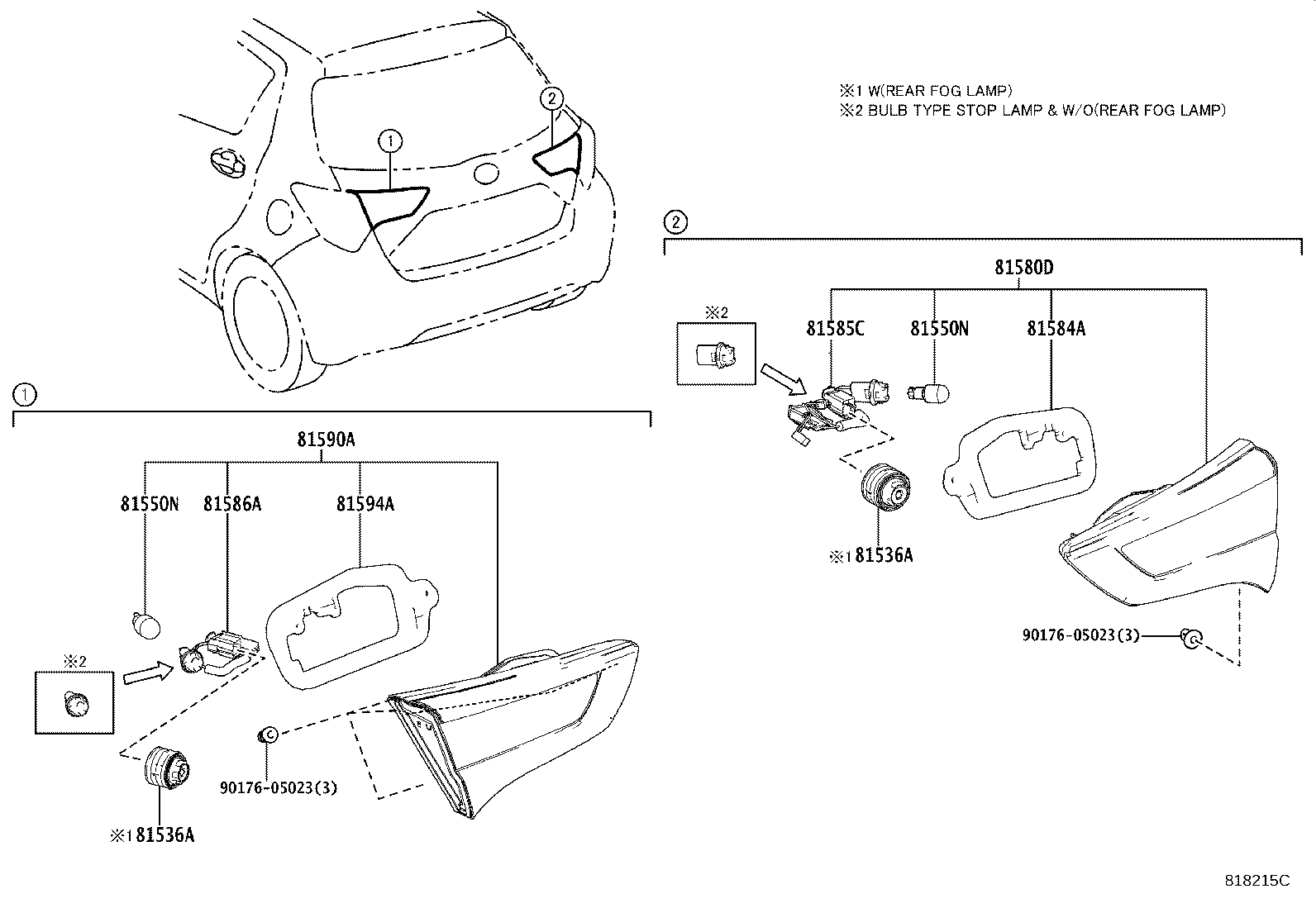

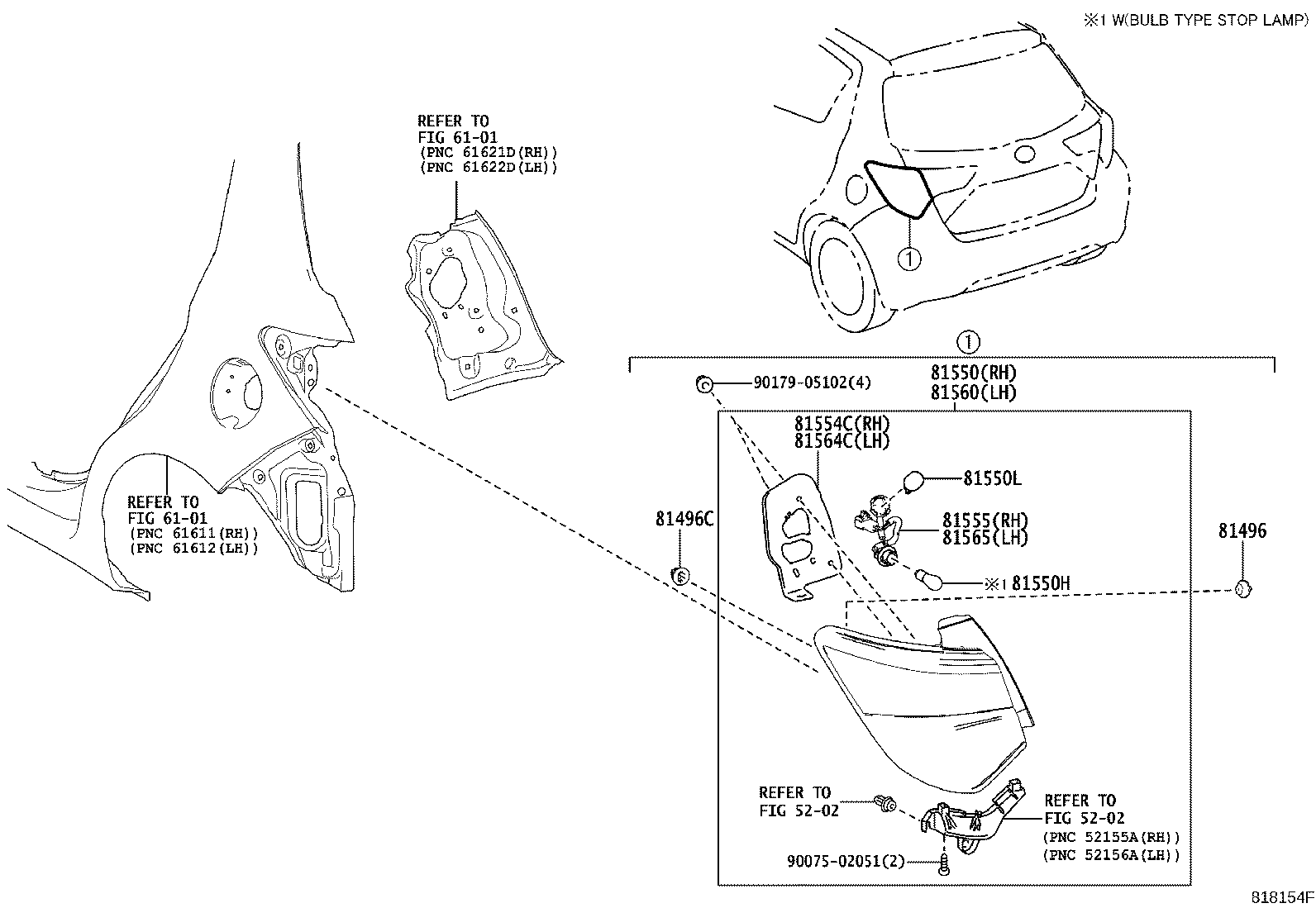

Rear Combination Lamp
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81536A | Led, Rear Combination Lamp |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81554C | Packing, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81558L | Protector, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81564C | Packing, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81568J | Protector, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81586A | Socket & Wire, Rear Lamp, LH |
| 81590A | Lamp Assy, Rear, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
