Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

67 part groups · 19 illustrations

Illustrations

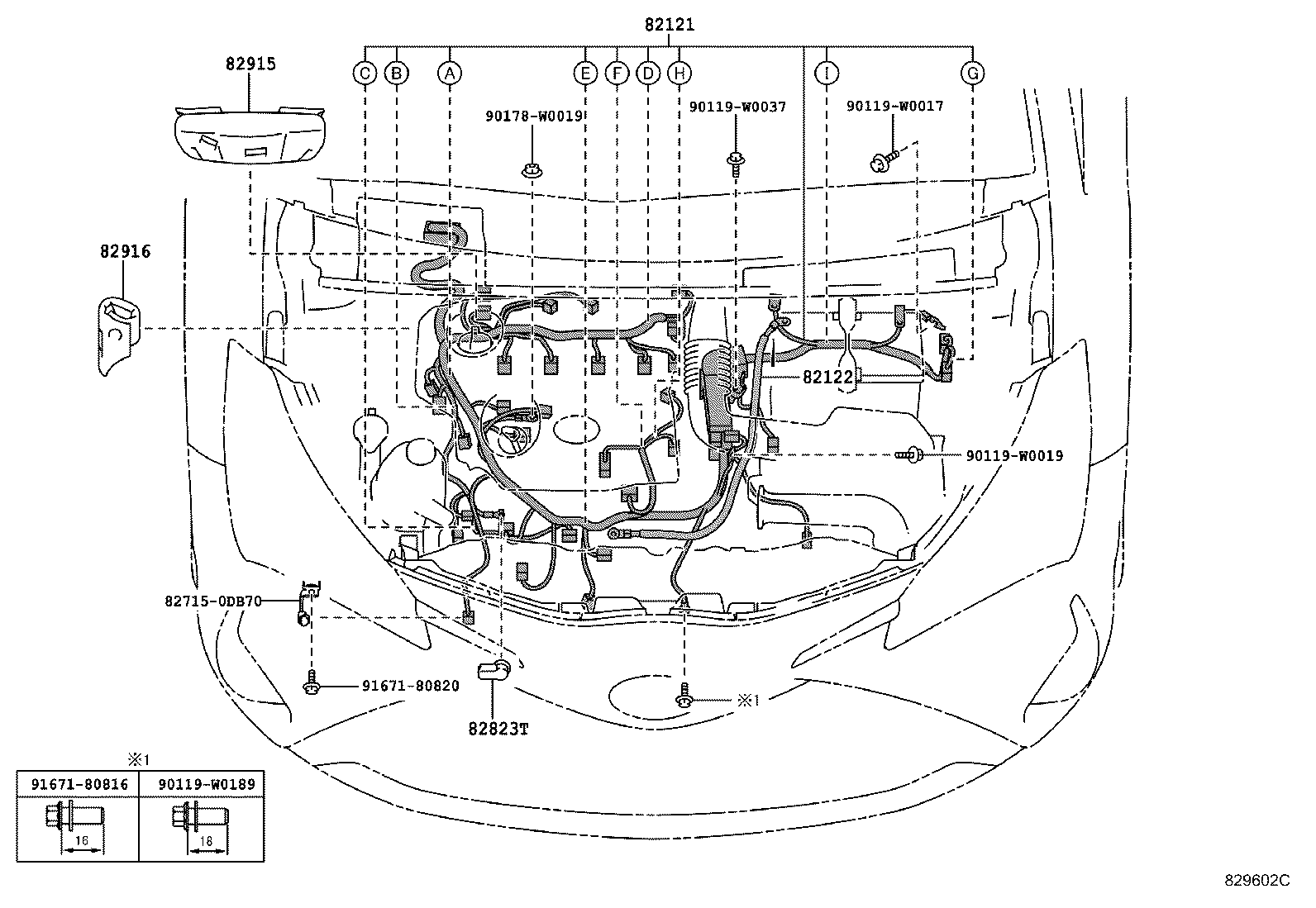

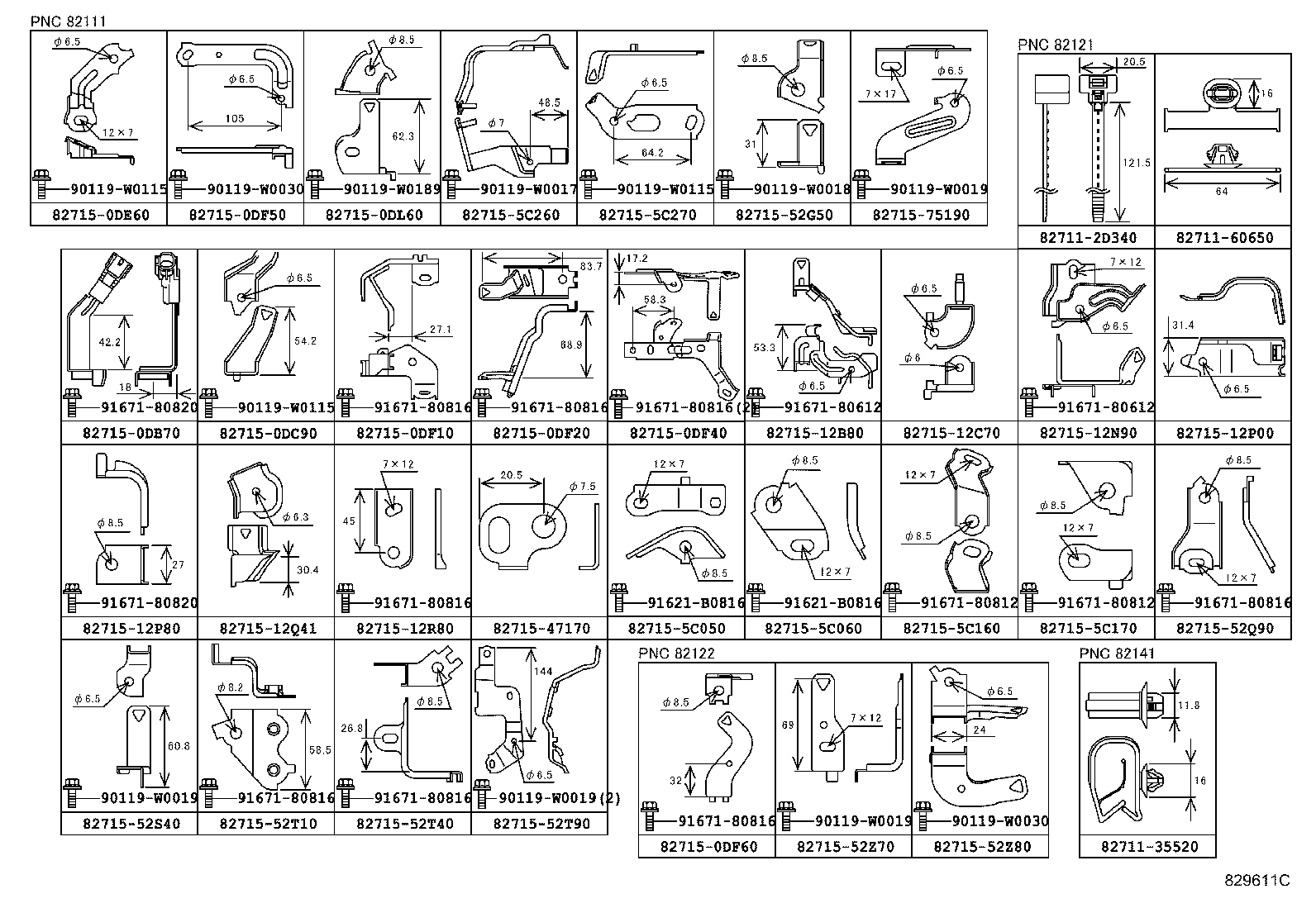

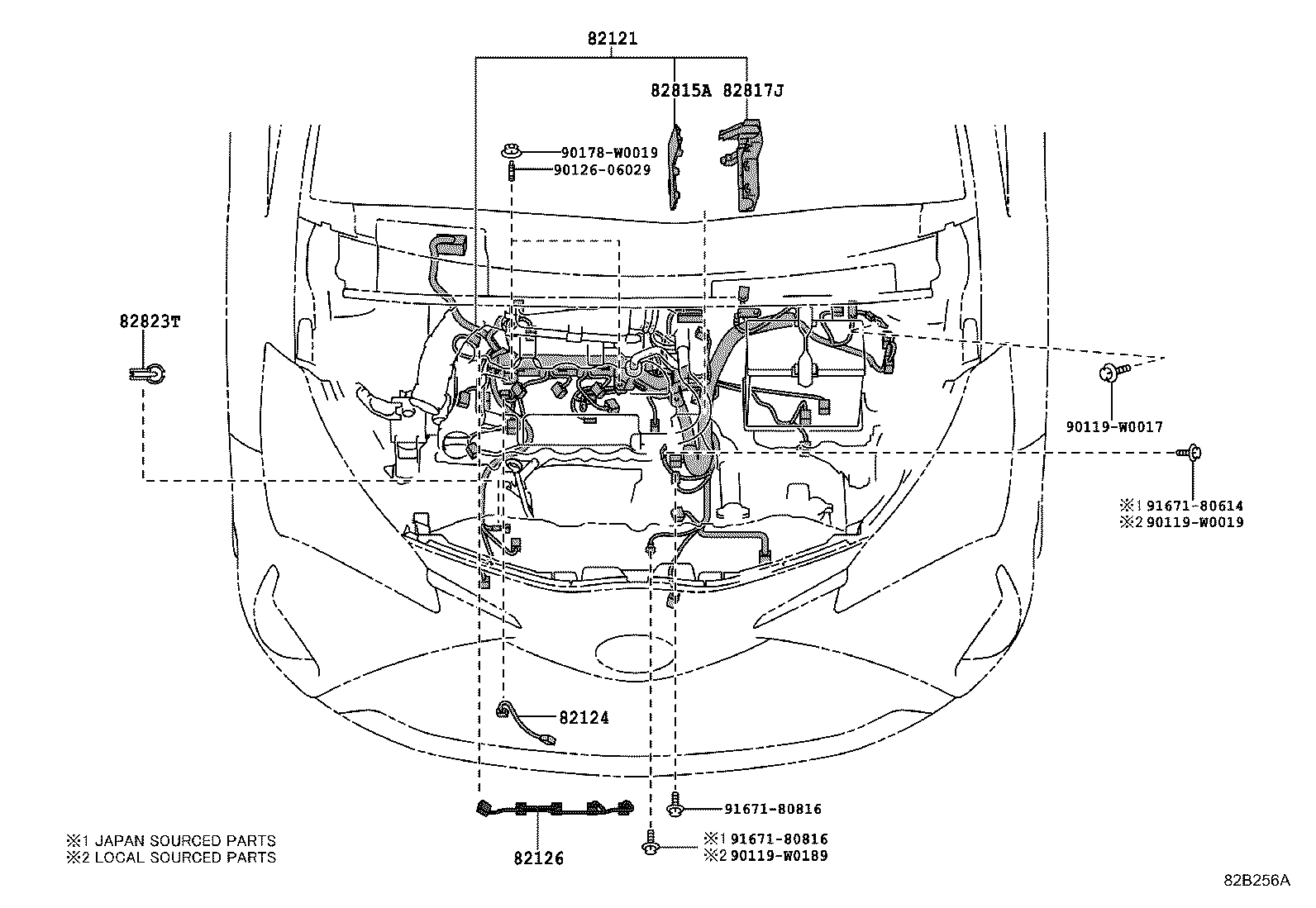

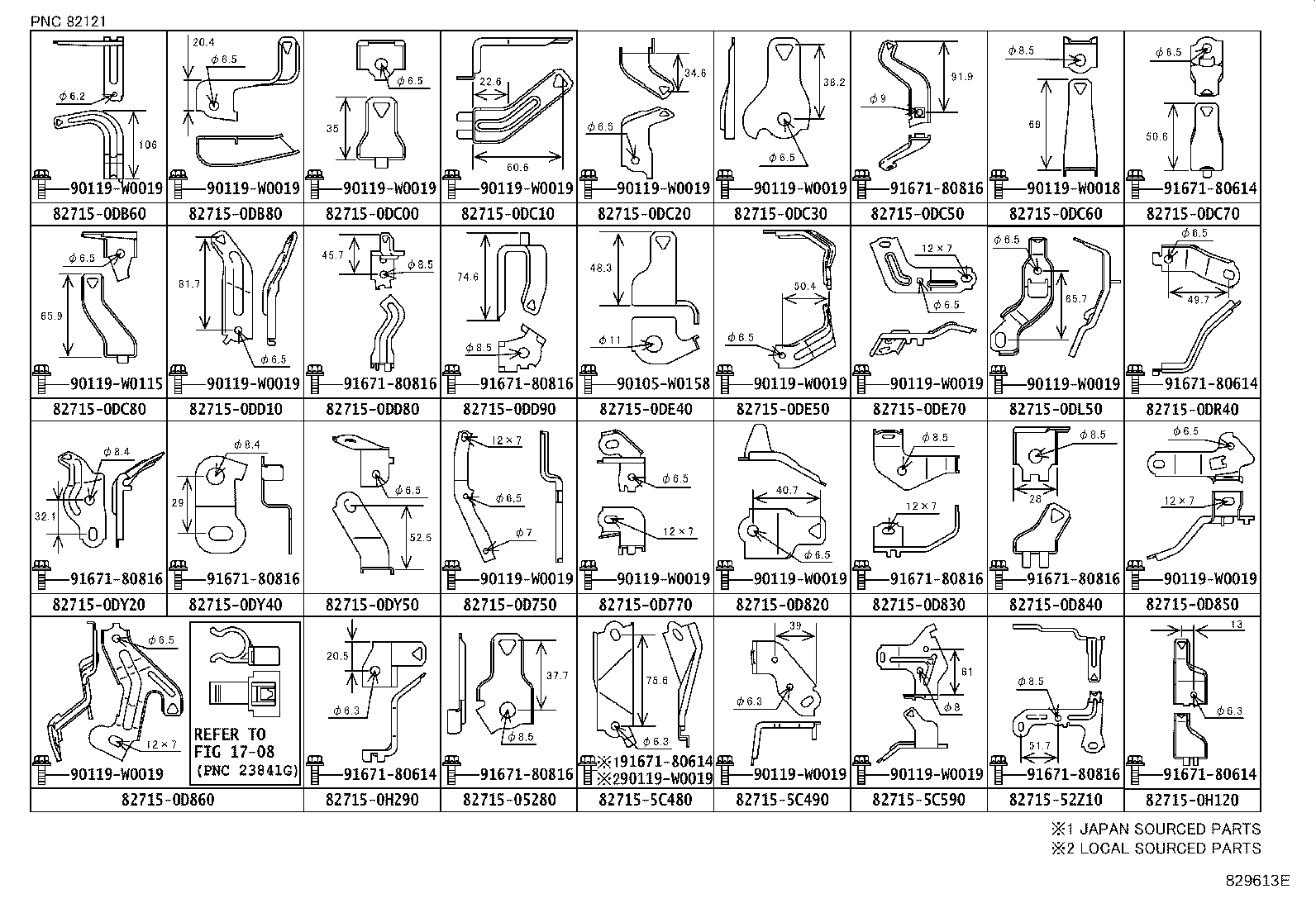

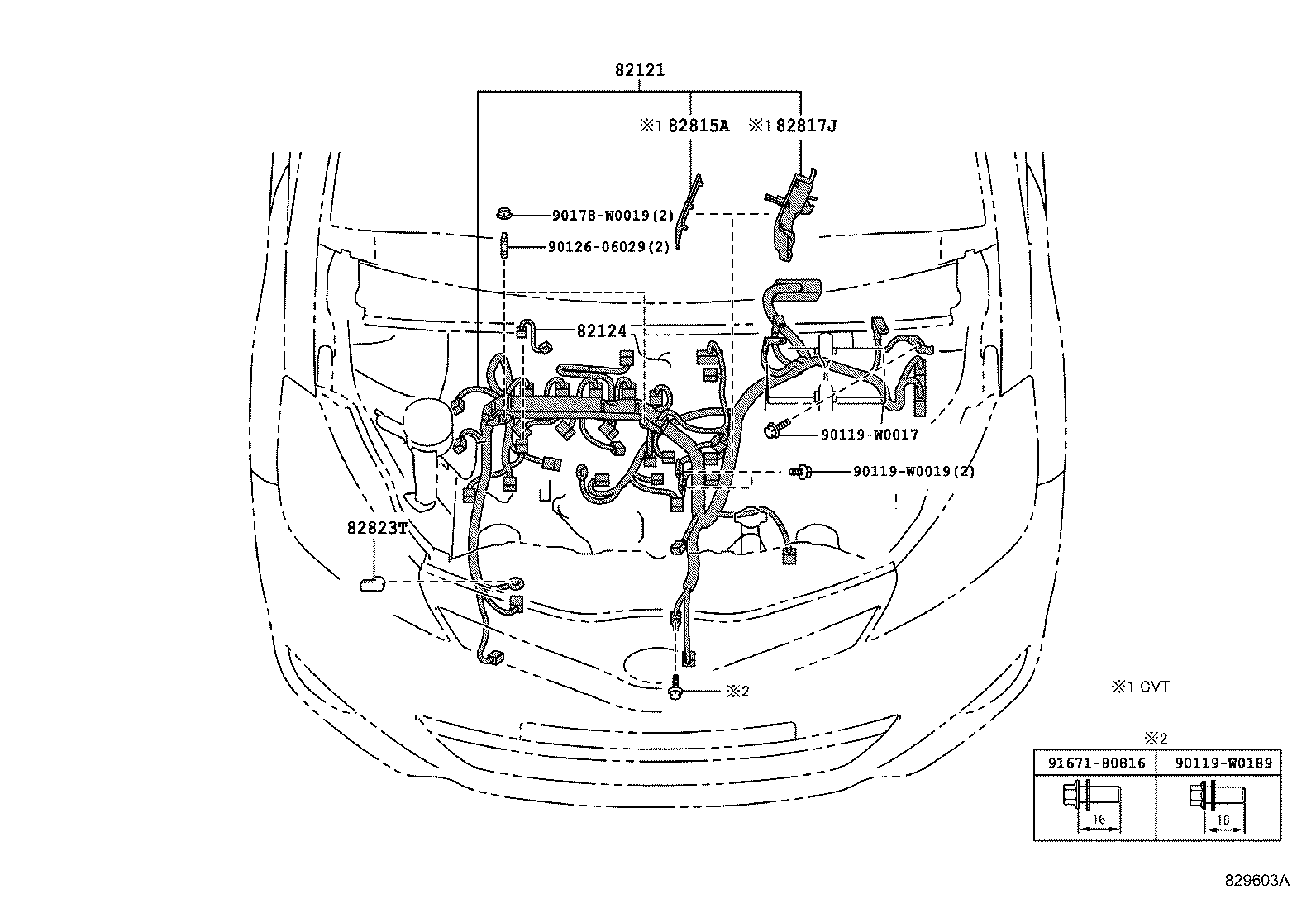

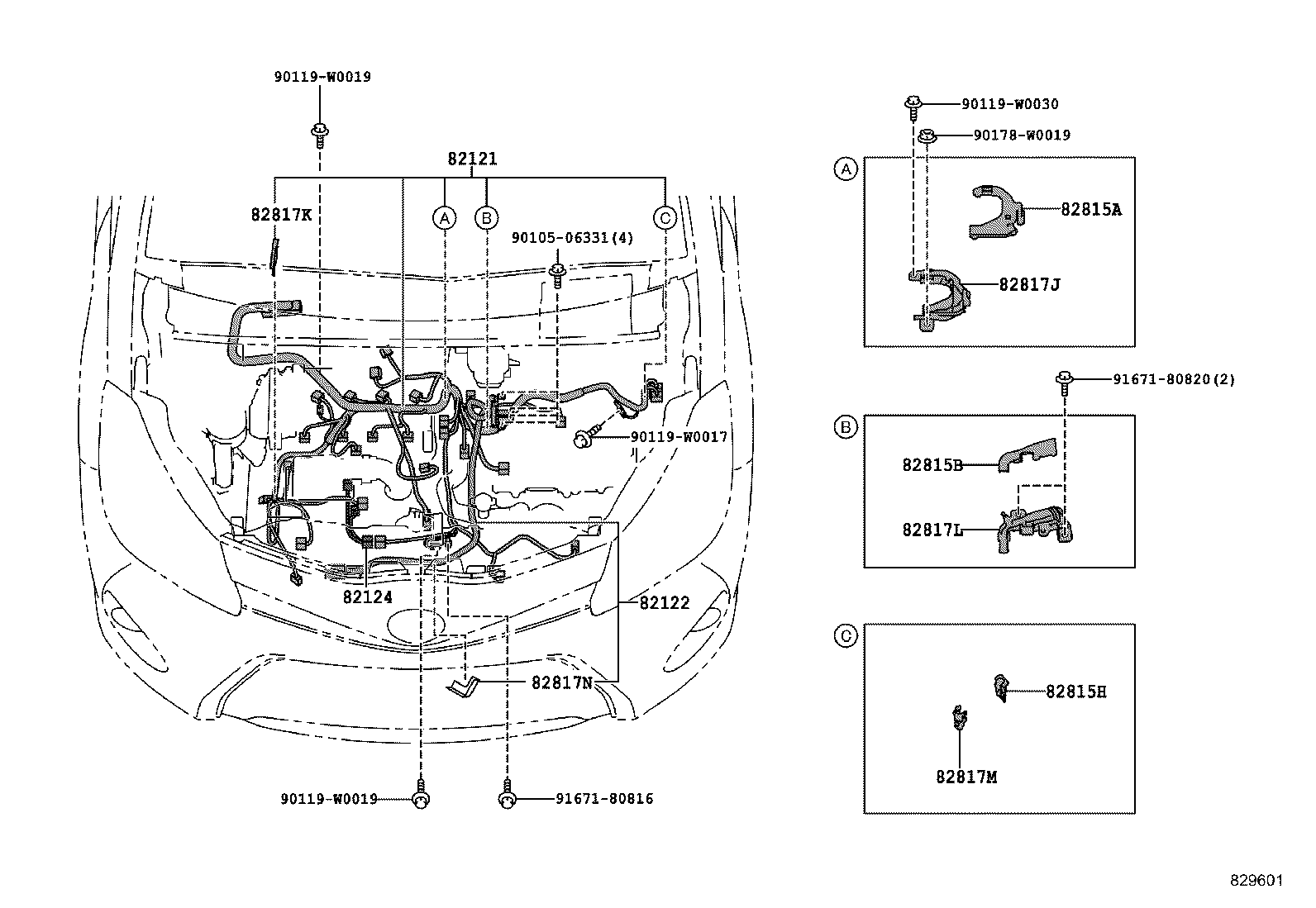

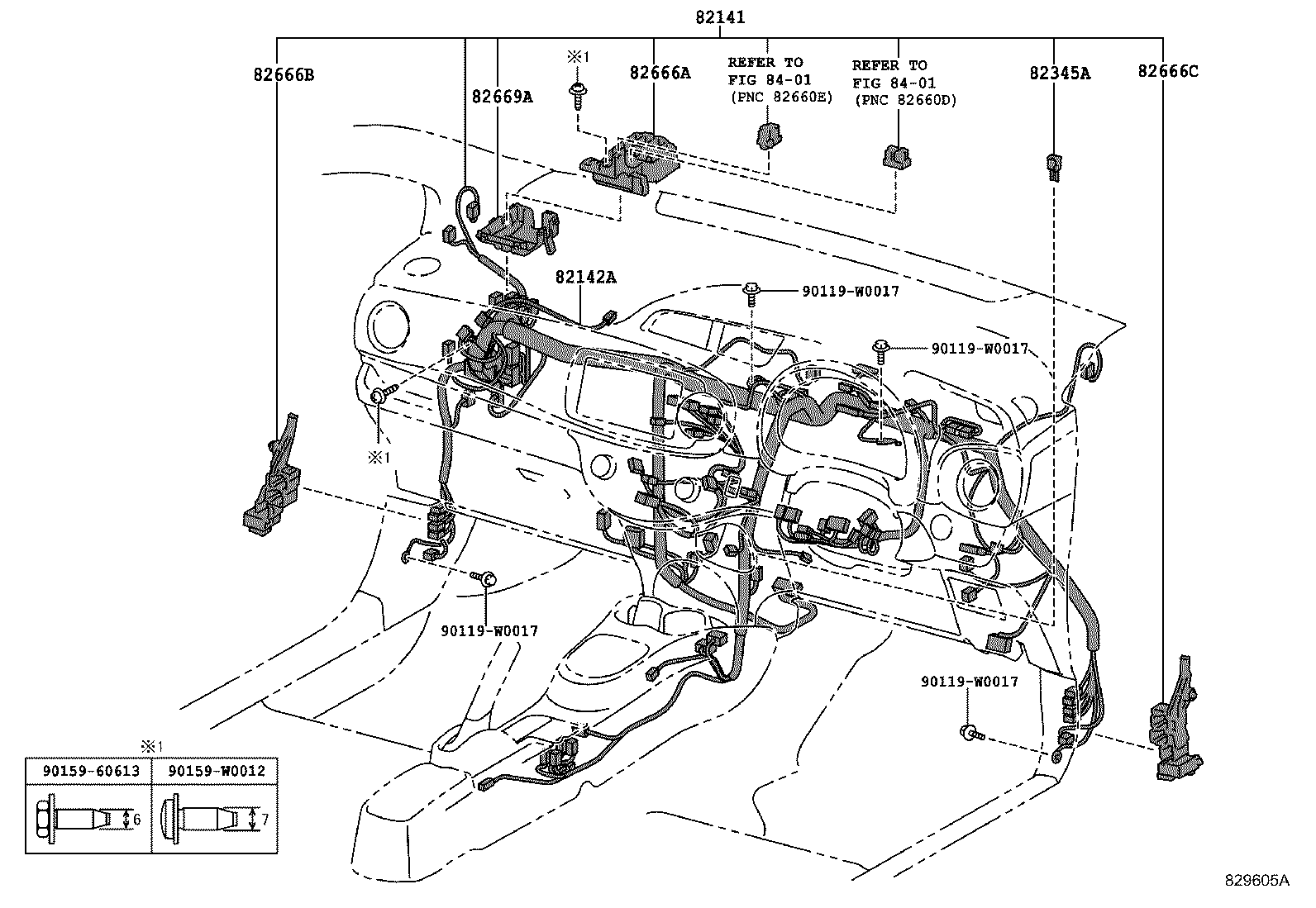

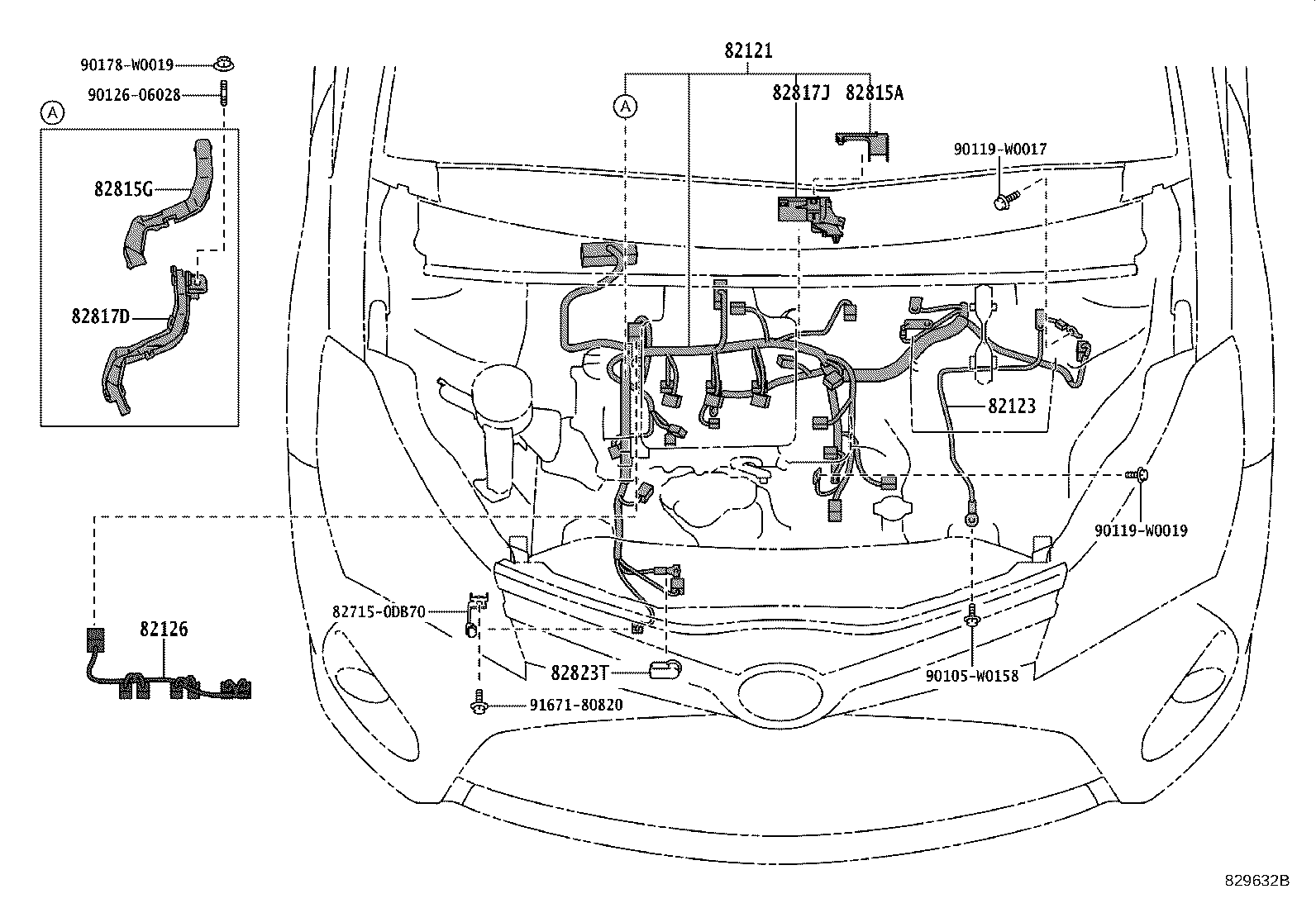

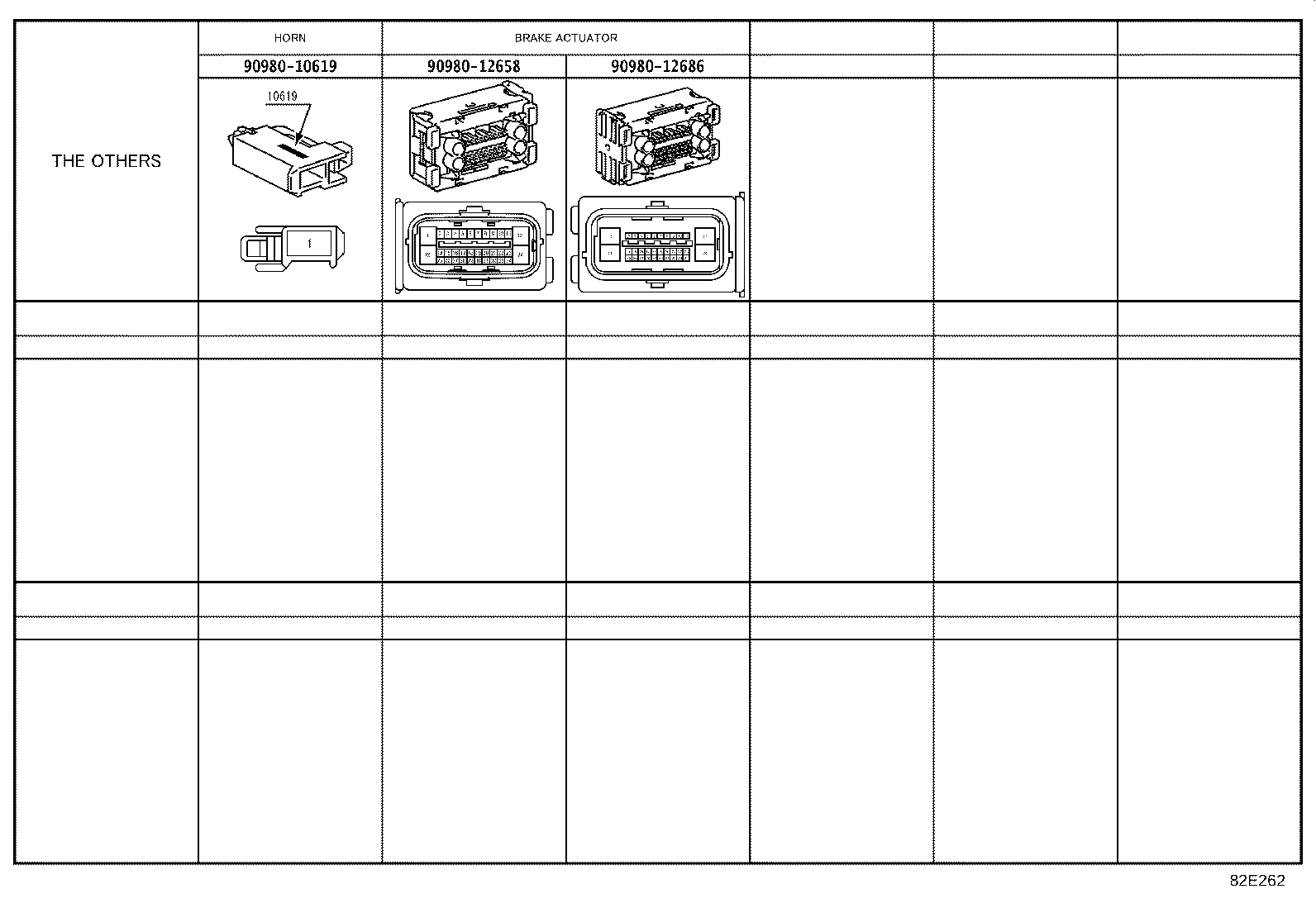

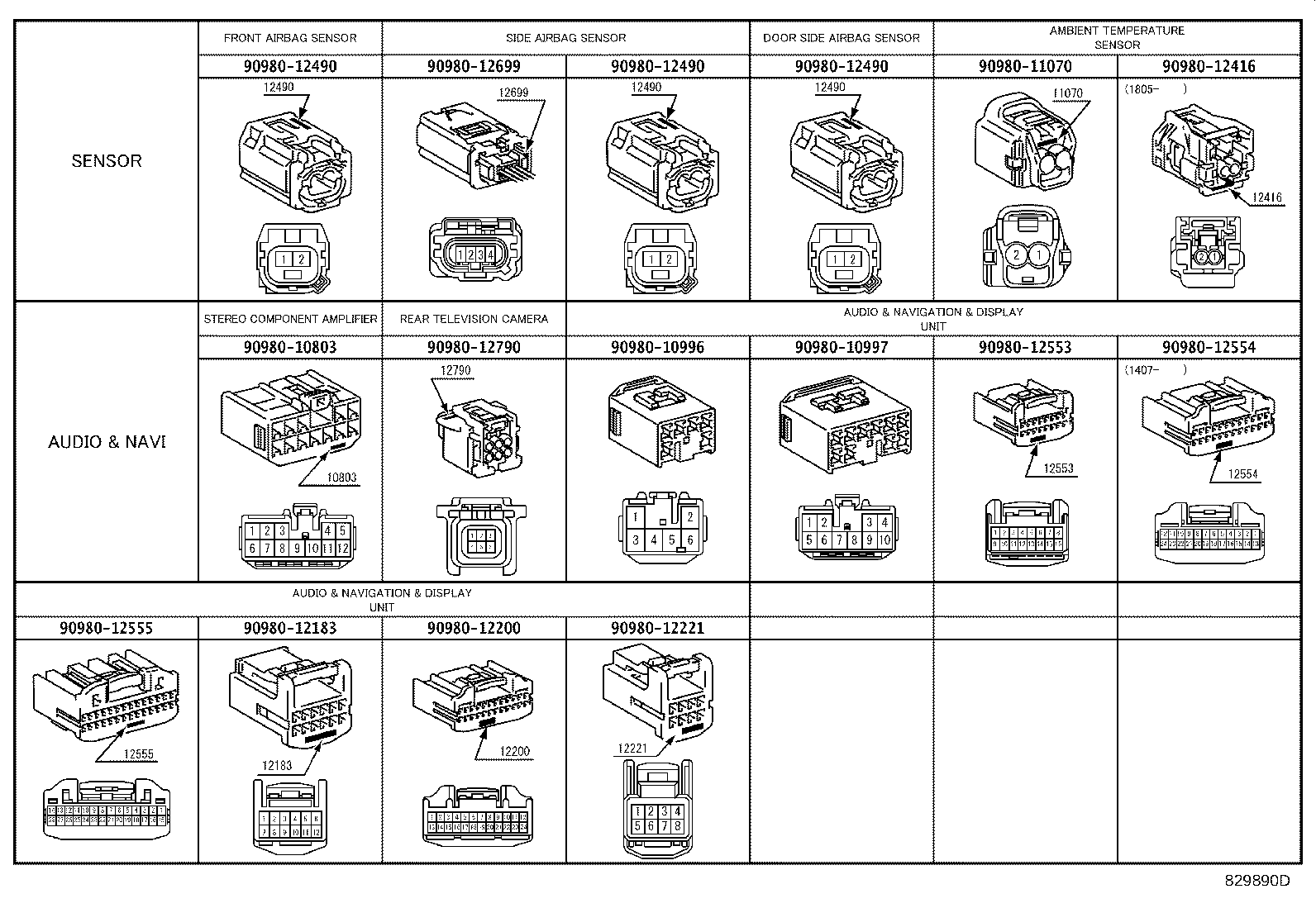

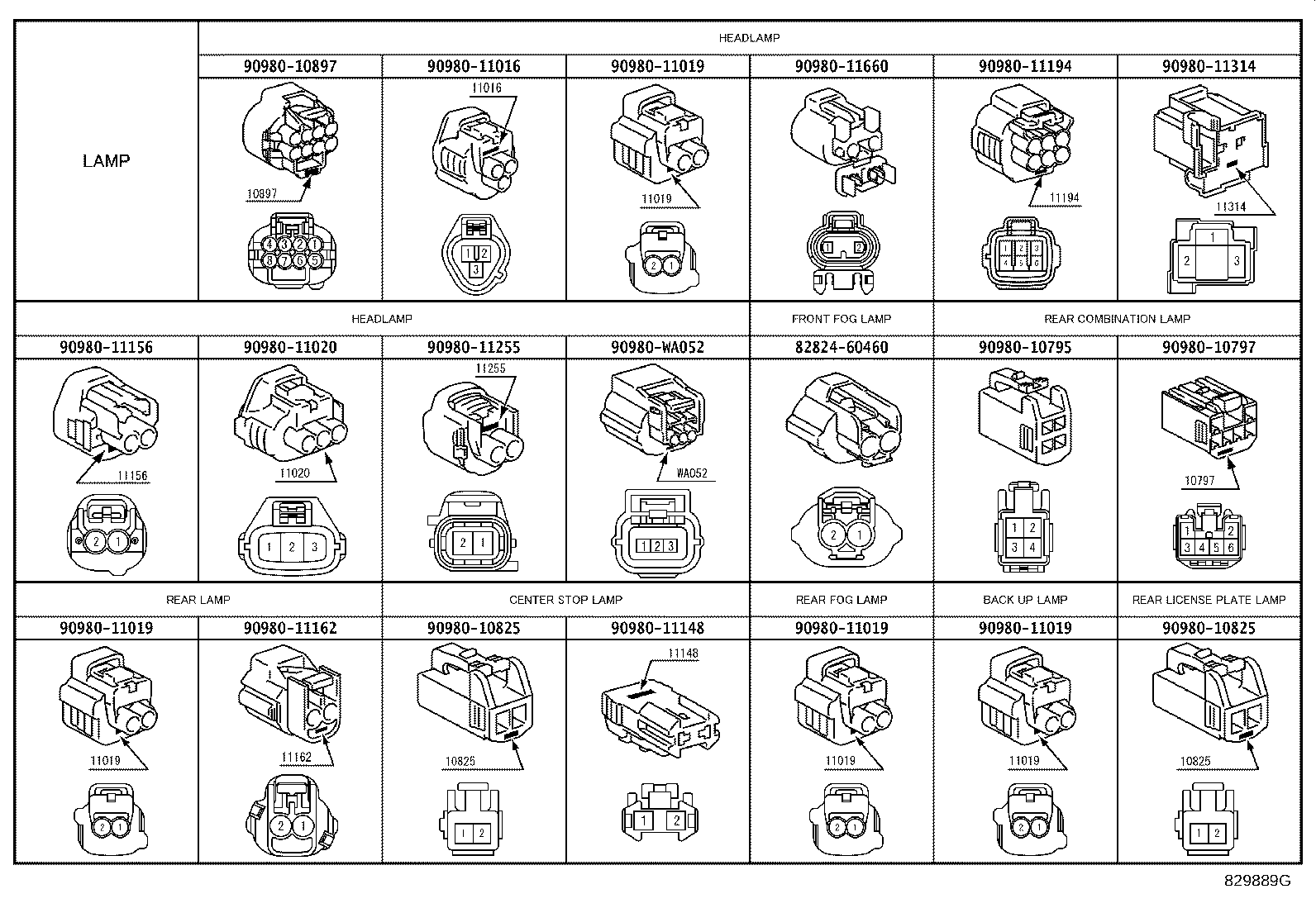

Figure 829599A 829599A 2014-07 → — Figure 829600C 829600C 2014-07 → — Figure 829632B 829632B 2014-07 → — Figure 829601 829601 2014-07 → — Figure 829602C 829602C 2014-07 → — Figure 82B257 82B257 2014-07 → — Figure 829603A 829603A 2014-07 → 2017-03 Figure 82B256A 82B256A 2017-03 → — Figure 829604A 829604A 2014-07 → — Figure 829605A 829605A 2014-07 → — Figure 829606A 829606A 2014-07 → — Figure 829607E 829607E 2014-07 → — Figure 829608B 829608B 2014-07 → — Figure 829611C 829611C 2014-07 → — Figure 829613E 829613E 2014-07 → — Figure 82C949A 82C949A 2014-07 → — Figure 829889G 829889G 2014-07 → — Figure 829890D 829890D 2014-07 → — Figure 82E262 82E262 2014-07 → —

Part groups

PNCDescription

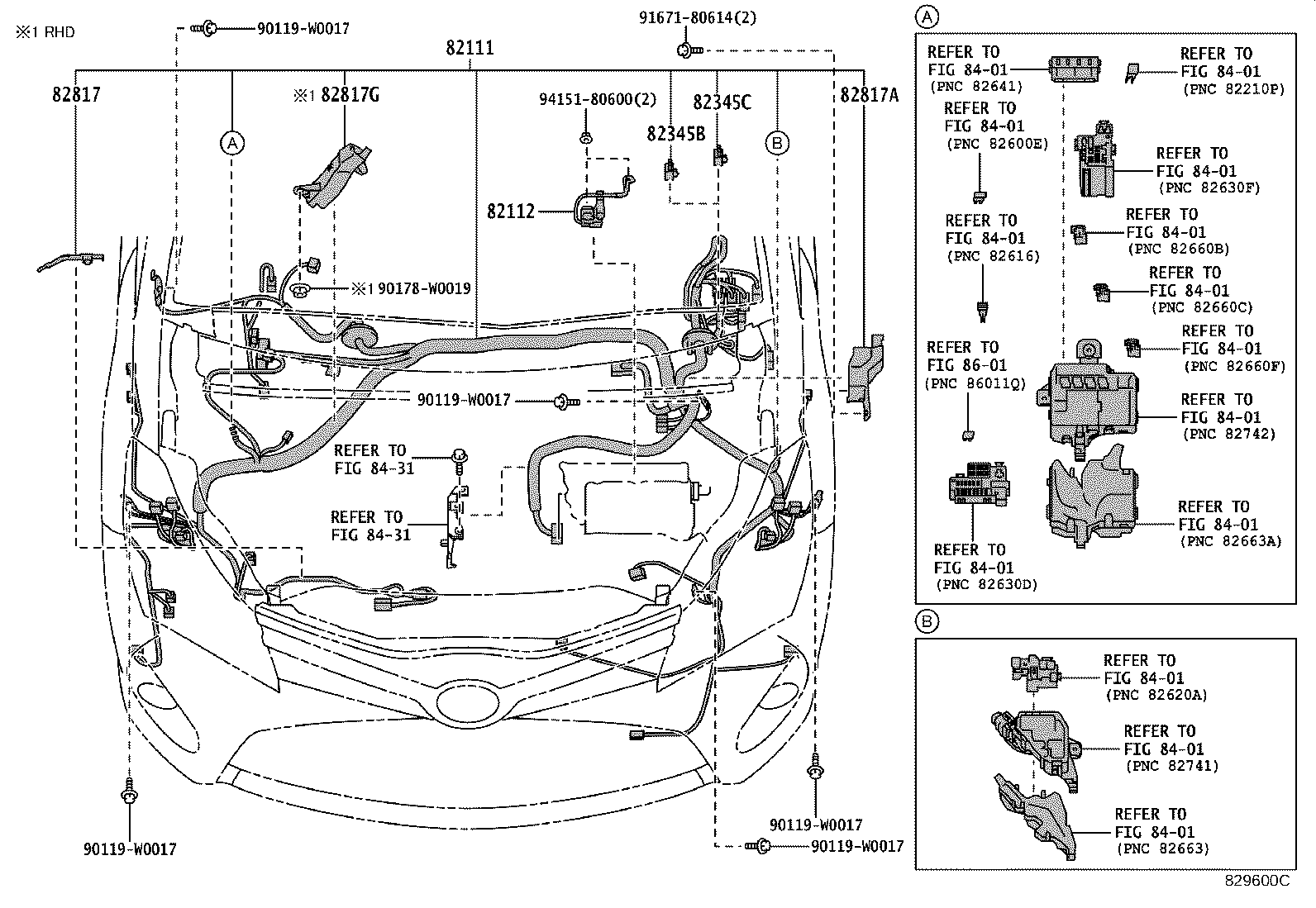

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine

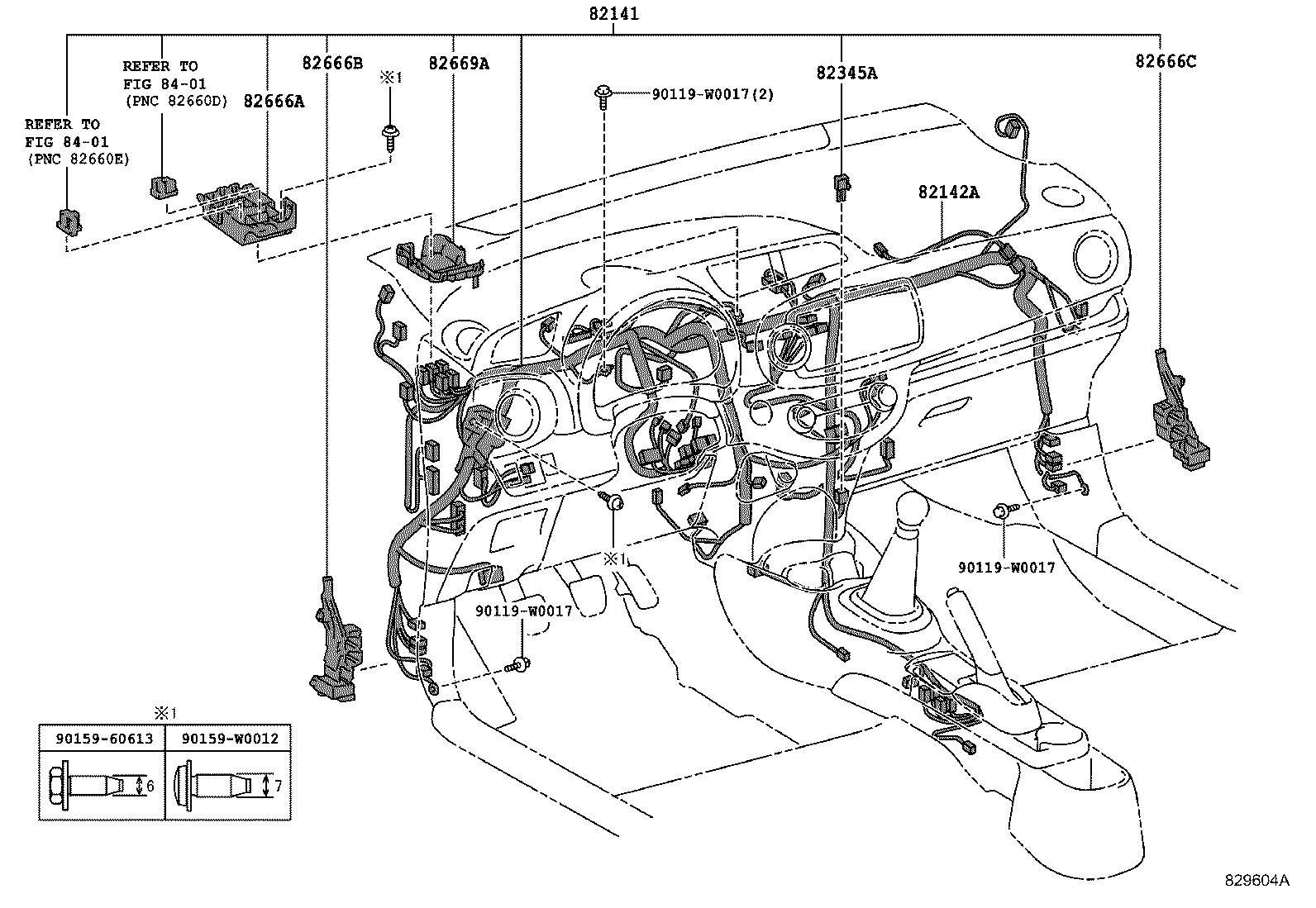

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2

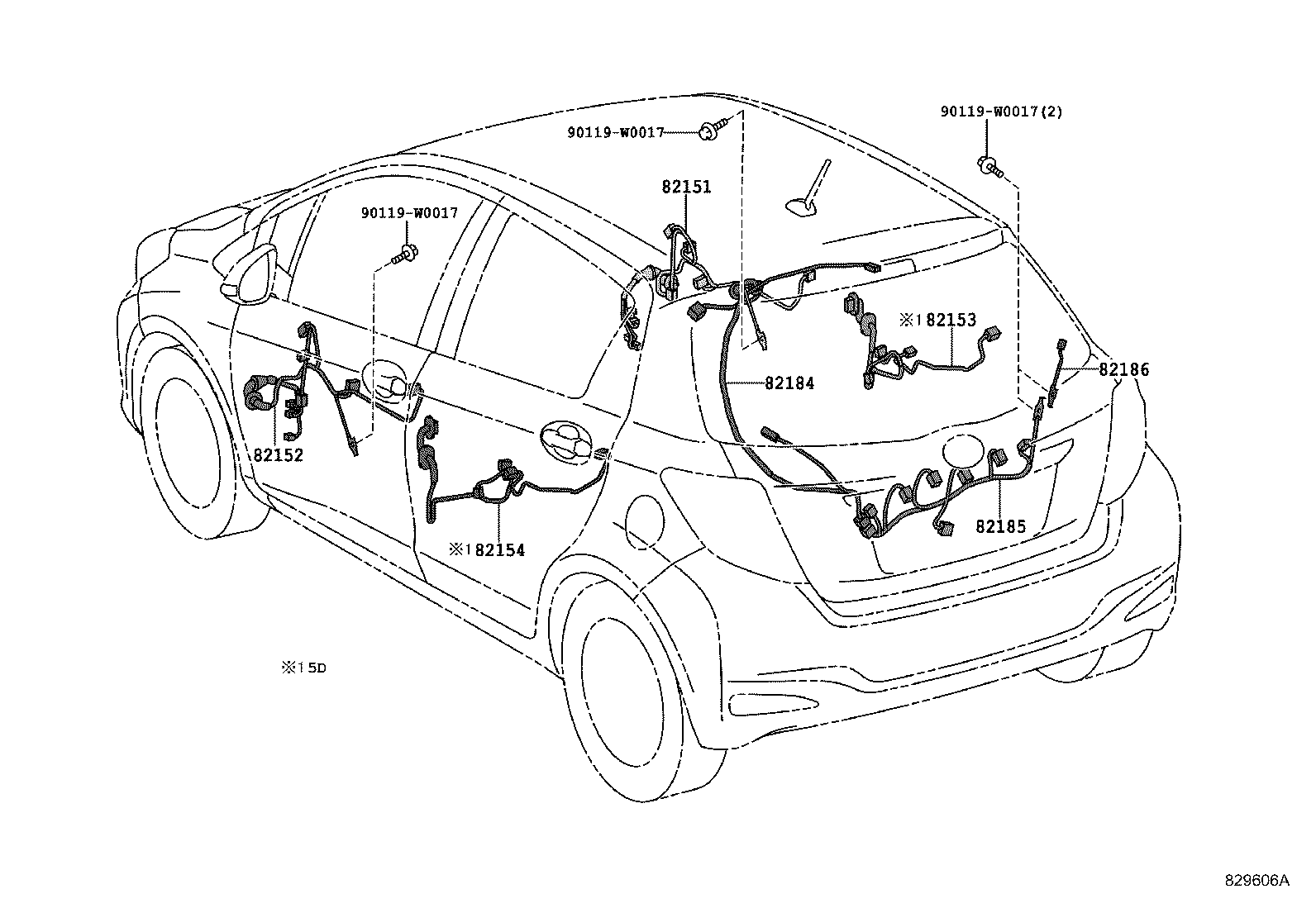

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

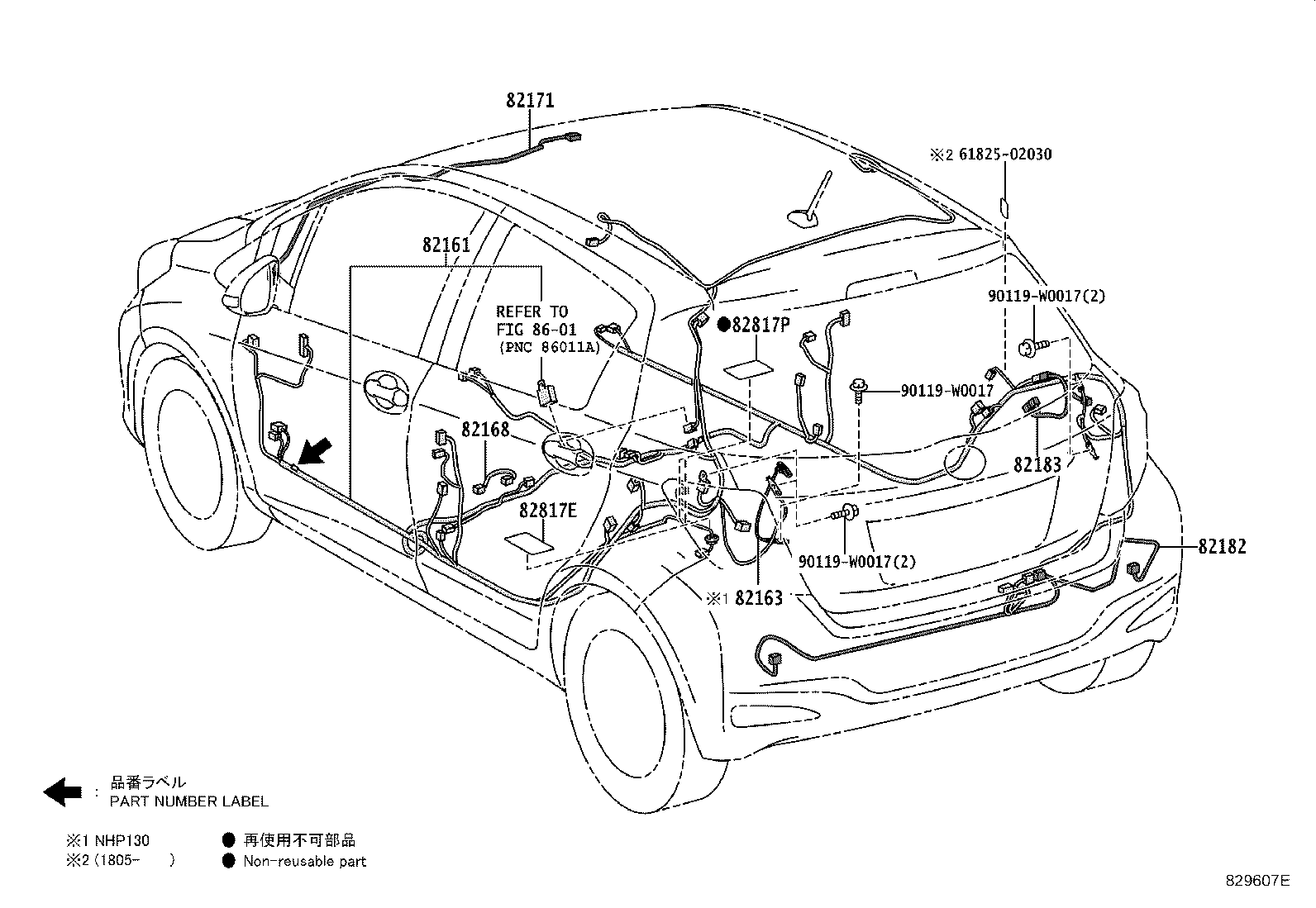

82161 Wire, Floor
82163 Wire, Floor, NO.3

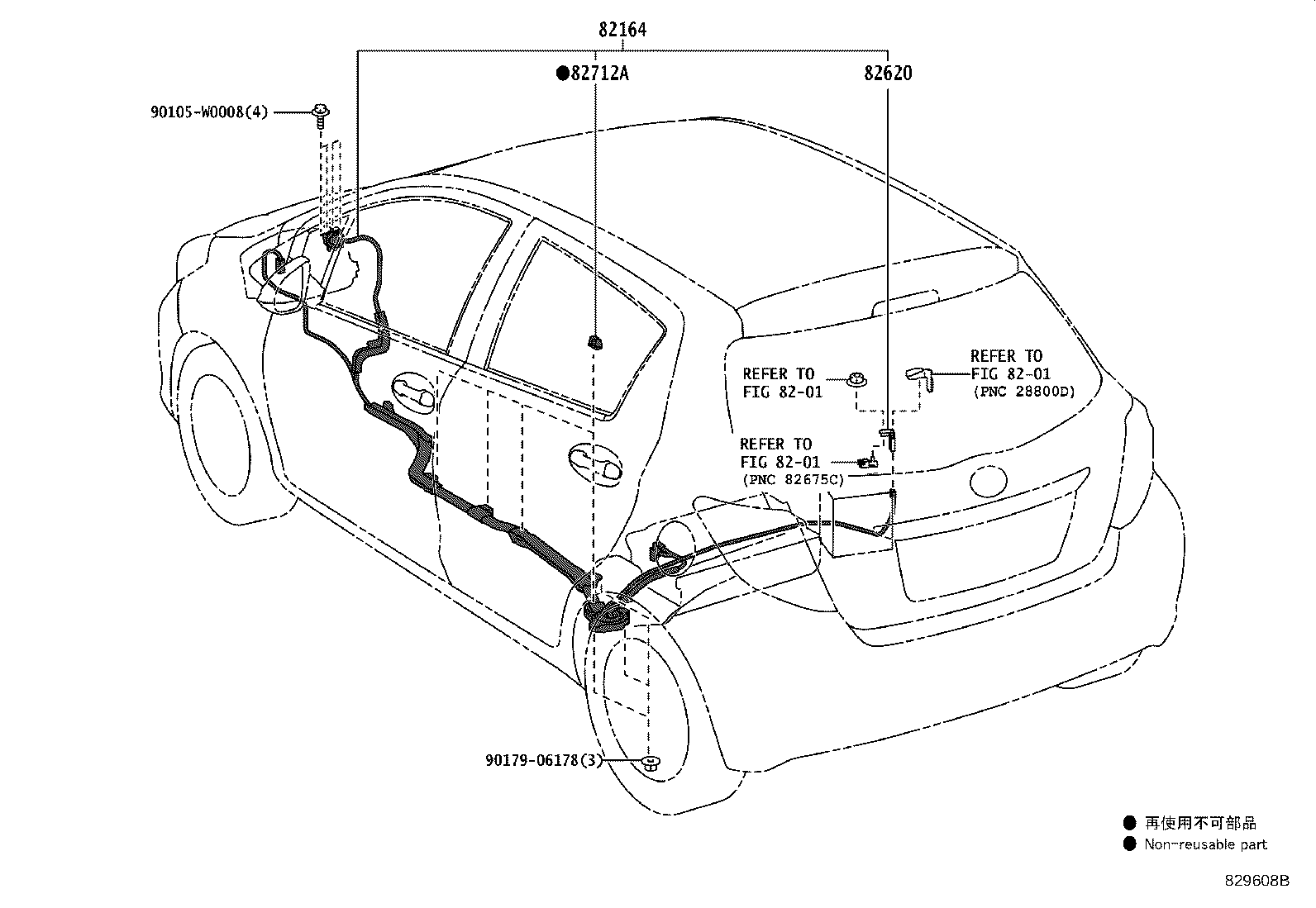

82164 Wire, Frame
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82345A Diode
82345B Diode
82345C Diode
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82669A Cover, Connector Holder Block, Lower
82712A Support, Wiring Harness

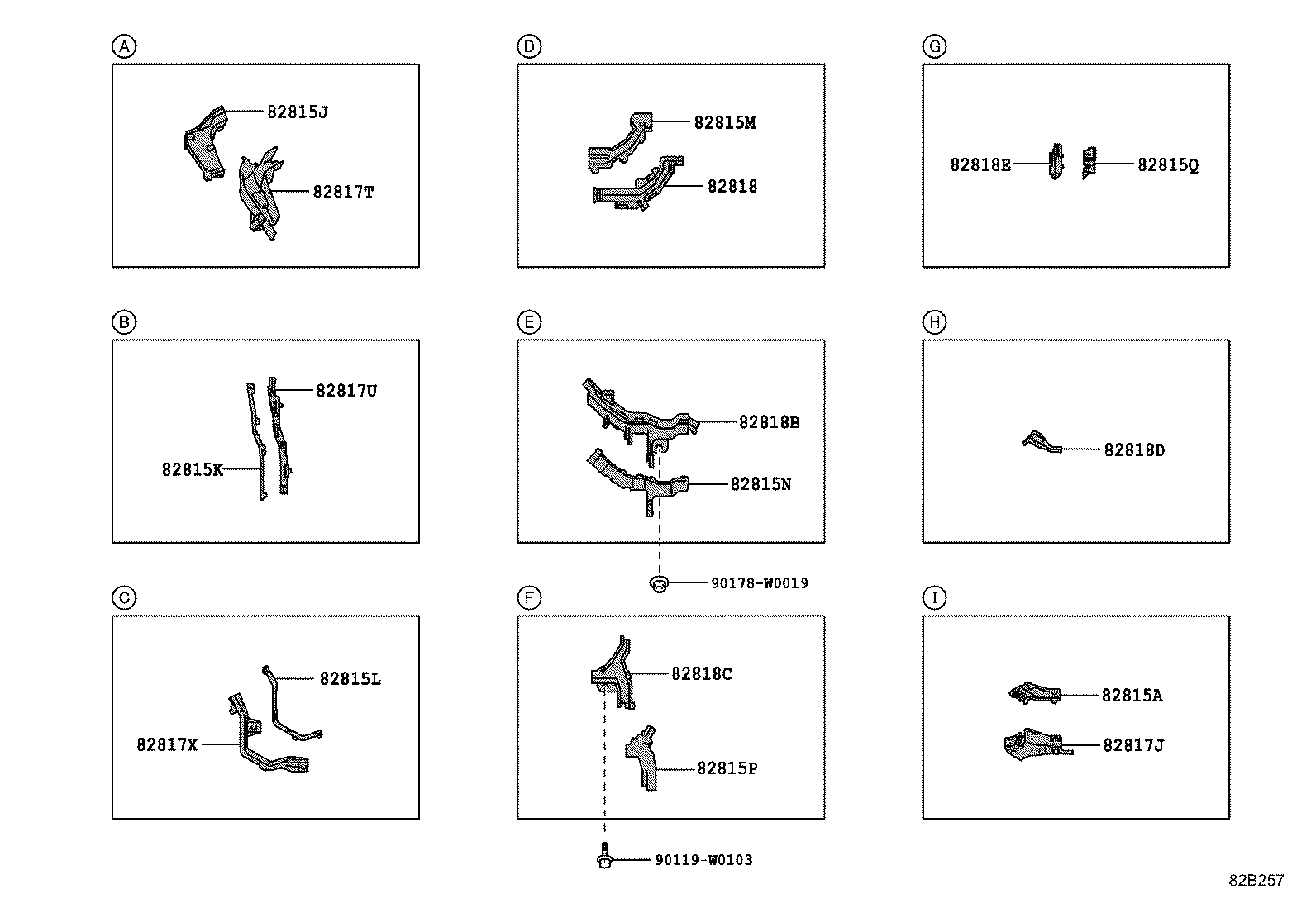

82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82823T Cap, Alternator Terminal
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82915 Insulator, Wiring Harness Heat, NO.1
82916 Insulator, Wiring Harness Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
