Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

9 part groups · 4 illustrations

Illustrations

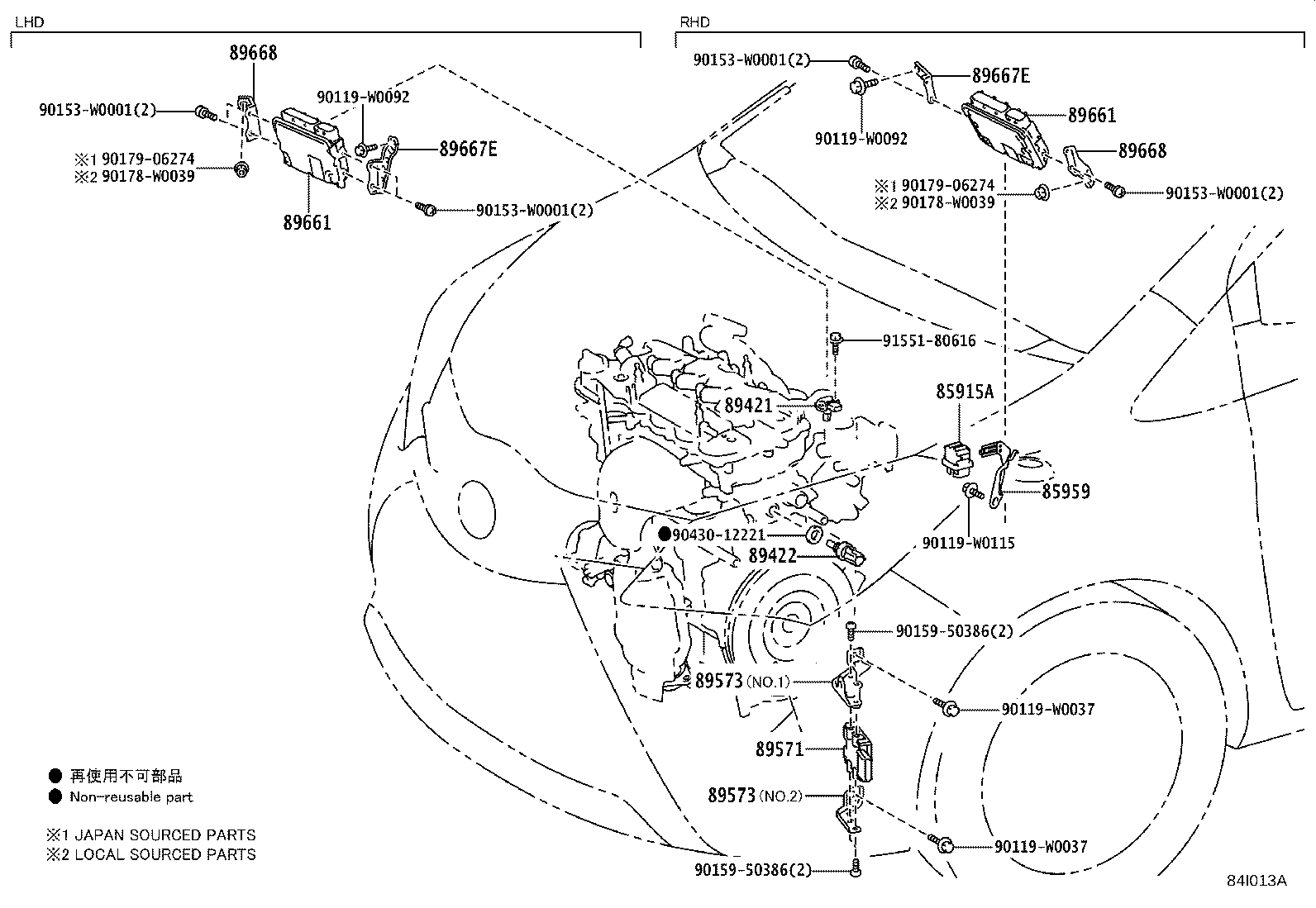

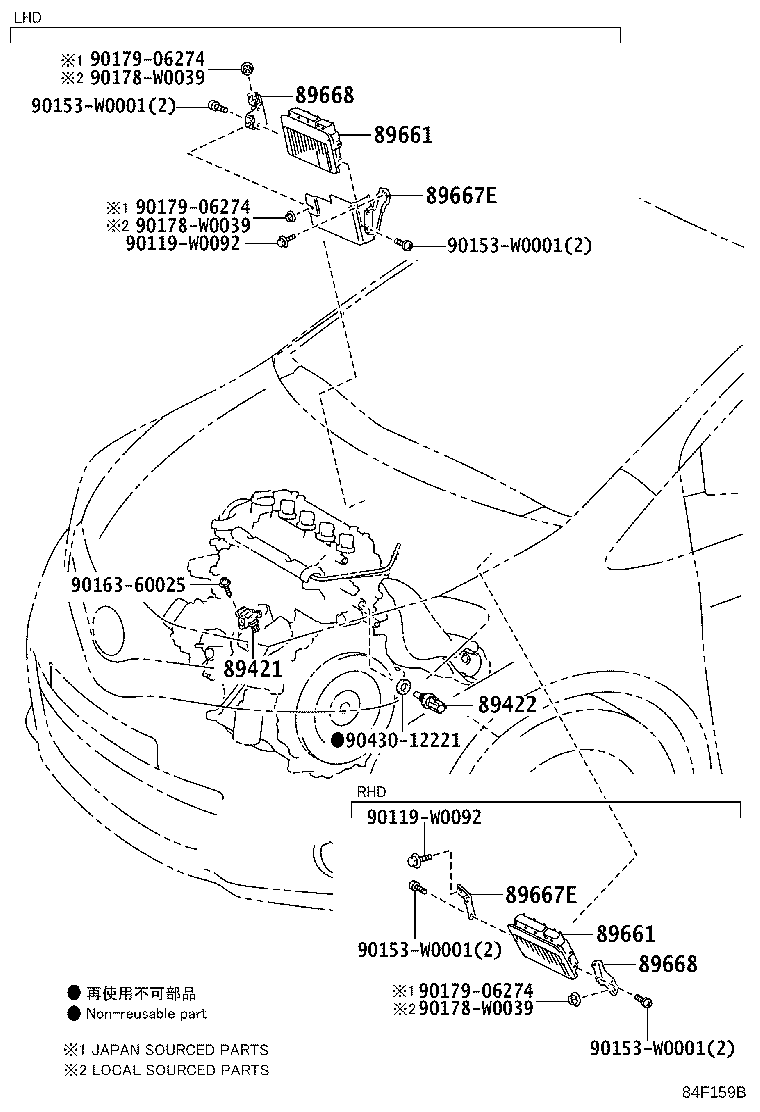

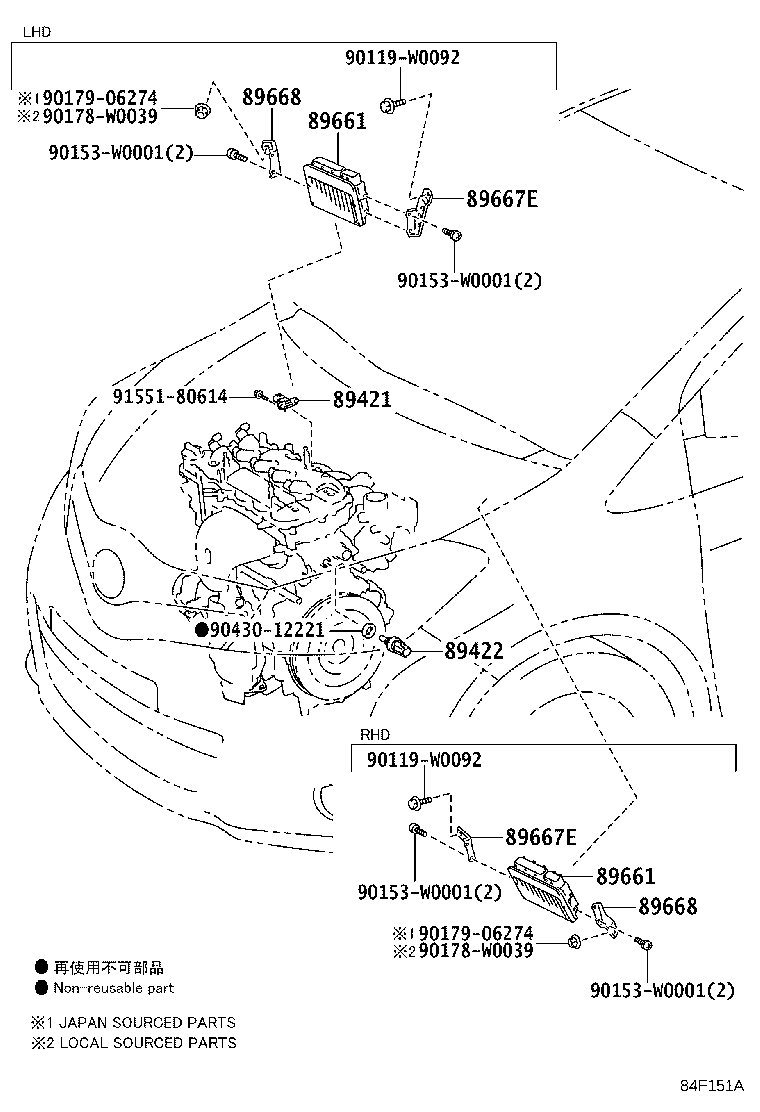

Figure 84F224B 84F224B 2014-07 → — Figure 84F151A 84F151A 2014-07 → 2017-03 Figure 84F159B 84F159B 2014-07 → — Figure 84I013A 84I013A 2017-03 → —

Part groups

PNCDescription
85915A Relay, Main
85959 Holder, Relay
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
