Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05
Electronic Controled Diesel (ECD)

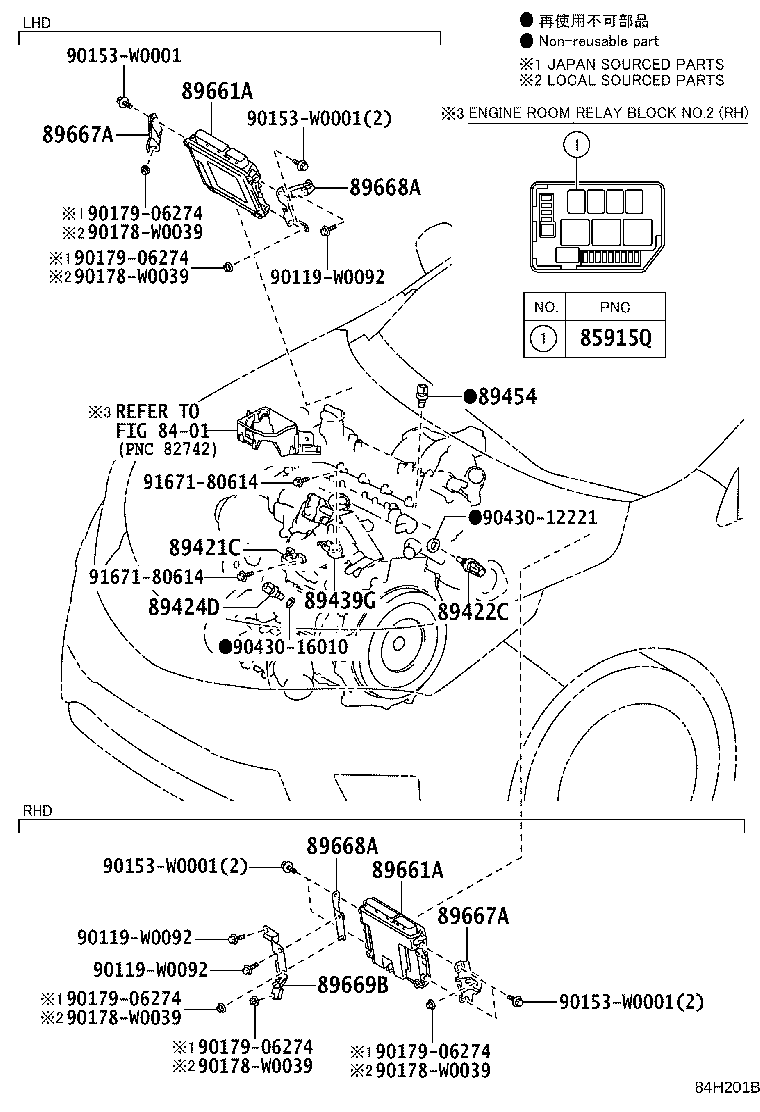

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85915Q | Relay, Computer (FOR DIESEL) |
| 89421C | Sensor, Turbo Pressure (FOR DIESEL TURBO) |
| 89422C | Sensor, Diesel Engine Water Temperature |
| 89424D | Sensor, Inlet Air Temperature |
| 89439G | Bracket, Sensor |
| 89454 | Sensor, Fuel Temperature |
| 89661A | Computer, Engine Control |
| 89667A | Bracket, Engine Control Computer, NO.1 |
| 89668A | Bracket, Engine Control Computer, NO.2 |
| 89669B | Bracket, Engine Control Computer, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
