Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

13 part groups · 3 illustrations

Illustrations

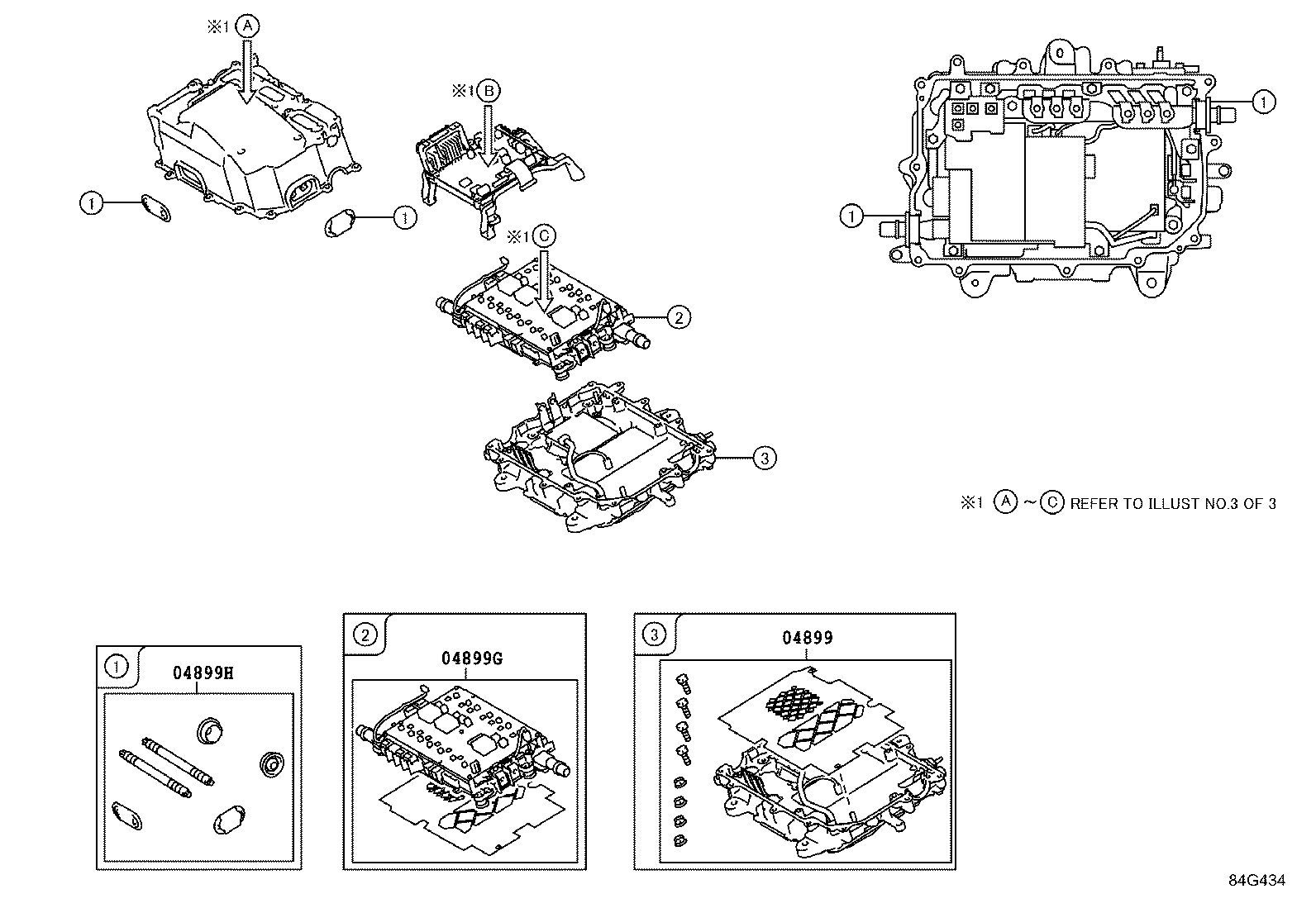

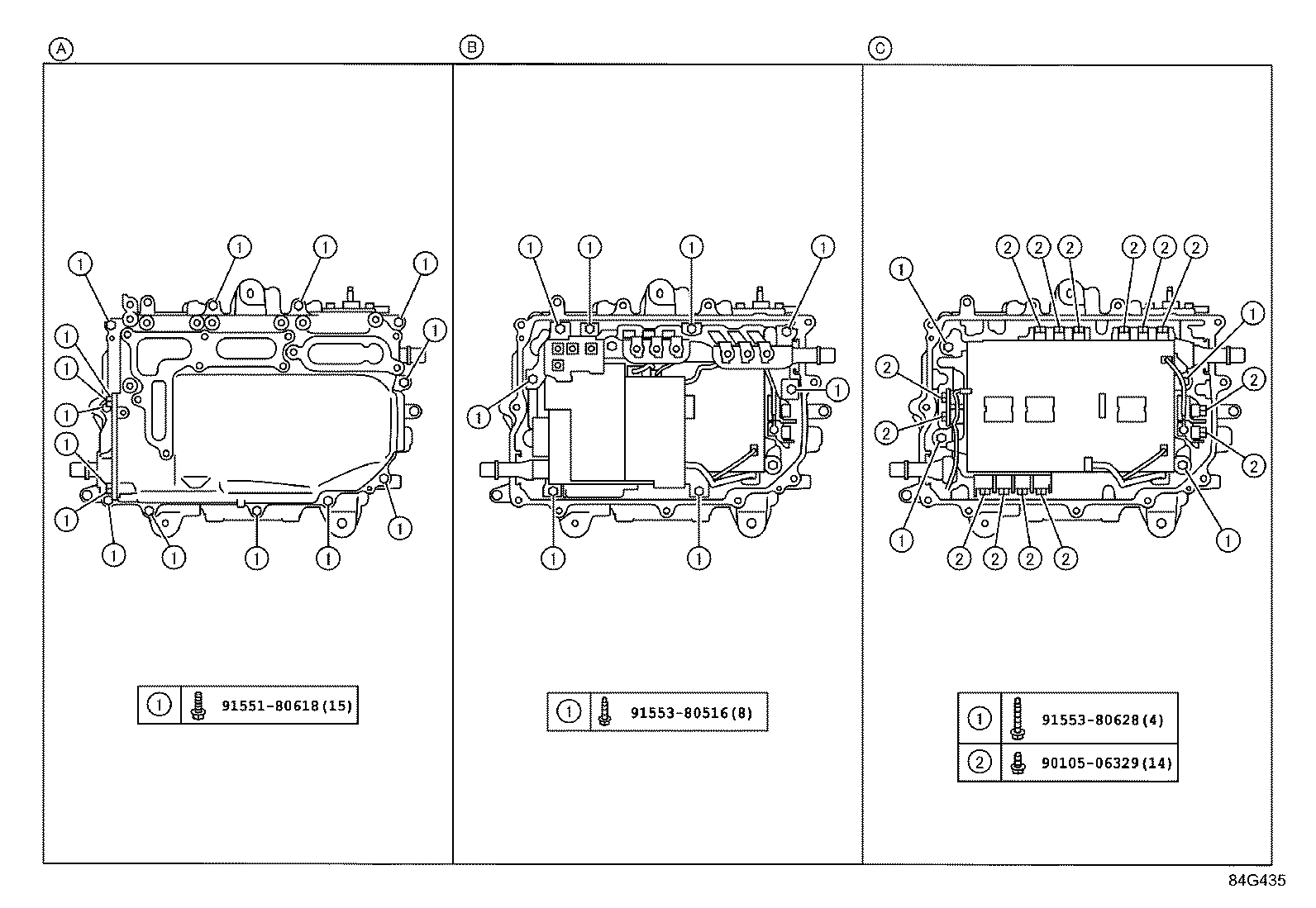

Figure 84F157G 84F157G 2014-07 → — Figure 84G434 84G434 2014-07 → — Figure 84G435 84G435 2014-07 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899G Transistor Kit, Power Module Intelligent
04899H Plug Kit, Inverter Drain
86210G Fuse, High Voltage
G9110 Bracket Assy, Inverter
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G920H Computer Sub-assy, Motor Generator Control
G920J Sensor Sub-assy, Inverter Current
G9221 Cover, Inverter
G9223 Cover, Inverter Terminal
G922L Cover, Inverter Signal Connector
G9234 Plate, Inverter Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
