Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

26 part groups · 6 illustrations

Illustrations

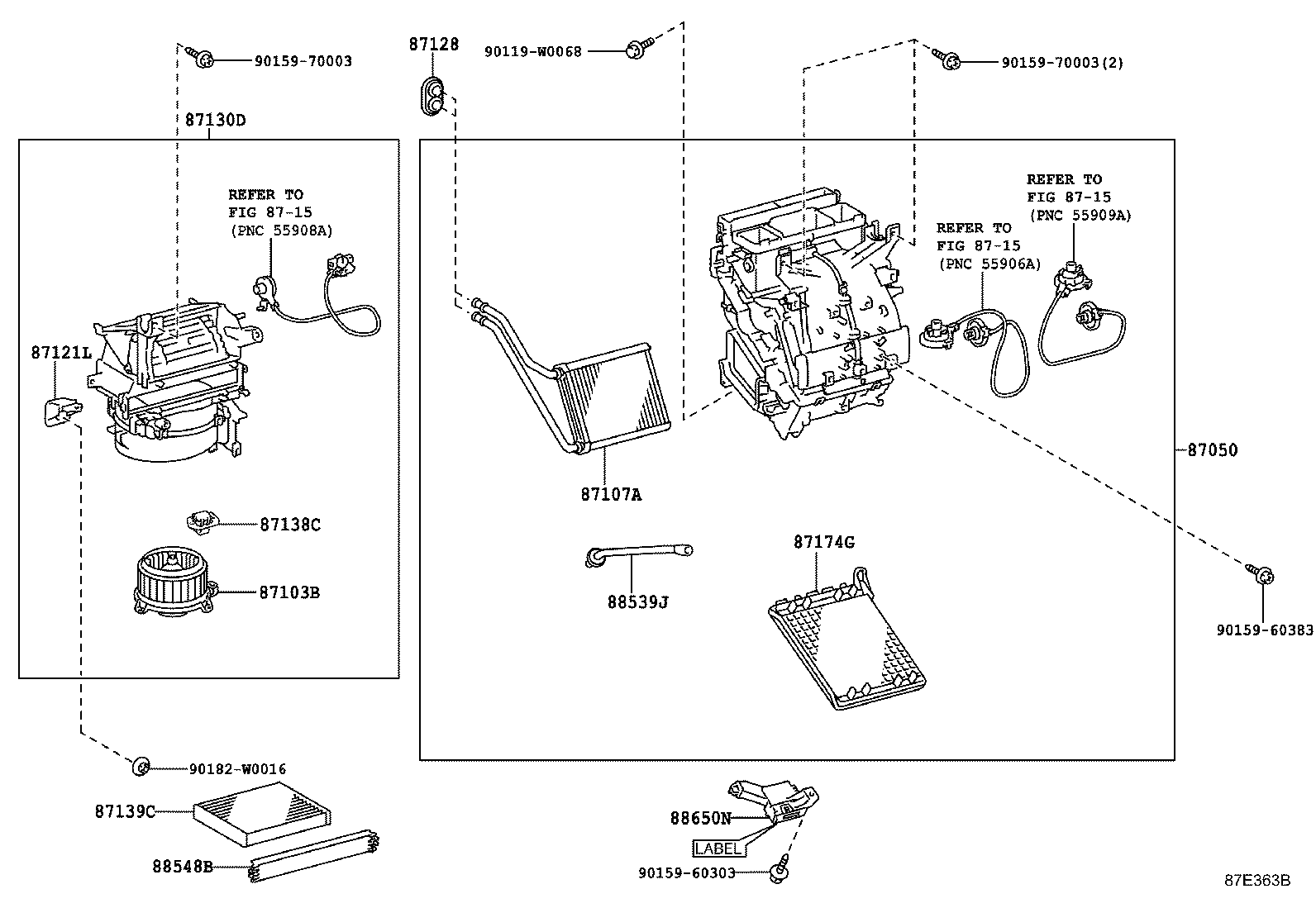

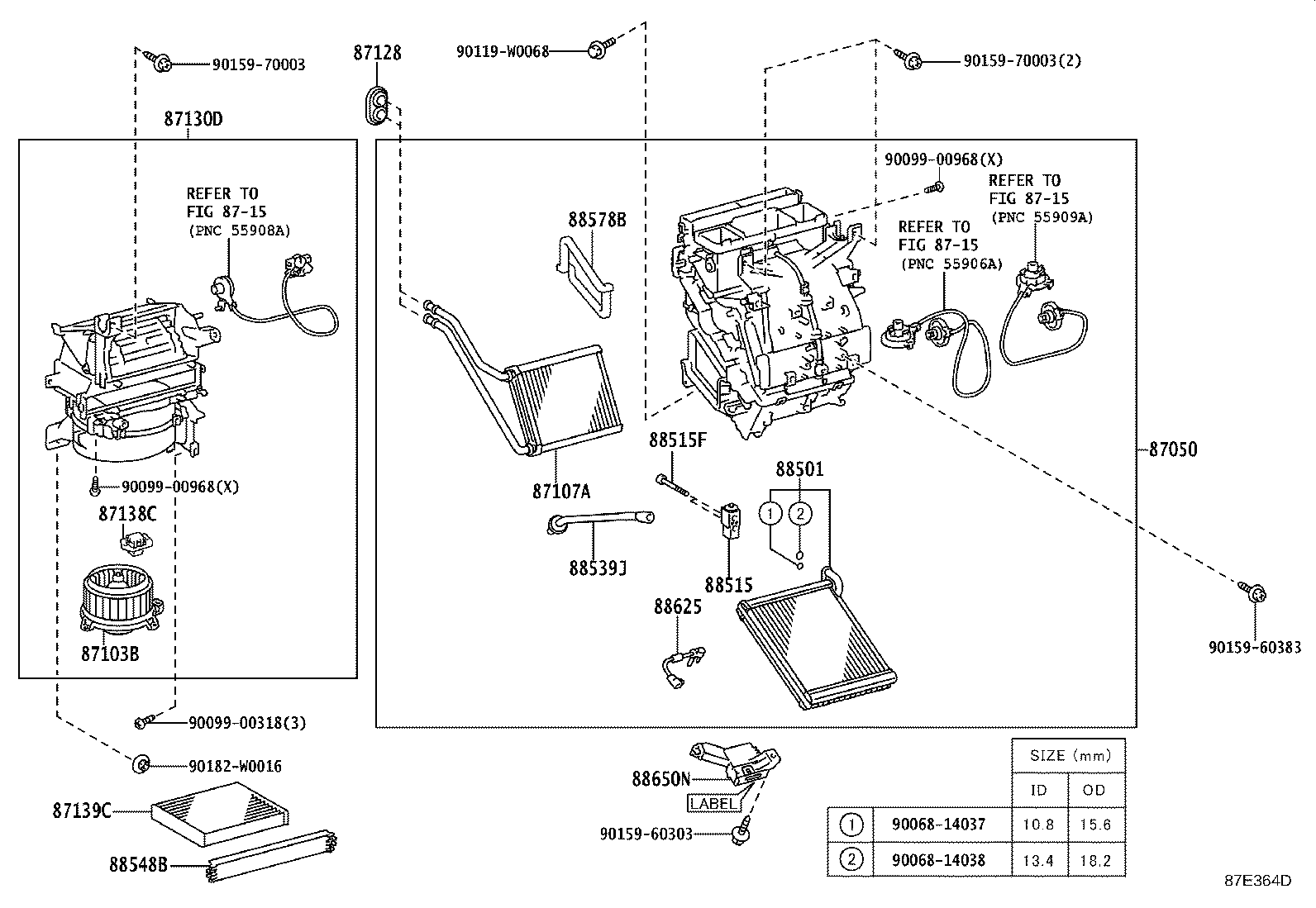

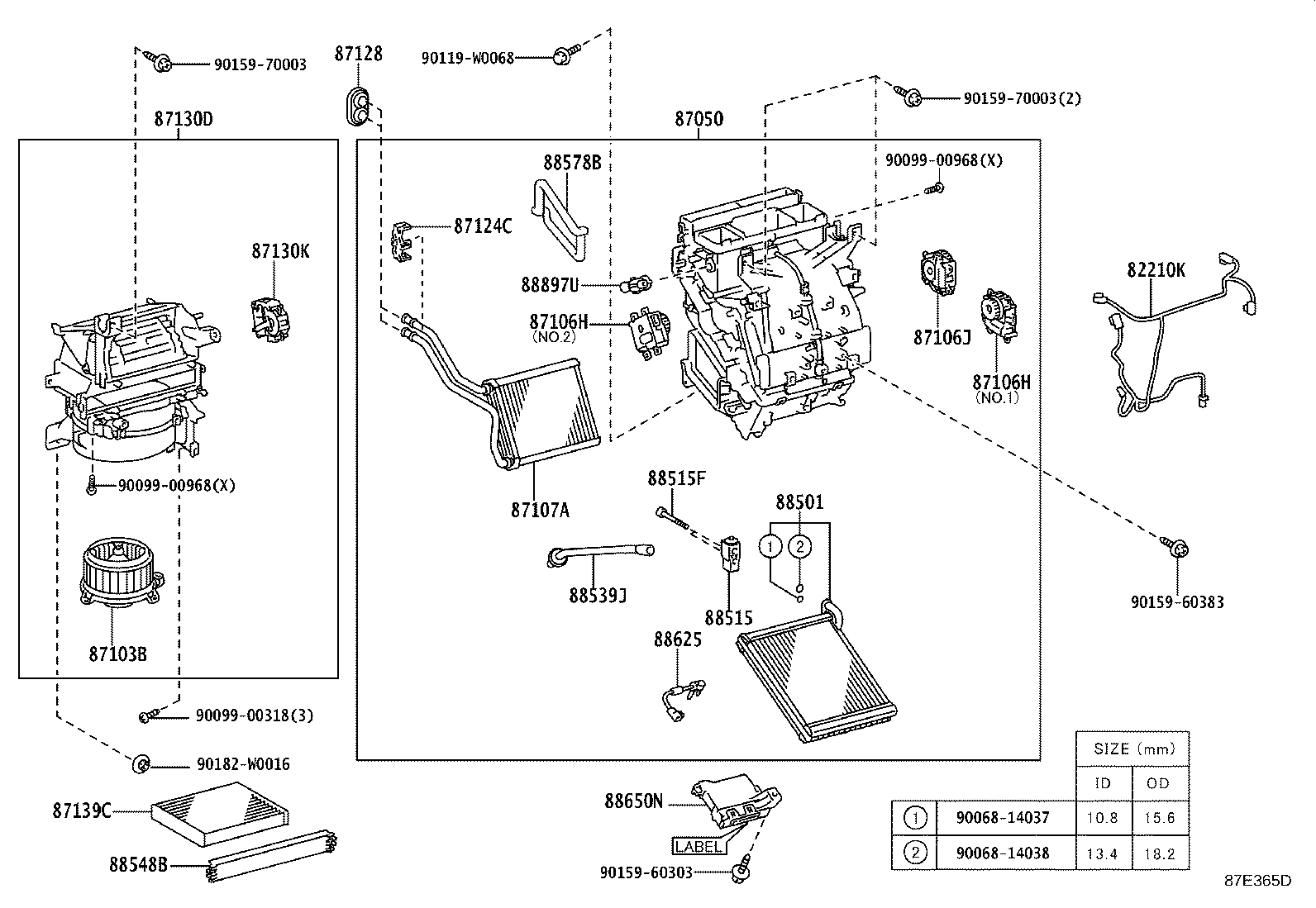

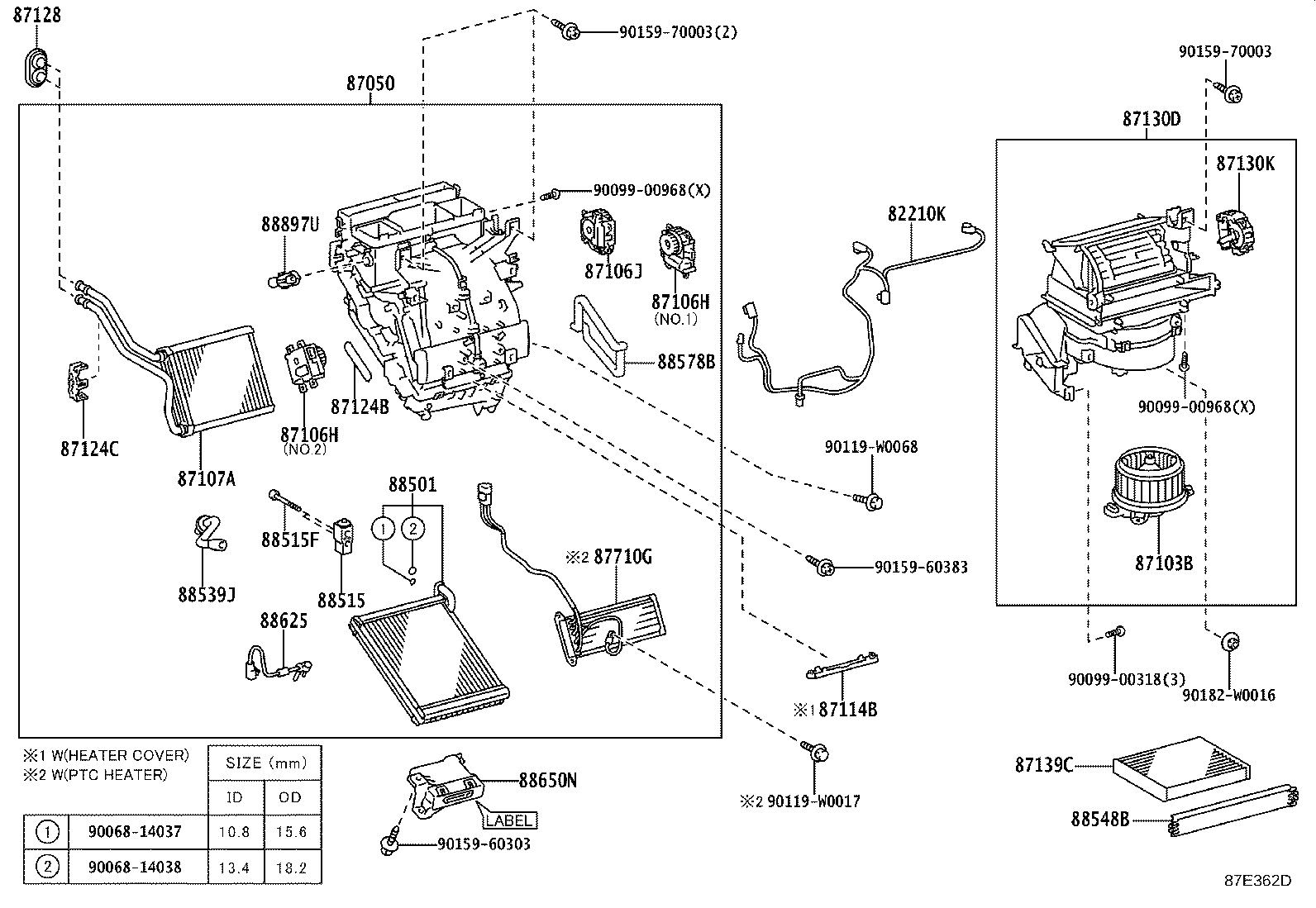

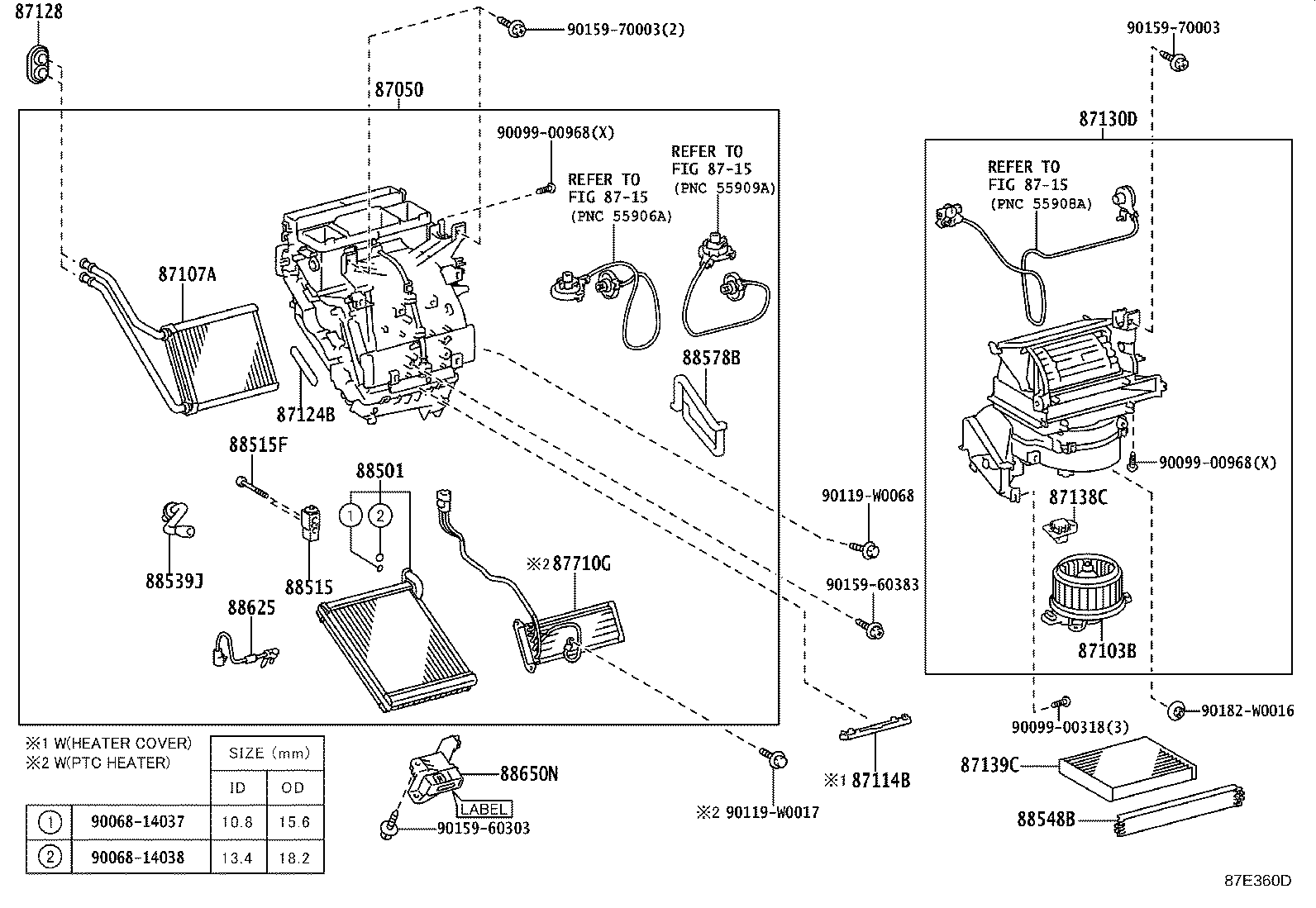

Figure 87E361B 87E361B 2014-07 → — Figure 87E360D 87E360D 2014-07 → — Figure 87E362D 87E362D 2014-07 → — Figure 87E363B 87E363B 2014-07 → — Figure 87E364D 87E364D 2014-07 → — Figure 87E365D 87E365D 2014-07 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87121L Bracket, Heater
87124B Clamp, Heater
87124C Clamp, Heater
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87138C Resistor, Blower
87139C Filter, Clean Air
87174G Guide, Air Heater
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539J Hose, Drain Cooler
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
