Toyota Yaris/Hybrid(FRP)
2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe
Supported model
Data version 2020-05
Heating & Air Conditioning - Control & Air Duct
28 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

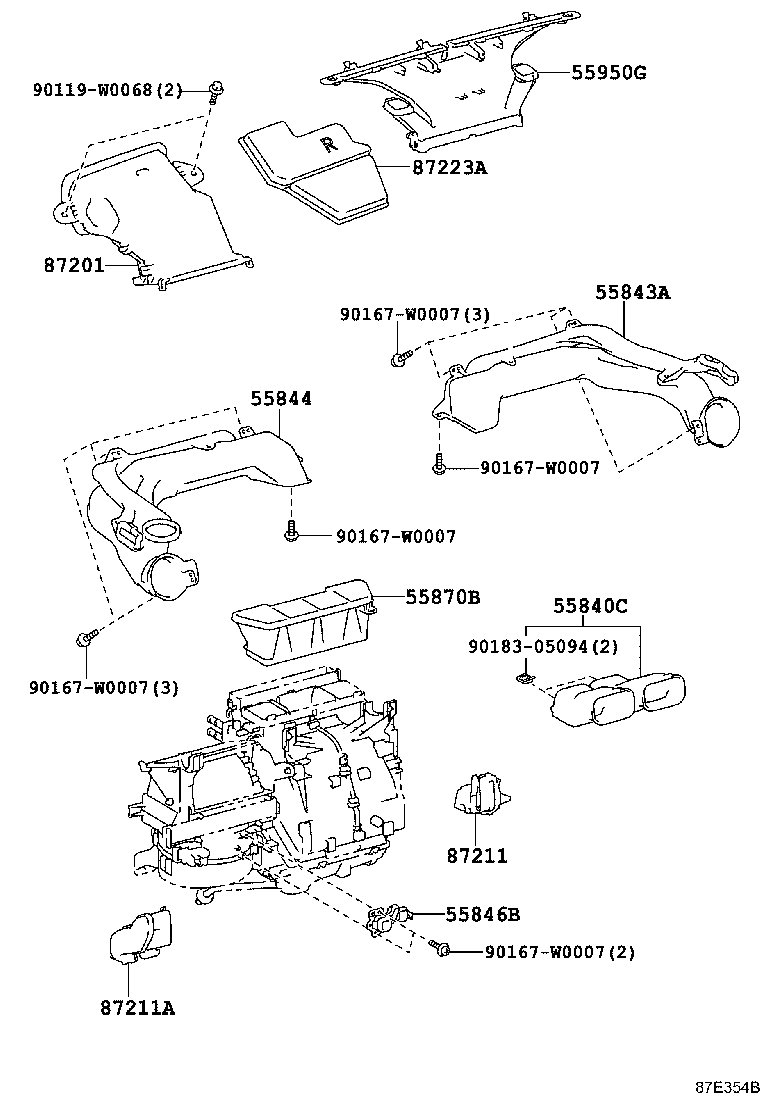

| 55840C | Duct Assy, Heater TO Register, NO.6 |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55846B | Duct, Heater TO Register, NO.4 |
| 55870B | Duct Assy, Heater TO Register |

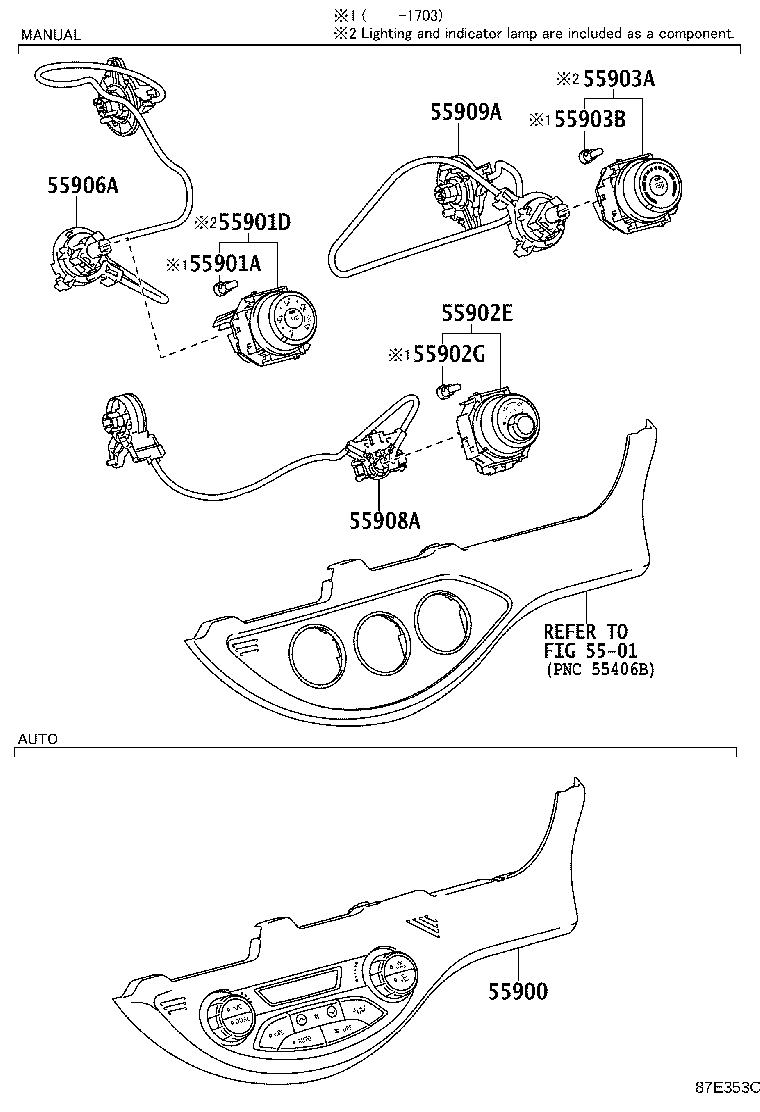

| 55900 | Control Assy, Air Conditioner |
| 55901A | Bulb, Heater Control Sub-assy, NO.1 |
| 55901D | Control Sub-assy, Heater, NO.1 |
| 55902E | Control Sub-assy, Heater, NO.2 |
| 55902G | Bulb, Heater Control Sub-assy, NO.2 |
| 55903A | Control Sub-assy, Heater, NO.3 |
| 55903B | Bulb, Heater Control Sub-assy, NO.3 |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55950G | Nozzle Assy, Defroster |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |

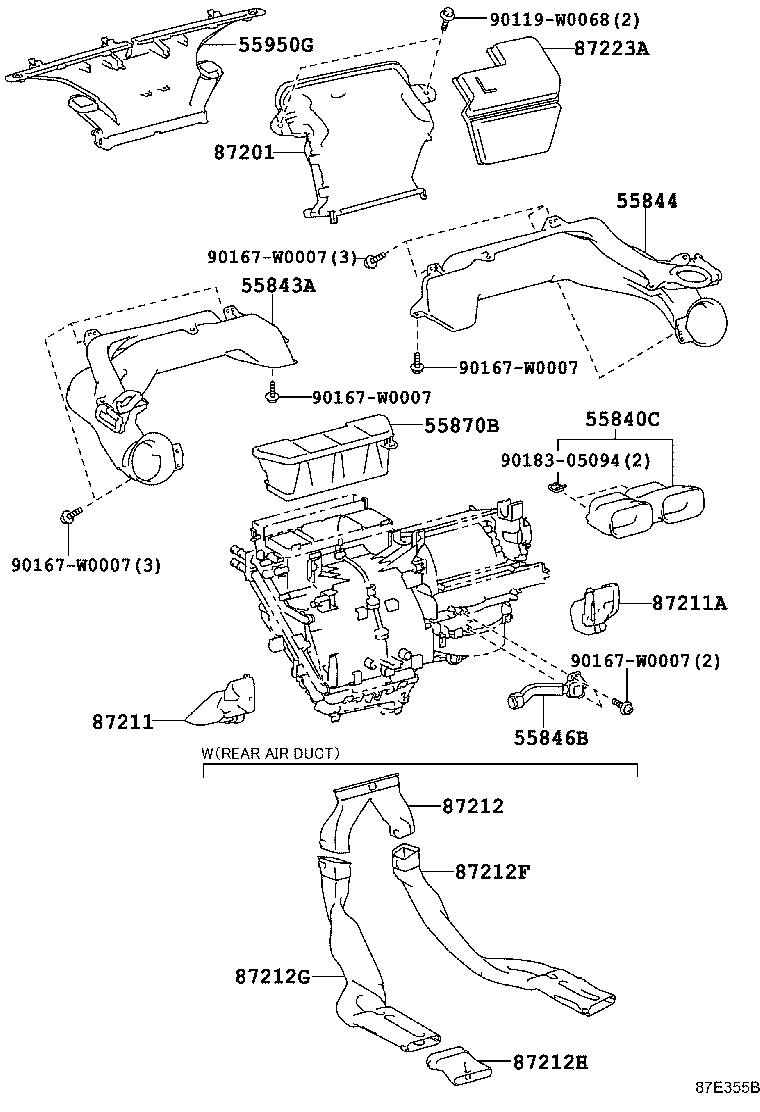

| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87223A | Pad, Air Duct |

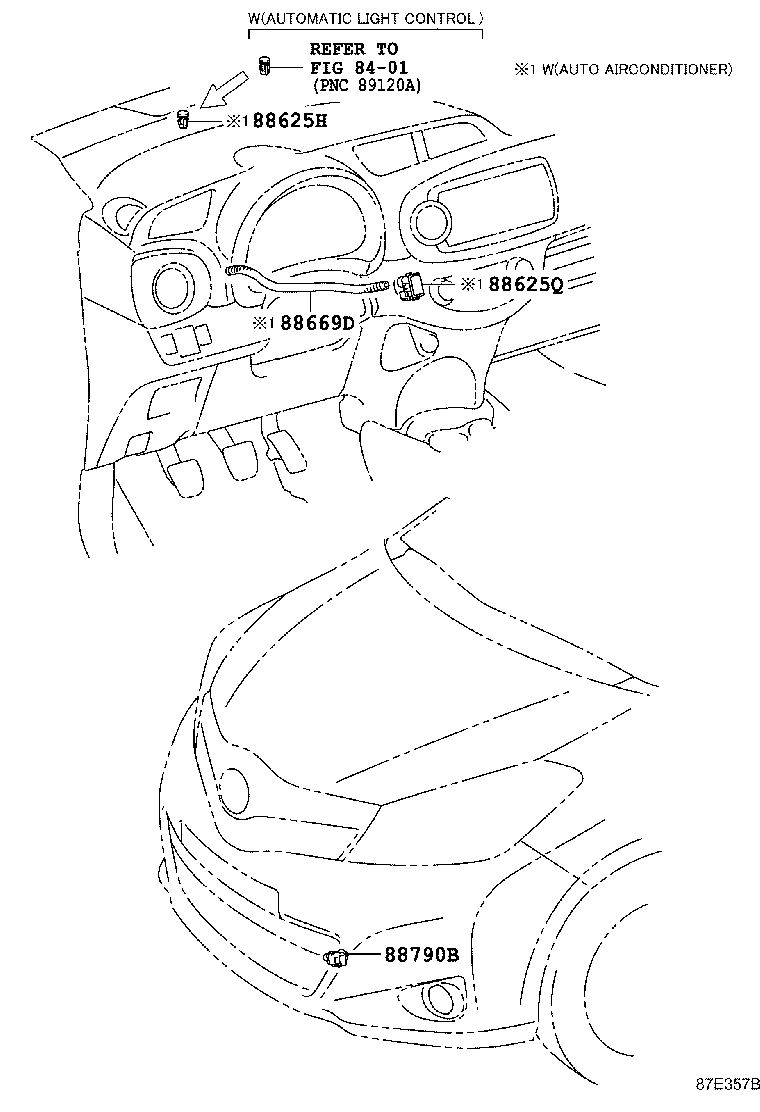

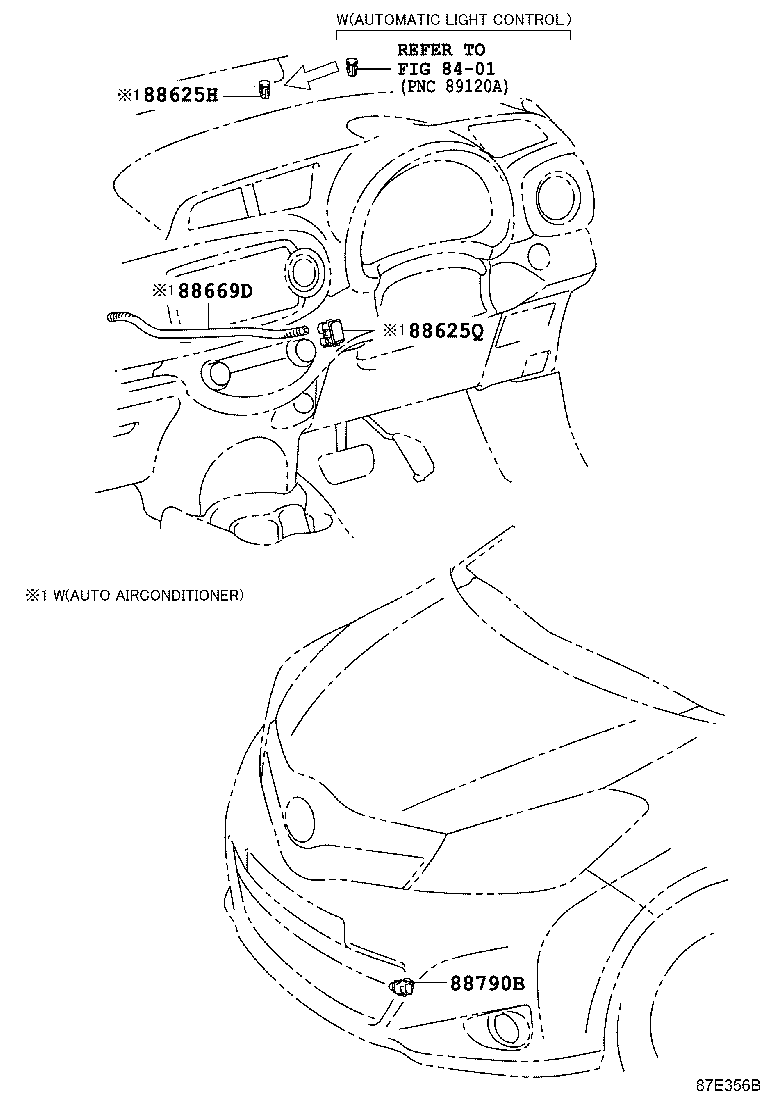

| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88669D | Hose, Air |
| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
