Toyota Yaris/Hybrid(FRP)

2014-07 → 2020-06 · chassis KSP130,NHP130,NLP130,NSP13# · catalogue 116540 · Europe

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

24 part groups · 22 illustrations

Illustrations

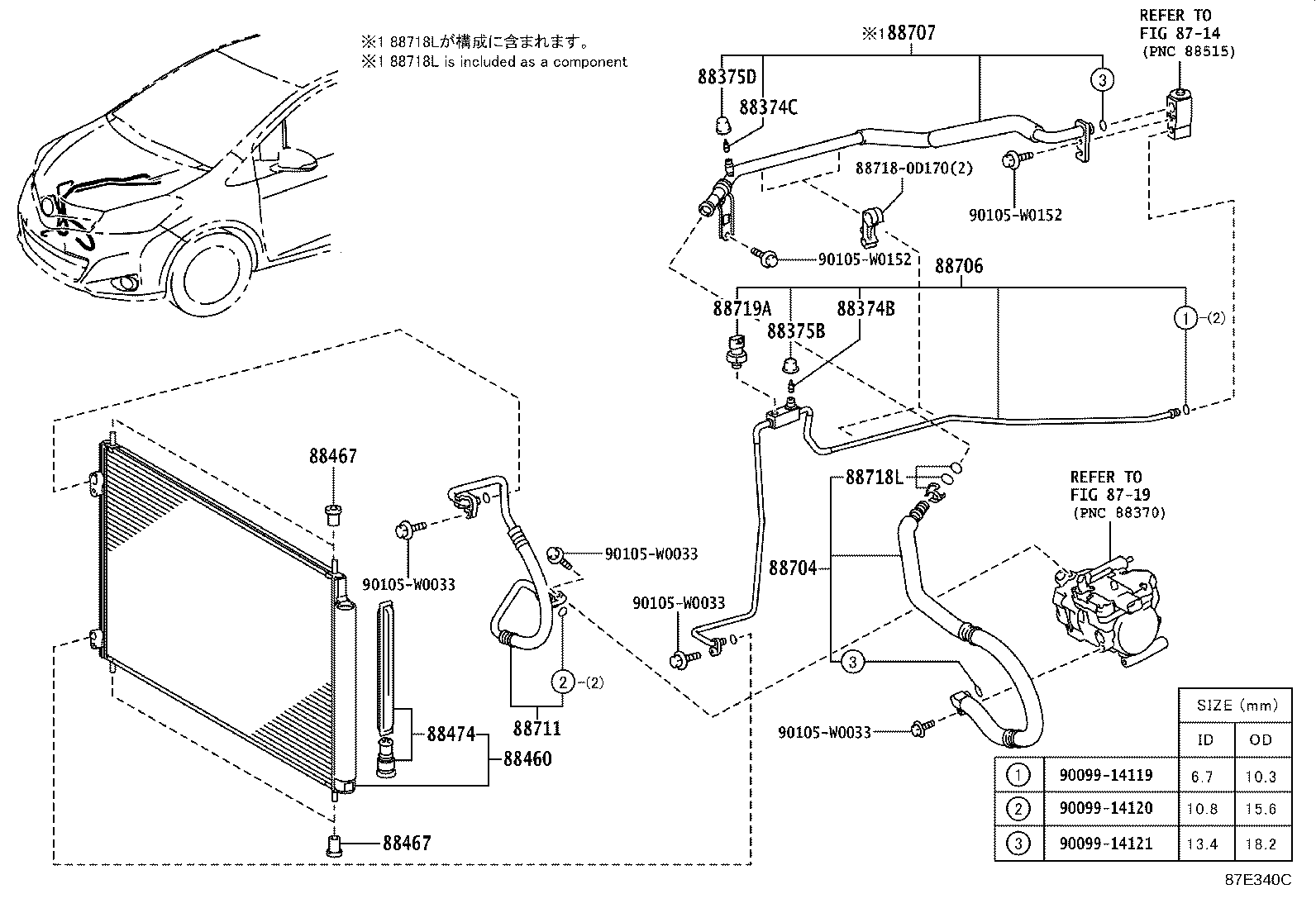

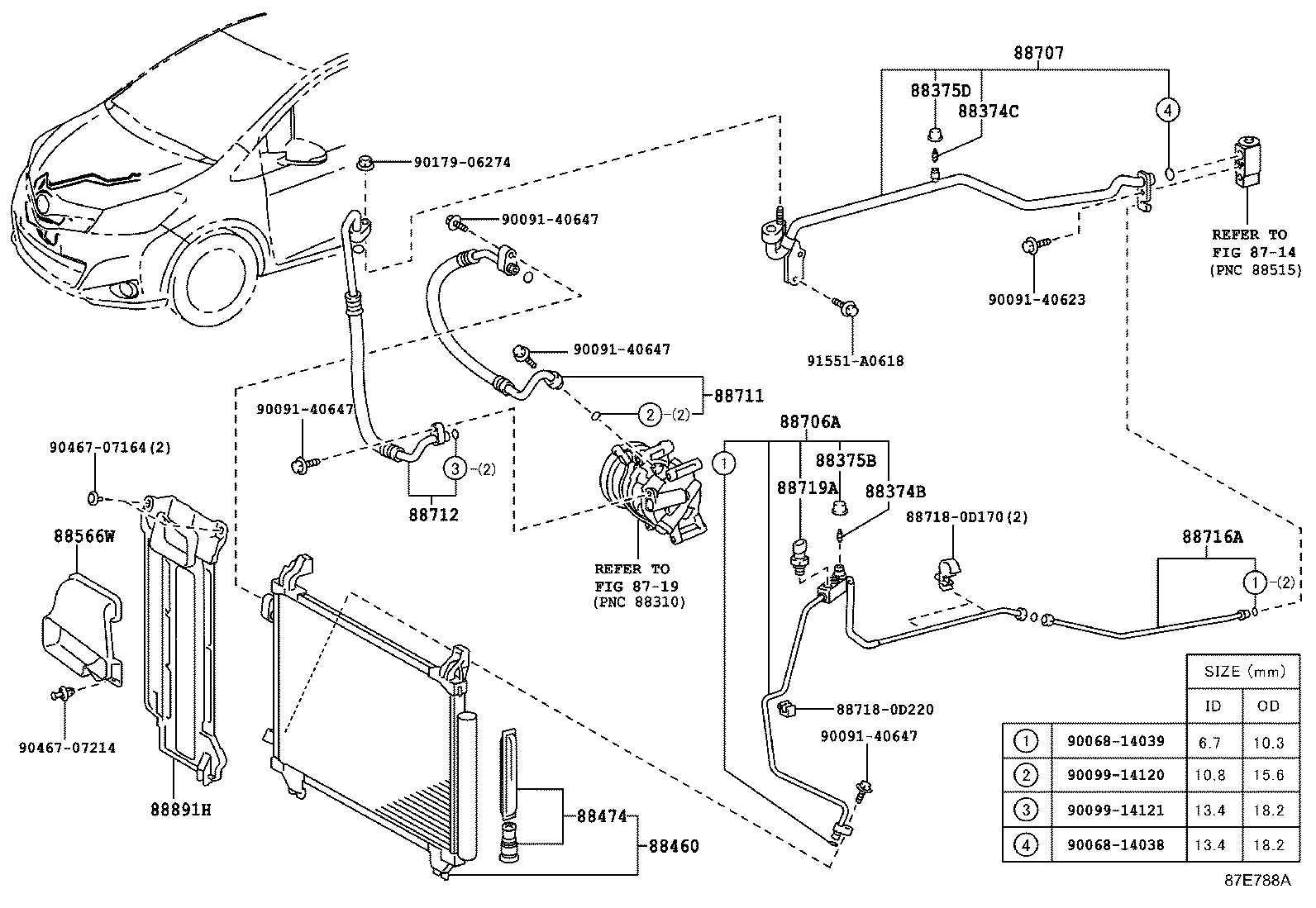

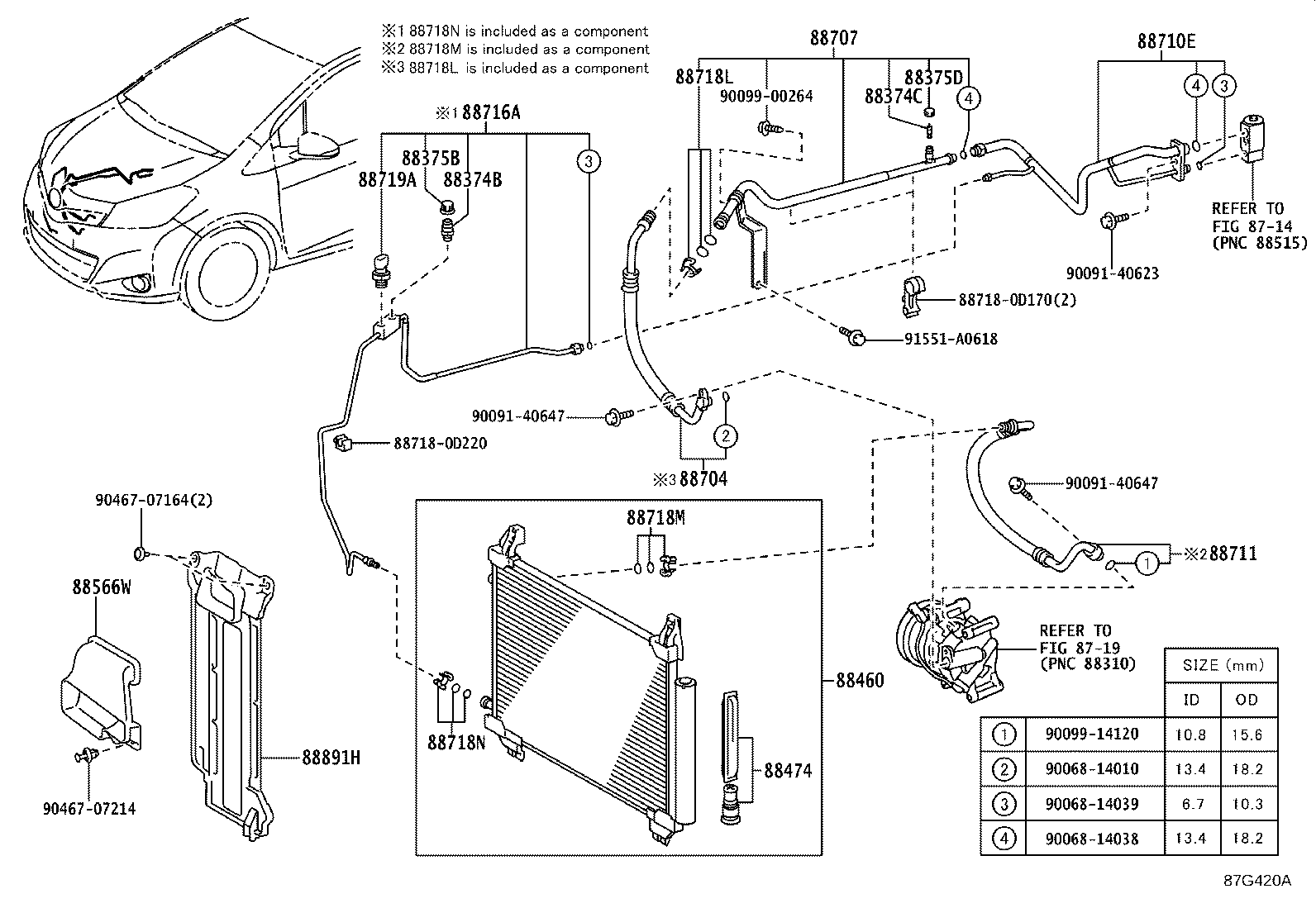

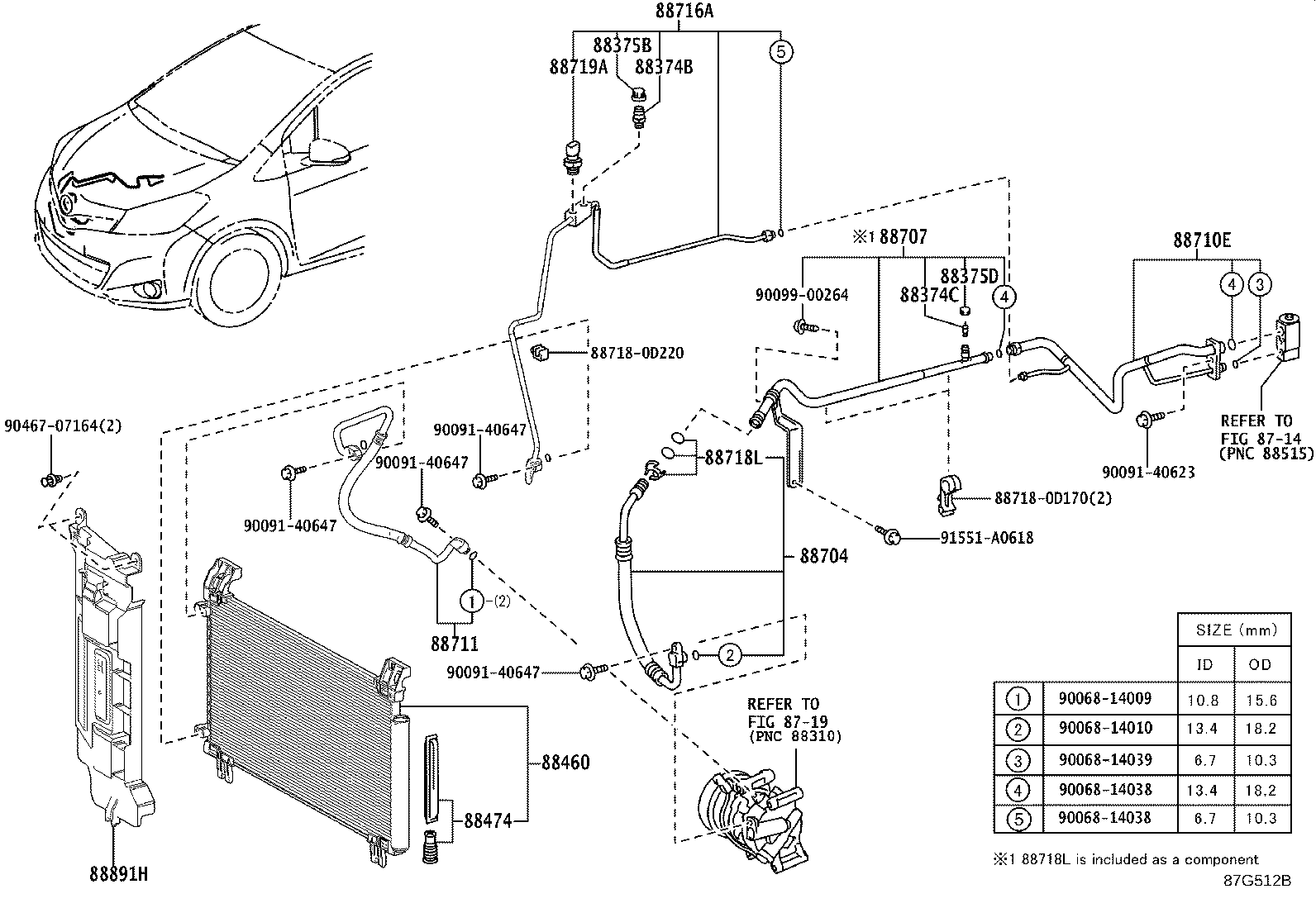

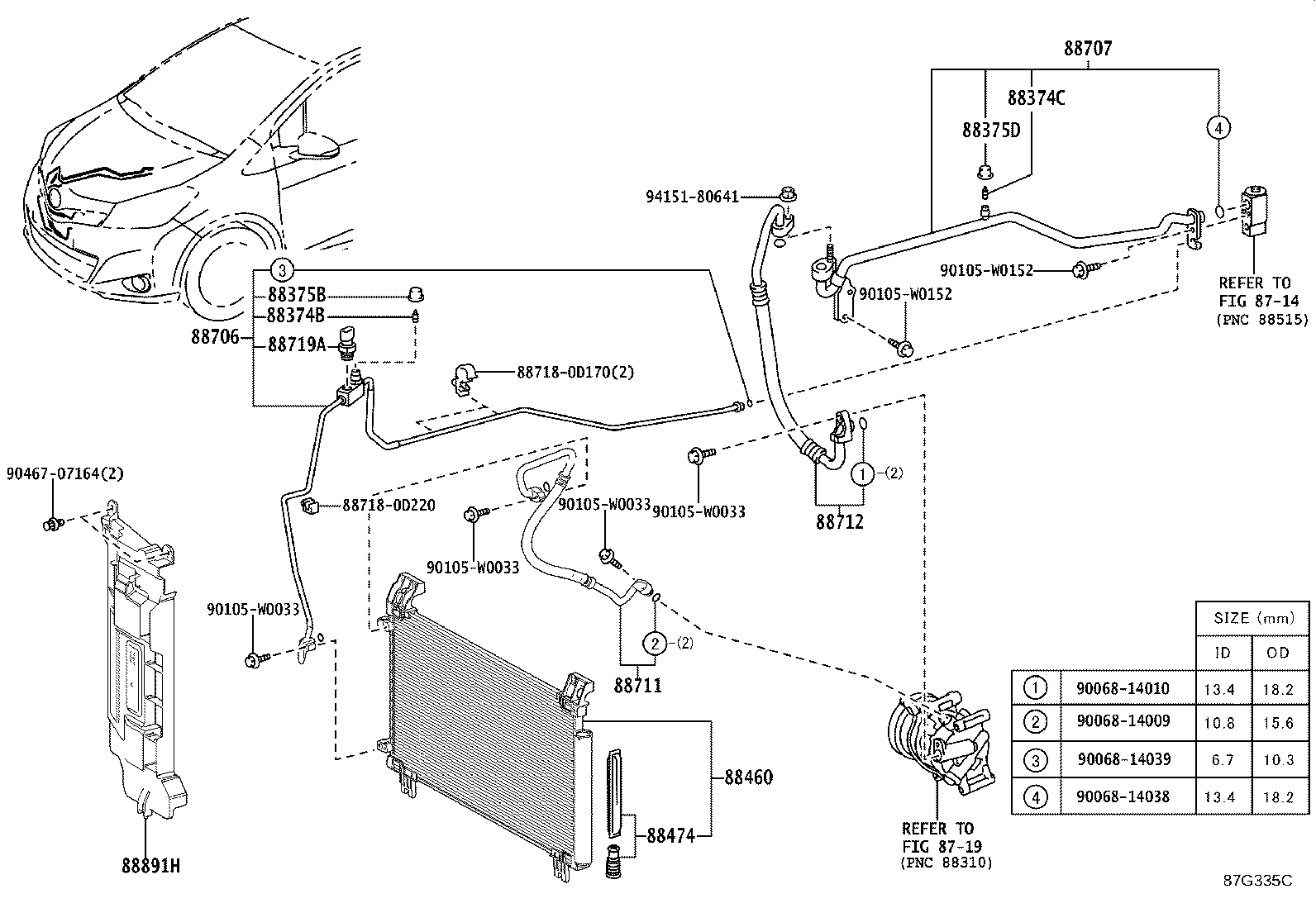

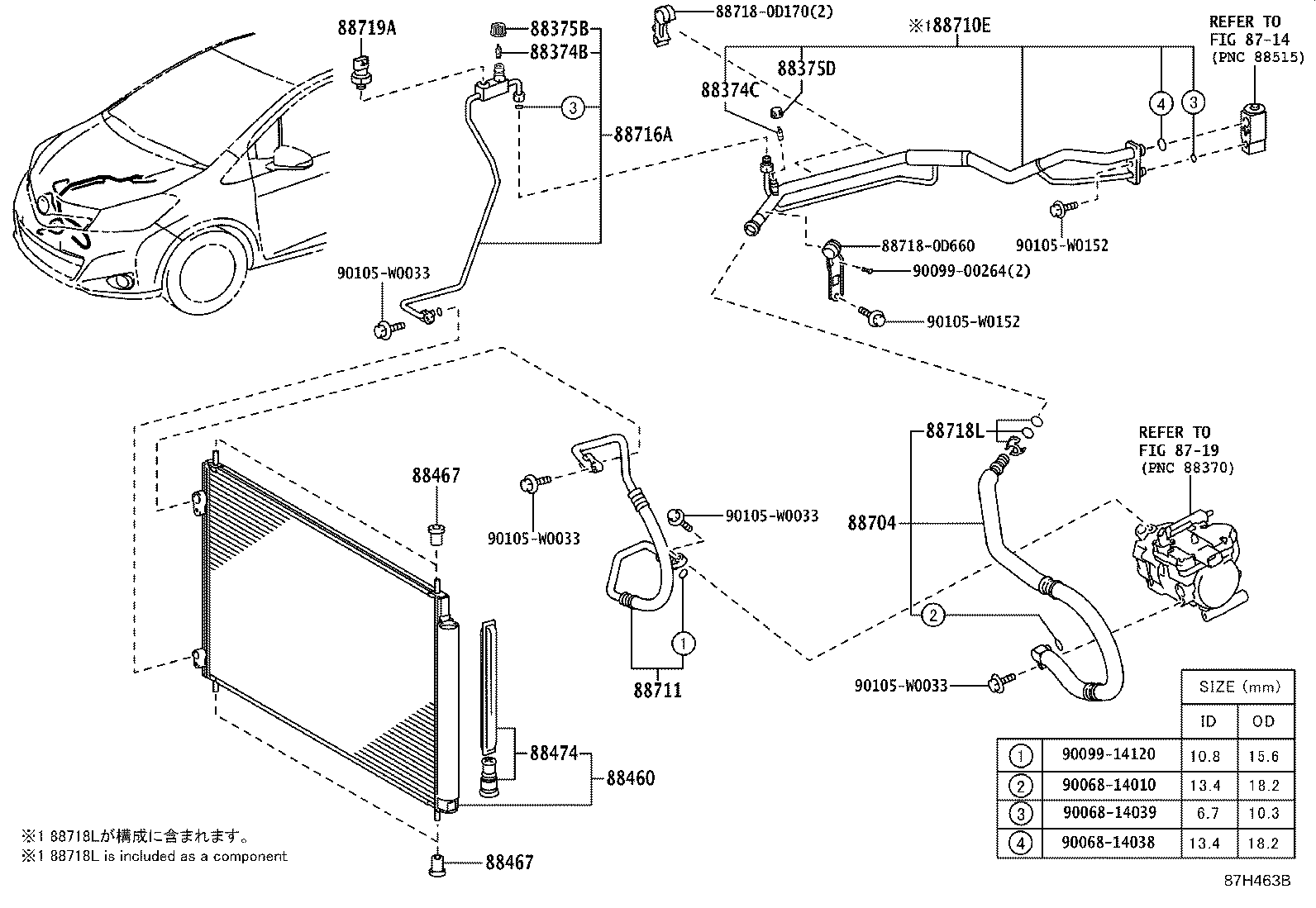

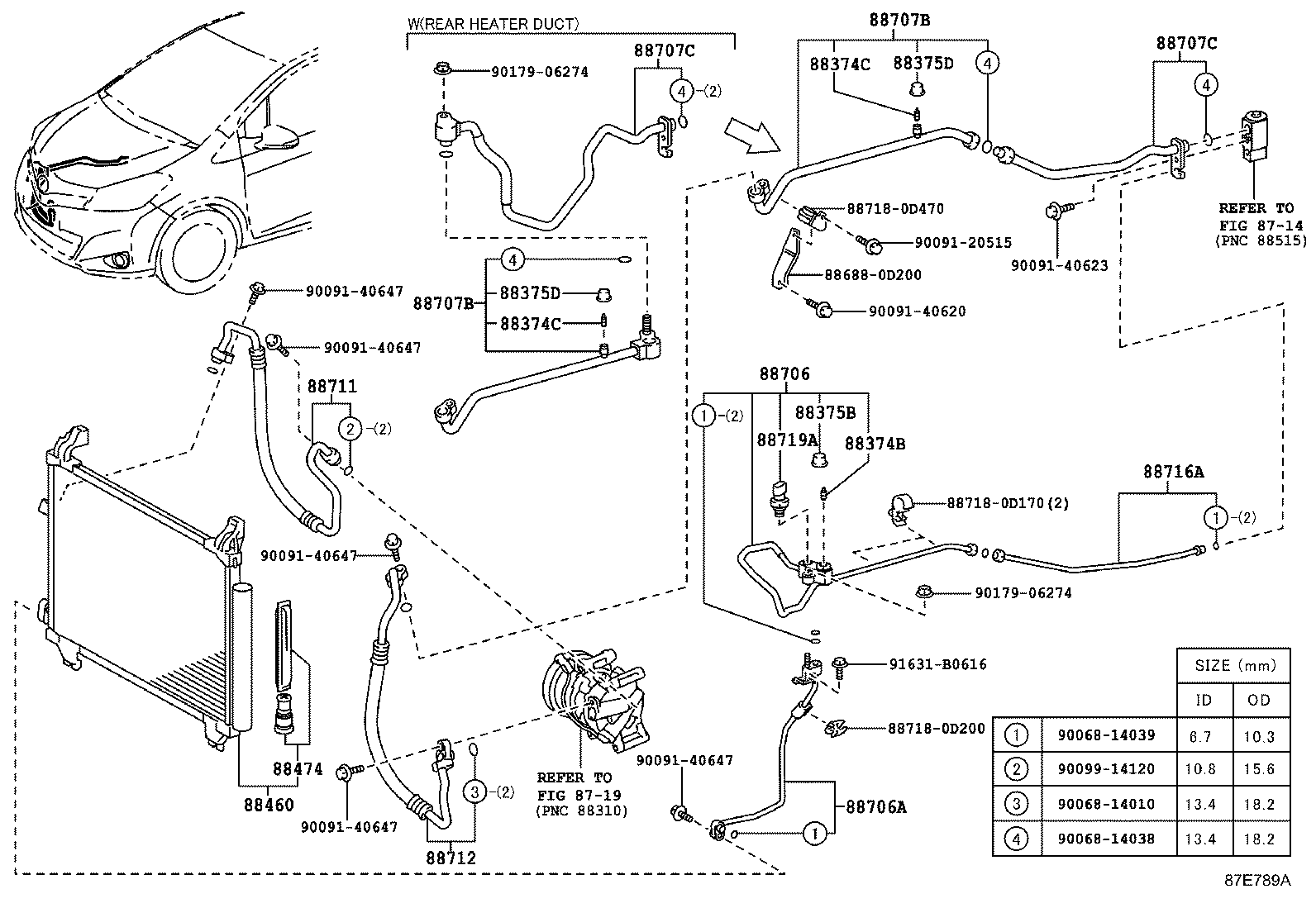

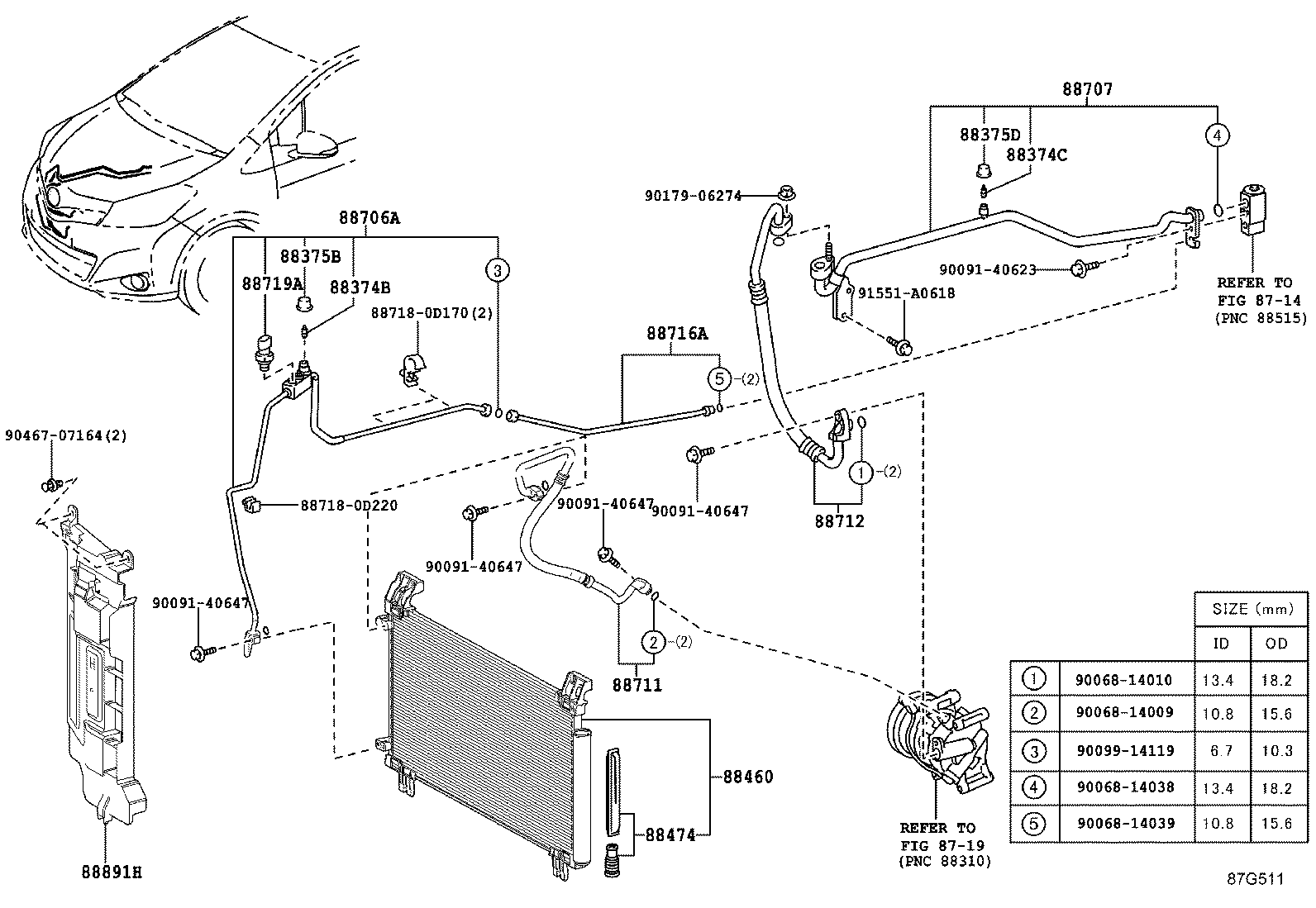

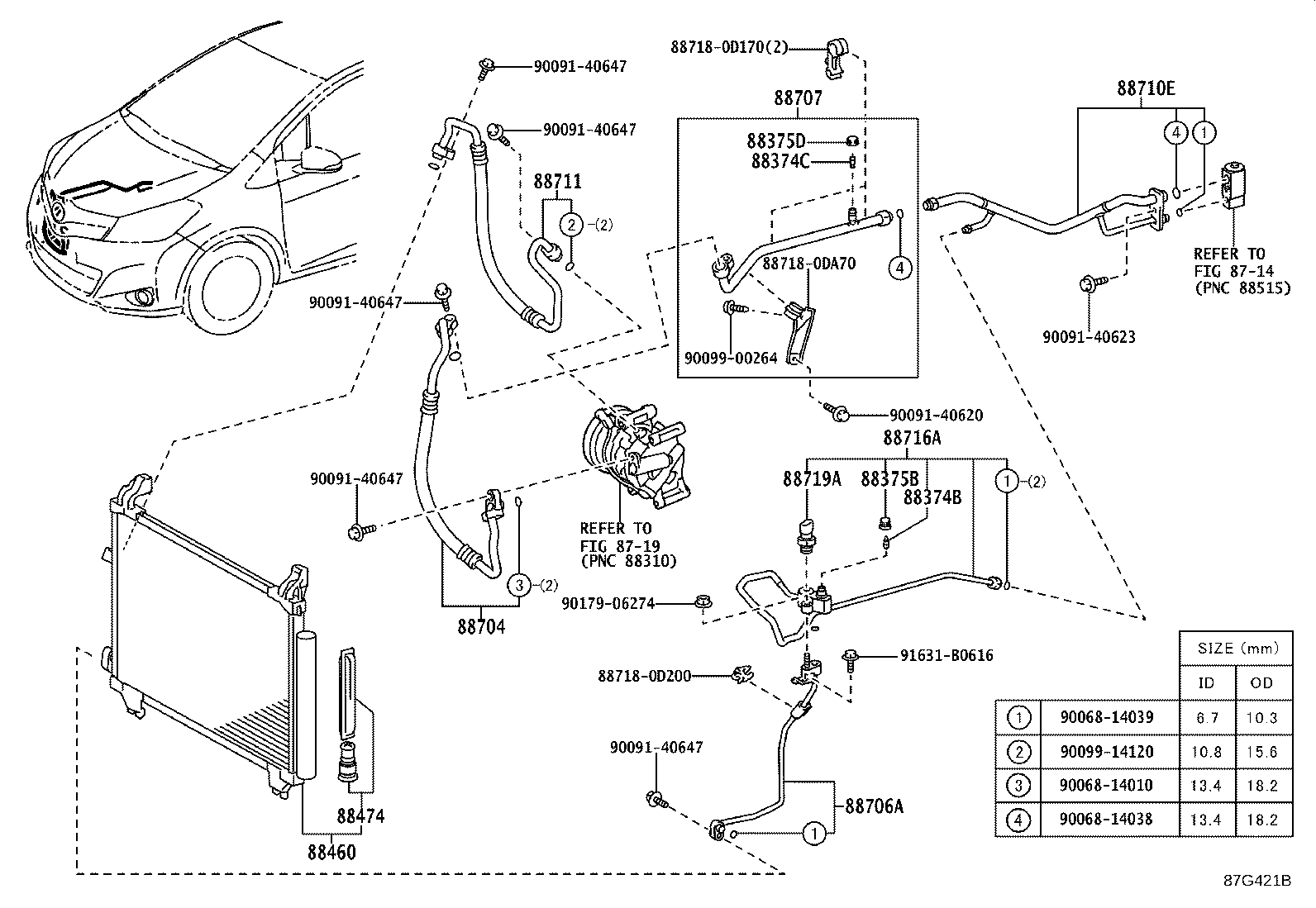

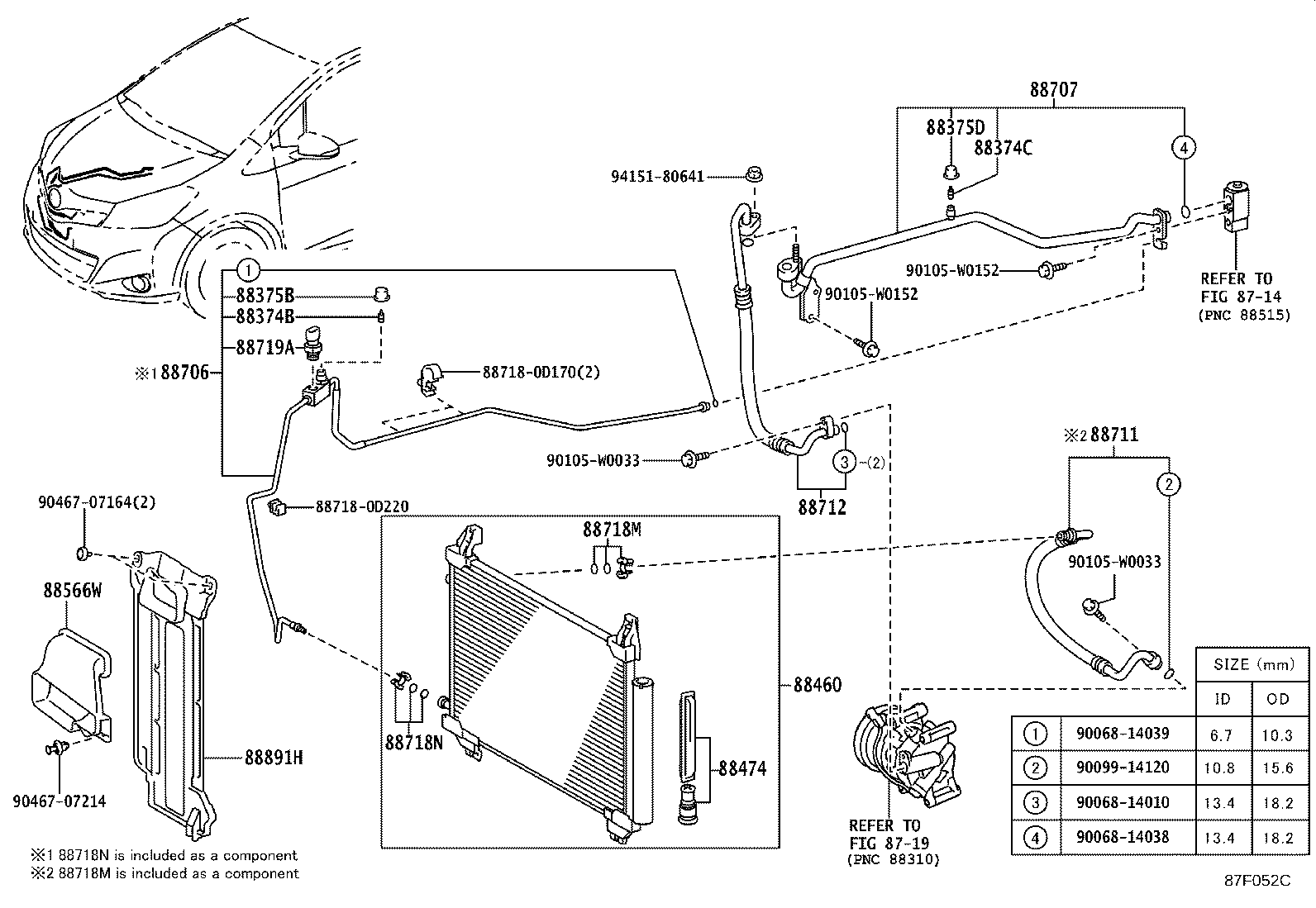

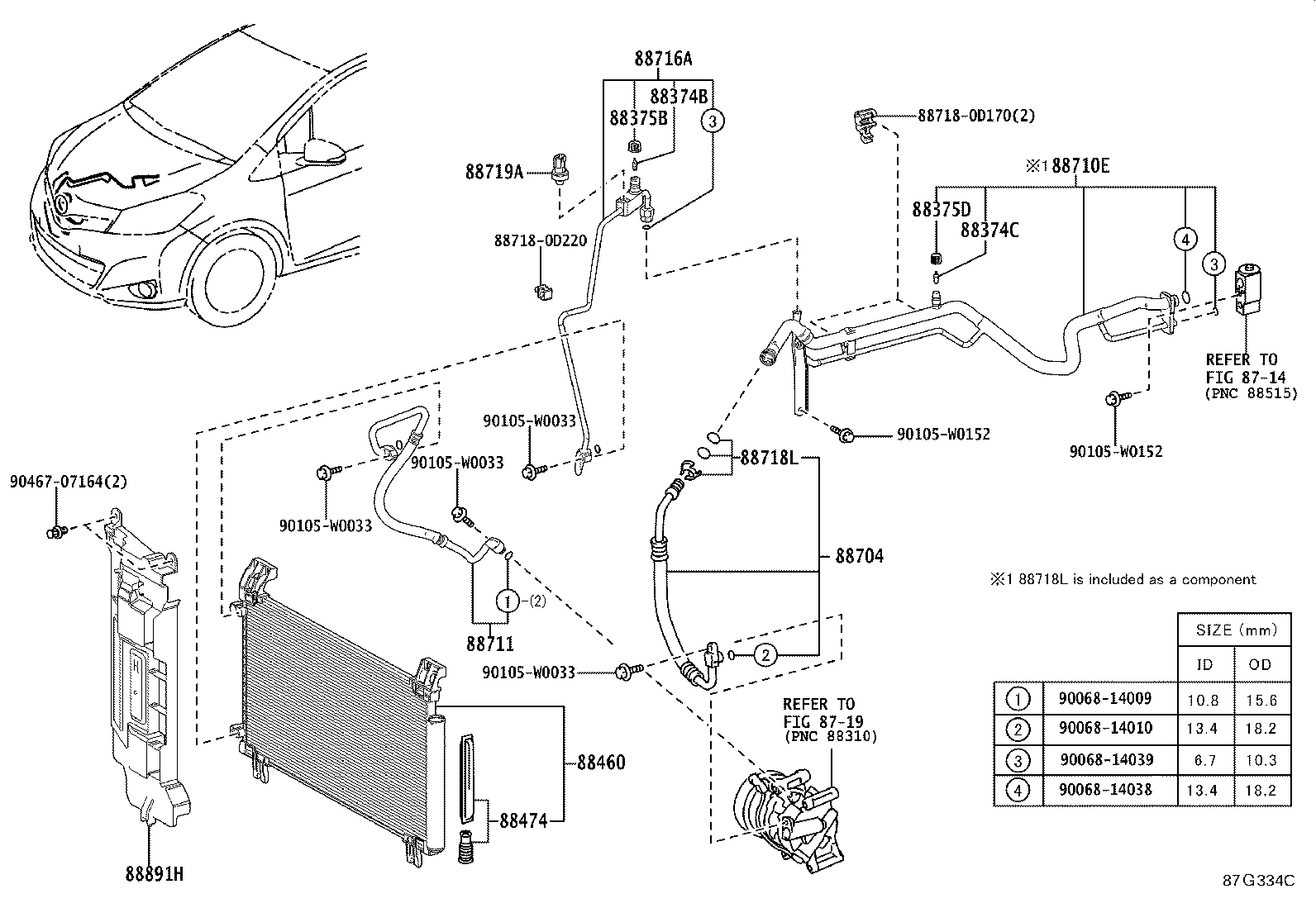

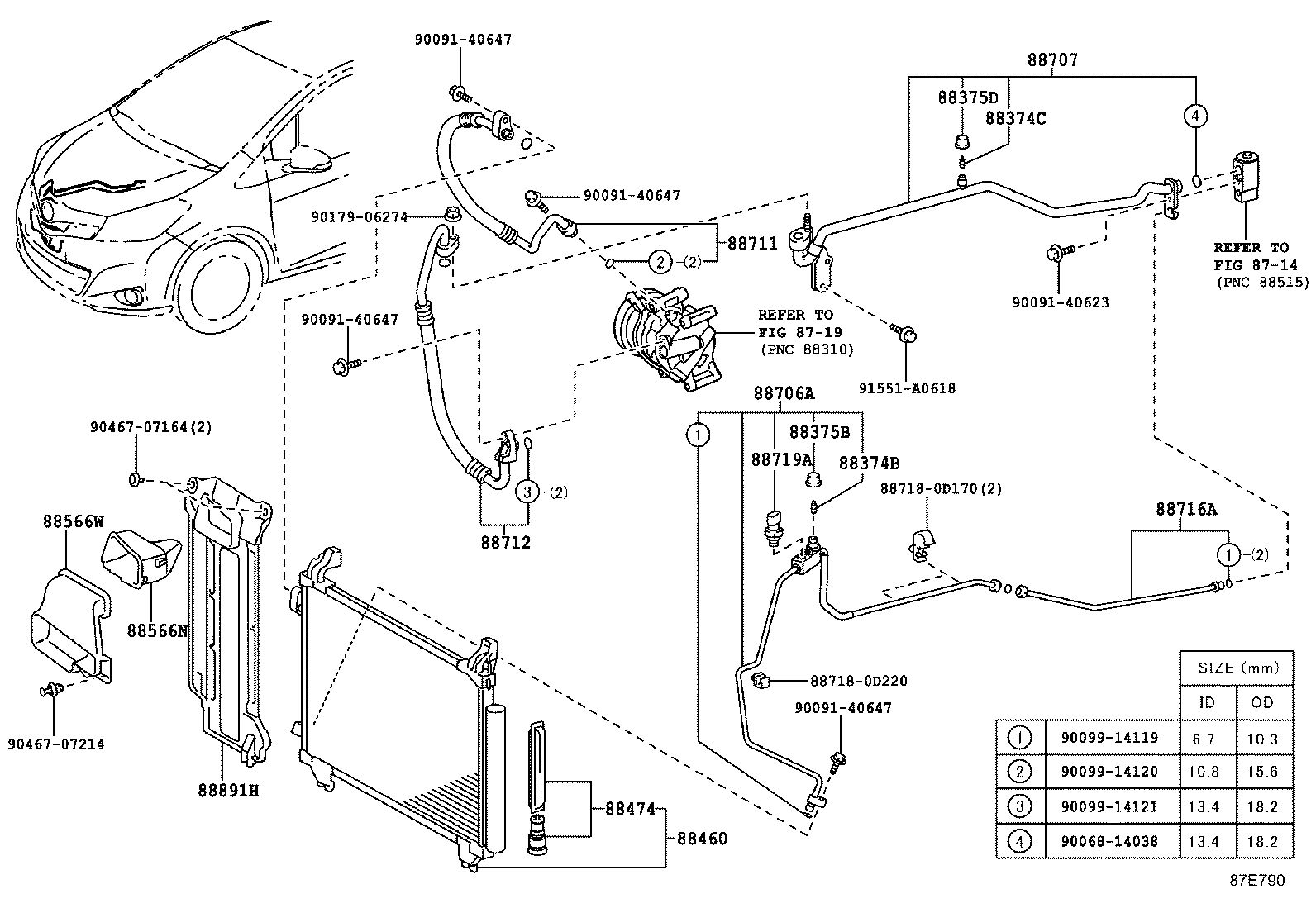

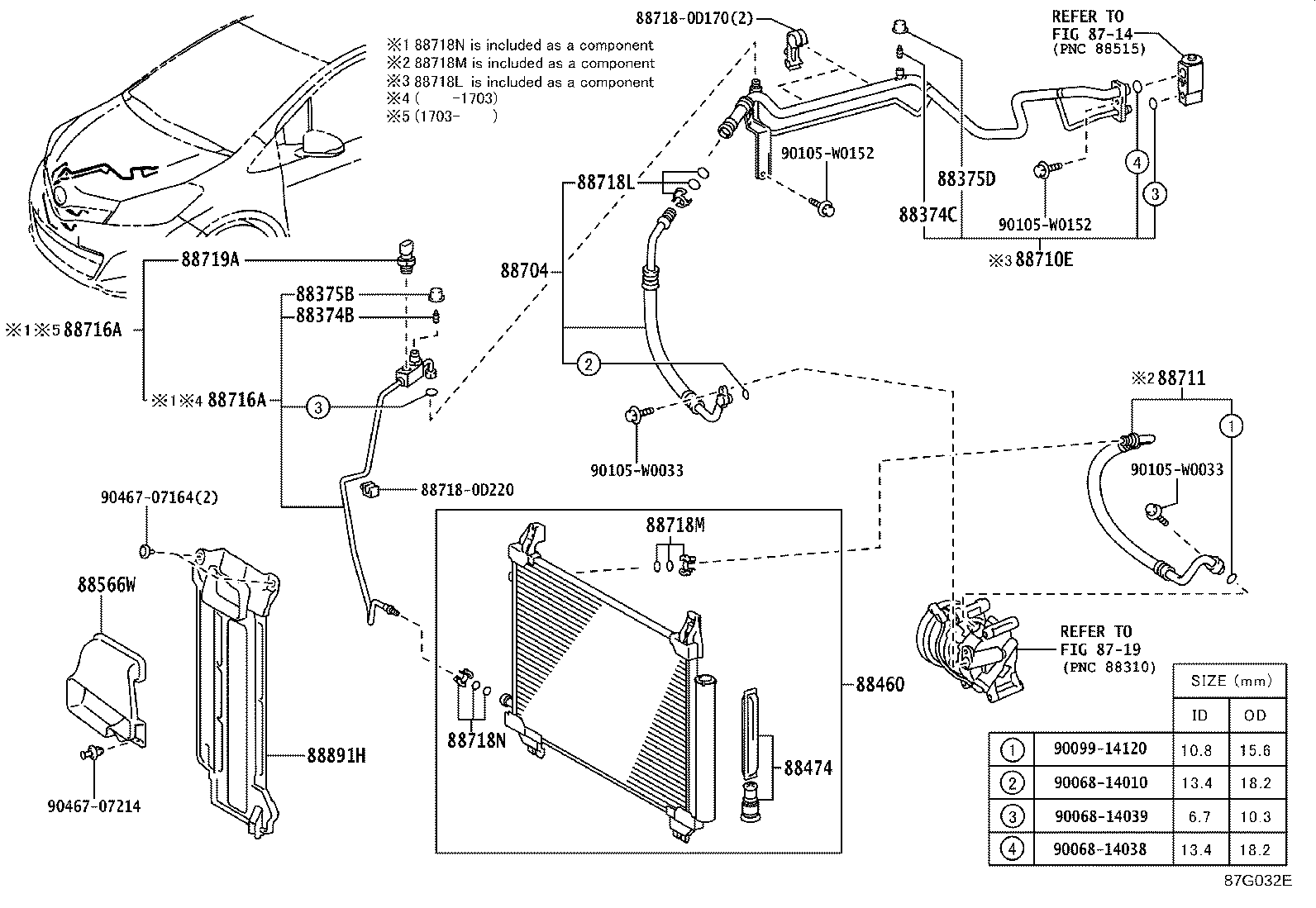

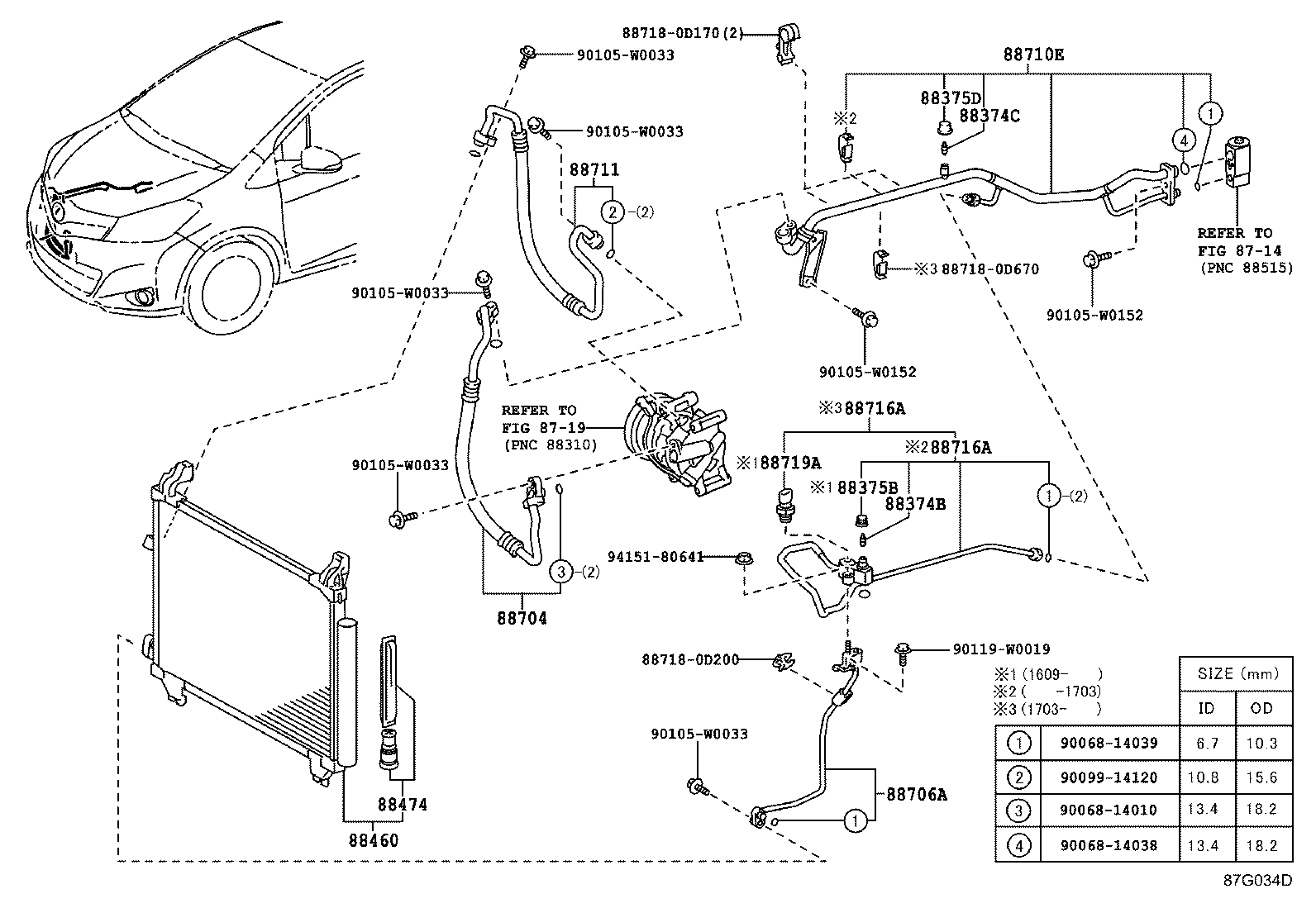

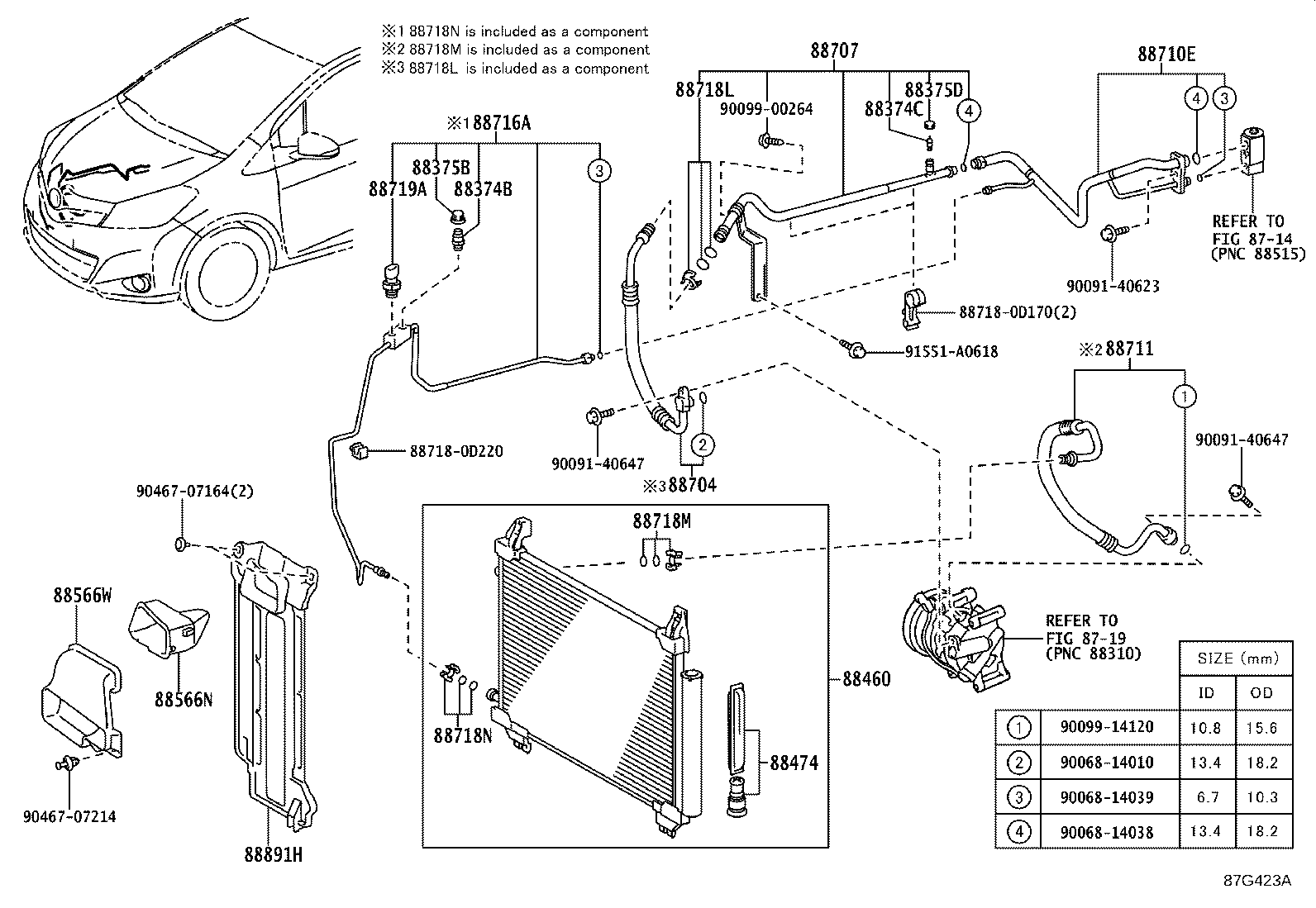

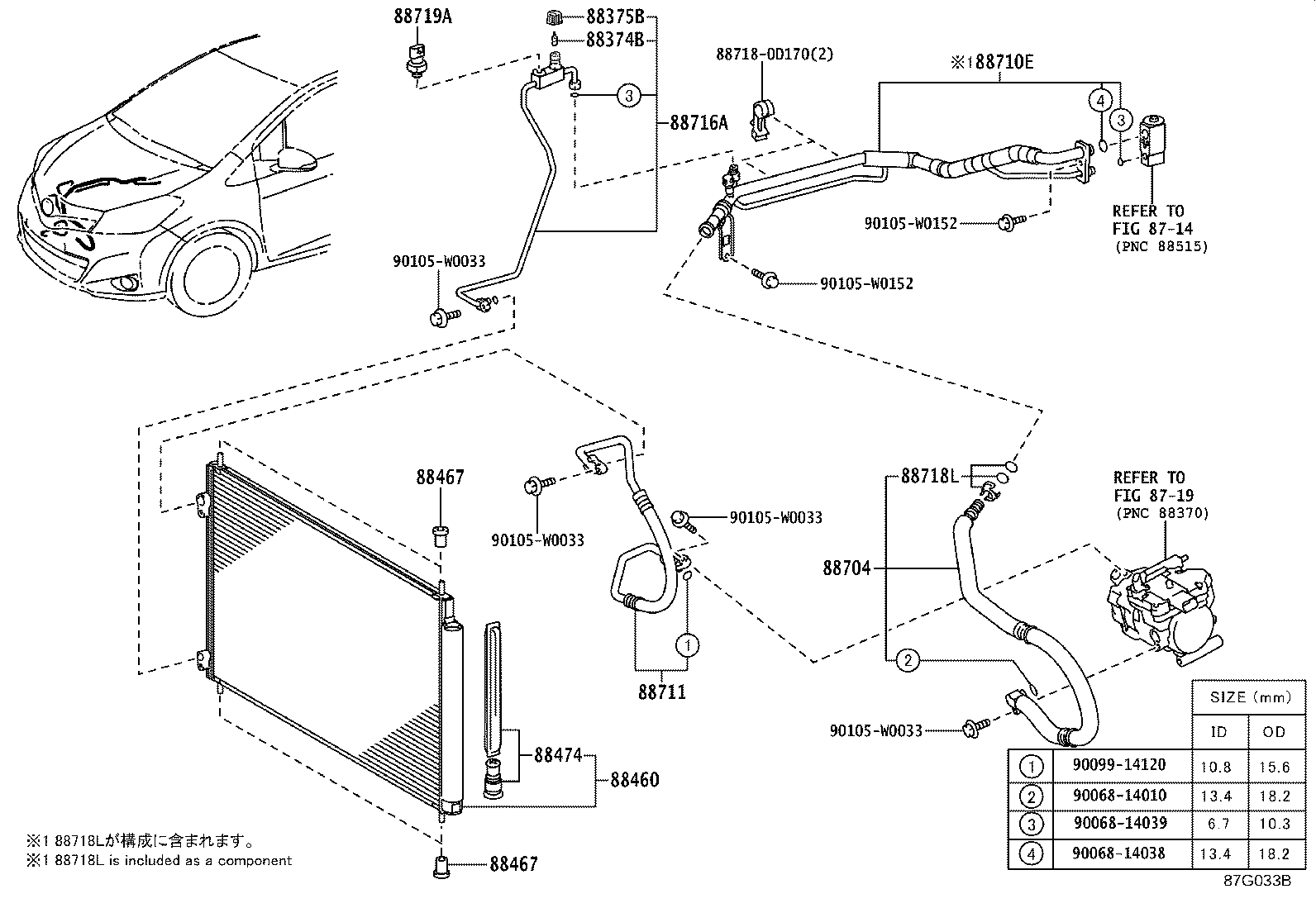

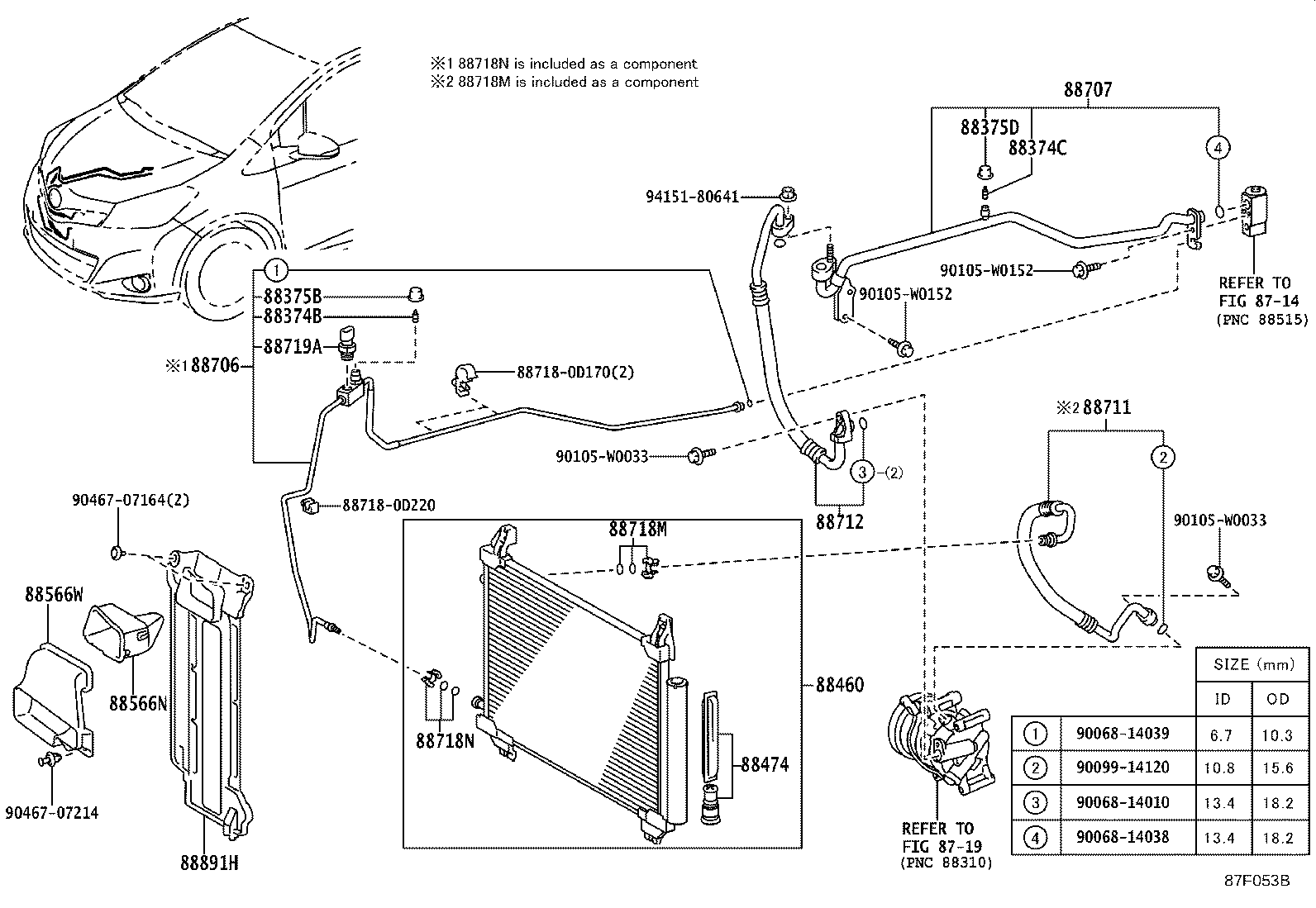

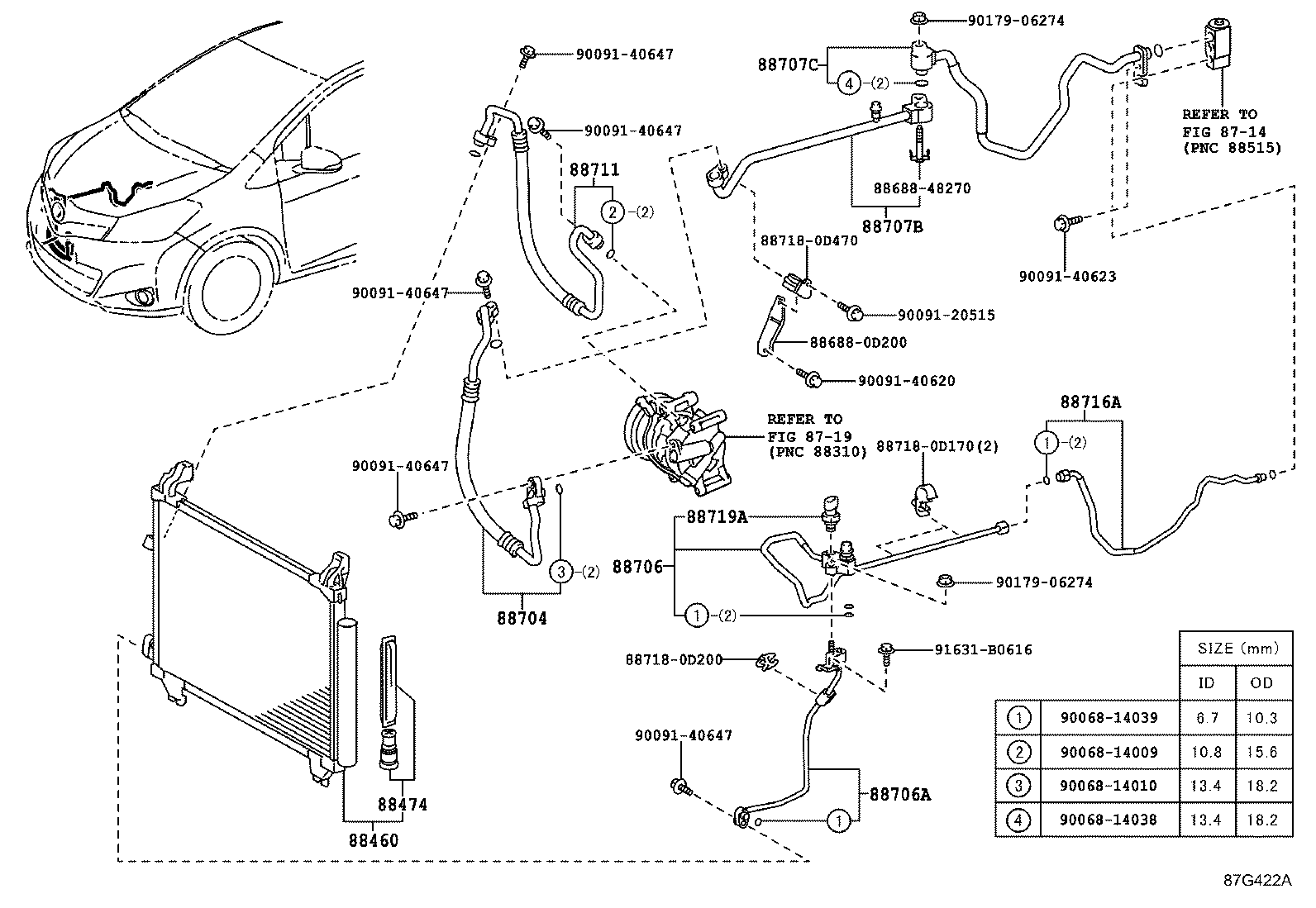

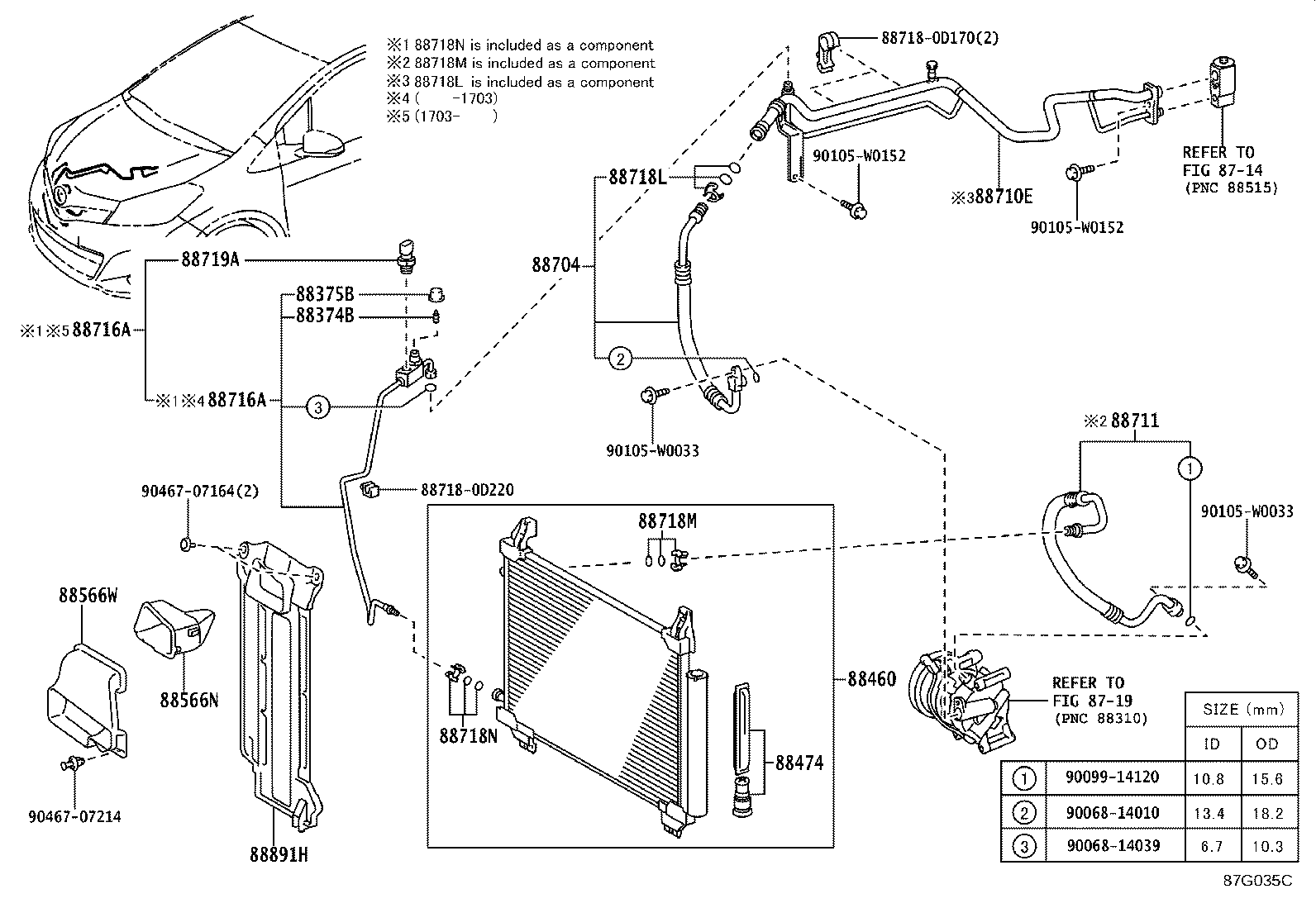

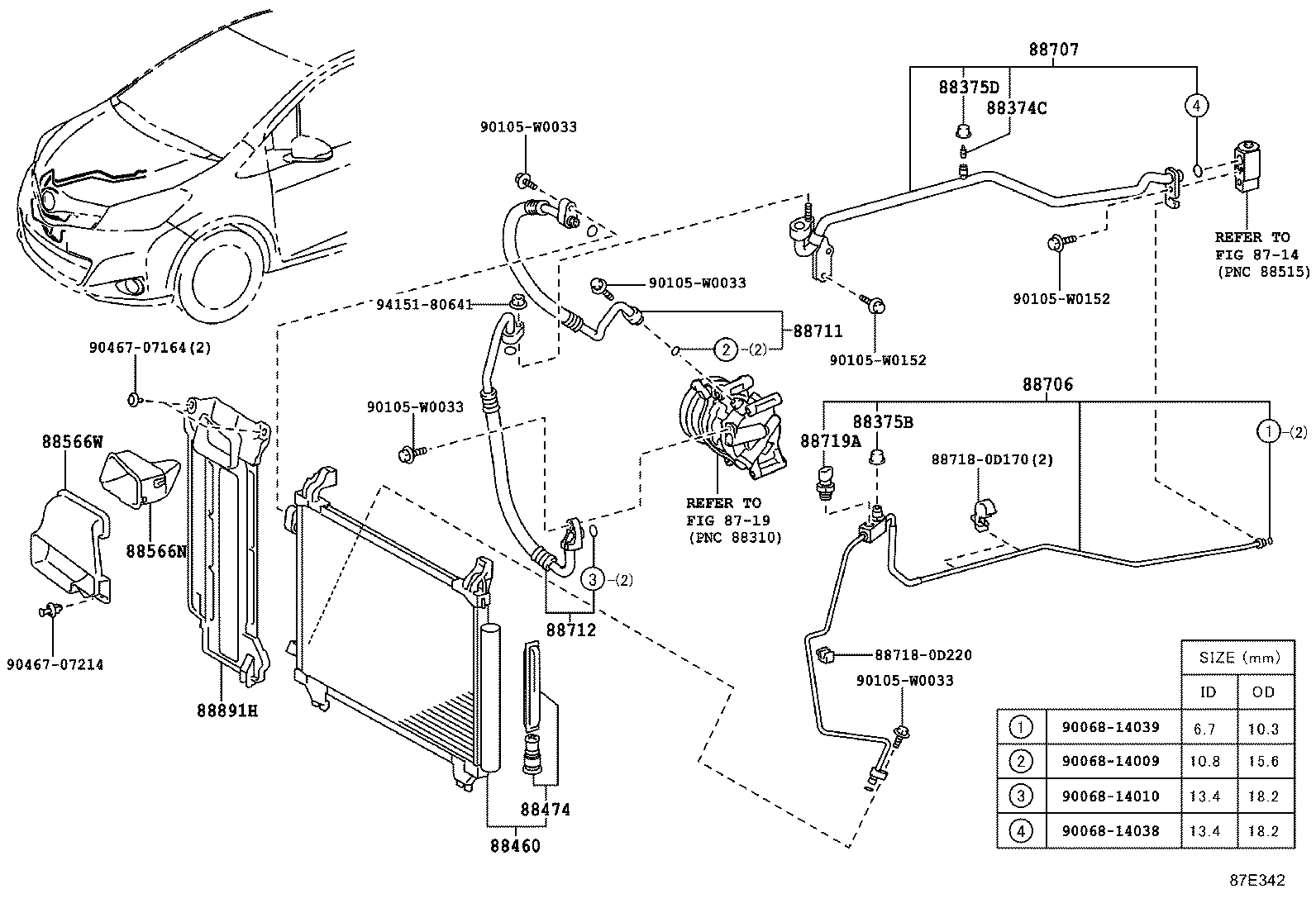

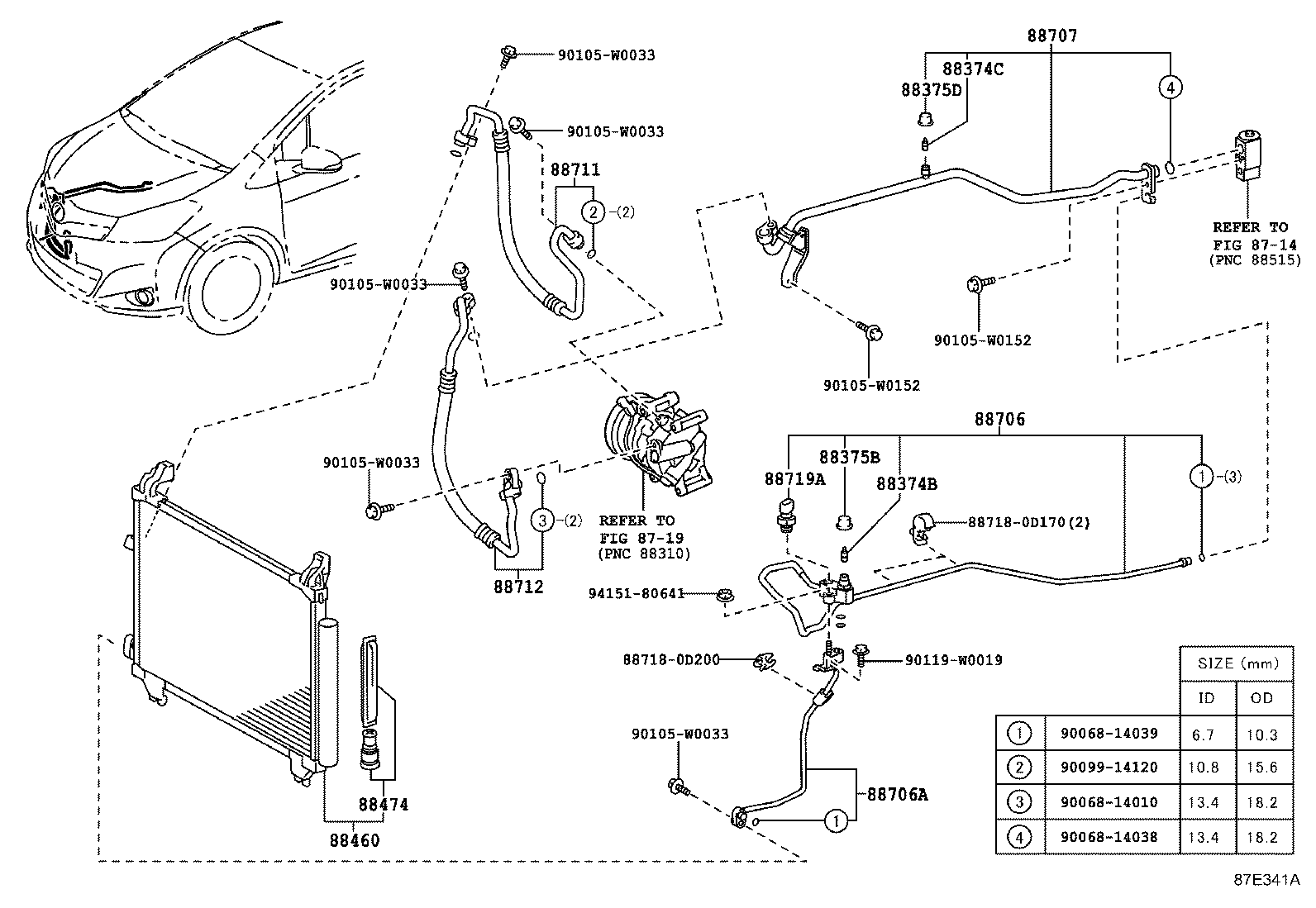

Figure 87E425 87E425 2014-07 → 2015-05 Figure 87F052C 87F052C 2015-05 → — Figure 87G032E 87G032E 2016-07 → — Figure 87E340C 87E340C 2014-07 → — Figure 87G033B 87G033B 2016-07 → 2018-06 Figure 87H463B 87H463B 2018-06 → — Figure 87E341A 87E341A 2014-07 → — Figure 87G034D 87G034D 2016-07 → — Figure 87E342 87E342 2014-07 → 2015-05 Figure 87F053B 87F053B 2015-05 → — Figure 87G035C 87G035C 2016-07 → — Figure 87G335C 87G335C 2017-03 → — Figure 87G334C 87G334C 2017-03 → — Figure 87E788A 87E788A 2014-07 → — Figure 87G420A 87G420A 2016-07 → — Figure 87E789A 87E789A 2014-07 → — Figure 87G421B 87G421B 2016-07 → — Figure 87G422A 87G422A 2016-07 → — Figure 87E790 87E790 2014-07 → — Figure 87G423A 87G423A 2016-07 → — Figure 87G511 87G511 2017-03 → — Figure 87G512B 87G512B 2017-03 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88566N Duct, Cooler Air, NO.1
88566W Duct, Cooler Air, NO.2
88704 Hose Sub-assy, Suction
88706 Pipe Sub-assy, Liquid
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88707C Tube Sub-assy, Suction, C
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
