Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

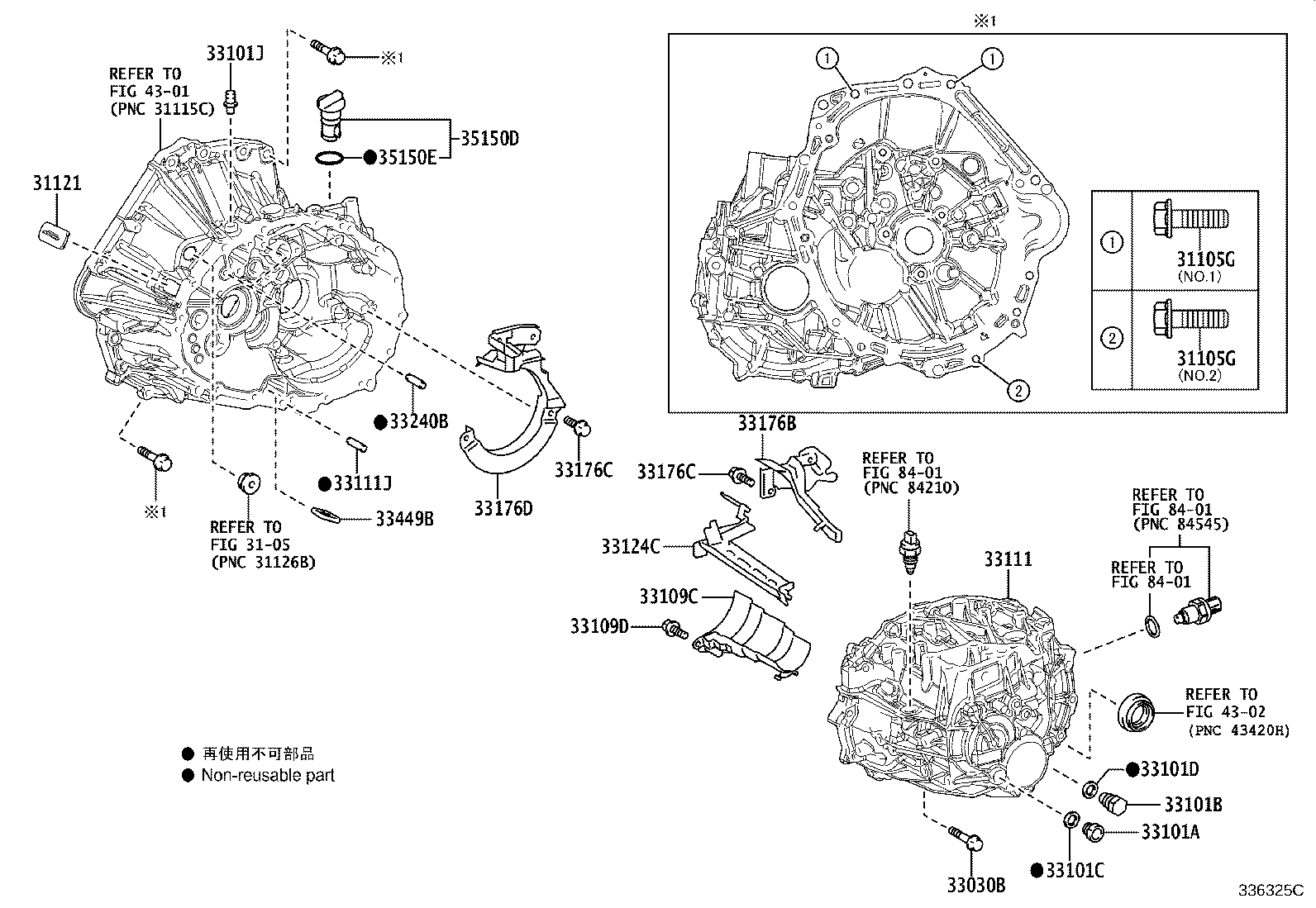

Exploded illustration 336325C 3105 — not listed in this catalogue 4301 — not listed in this catalogue 4302 — not listed in this catalogue 33176B — SEPARATOR, TRANSMISSION OIL(MTM) (4 parts) 33101A — PLUG(FOR MANUAL TRANSMISSION FILLER) (5 parts) 33101B — PLUG(FOR MANUAL TRANSMISSION DRAIN) (4 parts) 33101D — GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG) (4 parts) 33176D — SEPARATOR, TRANSMISSION OIL, NO.2(MTM) (4 parts) 33101C — GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) (8 parts) 33101J — PLUG, BREATHER (4 parts) 33111 — CASE, MANUAL TRANSMISSION (67 parts) 33109C — SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL (4 parts) 33124C — PIPE, OIL RECEIVER, NO.1(MTM) (7 parts) 33109D — BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR) (8 parts) 33176C — BOLT(FOR TRANSMISSION OIL SEPARATOR) (8 parts) 33030B — BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) (17 parts) 33449B — MAGNET, TRANSMISSION (4 parts) 33240B — PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET) (4 parts) 33176C — BOLT(FOR TRANSMISSION OIL SEPARATOR) (8 parts) 33111J — PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) (4 parts) 31121 — COVER, CLUTCH HOUSING, NO.1 (7 parts) 31105G — BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) (17 parts) 31105G — BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) (17 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 35150D — PLUG ASSY, TRANSMISSION CASE (4 parts) 35150E — RING, O (FOR TRANSMISSION CASE PLUG) (4 parts)
336325C · 22 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
188 parts on this figure
Part number Description Fitment Price
31105G — Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10591 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
90105-10591 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2024-01 ended
MXPA11 6F N —
90105-10591 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90105-W0092 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
90105-W0092 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90105-W0092 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2024-01 ended
MXPA11 6F N —
90105-W0142 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2021-05 ended
KSP211 G —
90105-W0142 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2022-05 ended
KSP211 RHD R —
90105-W0142 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → —
KSP211 RHD N;KSP211 LHD +1 —
90119-W0097 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2021-05 ended
KSP211 G —
90119-W0097 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → —
KSP211 RHD N;KSP211 LHD +1 —
90119-W0097 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2022-05 ended
KSP211 RHD R —
90119-W0158 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2022-05 ended
KSP211 RHD R —
90119-W0158 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → 2021-05 ended
KSP211 G —
90119-W0158 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2020-07 → —
KSP211 RHD N;KSP211 LHD +1 —
90105-10591 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2024-01 → 2024-07 ended
MXPA11 6F N —
90105-W0092 note Bolt(FOR TRANSAXLE CASE & ENGINE SETTING)
2024-01 → 2024-07 ended
MXPA11 6F N —
31121 — Cover, Clutch Housing, NO.1
31121-05010 Cover, Clutch Housing, NO.1
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
31121-05010 Cover, Clutch Housing, NO.1
2020-07 → 2024-01 ended
MXPA11 6F N —
31121-05010 Cover, Clutch Housing, NO.1
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
31121-0H011 Cover, Clutch Housing, NO.1
2020-07 → 2021-05 ended
KSP211 G —
31121-0H011 Cover, Clutch Housing, NO.1
2020-07 → —
KSP211 RHD N;KSP211 LHD +1 —
31121-0H011 Cover, Clutch Housing, NO.1
2020-07 → 2022-05 ended
KSP211 RHD R —
31121-05010 Cover, Clutch Housing, NO.1
2024-01 → 2024-07 ended
MXPA11 6F N —
33030B — Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08261 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2021-05 ended
KSP211 G —
90105-08261 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2022-05 ended
KSP211 RHD R —
90105-08261 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → —
KSP211 RHD N;KSP211 LHD +1 —
90105-W0209 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
90105-W0209 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2024-01 ended
MXPA11 6F N —
90105-W0209 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90105-W0225 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2021-05 ended
KSP211 G —
90105-W0225 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2022-05 ended
KSP211 RHD R —
90105-W0225 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → —
KSP211 RHD N;KSP211 LHD +1 —
90105-W0226 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2022-05 ended
KSP211 RHD R —
90105-W0226 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → —
KSP211 RHD N;KSP211 LHD +1 —
90105-W0226 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2021-05 ended
KSP211 G —
91551-10840 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
91551-10840 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
91551-10840 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2020-07 → 2024-01 ended
MXPA11 6F N —
90105-W0209 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2024-01 → 2024-07 ended
MXPA11 6F N —
91551-10840 note Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
2024-01 → 2024-07 ended
MXPA11 6F N —
33101A — Plug(FOR MANUAL TRANSMISSION FILLER)
90341-18033 Plug(FOR MANUAL TRANSMISSION FILLER)
2020-07 → 2021-05 ended
KSP211 G —
90341-18033 Plug(FOR MANUAL TRANSMISSION FILLER)
2020-07 → 2022-05 ended
KSP211 RHD R;MXPA11 RHD +2 —
90341-18033 Plug(FOR MANUAL TRANSMISSION FILLER)
2020-07 → 2024-01 ended
MXPA11 6F N —
90341-18033 Plug(FOR MANUAL TRANSMISSION FILLER)
2020-07 → —
KSP211 RHD N;MXPA11 6F +6 —
90341-18033 Plug(FOR MANUAL TRANSMISSION FILLER)
2024-01 → 2024-07 ended
MXPA11 6F N —
33101B — Plug(FOR MANUAL TRANSMISSION DRAIN)
90341-18085 Plug(FOR MANUAL TRANSMISSION DRAIN)
2020-07 → 2024-01 ended
MXPA11 6F N —
90341-18085 Plug(FOR MANUAL TRANSMISSION DRAIN)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90341-18085 Plug(FOR MANUAL TRANSMISSION DRAIN)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
90341-18085 Plug(FOR MANUAL TRANSMISSION DRAIN)
2024-01 → 2024-07 ended
MXPA11 6F N —
33101C — Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
12157-10010 Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
12157-10010 Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2020-07 → 2024-01 ended
MXPA11 6F N —
12157-10010 Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90430-A0003 Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2023-03 → —
KSP211 —
90430-W0001 Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2020-07 → 2021-05 ended
KSP211 G —
90430-W0001 Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2020-07 → 2022-05 ended
KSP211 RHD R —
90430-W0001 Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2020-07 → 2023-03 ended
KSP211 RHD N;KSP211 LHD +1 —
12157-10010 Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
2024-01 → 2024-07 ended
MXPA11 6F N —
33101D — Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
12157-10010 Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2020-07 → 2024-01 ended
MXPA11 6F N —
12157-10010 Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
12157-10010 Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
12157-10010 Gasket(FOR MANUAL TRANSMISSION DRAIN PLUG)
2024-01 → 2024-07 ended
MXPA11 6F N —
33101J — Plug, Breather
90930-03133 Plug, Breather
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
90930-03133 Plug, Breather
2020-07 → 2024-01 ended
MXPA11 6F N —
90930-03133 Plug, Breather
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90930-03133 Plug, Breather
2024-01 → 2024-07 ended
MXPA11 6F N —
33109C — Separator Sub-assy, Manual Transmission Oil
33109-K0010 Separator Sub-assy, Manual Transmission Oil
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
33109-K0010 Separator Sub-assy, Manual Transmission Oil
2020-07 → 2024-01 ended
MXPA11 6F N —
33109-K0010 Separator Sub-assy, Manual Transmission Oil
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
33109-K0010 Separator Sub-assy, Manual Transmission Oil
2024-01 → 2024-07 ended
MXPA11 6F N —
33109D — Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
90105-W0035 note Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90105-W0035 note Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2020-07 → 2024-01 ended
MXPA11 6F N —
90105-W0035 note Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
91551-80816 note Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
91551-80816 note Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2020-07 → 2024-01 ended
MXPA11 6F N —
91551-80816 note Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90105-W0035 note Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2024-01 → 2024-07 ended
MXPA11 6F N —
91551-80816 note Bolt(FOR MANUAL TRANSMISSION OIL SEPARATOR)
2024-01 → 2024-07 ended
MXPA11 6F N —
33111 — Case, Manual Transmission
33111-0D030 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D030 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D030 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D030 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D030 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D030 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D030 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D030 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D030 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D030 note Case, Manual Transmission
2022-05 → —
KSP211 LHD FRP —
33111-0D030 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D030 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D030 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D030 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D030 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D030 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D030 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D030 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D030 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D070 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D070 Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 G —
33111-0D070 Case, Manual Transmission
2020-07 → 2022-05 ended
KSP211 RHD R —
33111-0D070 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D070 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D070 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D070 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D070 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D070 note Case, Manual Transmission
2020-07 → —
KSP211 LHD (N,R) FRP —
33111-0D070 Case, Manual Transmission
2020-07 → —
KSP211 RHD N;KSP211 LHD +1 —
33111-0D070 note Case, Manual Transmission
2020-07 → 2021-05 ended
KSP211 LHD G —
33111-0D140 Case, Manual Transmission
2022-03 → —
MXPA11 V —
33111-K0010 Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 6F N —
33111-K0010 Case, Manual Transmission
2020-07 → —
MXPA11 6F S;MXPA11 LHD +2 —
33111-K0010 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0010 Case, Manual Transmission
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
33111-K0010 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0010 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → —
MXPA11 LHD 6F (G,S) +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0020 note Case, Manual Transmission
2020-07 → 2024-01 ended
MXPA11 LHD 6F N +1 —
33111-K0010 Case, Manual Transmission
2024-01 → 2024-07 ended
MXPA11 6F N —
33111J — Pin, Straight(FOR MANUAL TRANSMISSION CASE)
90250-08054 note Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
90250-08054 note Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2020-07 → 2024-01 ended
MXPA11 6F N —
90250-08054 note Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90250-08054 note Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2024-01 → 2024-07 ended
MXPA11 6F N —
33124C — Pipe, Oil Receiver, NO.1(MTM)
33124-0H010 Pipe, Oil Receiver, NO.1(MTM)
2020-07 → —
KSP211 RHD N;KSP211 LHD +1 —
33124-0H010 Pipe, Oil Receiver, NO.1(MTM)
2020-07 → 2022-05 ended
KSP211 RHD R —
33124-0H010 Pipe, Oil Receiver, NO.1(MTM)
2020-07 → 2021-05 ended
KSP211 G —
33124-K0010 Pipe, Oil Receiver, NO.1(MTM)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
33124-K0010 Pipe, Oil Receiver, NO.1(MTM)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
33124-K0010 Pipe, Oil Receiver, NO.1(MTM)
2020-07 → 2024-01 ended
MXPA11 6F N —
33124-K0010 Pipe, Oil Receiver, NO.1(MTM)
2024-01 → 2024-07 ended
MXPA11 6F N —
33176B — Separator, Transmission Oil(MTM)
33176-0D020 Separator, Transmission Oil(MTM)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
33176-0D020 Separator, Transmission Oil(MTM)
2020-07 → 2024-01 ended
MXPA11 6F N —
33176-0D020 Separator, Transmission Oil(MTM)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
33176-0D020 Separator, Transmission Oil(MTM)
2024-01 → 2024-07 ended
MXPA11 6F N —
33176C — Bolt(FOR TRANSMISSION OIL SEPARATOR)
90105-W0035 note Bolt(FOR TRANSMISSION OIL SEPARATOR)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
90105-W0035 note Bolt(FOR TRANSMISSION OIL SEPARATOR)
2020-07 → 2024-01 ended
MXPA11 6F N —
90105-W0035 note Bolt(FOR TRANSMISSION OIL SEPARATOR)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
91551-80816 note Bolt(FOR TRANSMISSION OIL SEPARATOR)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
91551-80816 note Bolt(FOR TRANSMISSION OIL SEPARATOR)
2020-07 → 2024-01 ended
MXPA11 6F N —
91551-80816 note Bolt(FOR TRANSMISSION OIL SEPARATOR)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90105-W0035 note Bolt(FOR TRANSMISSION OIL SEPARATOR)
2024-01 → 2024-07 ended
MXPA11 6F N —
91551-80816 note Bolt(FOR TRANSMISSION OIL SEPARATOR)
2024-01 → 2024-07 ended
MXPA11 6F N —
33176D — Separator, Transmission Oil, NO.2(MTM)
33176-0D030 Separator, Transmission Oil, NO.2(MTM)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
33176-0D030 Separator, Transmission Oil, NO.2(MTM)
2020-07 → 2024-01 ended
MXPA11 6F N —
33176-0D030 Separator, Transmission Oil, NO.2(MTM)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
33176-0D030 Separator, Transmission Oil, NO.2(MTM)
2024-01 → 2024-07 ended
MXPA11 6F N —
33240B — Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
90250-08054 Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
90250-08054 Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2020-07 → 2024-01 ended
MXPA11 6F N —
90250-08054 Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90250-08054 Pin, Straight(FOR REVERSE SHIFT ARM BRACKET)
2024-01 → 2024-07 ended
MXPA11 6F N —
33449B — Magnet, Transmission
33449-20010 Magnet, Transmission
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
33449-20010 Magnet, Transmission
2020-07 → 2024-01 ended
MXPA11 6F N —
33449-20010 Magnet, Transmission
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
33449-20010 Magnet, Transmission
2024-01 → 2024-07 ended
MXPA11 6F N —
35150D — Plug Assy, Transmission Case
35150-44010 Plug Assy, Transmission Case
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
35150-44010 Plug Assy, Transmission Case
2020-07 → 2024-01 ended
MXPA11 6F N —
35150-44010 Plug Assy, Transmission Case
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
35150-44010 Plug Assy, Transmission Case
2024-01 → 2024-07 ended
MXPA11 6F N —
35150E — Ring, O (FOR TRANSMISSION CASE PLUG)
90301-09173 Ring, O (FOR TRANSMISSION CASE PLUG)
2020-07 → 2022-05 ended
MXPA11 RHD 6F G —
90301-09173 Ring, O (FOR TRANSMISSION CASE PLUG)
2020-07 → 2024-01 ended
MXPA11 6F N —
90301-09173 Ring, O (FOR TRANSMISSION CASE PLUG)
2020-07 → —
MXPA11 6F (S,V);MXPA11 LHD +2 —
90301-09173 Ring, O (FOR TRANSMISSION CASE PLUG)
2024-01 → 2024-07 ended
MXPA11 6F N —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
