Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

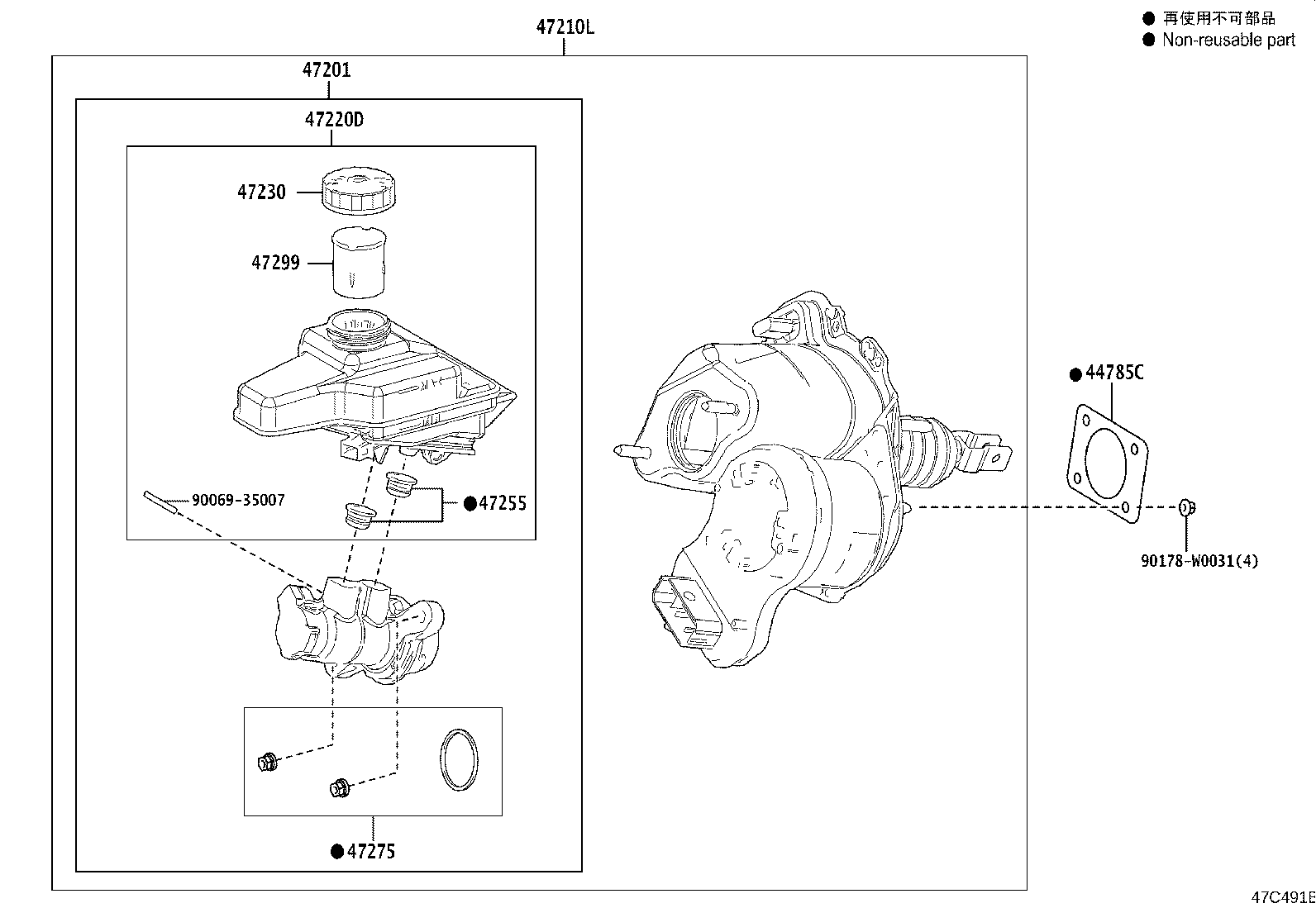

Exploded illustration 47C491B 47275 — GASKET, BRAKE MASTER CYLINDER (9 parts) 47299 — STRAINER, BRAKE MASTER CYLINDER RESERVOIR (4 parts) 47220D — RESERVOIR ASSY, BRAKE MASTER CYLINDER (16 parts) 47230 — CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER (9 parts) 9006935007 — not listed in this catalogue 47201 — CYLINDER SUB-ASSY, BRAKE MASTER (16 parts) 47210L — BRAKE BOOSTER ASSY, W/MASTER CYLINDER (9 parts) 47255 — GROMMET, MASTER CYLINDER RESERVOIR (9 parts) 44785C — GASKET, BRAKE BOOSTER (4 parts) 90178W0031 — not listed in this catalogue
47C491B · 8 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
44785C — Gasket, Brake Booster
44785-K0010 Gasket, Brake Booster
2020-07 → 2024-01 ended
MXPH11 N,S,V;MXPH11 LHD R +1 —
44785-K0010 Gasket, Brake Booster
2020-07 → —
MXPH11 G;MXPH11 R CZEP —
44785-K0010 Gasket, Brake Booster
2020-07 → 2022-05 ended
MXPH11 RHD R —
44785-K0010 Gasket, Brake Booster
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
47201 — Cylinder Sub-assy, Brake Master
47201-K9005 Cylinder Sub-assy, Brake Master
2020-07 → 2024-01 ended
MXPH11 LHD R FRP;MXPH11 +2 —
47201-K9005 Cylinder Sub-assy, Brake Master
2020-07 → —
MXPH11 (G,R) CZEP;MXPH11 LHD +2 —
47201-K9015 Cylinder Sub-assy, Brake Master
2020-07 → 2022-05 ended
MXPH11 RHD R —
47201-K9015 Cylinder Sub-assy, Brake Master
2020-07 → —
MXPH11 RHD G —
47201-K9015 Cylinder Sub-assy, Brake Master
2020-07 → 2024-01 ended
MXPH11 RHD (N,S,V) —
47201-K9025 Cylinder Sub-assy, Brake Master
2020-07 → 2024-01 ended
MXPA11 LHD N —
47201-K9025 Cylinder Sub-assy, Brake Master
2020-07 → —
KSP211 LHD (N,R);MXPA11 LHD +1 —
47201-K9025 Cylinder Sub-assy, Brake Master
2020-07 → 2021-05 ended
KSP211 LHD G —
47201-K9035 Cylinder Sub-assy, Brake Master
2020-07 → 2024-01 ended
MXPA11 RHD 6F N —
47201-K9035 Cylinder Sub-assy, Brake Master
2020-07 → 2022-05 ended
KSP211 RHD R;MXPA11 RHD +1 —
47201-K9035 Cylinder Sub-assy, Brake Master
2020-07 → 2021-05 ended
KSP211 RHD G —
47201-K9035 Cylinder Sub-assy, Brake Master
2020-07 → —
KSP211 RHD N;MXPA11 RHD +5 —
47201-09B80 Cylinder Sub-assy, Brake Master
2024-01 → —
MXPH11 R FRP;MXPH1# LHD +1 —
47201-K9015 Cylinder Sub-assy, Brake Master
2024-01 → —
MXPH1# RHD (N,S,V) —
47201-K9025 Cylinder Sub-assy, Brake Master
2024-01 → 2024-07 ended
MXPA11 LHD N —
47201-K9035 Cylinder Sub-assy, Brake Master
2024-01 → 2024-07 ended
MXPA11 RHD 6F N —
47210L — Brake Booster Assy, W/Master Cylinder
47210-0D030 note Brake Booster Assy, W/Master Cylinder
2022-03 → 2024-01 ended
MXPH11 LHD R FRP;MXPH11 +2 —
47210-0D030 note Brake Booster Assy, W/Master Cylinder
2022-03 → —
MXPH11 (G,R) CZEP;MXPH11 LHD +2 —
47210-0D040 note Brake Booster Assy, W/Master Cylinder
2022-03 → 2022-05 ended
MXPH11 RHD R —
47210-0D040 note Brake Booster Assy, W/Master Cylinder
2022-03 → 2024-01 ended
MXPH11 RHD (N,S,V) —
47210-0D040 note Brake Booster Assy, W/Master Cylinder
2022-03 → —
MXPH11 RHD G —
47210-K0010 note Brake Booster Assy, W/Master Cylinder
2020-07 → 2022-03 ended
MXPH11 LHD —
47210-K0020 note Brake Booster Assy, W/Master Cylinder
2020-07 → 2022-03 ended
MXPH11 RHD —
47210-0D060 Brake Booster Assy, W/Master Cylinder
2024-01 → —
MXPH11 R FRP;MXPH1# LHD +1 —
47210-0D070 Brake Booster Assy, W/Master Cylinder
2024-01 → —
MXPH1# RHD (N,S,V) —
47220D — Reservoir Assy, Brake Master Cylinder
47220-K0030 Reservoir Assy, Brake Master Cylinder
2020-07 → 2021-05 ended
KSP211 LHD G —
47220-K0030 Reservoir Assy, Brake Master Cylinder
2020-07 → —
KSP211 LHD (N,R);MXPA11 LHD +1 —
47220-K0030 Reservoir Assy, Brake Master Cylinder
2020-07 → 2024-01 ended
MXPA11 LHD N —
47220-K0040 Reservoir Assy, Brake Master Cylinder
2020-07 → —
KSP211 RHD N;MXPA11 RHD +5 —
47220-K0040 Reservoir Assy, Brake Master Cylinder
2020-07 → 2024-01 ended
MXPA11 RHD 6F N —
47220-K0040 Reservoir Assy, Brake Master Cylinder
2020-07 → 2022-05 ended
KSP211 RHD R;MXPA11 RHD +1 —
47220-K0040 Reservoir Assy, Brake Master Cylinder
2020-07 → 2021-05 ended
KSP211 RHD G —
47220-K9005 Reservoir Assy, Brake Master Cylinder
2020-07 → 2024-01 ended
MXPH11 LHD R FRP;MXPH11 +2 —
47220-K9005 Reservoir Assy, Brake Master Cylinder
2020-07 → —
MXPH11 (G,R) CZEP;MXPH11 LHD +2 —
47220-K9015 Reservoir Assy, Brake Master Cylinder
2020-07 → 2024-01 ended
MXPH11 RHD (N,S,V) —
47220-K9015 Reservoir Assy, Brake Master Cylinder
2020-07 → —
MXPH11 RHD G —
47220-K9015 Reservoir Assy, Brake Master Cylinder
2020-07 → 2022-05 ended
MXPH11 RHD R —
47220-09390 Reservoir Assy, Brake Master Cylinder
2024-01 → —
MXPH11 R FRP;MXPH1# LHD +1 —
47220-K0030 Reservoir Assy, Brake Master Cylinder
2024-01 → 2024-07 ended
MXPA11 LHD N —
47220-K0040 Reservoir Assy, Brake Master Cylinder
2024-01 → 2024-07 ended
MXPA11 RHD 6F N —
47220-K9015 Reservoir Assy, Brake Master Cylinder
2024-01 → —
MXPH1# RHD (N,S,V) —
47230 — Cap Assy, Brake Master Cylinder Reservoir Filler
47230-0D180 Cap Assy, Brake Master Cylinder Reservoir Filler
2020-07 → 2021-05 ended
KSP211 G —
47230-0D180 Cap Assy, Brake Master Cylinder Reservoir Filler
2020-07 → —
KSP211 11 RHD RHD +10 —
47230-0D180 Cap Assy, Brake Master Cylinder Reservoir Filler
2020-07 → 2024-01 ended
MXPA11 6F N;MXPA11 LHD +2 —
47230-0D180 Cap Assy, Brake Master Cylinder Reservoir Filler
2020-07 → 2022-05 ended
KSP211 RHD R;MXPA11 RHD +1 —
47230-F4010 Cap Assy, Brake Master Cylinder Reservoir Filler
2020-07 → 2022-05 ended
MXPH11 RHD R —
47230-F4010 Cap Assy, Brake Master Cylinder Reservoir Filler
2020-07 → 2024-01 ended
MXPH11 N,S,V;MXPH11 LHD R +1 —
47230-F4010 Cap Assy, Brake Master Cylinder Reservoir Filler
2020-07 → —
MXPH11 G;MXPH11 R CZEP —
47230-0D180 Cap Assy, Brake Master Cylinder Reservoir Filler
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
47230-F4010 Cap Assy, Brake Master Cylinder Reservoir Filler
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
47255 — Grommet, Master Cylinder Reservoir
47255-09030 Grommet, Master Cylinder Reservoir
2020-07 → —
KSP211 11 RHD RHD +10 —
47255-09030 Grommet, Master Cylinder Reservoir
2020-07 → 2022-05 ended
KSP211 RHD R;MXPA11 RHD +1 —
47255-09030 Grommet, Master Cylinder Reservoir
2020-07 → 2024-01 ended
MXPA11 6F N;MXPA11 LHD +2 —
47255-09030 Grommet, Master Cylinder Reservoir
2020-07 → 2021-05 ended
KSP211 G —
47255-09040 Grommet, Master Cylinder Reservoir
2020-07 → 2024-01 ended
MXPH11 N,S,V;MXPH11 LHD R +1 —
47255-09040 Grommet, Master Cylinder Reservoir
2020-07 → —
MXPH11 G;MXPH11 R CZEP —
47255-09040 Grommet, Master Cylinder Reservoir
2020-07 → 2022-05 ended
MXPH11 RHD R —
47255-09030 Grommet, Master Cylinder Reservoir
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
47255-09040 Grommet, Master Cylinder Reservoir
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
47275 — Gasket, Brake Master Cylinder
47275-09010 Gasket, Brake Master Cylinder
2020-07 → 2024-01 ended
MXPH11 N,S,V;MXPH11 LHD R +1 —
47275-09010 Gasket, Brake Master Cylinder
2020-07 → —
MXPH11 G;MXPH11 R CZEP —
47275-09010 Gasket, Brake Master Cylinder
2020-07 → 2022-05 ended
MXPH11 RHD R —
47275-0D020 Gasket, Brake Master Cylinder
2020-07 → 2022-05 ended
KSP211 RHD R;MXPA11 RHD +1 —
47275-0D020 Gasket, Brake Master Cylinder
2020-07 → 2024-01 ended
MXPA11 6F N;MXPA11 LHD +2 —
47275-0D020 Gasket, Brake Master Cylinder
2020-07 → 2021-05 ended
KSP211 G —
47275-0D020 Gasket, Brake Master Cylinder
2020-07 → —
KSP211 11 RHD RHD +10 —
47275-09010 Gasket, Brake Master Cylinder
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
47275-0D020 Gasket, Brake Master Cylinder
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
47299 — Strainer, Brake Master Cylinder Reservoir
47299-02160 Strainer, Brake Master Cylinder Reservoir
2020-07 → 2022-05 ended
MXPH11 RHD R —
47299-02160 Strainer, Brake Master Cylinder Reservoir
2020-07 → 2024-01 ended
MXPH11 N,S,V;MXPH11 LHD R +1 —
47299-02160 Strainer, Brake Master Cylinder Reservoir
2020-07 → —
MXPH11 G;MXPH11 R CZEP —
47299-02160 Strainer, Brake Master Cylinder Reservoir
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
