Toyota Yaris(FRP)

2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

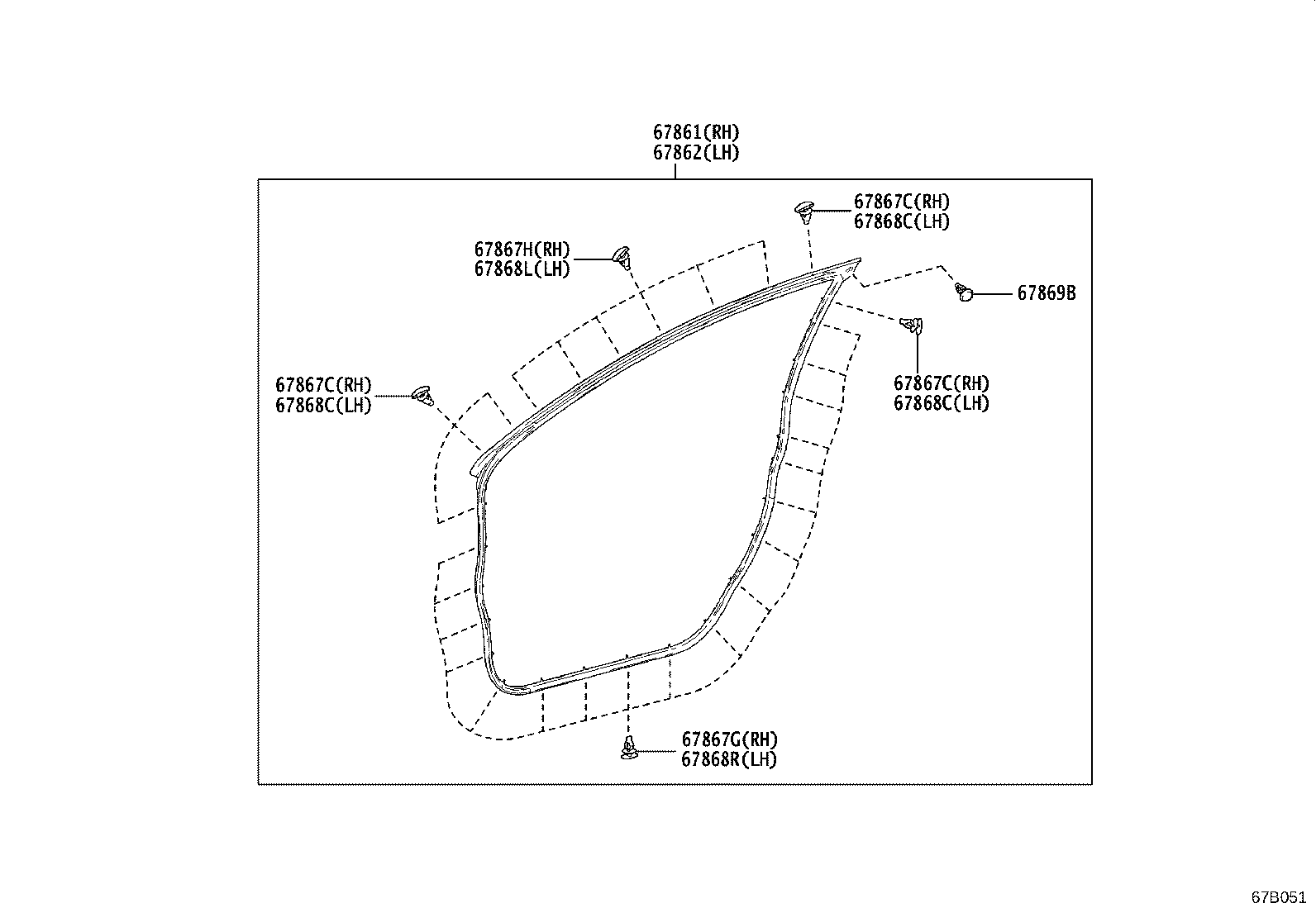

Exploded illustration 67B051 67861 — WEATHERSTRIP, FRONT DOOR, RH (9 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (9 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (7 parts) 67867G — RETAINER, DOOR WEATHERSTRIP, RH (7 parts) 67867H — RETAINER, DOOR WEATHERSTRIP, RH (7 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (7 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (7 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (7 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (7 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (7 parts) 67868L — RETAINER, DOOR WEATHERSTRIP, LH (7 parts) 67868R — RETAINER, FRONT DOOR WEATHERSTRIP, LH (7 parts) 67869B — CLIP, FRONT DOOR WEATHERSTRIP (7 parts)
67B051 · 13 callouts Full size ↗
67 parts on this figure
Part number Description Fitment Price
67861 — Weatherstrip, Front Door, RH
67861-0D260 Weatherstrip, Front Door, RH
2023-04 → —
KSP211,MXPA11,MXPH11 —
67861-0D260 note Weatherstrip, Front Door, RH
2023-04 → 2024-01 ended
KSP211,MXPH11 G,N,R,S —
67861-K0010 note Weatherstrip, Front Door, RH
2020-07 → 2021-06 ended
KSP211,MXPH11 RHD R —
67861-K0010 note Weatherstrip, Front Door, RH
2020-07 → 2020-09 ended
KSP211 G —
67861-K0010 Weatherstrip, Front Door, RH
2020-07 → 2023-03 ended
KSP211,MXPA11,MXPH11 —
67861-K0010 note Weatherstrip, Front Door, RH
2020-07 → 2023-03 ended
MXPH11 G,N,S;KSP211 RHD N;MXPH11 +4 —
67861-0D260 Weatherstrip, Front Door, RH
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
67861-0D260 Weatherstrip, Front Door, RH
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
67861-0D260 note Weatherstrip, Front Door, RH
2024-01 → —
MXPH11 N,S;MXPH11 R FRP —
67862 — Weatherstrip, Front Door, LH
67862-0D260 note Weatherstrip, Front Door, LH
2023-04 → 2024-01 ended
KSP211,MXPH11 G,N,R,S —
67862-0D260 Weatherstrip, Front Door, LH
2023-04 → —
KSP211,MXPA11,MXPH11 —
67862-K0010 note Weatherstrip, Front Door, LH
2020-07 → 2020-09 ended
KSP211 G —
67862-K0010 note Weatherstrip, Front Door, LH
2020-07 → 2021-06 ended
KSP211,MXPH11 RHD R —
67862-K0010 Weatherstrip, Front Door, LH
2020-07 → 2023-03 ended
KSP211,MXPA11,MXPH11 —
67862-K0010 note Weatherstrip, Front Door, LH
2020-07 → 2023-03 ended
MXPH11 G,N,S;KSP211 RHD N;MXPH11 +4 —
67862-0D260 Weatherstrip, Front Door, LH
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
67862-0D260 Weatherstrip, Front Door, LH
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
67862-0D260 note Weatherstrip, Front Door, LH
2024-01 → —
MXPH11 N,S;MXPH11 R FRP —
67867C — Retainer, Front Door Weatherstrip, RH
67867-30080 note Retainer, Front Door Weatherstrip, RH
2020-07 → 2021-06 ended
KSP211,MXPH11 RHD R —
67867-30080 Retainer, Front Door Weatherstrip, RH
2020-07 → —
KSP211,MXPA11,MXPH11 —
67867-30080 note Retainer, Front Door Weatherstrip, RH
2020-07 → 2024-01 ended
MXPH11 G,N,S;KSP211 RHD N;MXPH11 +4 —
67867-30080 note Retainer, Front Door Weatherstrip, RH
2020-07 → 2020-09 ended
KSP211 G —
67867-30080 Retainer, Front Door Weatherstrip, RH
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
67867-30080 Retainer, Front Door Weatherstrip, RH
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
67867-30080 note Retainer, Front Door Weatherstrip, RH
2024-01 → —
MXPH11 N,S;MXPH11 R FRP —
67867G — Retainer, Door Weatherstrip, RH
67867-12150 note Retainer, Door Weatherstrip, RH
2020-07 → 2020-09 ended
KSP211 G —
67867-12150 note Retainer, Door Weatherstrip, RH
2020-07 → 2021-06 ended
KSP211,MXPH11 RHD R —
67867-12150 note Retainer, Door Weatherstrip, RH
2020-07 → 2024-01 ended
MXPH11 G,N,S;KSP211 RHD N;MXPH11 +4 —
67867-12150 Retainer, Door Weatherstrip, RH
2020-07 → —
KSP211,MXPA11,MXPH11 —
67867-12150 Retainer, Door Weatherstrip, RH
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
67867-12150 Retainer, Door Weatherstrip, RH
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
67867-12150 note Retainer, Door Weatherstrip, RH
2024-01 → —
MXPH11 N,S;MXPH11 R FRP —
67867H — Retainer, Door Weatherstrip, RH
67867-52020 Retainer, Door Weatherstrip, RH
2020-07 → —
KSP211,MXPA11,MXPH11 —
67867-52020 note Retainer, Door Weatherstrip, RH
2020-07 → 2021-06 ended
KSP211,MXPH11 RHD R —
67867-52020 note Retainer, Door Weatherstrip, RH
2020-07 → 2020-09 ended
KSP211 G —
67867-52020 note Retainer, Door Weatherstrip, RH
2020-07 → 2024-01 ended
MXPH11 G,N,S;KSP211 RHD N;MXPH11 +4 —
67867-52020 Retainer, Door Weatherstrip, RH
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
67867-52020 Retainer, Door Weatherstrip, RH
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
67867-52020 note Retainer, Door Weatherstrip, RH
2024-01 → —
MXPH11 N,S;MXPH11 R FRP —
67868C — Retainer, Front Door Weatherstrip, LH
67867-30080 note Retainer, Front Door Weatherstrip, LH
2020-07 → 2020-09 ended
KSP211 G —
67867-30080 note Retainer, Front Door Weatherstrip, LH
2020-07 → 2021-06 ended
KSP211,MXPH11 RHD R —
67867-30080 note Retainer, Front Door Weatherstrip, LH
2020-07 → 2024-01 ended
MXPH11 G,N,S;KSP211 RHD N;MXPH11 +4 —
67867-30080 Retainer, Front Door Weatherstrip, LH
2020-07 → —
KSP211,MXPA11,MXPH11 —
67867-30080 Retainer, Front Door Weatherstrip, LH
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
67867-30080 note Retainer, Front Door Weatherstrip, LH
2024-01 → —
MXPH11 N,S;MXPH11 R FRP —
67867-30080 Retainer, Front Door Weatherstrip, LH
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
67868L — Retainer, Door Weatherstrip, LH
67867-52030 note Retainer, Door Weatherstrip, LH
2020-07 → 2020-09 ended
KSP211 G —
67867-52030 note Retainer, Door Weatherstrip, LH
2020-07 → 2021-06 ended
KSP211,MXPH11 RHD R —
67867-52030 note Retainer, Door Weatherstrip, LH
2020-07 → 2024-01 ended
MXPH11 G,N,S;KSP211 RHD N;MXPH11 +4 —
67867-52030 Retainer, Door Weatherstrip, LH
2020-07 → —
KSP211,MXPA11,MXPH11 —
67867-52030 Retainer, Door Weatherstrip, LH
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
67867-52030 note Retainer, Door Weatherstrip, LH
2024-01 → —
MXPH11 N,S;MXPH11 R FRP —
67867-52030 Retainer, Door Weatherstrip, LH
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
67868R — Retainer, Front Door Weatherstrip, LH
67867-12150 note Retainer, Front Door Weatherstrip, LH
2020-07 → 2020-09 ended
KSP211 G —
67867-12150 note Retainer, Front Door Weatherstrip, LH
2020-07 → 2021-06 ended
KSP211,MXPH11 RHD R —
67867-12150 note Retainer, Front Door Weatherstrip, LH
2020-07 → 2024-01 ended
MXPH11 G,N,S;KSP211 RHD N;MXPH11 +4 —
67867-12150 Retainer, Front Door Weatherstrip, LH
2020-07 → —
KSP211,MXPA11,MXPH11 —
67867-12150 Retainer, Front Door Weatherstrip, LH
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
67867-12150 Retainer, Front Door Weatherstrip, LH
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
67867-12150 note Retainer, Front Door Weatherstrip, LH
2024-01 → —
MXPH11 N,S;MXPH11 R FRP —
67869B — Clip, Front Door Weatherstrip
90467-06084 note Clip, Front Door Weatherstrip
2020-07 → 2020-09 ended
KSP211 G —
90467-06084 note Clip, Front Door Weatherstrip
2020-07 → 2021-06 ended
KSP211,MXPH11 RHD R —
90467-06084 note Clip, Front Door Weatherstrip
2020-07 → 2024-01 ended
MXPH11 G,N,S;KSP211 RHD N;MXPH11 +4 —
90467-06084 Clip, Front Door Weatherstrip
2020-07 → —
KSP211,MXPA11,MXPH11 —
90467-06084 Clip, Front Door Weatherstrip
2024-01 → 2024-07 ended
MXPA11 6F N;MXPA11 LHD +2 —
90467-06084 Clip, Front Door Weatherstrip
2024-01 → —
MXPH1# N,S,V;MXPH11 R FRP —
90467-06084 note Clip, Front Door Weatherstrip
2024-01 → —
MXPH11 N,S;MXPH11 R FRP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
