Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

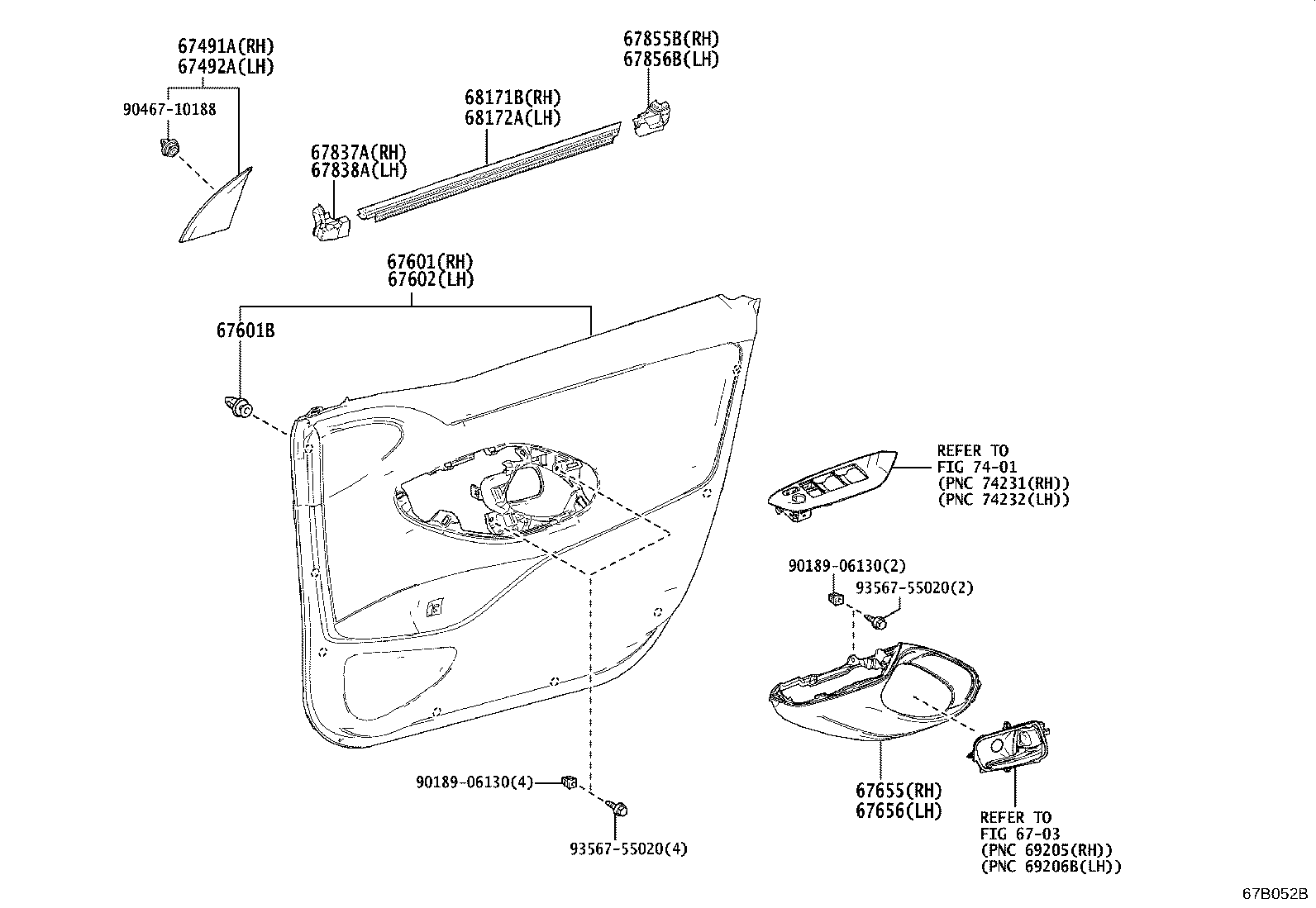

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67491A — Garnish, Front Door Lower Frame Bracket, RH | ||||
| 67491-K0030 |
Garnish, Front Door Lower Frame Bracket, RH
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 67491-K0030 |
Garnish, Front Door Lower Frame Bracket, RH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 67491-K0030 |
Garnish, Front Door Lower Frame Bracket, RH
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 67491-K0030 |
Garnish, Front Door Lower Frame Bracket, RH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67491-K0030 |
Garnish, Front Door Lower Frame Bracket, RH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67491-K0030 |
Garnish, Front Door Lower Frame Bracket, RH
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 67492A — Garnish, Front Door Lower Frame Bracket, LH | ||||
| 67492-K0030 |
Garnish, Front Door Lower Frame Bracket, LH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67492-K0030 |
Garnish, Front Door Lower Frame Bracket, LH
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 67492-K0030 |
Garnish, Front Door Lower Frame Bracket, LH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 67492-K0030 |
Garnish, Front Door Lower Frame Bracket, LH
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 67492-K0030 |
Garnish, Front Door Lower Frame Bracket, LH
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 67492-K0030 |
Garnish, Front Door Lower Frame Bracket, LH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-0DU50-C5 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2024-01
ended
|
MXPH11 R FRP | — | |
| 67610-0DU50-C5 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2024-01
ended
|
MXPH11 N FRP | — | |
| 67610-0DU50-C5 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2024-01
ended
|
MXPH11 S FRP | — | |
| 67610-0DU50-C5 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → —
|
MXPH11 G FRP | — | |
| 67610-0DU50-C5 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → —
|
KSP211 N FRP | — | |
| 67610-0DU50-C5 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → —
|
KSP211 R FRP | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → —
|
MXPH11 G FRP;MXPA11 LHD +2 | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2023-01
ended
|
MXPA11,MXPH11 S FRP | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2024-01
ended
|
MXPH11 N FRP | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2024-01
ended
|
MXPA11 6F N FRP;MXPA11 +4 | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2023-01 → 2024-01
ended
|
MXPH11 S FRP | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → —
|
KSP211 N FRP | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → —
|
MXPA11 RHD CVT N | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2023-01 → —
|
MXPA11 S FRP | — | |
| 67610-0DU50-C7 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2023-01
ended
|
KSP211,MXPA11,MXPH11 N FRP | — | |
| 67610-0DU50-C8 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2023-01
ended
|
MXPA11,MXPH11 S FRP | — | |
| 67610-0DU60-C2 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2024-01
ended
|
MXPH11 N FRP;MXPA11 6F +6 | — | |
| 67610-0DU60-C2 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2024-01
ended
|
MXPH11 N FRP;MXPA11 6F +6 | — | |
| 67610-0DU60-C2 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → 2024-01
ended
|
MXPH11 V | — | |
| 67610-0DU60-C2 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → —
|
MXPA11 V | — | |
| 67610-0DU60-C2 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → —
|
KSP211 N FRP;MXPA11 RHD +2 | — | |
| 67610-0DU60-C2 note |
Board Sub-assy, Front Door Trim, RH
2022-05 → —
|
KSP211 N FRP;MXPA11 RHD +2 | — | |
| 67610-0DU70-C3 note |
Board Sub-assy, Front Door Trim, RH
2022-04 → 2024-01
ended
|
MXPH11 S CZEP | — | |
| 67610-0DU70-C3 note |
Board Sub-assy, Front Door Trim, RH
2022-04 → 2024-01
ended
|
MXPH11 N CZEP | — | |
| 67610-0DU70-C3 note |
Board Sub-assy, Front Door Trim, RH
2022-04 → —
|
MXPH11 G CZEP | — | |
| 67610-0DU70-C3 note |
Board Sub-assy, Front Door Trim, RH
2022-04 → —
|
KSP211,MXPH11 R CZEP | — | |
| 67610-0DU70-C3 note |
Board Sub-assy, Front Door Trim, RH
2022-04 → —
|
KSP211 N CZEP | — | |
| 67610-0DU70-C4 note |
Board Sub-assy, Front Door Trim, RH
2022-04 → 2024-01
ended
|
MXPH11 N CZEP | — | |
| 67610-0DU70-C4 note |
Board Sub-assy, Front Door Trim, RH
2022-04 → 2024-01
ended
|
MXPA11 N CZEP;MXPH11 S +1 | — | |
| 67610-0DU70-C4 note |
Board Sub-assy, Front Door Trim, RH
2022-07 → —
|
MXPA11,MXPH11 G CZEP | — | |
| 67610-0DU70-C4 note |
Board Sub-assy, Front Door Trim, RH
2022-04 → —
|
MXPA11 S CZEP | — | |
| 67610-0DU70-C4 note |
Board Sub-assy, Front Door Trim, RH
2022-04 → —
|
KSP211 N CZEP | — | |
| 67610-K0100-C0 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-04
ended
|
MXPH11 S CZEP | — | |
| 67610-K0100-C0 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-04
ended
|
KSP211,MXPH11 N CZEP | — | |
| 67610-K0100-C0 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
MXPA11,MXPH11 S FRP | — | |
| 67610-K0100-C0 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
MXPA11 N | — | |
| 67610-K0100-C0 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
KSP211,MXPH11 N FRP | — | |
| 67610-K0100-C1 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
KSP211,MXPA11,MXPH11 N FRP | — | |
| 67610-K0100-C2 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
MXPA11,MXPH11 S FRP | — | |
| 67610-K0100-C4 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
KSP211,MXPH11 R FRP | — | |
| 67610-K0100-C4 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-04
ended
|
KSP211,MXPH11 N CZEP | — | |
| 67610-K0100-C4 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-04
ended
|
KSP211,MXPH11 R CZEP | — | |
| 67610-K0100-C4 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-04
ended
|
MXPH11 S CZEP | — | |
| 67610-K0100-C4 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
MXPH11 (G,S) FRP | — | |
| 67610-K0100-C4 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67610-K0100-C4 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
KSP211,MXPH11 N FRP | — | |
| 67610-K0100-C5 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
MXPA11,MXPH11 G | — | |
| 67610-K0100-C5 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67610-K0300-C1 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
KSP211,MXPA11,MXPH11 N FRP | — | |
| 67610-K0300-C1 note |
Board Sub-assy, Front Door Trim, RH
2020-07 → 2022-05
ended
|
KSP211,MXPA11,MXPH11 N FRP | — | |
| 67610-K0300-C3 note |
Board Sub-assy, Front Door Trim, RH
2022-03 → 2022-05
ended
|
MXPA11,MXPH11 V | — | |
| 67610-0DU50-20 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH1# S FRP | — | |
| 67610-0DU50-C5 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH11 S FRP | — | |
| 67610-0DU50-C5 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH11 N FRP | — | |
| 67610-0DU50-C5 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH11 R FRP | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → 2024-07
ended
|
MXPA11 6F N FRP;MXPA11 +4 | — | |
| 67610-0DU50-C6 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH1# (N,S) FRP | — | |
| 67610-0DU60-C2 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH1# V | — | |
| 67610-0DU70-C3 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH11 N CZEP | — | |
| 67610-0DU70-C3 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH11 S CZEP | — | |
| 67610-0DU70-C4 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → 2024-07
ended
|
MXPA11 N CZEP | — | |
| 67610-0DU70-C4 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH1# (N,S) CZEP | — | |
| 67610-0DU70-C6 note |
Board Sub-assy, Front Door Trim, RH
2024-01 → —
|
MXPH1# S CZEP | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-W0010 |
Clip(FOR FRONT DOOR TRIM BOARD)
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 90467-W0010 |
Clip(FOR FRONT DOOR TRIM BOARD)
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 90467-W0010 |
Clip(FOR FRONT DOOR TRIM BOARD)
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 90467-W0010 |
Clip(FOR FRONT DOOR TRIM BOARD)
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 90467-W0010 |
Clip(FOR FRONT DOOR TRIM BOARD)
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 90467-W0010 |
Clip(FOR FRONT DOOR TRIM BOARD)
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-0DU50-C5 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → —
|
MXPH11 G FRP | — | |
| 67620-0DU50-C5 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → —
|
KSP211 N FRP | — | |
| 67620-0DU50-C5 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → —
|
KSP211 R FRP | — | |
| 67620-0DU50-C5 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2024-01
ended
|
MXPH11 S FRP | — | |
| 67620-0DU50-C5 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2024-01
ended
|
MXPH11 N FRP | — | |
| 67620-0DU50-C5 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2024-01
ended
|
MXPH11 R FRP | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2024-01
ended
|
MXPA11 6F N FRP;MXPA11 +4 | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2024-01
ended
|
MXPH11 N FRP | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → —
|
KSP211 N FRP | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2023-01 → 2024-01
ended
|
MXPH11 S FRP | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2023-01 → —
|
MXPA11 S FRP | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → —
|
MXPA11 RHD CVT N | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2023-01
ended
|
MXPA11,MXPH11 S FRP | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → —
|
MXPH11 G FRP;MXPA11 LHD +2 | — | |
| 67620-0DU50-C7 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2023-01
ended
|
KSP211,MXPA11,MXPH11 N FRP | — | |
| 67620-0DU50-C8 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2023-01
ended
|
MXPA11,MXPH11 S FRP | — | |
| 67620-0DU60-C2 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2024-01
ended
|
MXPH11 N FRP;MXPA11 6F +6 | — | |
| 67620-0DU60-C2 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2024-01
ended
|
MXPH11 V | — | |
| 67620-0DU60-C2 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → 2024-01
ended
|
MXPH11 N FRP;MXPA11 6F +6 | — | |
| 67620-0DU60-C2 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → —
|
MXPA11 V | — | |
| 67620-0DU60-C2 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → —
|
KSP211 N FRP;MXPA11 RHD +2 | — | |
| 67620-0DU60-C2 note |
Board Sub-assy, Front Door Trim, LH
2022-05 → —
|
KSP211 N FRP;MXPA11 RHD +2 | — | |
| 67620-0DU70-C3 note |
Board Sub-assy, Front Door Trim, LH
2022-04 → 2024-01
ended
|
MXPH11 N CZEP | — | |
| 67620-0DU70-C3 note |
Board Sub-assy, Front Door Trim, LH
2022-04 → 2024-01
ended
|
MXPH11 S CZEP | — | |
| 67620-0DU70-C3 note |
Board Sub-assy, Front Door Trim, LH
2022-04 → —
|
KSP211,MXPH11 R CZEP | — | |
| 67620-0DU70-C3 note |
Board Sub-assy, Front Door Trim, LH
2022-04 → —
|
KSP211 N CZEP | — | |
| 67620-0DU70-C3 note |
Board Sub-assy, Front Door Trim, LH
2022-04 → —
|
MXPH11 G CZEP | — | |
| 67620-0DU70-C4 note |
Board Sub-assy, Front Door Trim, LH
2022-04 → 2024-01
ended
|
MXPH11 N CZEP | — | |
| 67620-0DU70-C4 note |
Board Sub-assy, Front Door Trim, LH
2022-04 → 2024-01
ended
|
MXPA11 N CZEP;MXPH11 S +1 | — | |
| 67620-0DU70-C4 note |
Board Sub-assy, Front Door Trim, LH
2022-07 → —
|
MXPA11,MXPH11 G CZEP | — | |
| 67620-0DU70-C4 note |
Board Sub-assy, Front Door Trim, LH
2022-04 → —
|
KSP211 N CZEP | — | |
| 67620-0DU70-C4 note |
Board Sub-assy, Front Door Trim, LH
2022-04 → —
|
MXPA11 S CZEP | — | |
| 67620-K0100-C0 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-04
ended
|
MXPH11 S CZEP | — | |
| 67620-K0100-C0 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-04
ended
|
KSP211,MXPH11 N CZEP | — | |
| 67620-K0100-C0 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
KSP211,MXPH11 N FRP | — | |
| 67620-K0100-C0 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
MXPA11 N | — | |
| 67620-K0100-C0 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
MXPA11,MXPH11 S FRP | — | |
| 67620-K0100-C1 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
KSP211,MXPA11,MXPH11 N FRP | — | |
| 67620-K0100-C2 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
MXPA11,MXPH11 S FRP | — | |
| 67620-K0100-C4 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-04
ended
|
MXPH11 S CZEP | — | |
| 67620-K0100-C4 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67620-K0100-C4 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
KSP211,MXPH11 R FRP | — | |
| 67620-K0100-C4 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-04
ended
|
KSP211,MXPH11 N CZEP | — | |
| 67620-K0100-C4 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-04
ended
|
KSP211,MXPH11 R CZEP | — | |
| 67620-K0100-C4 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
KSP211,MXPH11 N FRP | — | |
| 67620-K0100-C4 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
MXPH11 (G,S) FRP | — | |
| 67620-K0100-C5 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67620-K0100-C5 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
MXPA11,MXPH11 G | — | |
| 67620-K0300-C1 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
KSP211,MXPA11,MXPH11 N FRP | — | |
| 67620-K0300-C1 note |
Board Sub-assy, Front Door Trim, LH
2020-07 → 2022-05
ended
|
KSP211,MXPA11,MXPH11 N FRP | — | |
| 67620-K0300-C3 note |
Board Sub-assy, Front Door Trim, LH
2022-03 → 2022-05
ended
|
MXPA11,MXPH11 V | — | |
| 67620-0DU50-20 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH1# S FRP | — | |
| 67620-0DU50-C5 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH11 R FRP | — | |
| 67620-0DU50-C5 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH11 N FRP | — | |
| 67620-0DU50-C5 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH11 S FRP | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → 2024-07
ended
|
MXPA11 6F N FRP;MXPA11 +4 | — | |
| 67620-0DU50-C6 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH1# (N,S) FRP | — | |
| 67620-0DU60-C2 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH1# V | — | |
| 67620-0DU70-C3 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH11 N CZEP | — | |
| 67620-0DU70-C3 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH11 S CZEP | — | |
| 67620-0DU70-C4 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → 2024-07
ended
|
MXPA11 N CZEP | — | |
| 67620-0DU70-C4 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH1# (N,S) CZEP | — | |
| 67620-0DU70-C6 note |
Board Sub-assy, Front Door Trim, LH
2024-01 → —
|
MXPH1# S CZEP | — | |
| 67655 — Garnish, Front Door Trim, RH | ||||
| 67655-K0050-20 note |
Garnish, Front Door Trim, RH
2022-03 → 2024-01
ended
|
MXPH11 V | — | |
| 67655-K0050-20 note |
Garnish, Front Door Trim, RH
2022-03 → —
|
MXPA11 V | — | |
| 67655-K0050-C1 note |
Garnish, Front Door Trim, RH
2020-07 → 2023-01
ended
|
MXPA11 N FRP;KSP211,MXPH11 N | — | |
| 67655-K0050-C2 note |
Garnish, Front Door Trim, RH
2020-07 → 2021-06
ended
|
MXPA11 S | — | |
| 67655-K0050-C2 note |
Garnish, Front Door Trim, RH
2020-07 → 2021-06
ended
|
MXPH11 S | — | |
| 67655-K0050-C2 note |
Garnish, Front Door Trim, RH
2020-07 → 2024-01
ended
|
MXPH11 N | — | |
| 67655-K0050-C2 note |
Garnish, Front Door Trim, RH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67655-K0050-C2 note |
Garnish, Front Door Trim, RH
2020-07 → —
|
KSP211 N | — | |
| 67655-K0050-C2 note |
Garnish, Front Door Trim, RH
2020-07 → —
|
MXPA11 RHD CVT N | — | |
| 67655-K0050-C3 note |
Garnish, Front Door Trim, RH
2020-07 → 2024-01
ended
|
MXPH11 N;MXPA11 6F N +5 | — | |
| 67655-K0050-C3 note |
Garnish, Front Door Trim, RH
2020-07 → —
|
KSP211 N;MXPA11 RHD CVT +1 | — | |
| 67655-K0050-C4 note |
Garnish, Front Door Trim, RH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67655-K0050-C4 note |
Garnish, Front Door Trim, RH
2020-07 → 2022-05
ended
|
MXPA11 RHD G | — | |
| 67655-K0050-C4 note |
Garnish, Front Door Trim, RH
2020-07 → —
|
MXPH11 G;MXPA11 LHD G | — | |
| 67655-K0050-C5 note |
Garnish, Front Door Trim, RH
2020-07 → —
|
KSP211 N | — | |
| 67655-K0050-C5 note |
Garnish, Front Door Trim, RH
2020-07 → —
|
MXPH11 G;KSP211 LHD R;MXPH11 +2 | — | |
| 67655-K0050-C5 note |
Garnish, Front Door Trim, RH
2020-07 → 2024-01
ended
|
MXPH11 N | — | |
| 67655-K0050-C5 note |
Garnish, Front Door Trim, RH
2020-07 → 2024-01
ended
|
MXPH11 LHD R FRP | — | |
| 67655-K0050-C5 note |
Garnish, Front Door Trim, RH
2020-07 → 2022-05
ended
|
KSP211,MXPH11 RHD R | — | |
| 67655-K0050-C5 note |
Garnish, Front Door Trim, RH
2020-07 → 2021-06
ended
|
MXPH11 S | — | |
| 67655-K0050-C5 note |
Garnish, Front Door Trim, RH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67655-K0110-C0 note |
Garnish, Front Door Trim, RH
2020-07 → 2024-01
ended
|
MXPH11 S FRP | — | |
| 67655-K0110-C0 note |
Garnish, Front Door Trim, RH
2020-07 → —
|
MXPA11 S | — | |
| 67655-K0110-C0 note |
Garnish, Front Door Trim, RH
2021-11 → 2024-01
ended
|
MXPH11 S CZEP | — | |
| 67655-K0110-C2 note |
Garnish, Front Door Trim, RH
2020-07 → 2024-01
ended
|
MXPH11 S | — | |
| 67655-K0050-20 note |
Garnish, Front Door Trim, RH
2024-01 → —
|
MXPH1# V | — | |
| 67655-K0050-C2 note |
Garnish, Front Door Trim, RH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67655-K0050-C2 note |
Garnish, Front Door Trim, RH
2024-01 → —
|
MXPH11 N | — | |
| 67655-K0050-C5 note |
Garnish, Front Door Trim, RH
2024-01 → —
|
MXPH11 R FRP | — | |
| 67655-K0050-C5 note |
Garnish, Front Door Trim, RH
2024-01 → —
|
MXPH11 N | — | |
| 67655-K0110-C0 note |
Garnish, Front Door Trim, RH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67655-K0110-C0 note |
Garnish, Front Door Trim, RH
2024-01 → —
|
MXPH11 N | — | |
| 67655-K0110-C0 note |
Garnish, Front Door Trim, RH
2024-01 → —
|
MXPH1# S | — | |
| 67656 — Garnish, Door Trim, LH | ||||
| 67656-K0050-20 note |
Garnish, Door Trim, LH
2022-03 → —
|
MXPA11 V | — | |
| 67656-K0050-20 note |
Garnish, Door Trim, LH
2022-03 → 2024-01
ended
|
MXPH11 V | — | |
| 67656-K0050-C1 note |
Garnish, Door Trim, LH
2020-07 → 2023-01
ended
|
MXPA11 N FRP;KSP211,MXPH11 N | — | |
| 67656-K0050-C2 note |
Garnish, Door Trim, LH
2020-07 → 2021-06
ended
|
MXPH11 S | — | |
| 67656-K0050-C2 note |
Garnish, Door Trim, LH
2020-07 → 2024-01
ended
|
MXPH11 N | — | |
| 67656-K0050-C2 note |
Garnish, Door Trim, LH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67656-K0050-C2 note |
Garnish, Door Trim, LH
2020-07 → —
|
KSP211 N | — | |
| 67656-K0050-C2 note |
Garnish, Door Trim, LH
2020-07 → 2021-06
ended
|
MXPA11 S | — | |
| 67656-K0050-C2 note |
Garnish, Door Trim, LH
2020-07 → —
|
MXPA11 RHD CVT N | — | |
| 67656-K0050-C3 note |
Garnish, Door Trim, LH
2020-07 → 2024-01
ended
|
MXPH11 N;MXPA11 6F N +5 | — | |
| 67656-K0050-C3 note |
Garnish, Door Trim, LH
2020-07 → —
|
KSP211 N;MXPA11 RHD CVT +1 | — | |
| 67656-K0050-C4 note |
Garnish, Door Trim, LH
2020-07 → 2022-05
ended
|
MXPA11 RHD G | — | |
| 67656-K0050-C4 note |
Garnish, Door Trim, LH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67656-K0050-C4 note |
Garnish, Door Trim, LH
2020-07 → —
|
MXPH11 G;MXPA11 LHD G | — | |
| 67656-K0050-C5 note |
Garnish, Door Trim, LH
2020-07 → 2021-06
ended
|
MXPH11 S | — | |
| 67656-K0050-C5 note |
Garnish, Door Trim, LH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67656-K0050-C5 note |
Garnish, Door Trim, LH
2020-07 → —
|
MXPH11 G;KSP211 LHD R;MXPH11 +2 | — | |
| 67656-K0050-C5 note |
Garnish, Door Trim, LH
2020-07 → —
|
KSP211 N | — | |
| 67656-K0050-C5 note |
Garnish, Door Trim, LH
2020-07 → 2024-01
ended
|
MXPH11 N | — | |
| 67656-K0050-C5 note |
Garnish, Door Trim, LH
2020-07 → 2024-01
ended
|
MXPH11 LHD R FRP | — | |
| 67656-K0050-C5 note |
Garnish, Door Trim, LH
2020-07 → 2022-05
ended
|
KSP211,MXPH11 RHD R | — | |
| 67656-K0110-C0 note |
Garnish, Door Trim, LH
2021-11 → 2024-01
ended
|
MXPH11 S CZEP | — | |
| 67656-K0110-C0 note |
Garnish, Door Trim, LH
2020-07 → 2024-01
ended
|
MXPH11 S FRP | — | |
| 67656-K0110-C0 note |
Garnish, Door Trim, LH
2020-07 → —
|
MXPA11 S | — | |
| 67656-K0110-C2 note |
Garnish, Door Trim, LH
2020-07 → 2024-01
ended
|
MXPH11 S | — | |
| 67656-K0050-20 note |
Garnish, Door Trim, LH
2024-01 → —
|
MXPH1# V | — | |
| 67656-K0050-C2 note |
Garnish, Door Trim, LH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67656-K0050-C2 note |
Garnish, Door Trim, LH
2024-01 → —
|
MXPH11 N | — | |
| 67656-K0050-C5 note |
Garnish, Door Trim, LH
2024-01 → —
|
MXPH11 R FRP | — | |
| 67656-K0050-C5 note |
Garnish, Door Trim, LH
2024-01 → —
|
MXPH11 N | — | |
| 67656-K0110-C0 note |
Garnish, Door Trim, LH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67656-K0110-C0 note |
Garnish, Door Trim, LH
2024-01 → —
|
MXPH11 N | — | |
| 67656-K0110-C0 note |
Garnish, Door Trim, LH
2024-01 → —
|
MXPH1# S | — | |
| 67837A — Seal, Front Door Vent, RH | ||||
| 67837-K0010 |
Seal, Front Door Vent, RH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67837-K0010 |
Seal, Front Door Vent, RH
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 67837-K0010 |
Seal, Front Door Vent, RH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 67837-K0010 |
Seal, Front Door Vent, RH
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 67837-K0010 |
Seal, Front Door Vent, RH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67837-K0010 |
Seal, Front Door Vent, RH
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 67838A — Seal, Front Door Vent, LH | ||||
| 67838-K0010 |
Seal, Front Door Vent, LH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67838-K0010 |
Seal, Front Door Vent, LH
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 67838-K0010 |
Seal, Front Door Vent, LH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 67838-K0010 |
Seal, Front Door Vent, LH
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 67838-K0010 |
Seal, Front Door Vent, LH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67838-K0010 |
Seal, Front Door Vent, LH
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 67855B — Protector, Front Door Panel, RH | ||||
| 67855-K0010 |
Protector, Front Door Panel, RH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67855-K0010 |
Protector, Front Door Panel, RH
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 67855-K0010 |
Protector, Front Door Panel, RH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 67855-K0010 |
Protector, Front Door Panel, RH
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 67855-K0010 |
Protector, Front Door Panel, RH
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 67855-K0010 |
Protector, Front Door Panel, RH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67856B — Protector, Front Door Panel, LH | ||||
| 67856-K0010 |
Protector, Front Door Panel, LH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 67856-K0010 |
Protector, Front Door Panel, LH
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 67856-K0010 |
Protector, Front Door Panel, LH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 67856-K0010 |
Protector, Front Door Panel, LH
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 67856-K0010 |
Protector, Front Door Panel, LH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 67856-K0010 |
Protector, Front Door Panel, LH
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 68171B — Weatherstrip, Front Door Glass, Inner RH | ||||
| 68171-0D370 |
Weatherstrip, Front Door Glass, Inner RH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 68171-0D370 |
Weatherstrip, Front Door Glass, Inner RH
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 68171-0D370 |
Weatherstrip, Front Door Glass, Inner RH
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 68171-0D370 |
Weatherstrip, Front Door Glass, Inner RH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 68171-0D371 |
Weatherstrip, Front Door Glass, Inner RH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 68171-0D371 |
Weatherstrip, Front Door Glass, Inner RH
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
| 68172A — Weatherstrip, Front Door Glass, Inner LH | ||||
| 68172-0D370 |
Weatherstrip, Front Door Glass, Inner LH
2020-07 → 2021-05
ended
|
KSP211 G | — | |
| 68172-0D370 |
Weatherstrip, Front Door Glass, Inner LH
2020-07 → 2022-05
ended
|
MXPA11 RHD G;KSP211,MXPH11 RHD +1 | — | |
| 68172-0D370 |
Weatherstrip, Front Door Glass, Inner LH
2020-07 → 2024-01
ended
|
MXPA11 6F N;MXPH11 N,S,V;MXPA11 +6 | — | |
| 68172-0D370 |
Weatherstrip, Front Door Glass, Inner LH
2020-07 → —
|
MXPH11 XPA11 G;KSP211 RHD +13 | — | |
| 68172-0D371 |
Weatherstrip, Front Door Glass, Inner LH
2024-01 → 2024-07
ended
|
MXPA11 6F N;MXPA11 LHD +2 | — | |
| 68172-0D371 |
Weatherstrip, Front Door Glass, Inner LH
2024-01 → —
|
MXPH1# N,S,V;MXPH11 R FRP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
