Toyota Yaris(FRP)
2020-07 → present · chassis KSP211,MXPA11,MXPH1# · catalogue 116550 · Europe
Supported model
Data version 2023-12

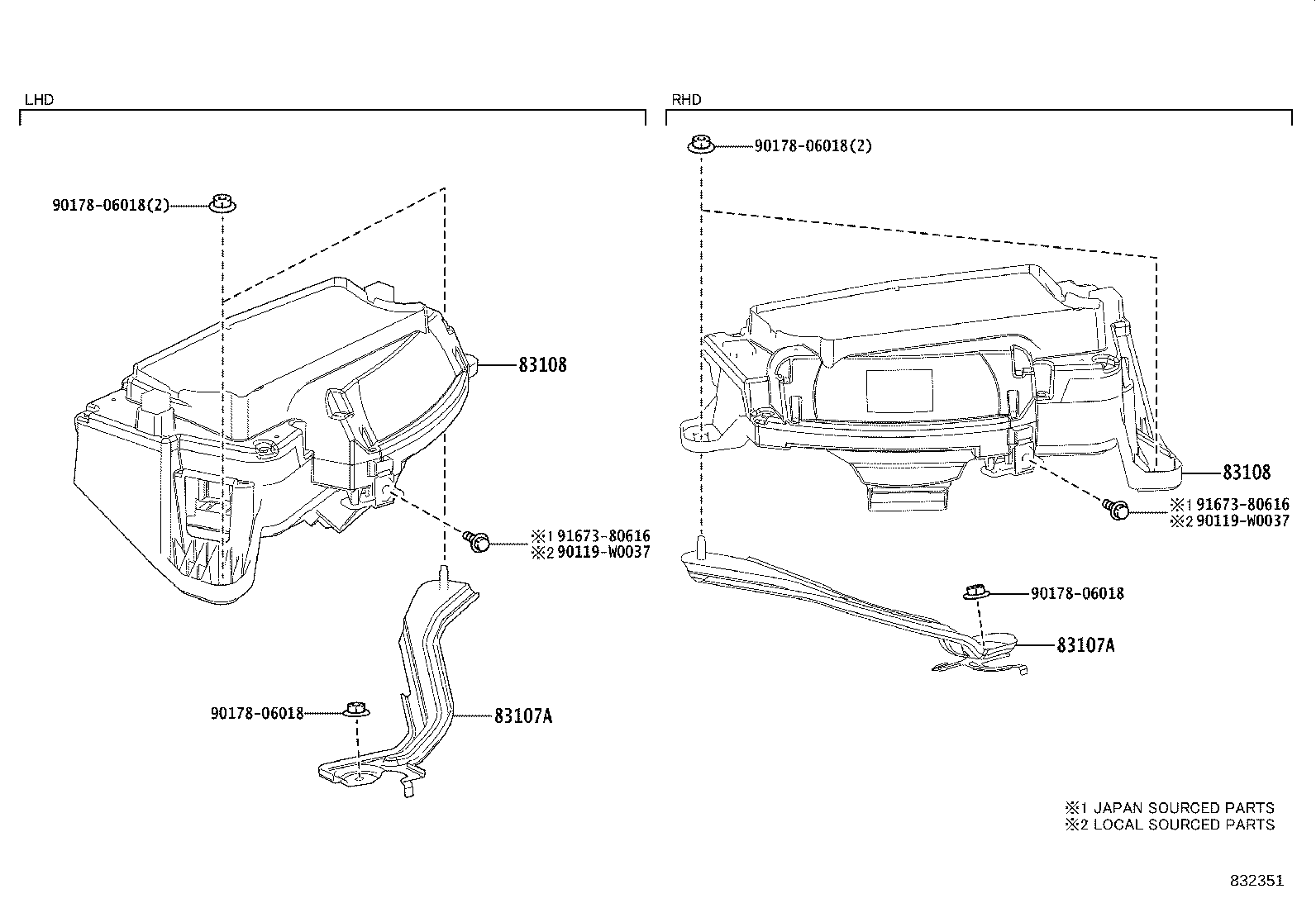

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83107A — Bracket Sub-assy, Meter, NO.1 | ||||
| 83107-K0011 note |
Bracket Sub-assy, Meter, NO.1
2020-07 → 2024-01
ended
|
MXPA11 LHD N;MXPH11 LHD +1 | — | |
| 83107-K0011 note |
Bracket Sub-assy, Meter, NO.1
2020-07 → —
|
KSP211 LHD N;MXPH11 LHD +3 | — | |
| 83107-K0011 note |
Bracket Sub-assy, Meter, NO.1
2020-07 → 2021-05
ended
|
KSP211 LHD G | — | |
| 83107-K0051 note |
Bracket Sub-assy, Meter, NO.1
2020-07 → 2021-05
ended
|
KSP211 RHD G | — | |
| 83107-K0051 note |
Bracket Sub-assy, Meter, NO.1
2020-07 → 2022-05
ended
|
MXPA11 RHD (G,N);KSP211,MXPH11 RHD +1 | — | |
| 83107-K0051 note |
Bracket Sub-assy, Meter, NO.1
2020-07 → 2024-01
ended
|
MXPH11 RHD (S,V) | — | |
| 83107-K0051 note |
Bracket Sub-assy, Meter, NO.1
2020-07 → —
|
MXPH11 RHD G;MXPA11 RHD +1 | — | |
| 83107-K0011 note |
Bracket Sub-assy, Meter, NO.1
2024-01 → —
|
MXPH1# LHD (N,S,V) | — | |
| 83107-K0051 note |
Bracket Sub-assy, Meter, NO.1
2024-01 → —
|
MXPH1# RHD (S,V) | — | |
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-K0010 note |
Mirror Sub-assy, Meter
2020-07 → 2021-05
ended
|
KSP211 LHD G | — | |
| 83108-K0010 note |
Mirror Sub-assy, Meter
2020-07 → 2024-01
ended
|
MXPA11 LHD N;MXPH11 LHD +1 | — | |
| 83108-K0010 note |
Mirror Sub-assy, Meter
2020-07 → —
|
KSP211 LHD N;MXPH11 LHD +3 | — | |
| 83108-K0020 note |
Mirror Sub-assy, Meter
2020-07 → 2021-05
ended
|
KSP211 RHD G | — | |
| 83108-K0020 note |
Mirror Sub-assy, Meter
2020-07 → —
|
MXPH11 RHD G;MXPA11 RHD +1 | — | |
| 83108-K0020 note |
Mirror Sub-assy, Meter
2020-07 → 2024-01
ended
|
MXPH11 RHD (S,V) | — | |
| 83108-K0020 note |
Mirror Sub-assy, Meter
2020-07 → 2022-05
ended
|
MXPA11 RHD (G,N);KSP211,MXPH11 RHD +1 | — | |
| 83108-0D030 note |
Mirror Sub-assy, Meter
2024-01 → 2024-08
ended
|
MXPH1# LHD (N,S,V) | — | |
| 83108-0D031 note |
Mirror Sub-assy, Meter
2024-09 → —
|
MXPH1# LHD (N,S,V) | — | |
| 83108-0D040 note |
Mirror Sub-assy, Meter
2024-01 → 2024-08
ended
|
MXPH1# RHD (S,V) | — | |
| 83108-0D041 note |
Mirror Sub-assy, Meter
2024-09 → —
|
MXPH1# RHD (S,V) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
